| Chassis |
| Spartan Mountain Master chassis |
| Chassis Battery |
| (2) chassis batteries |
| Hitch |
| 15,000-lb. hitch with 7-pin plug |
| Engine |
| Cummins ISL turbocharged 450 HP engine 1,250 lb-ft torque at 1,400 RPM |
| Engine Block Heater |
| Yes |
| Fuel Tank |
| 100-gal. fuel tank (dual fill) |
| DEF Tank |
| 10-gallon DEF tank |
| Transmission |
| Allison 3000 MH 6-speed transmission |
| Alternator |
| 170-amp alternator |
| Radiator |
| Side-mounted radiator |
| Front Axle |
| Front axle I-beam 15,660-lb. wide track |
| Rear Axle |
| 20,000-lb |
| Rear Axle Ratio |
| 4.88 "Quiet Gear" rear axle ratio |
| Tag Axle |
| 12,000-lb: auto weight release |
| Tires |
| Goodyear G670 295/80R 22.5 tires (Front) + G670 275/80R 22.5 tires (Rear) |
| Turning Radius |
| 52-degree wheel cut |
| Braking System |
| All-wheel ABS brakes; Pre-wired for electric brake controller: Two-stage Jake brake |
| Shocks |
| Front/Rear |
| Front Suspension |
| Reyco Granning 240 AR trailing arm air suspension |
| Air Connection |
| Remote air connection |
| Frame |
| X-Bridge frames welded into chassis frame; Steel-reinforced front cap and windshield frame |
| Underbelly |
| Enclosed, insulated and heated floor, and thermostat controlled heating in storage area |
| Floor |
| 2" x 4" floor truss construction; 3/4" (7) plywood main floor decking |
| Walls |
| Aluma-Tru Superstructure construction on 12"-16" centers; 2-1/2" wall with welded tubular construction; Sidewalls bolted to chassis frame structure; Smooth high-gloss, gel-coat fiberglass exterior walls |
| Insulation |
| Polar Pack insulation with reflective Flexfoil floor (R-26), roof (R-29), sidewalls (R-13), front and end caps (R-28) |
| Slideouts |
| Frameless, flush-mounted slideout rooms; Electric-powered slideouts |
| Roof |
| One-piece, fiberglass, 4-1/2" arched aluminum truss roof; fully decked roof with 3/8" plywood |
| Water Monitoring |
| Yes |
| Air Conditioning |
| 15,000-BTU low profile central A/Cs (3) with heat pump, digital thermostat and drain tubes (2 A/Cs 39E); Dual insulated ceiling air ducts with adjustable air vents |
| Electrical Hookup |
| 2,800-watt Pure Sine wave inverter with (4) 6V batteries; 50-amp electric service; 50-amp quick-connect power cord with power reel; Surge protector transfer switch; Energy Management System |
| Generator |
| Onan 10,000-watt diesel generator with auto gen start on slide-out tray |
| Heating System |
| Aqua-Hot 400-LP hydronic water and heating system with in-floor heat throughout |
| Batteries |
| Holding and fresh water tanks, radiant-heat; Black holding tank sprayer |
| Power Management |
| Hookup for city water |
| Water Hose w/ Electric Reel |
| 12V on-demand water pump with two switch locations; Power auto rewind water hose |
| Tank Flush |
| Total coach dual system water filter |
| Black Tank Management |
| SeeLeveL tank monitoring system; Systems monitor panel |
| Water Filtration |
| Yes |
| Mirrors |
| Chrome heated, remote control, side-view mirrors |

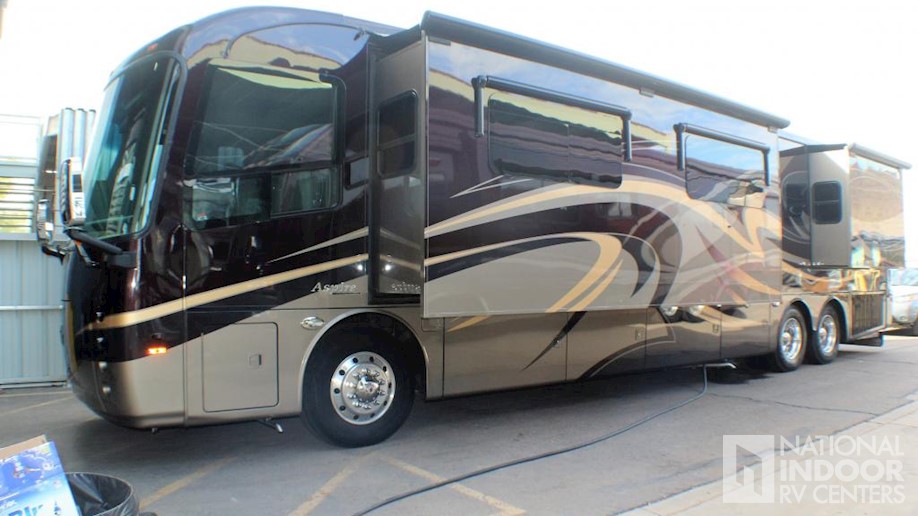

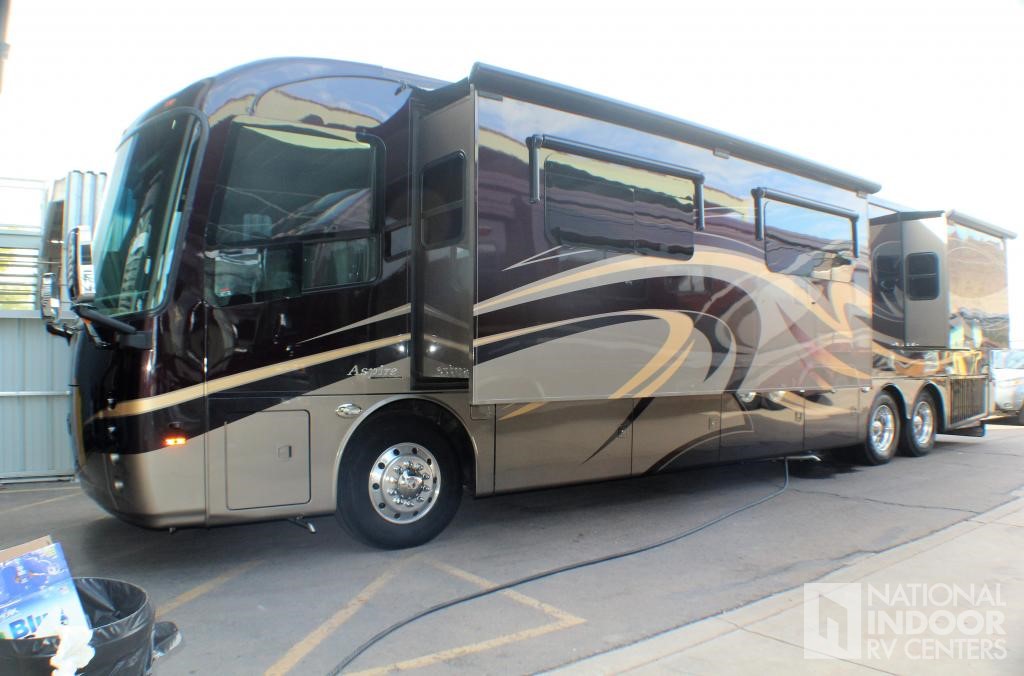

| Exterior |

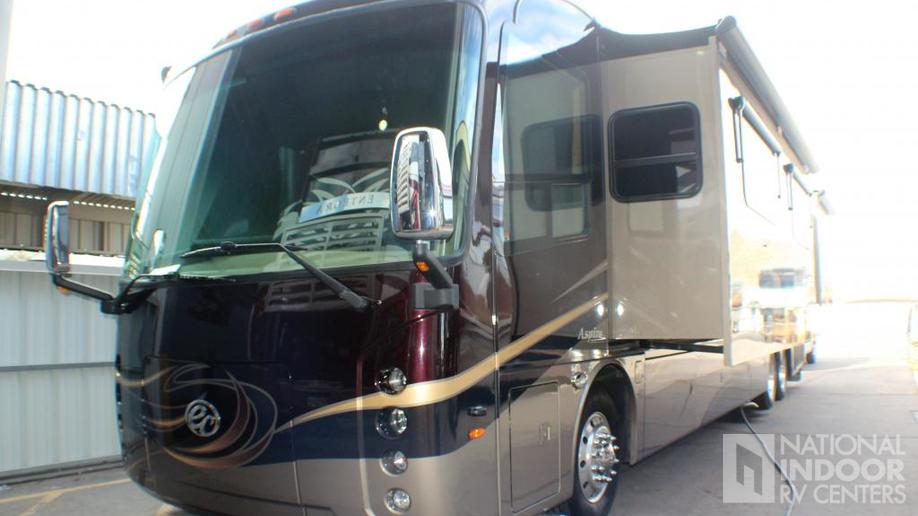

| Full-body premium paint package; 3M front protective film |
| Entrance Door |
| Aire-Secure travel locks for all passage doors; Lighted heavy-duty grab handle with keypad system; Keyless entry with key fob |
| Entrance Steps |
| Electric-powered, double-step entrance |
| Windows |
| Frameless, tinted, dual-pane, safety-glass windows |
| Door Awning |
| Carefree power patio awning with LED lights; Carefree power entrance door awning with LED lights; Carefree slideout and window awning |
| Cargo Features |
| Pass-through storage compartment(s); Side-hinged baggage doors; Slideout cargo tray: Sliding battery tray: Carpet trunk liner in cargo bays |
| Satellite Dish |
| Winegard in-motion dome satellite dish |
| TV Antenna |
| Yes |

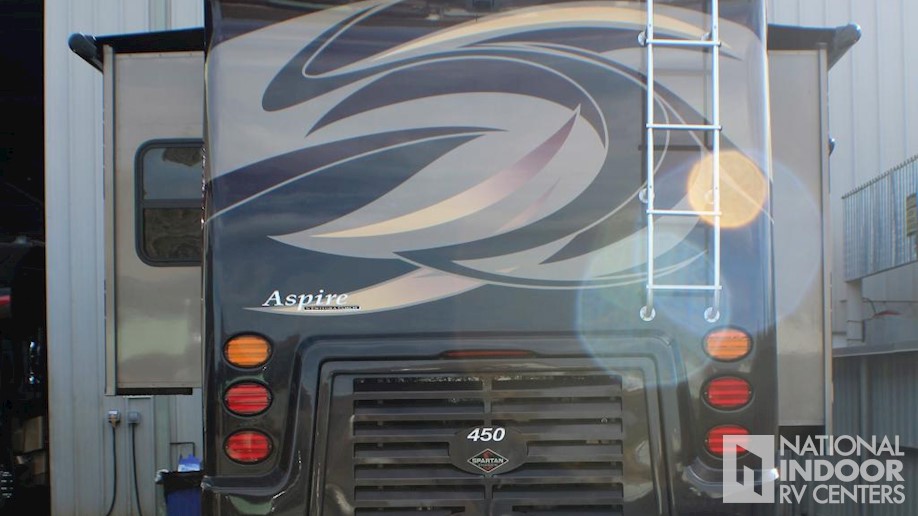

| Rear Mudflap |

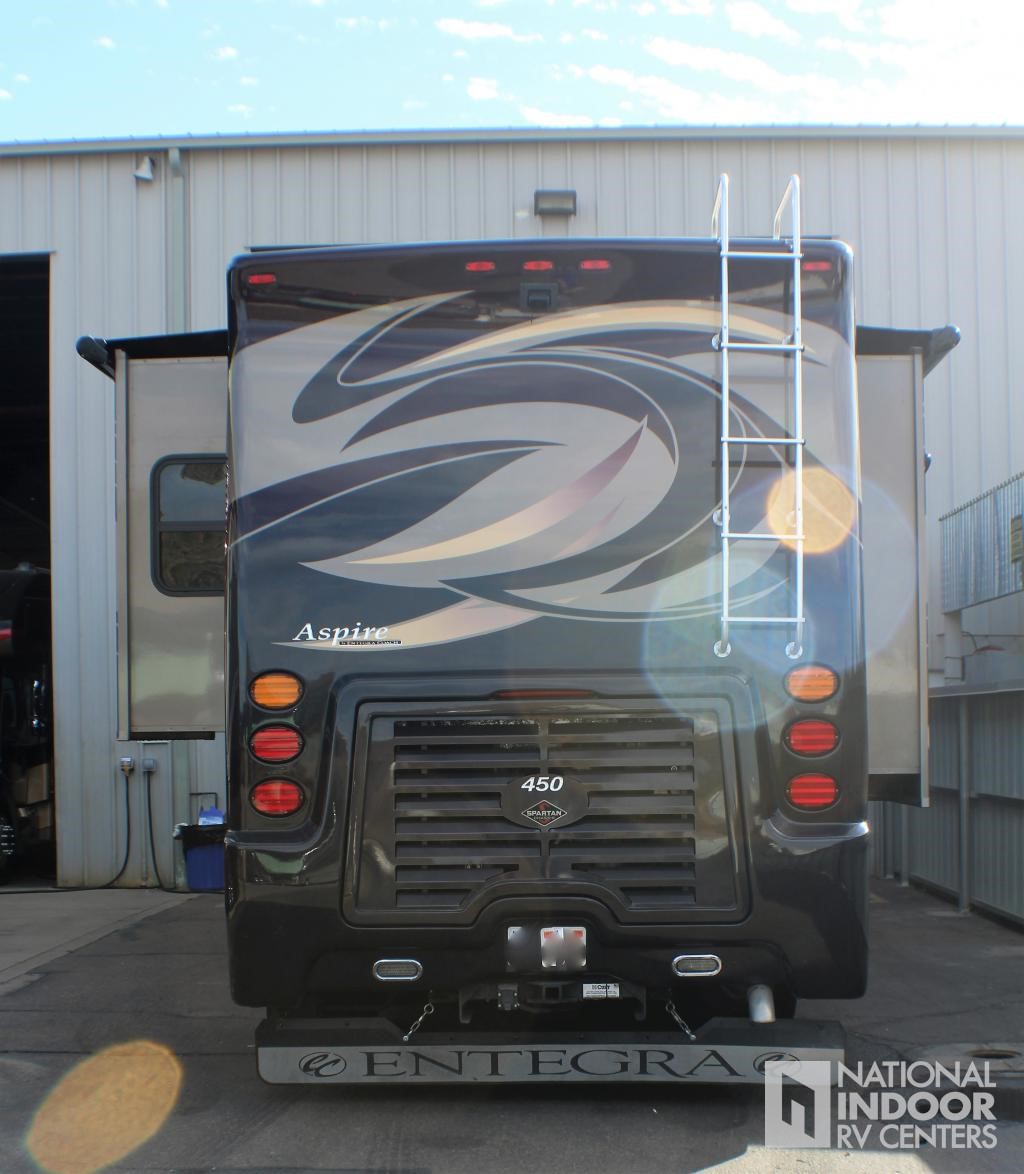

| Full-width rear mudflap |

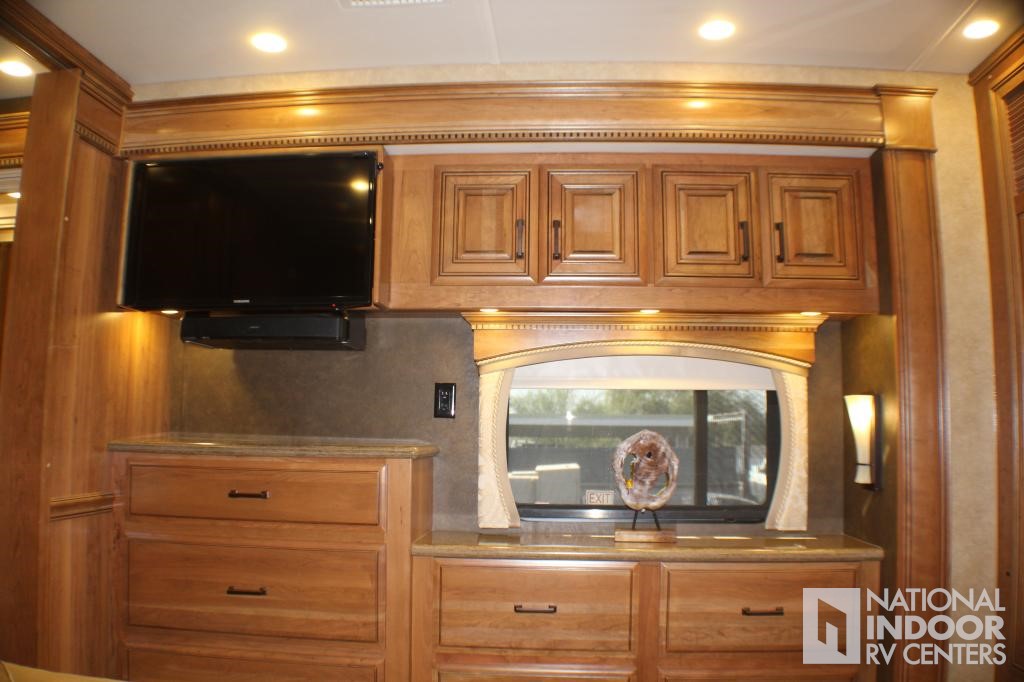

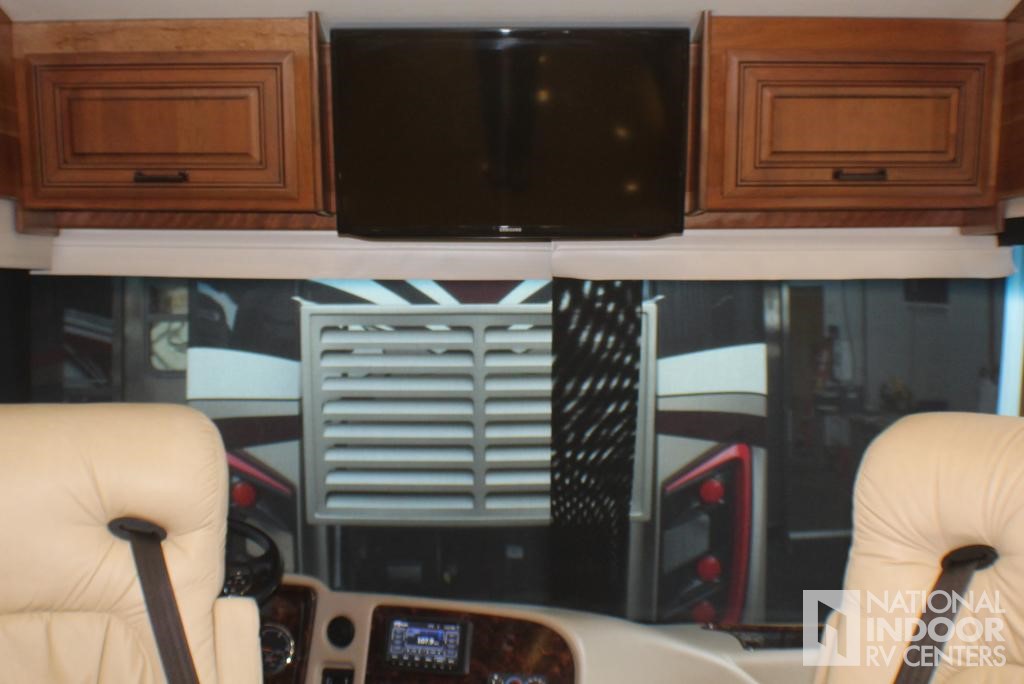

| Entertainment |

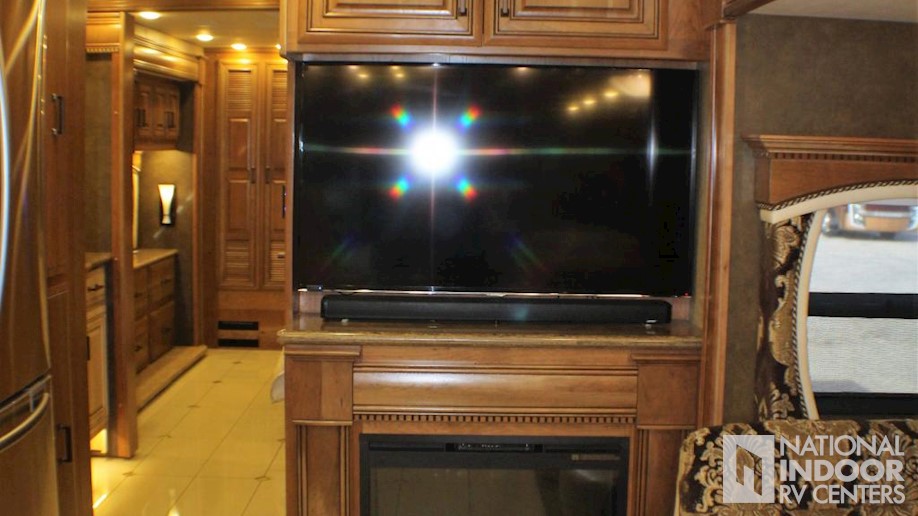

| Samsung 40" LED HDTV with Sony Dual DIN CD/DVD player and 4 speakers |
| Lights |
| Motion sensor security lights (2) |

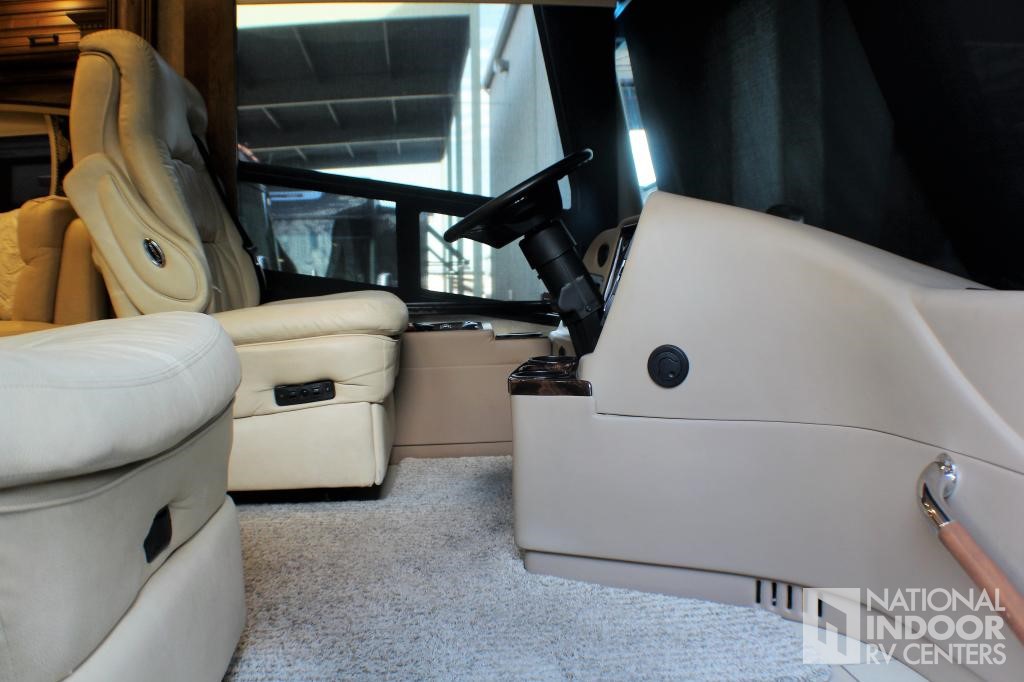

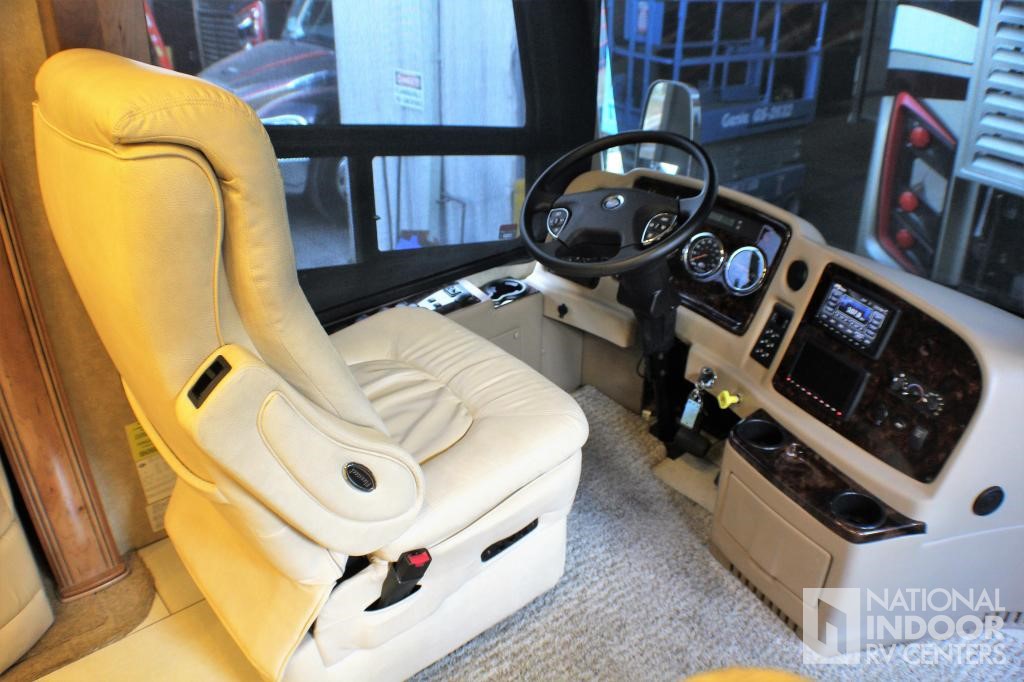

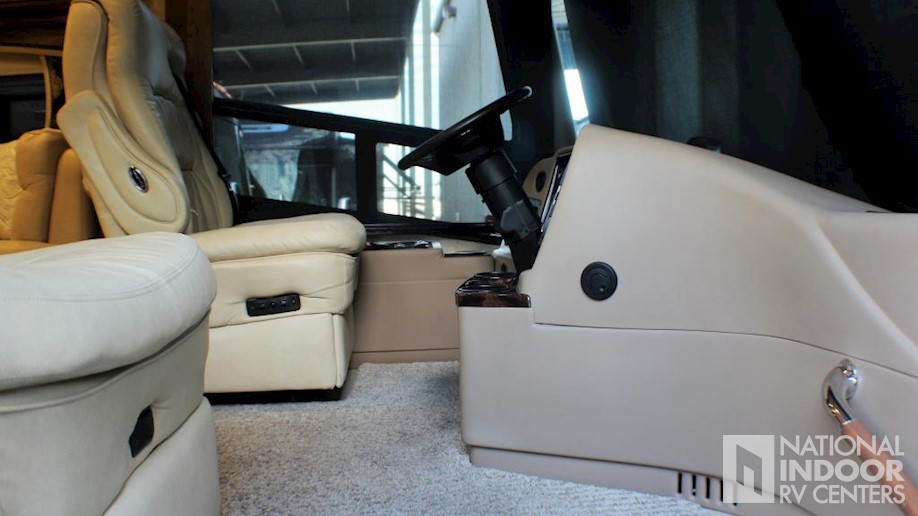

| Driver / Passenger Seats |

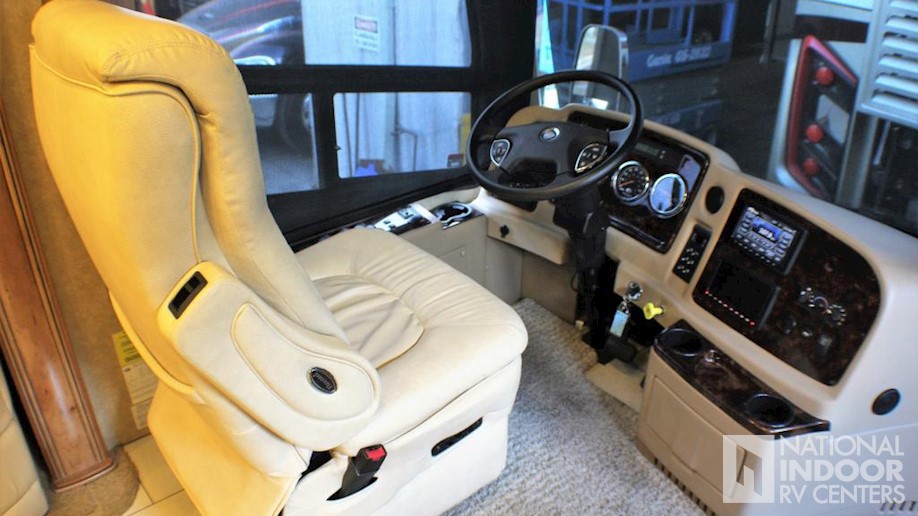

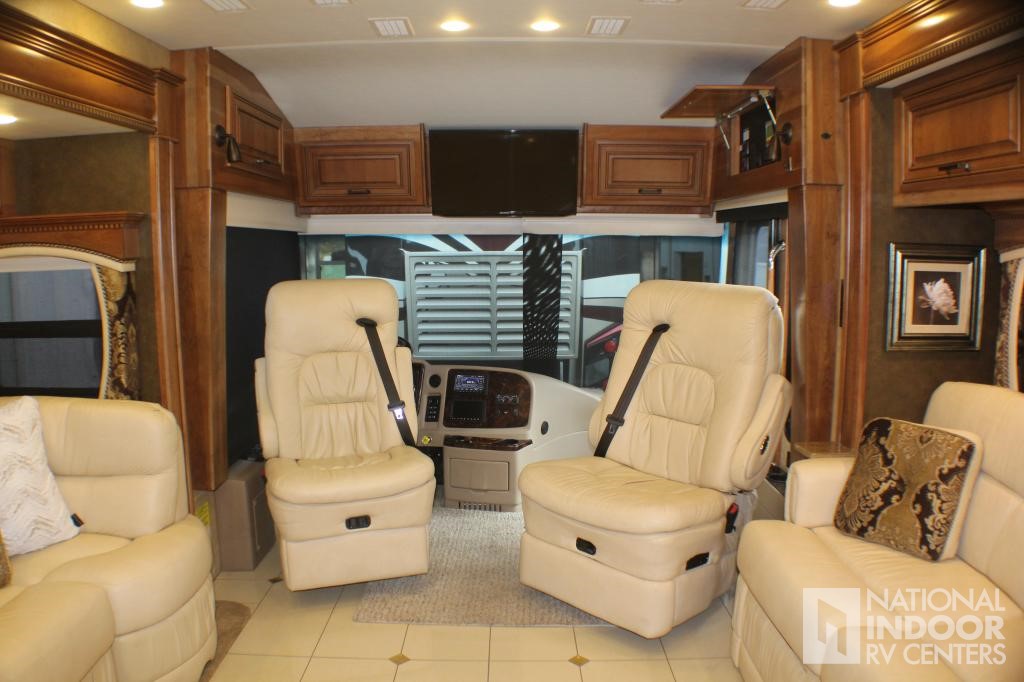

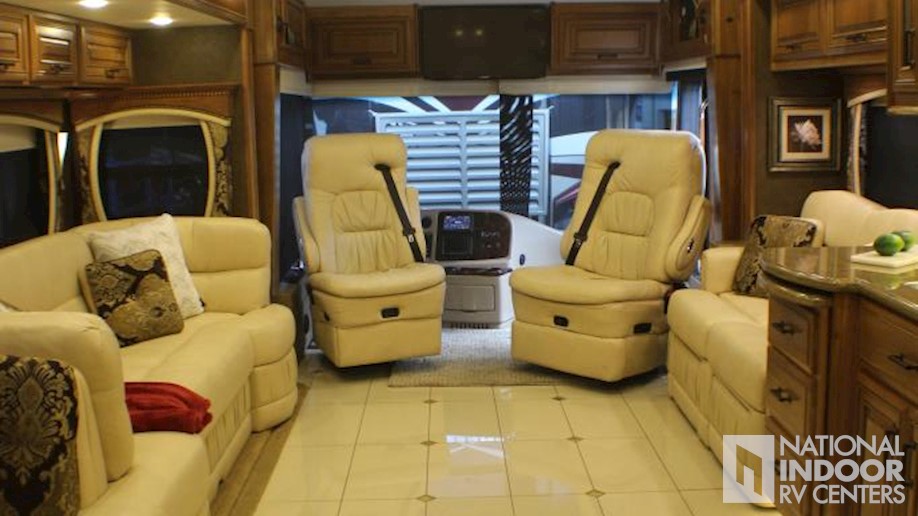

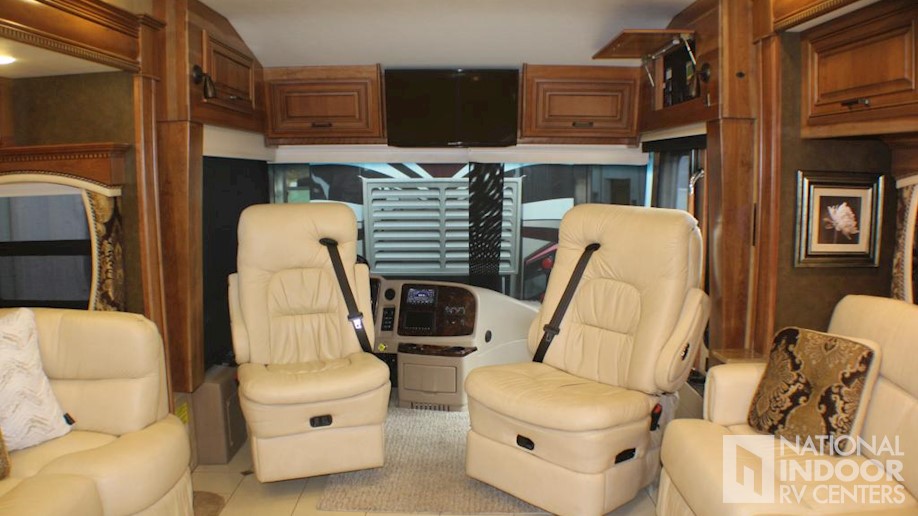

| Ultraleather, power adjustable driver and passenger seats with integrated 3-point lap and shoulder safety belts |
| Steering Wheel |
| VIP SmartWheel steering wheel with integrated controls for cruise and wipers; VIP soft-touch steering wheel with tilt and telescoping steering column; Adjustable foot pedals |
| Infotainment System(s) |
| Touch-screen AM/FM/CD/DVD with Rand McNally GPS navigation, Bluetooth and 4 speakers; Sirius ready radio and tuner; CB prep with antenna; Samsung 32" LED HDTV |

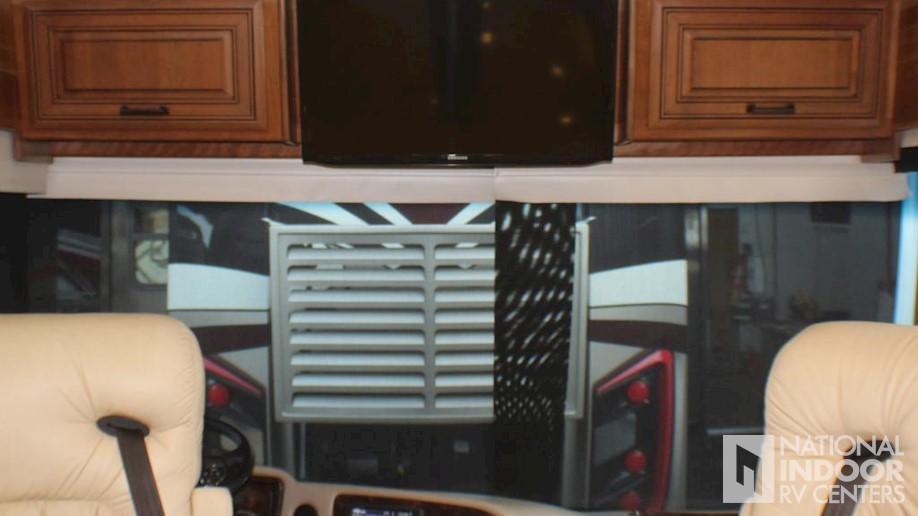

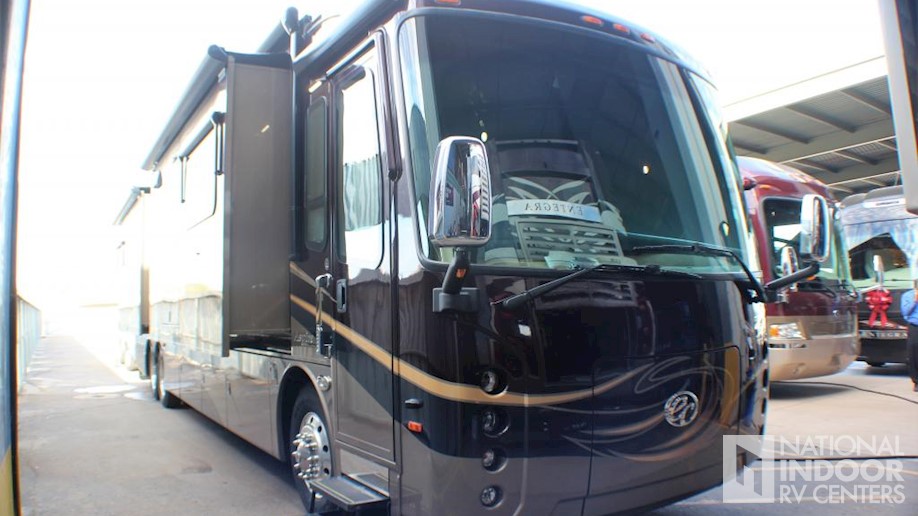

| Windshield |
| Ultra-Vision one-piece wrap-around tinted windshield |
| Cameras |
| Color back-up camera and monitor; Side cameras with turn signals |
| Visors & Privacy Shade |
| Powered front sun visors and privacy shade; Roller side sun visors and privacy shades |
| Power Features |
| 12V auxiliary in-dash receptacle (1) in center, (1) at driver's area, (1) at passenger's area; Battery boost switch; Chassis battery disconnect; Hydraulic automatic leveling jack system; Powered flush stepwell cover |
| Monitoring System(s) |
| Spartan Message Center with LCD display featuring: odometer, tachometer, instantaneous fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, diagnostic functions, fault codes, service reminders, percentage of engine load, trip meter, speed and voltage |

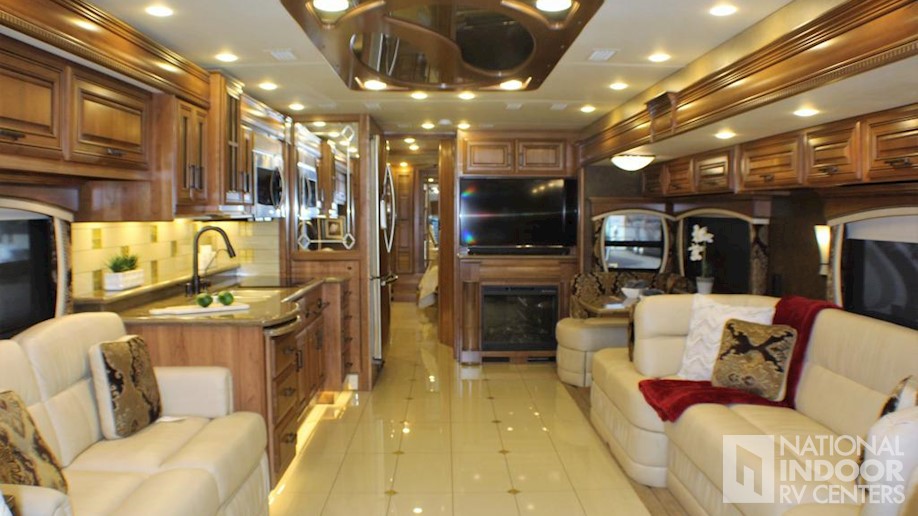

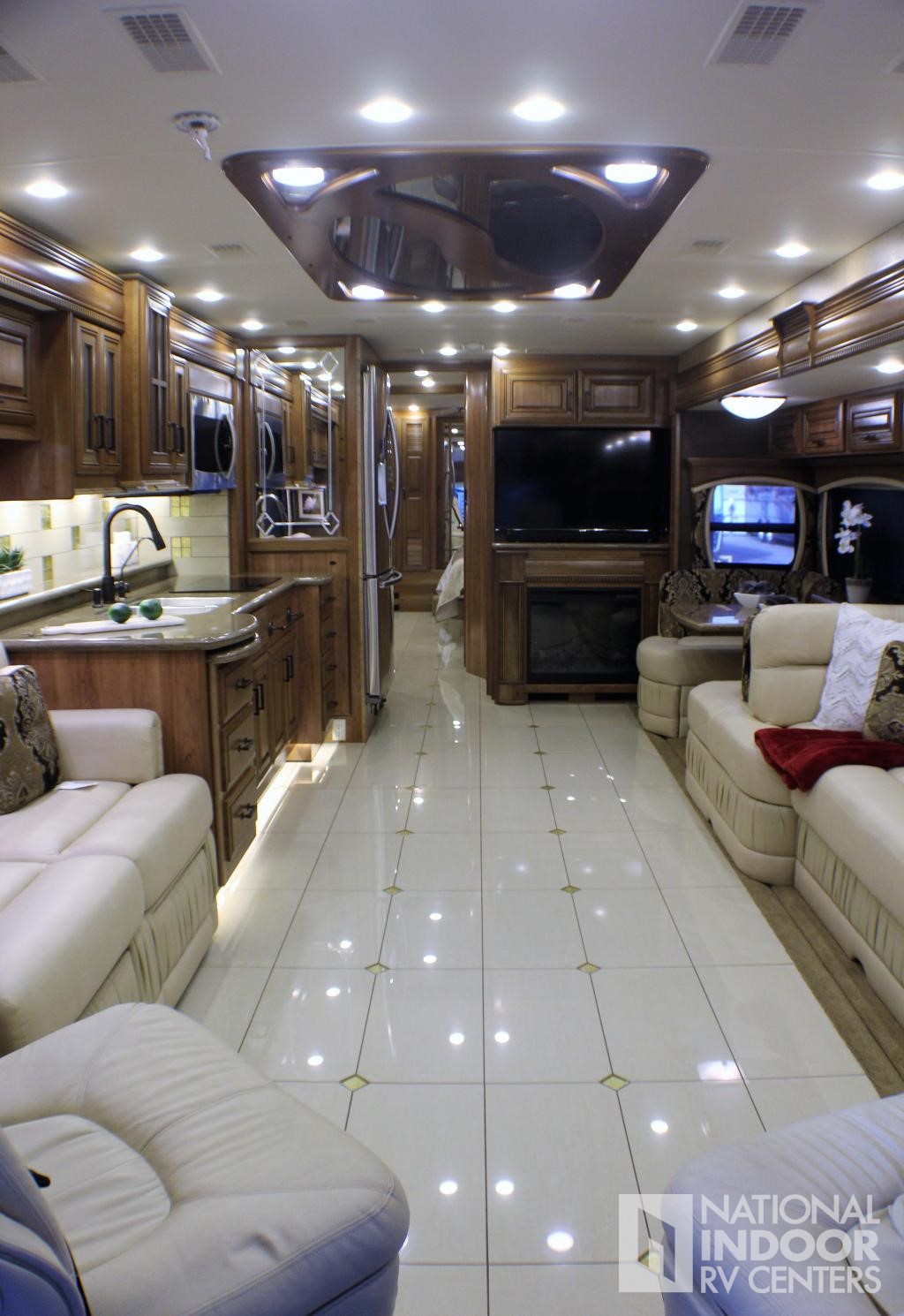

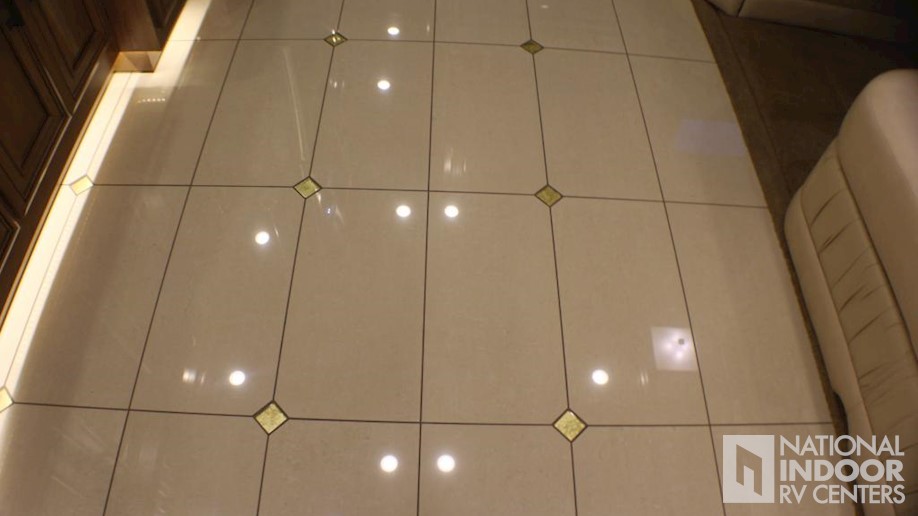

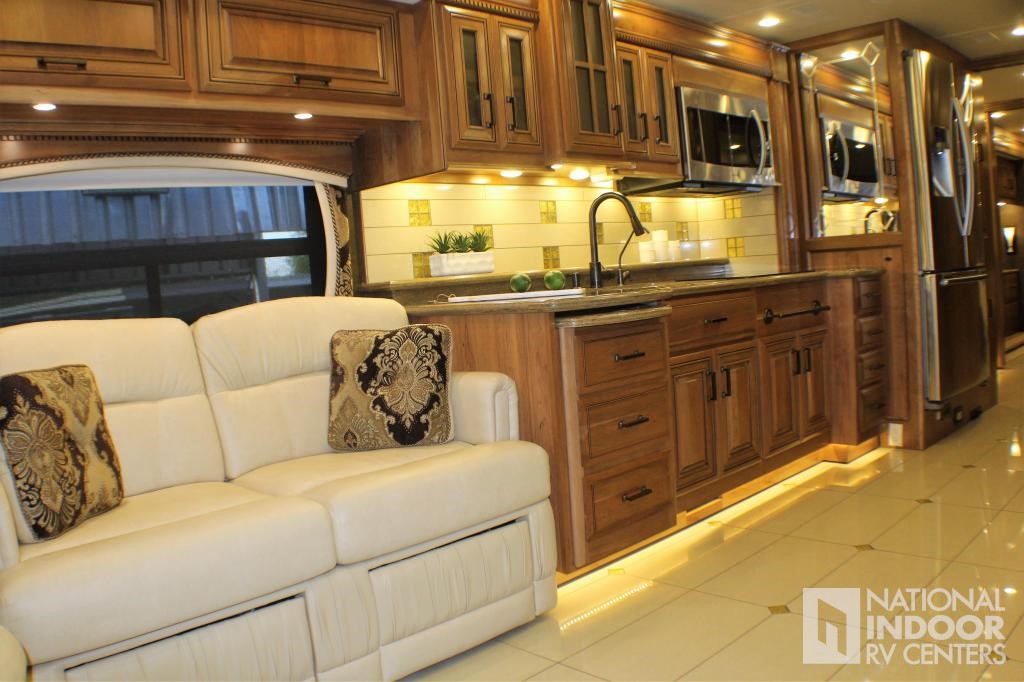

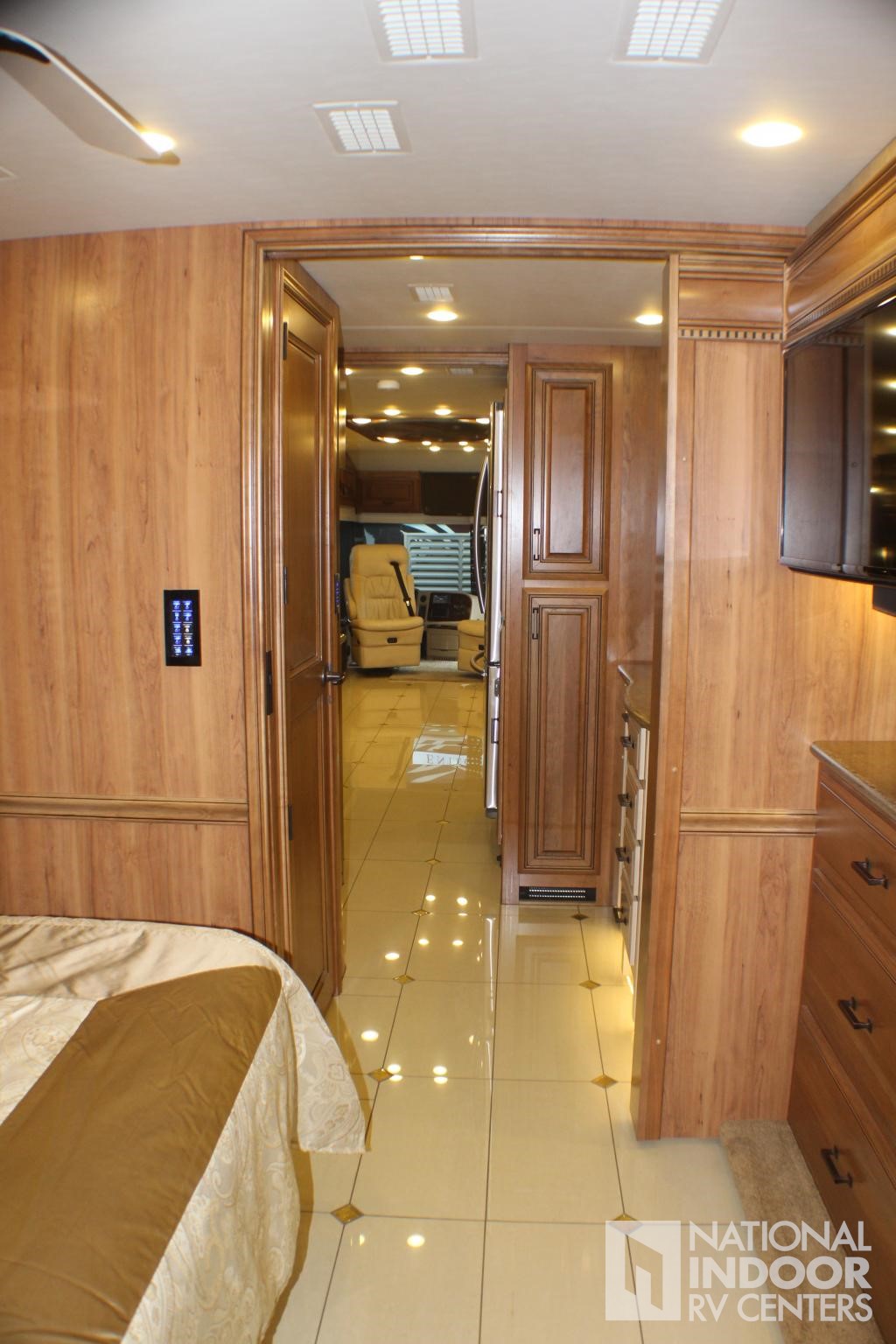

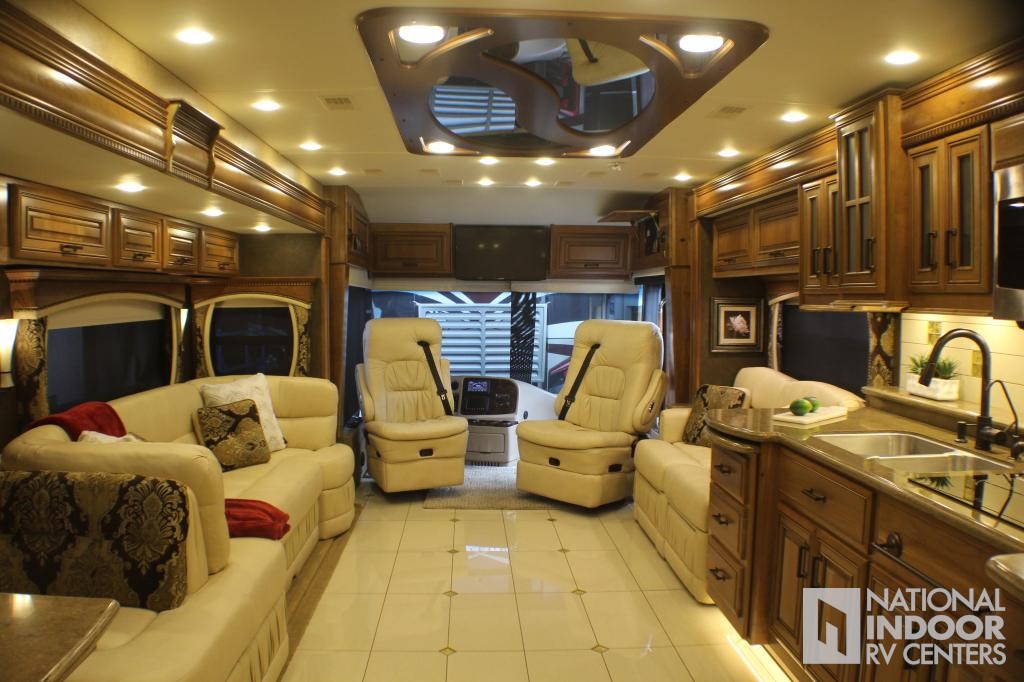

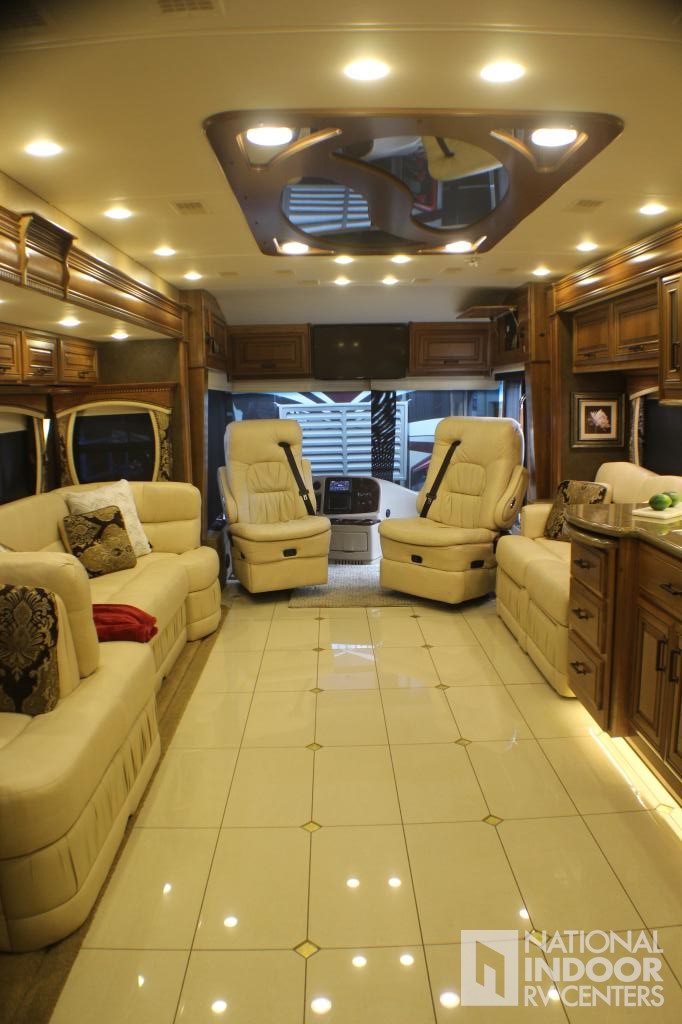

| Flooring |

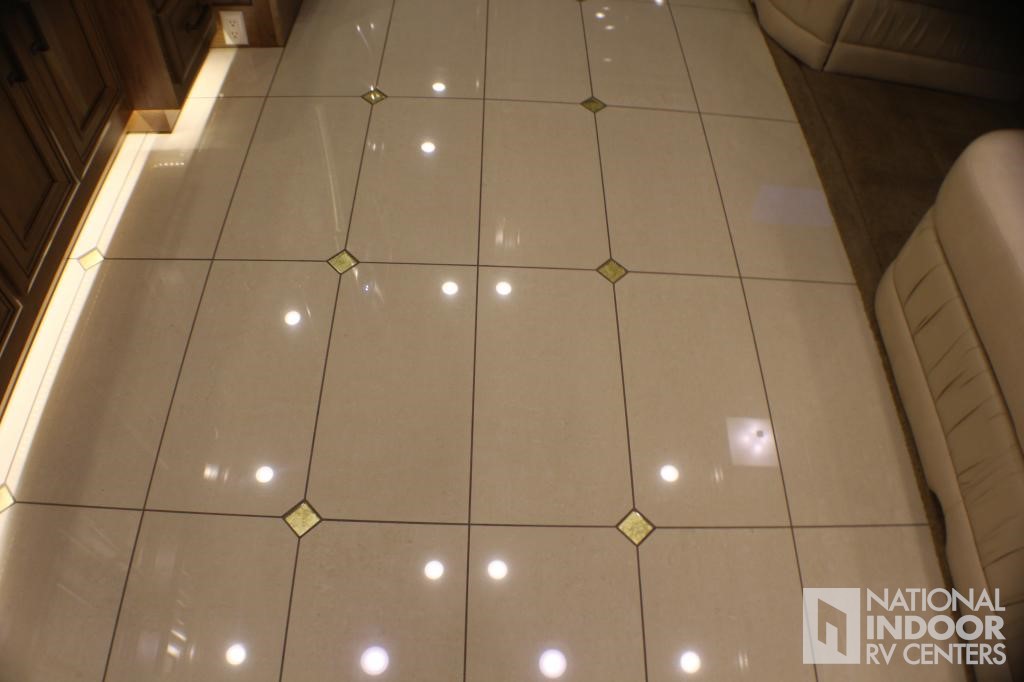

| High Gloss 12" x 24" porcelain tile with glass inlay; Color-coordinated carpeted floor mat between driver and passenger seat |

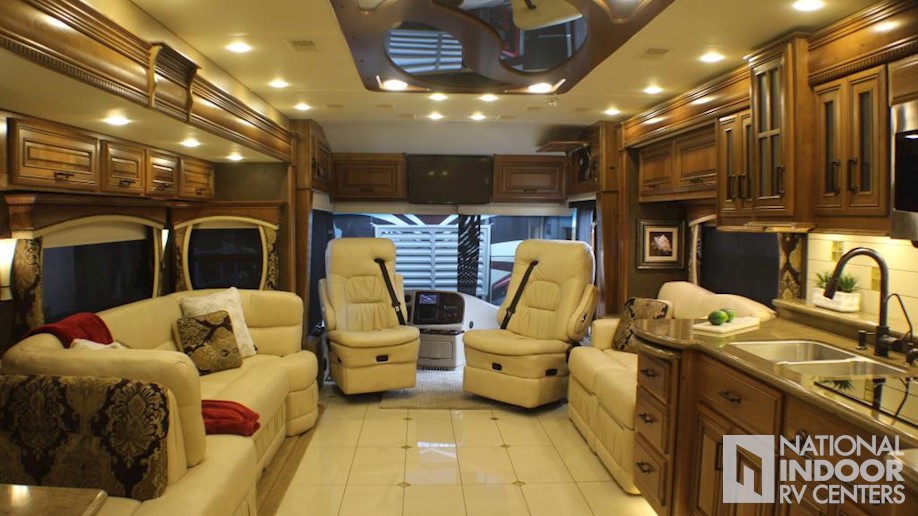

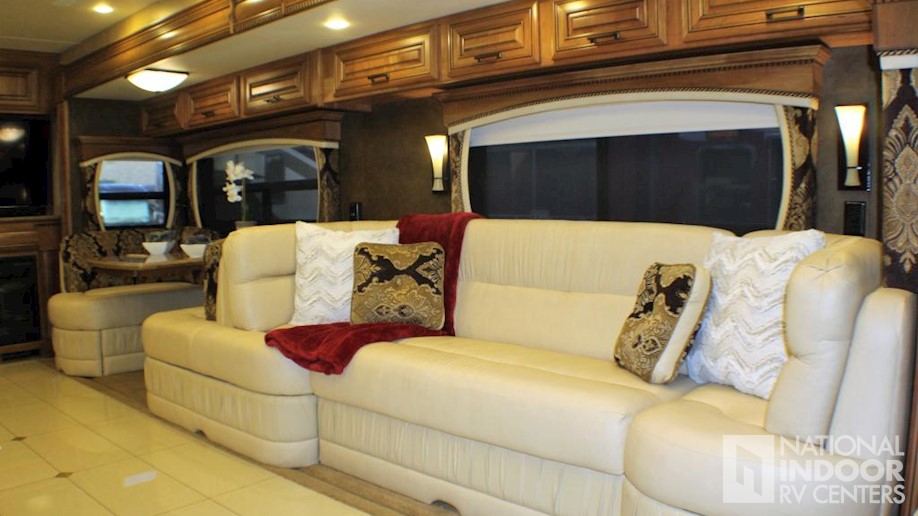

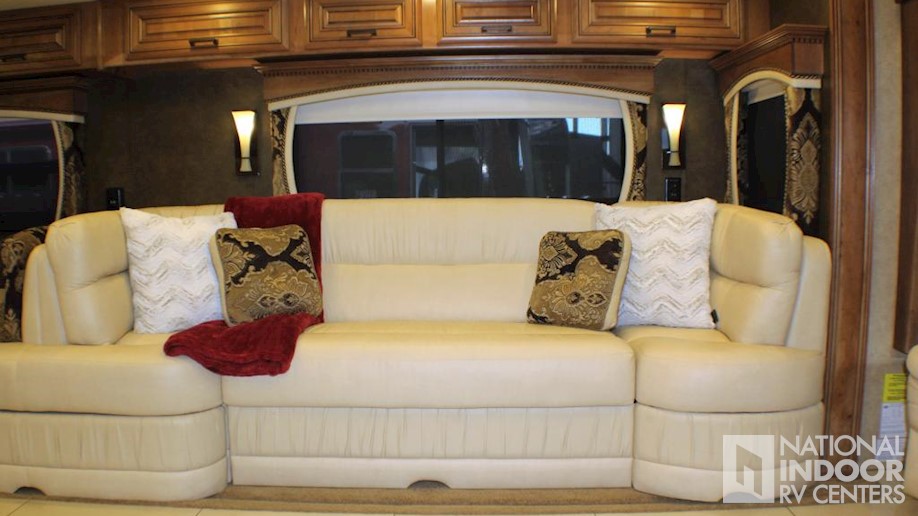

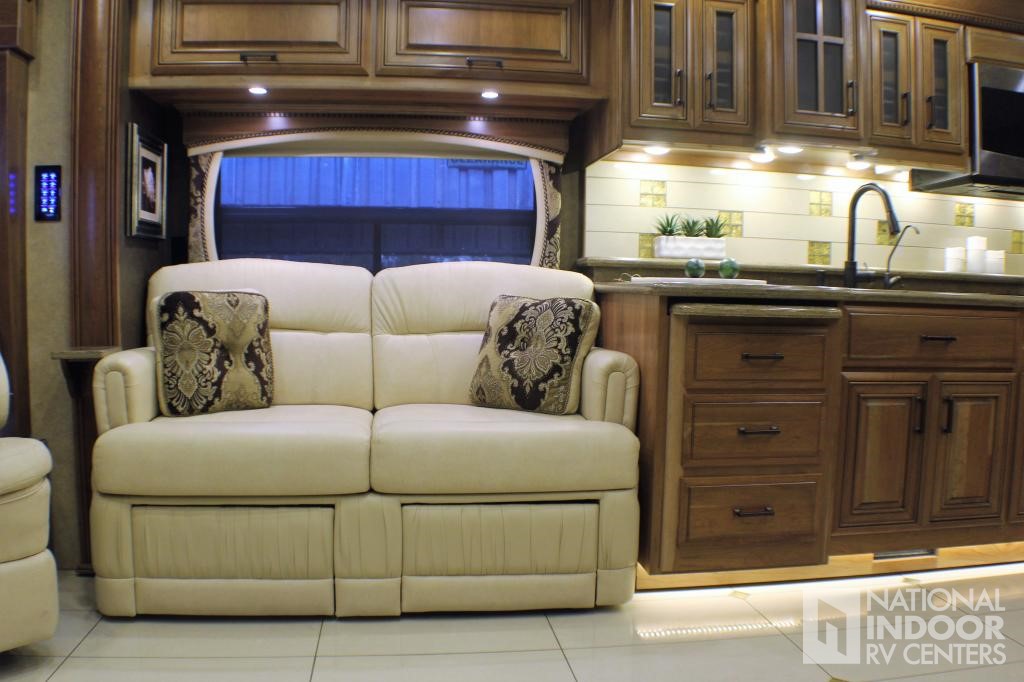

| Furniture |

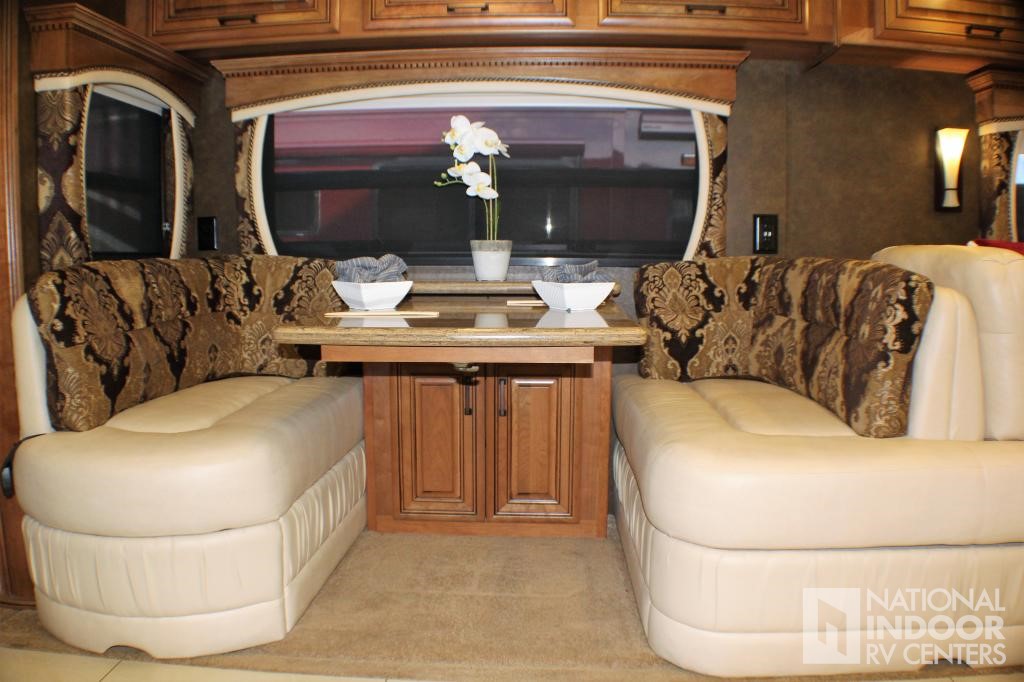

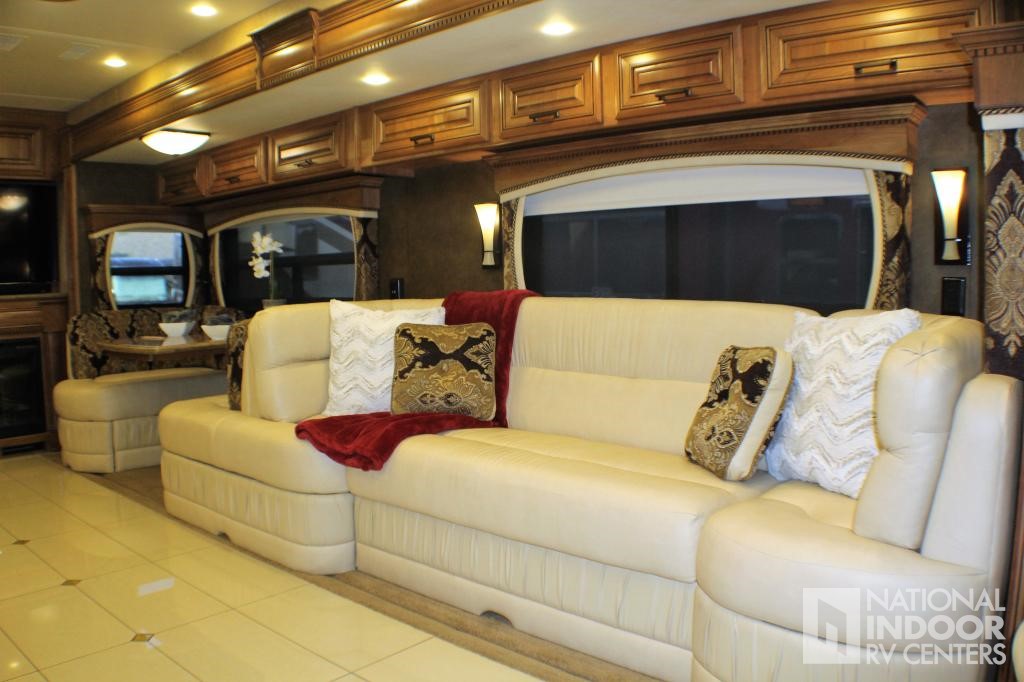

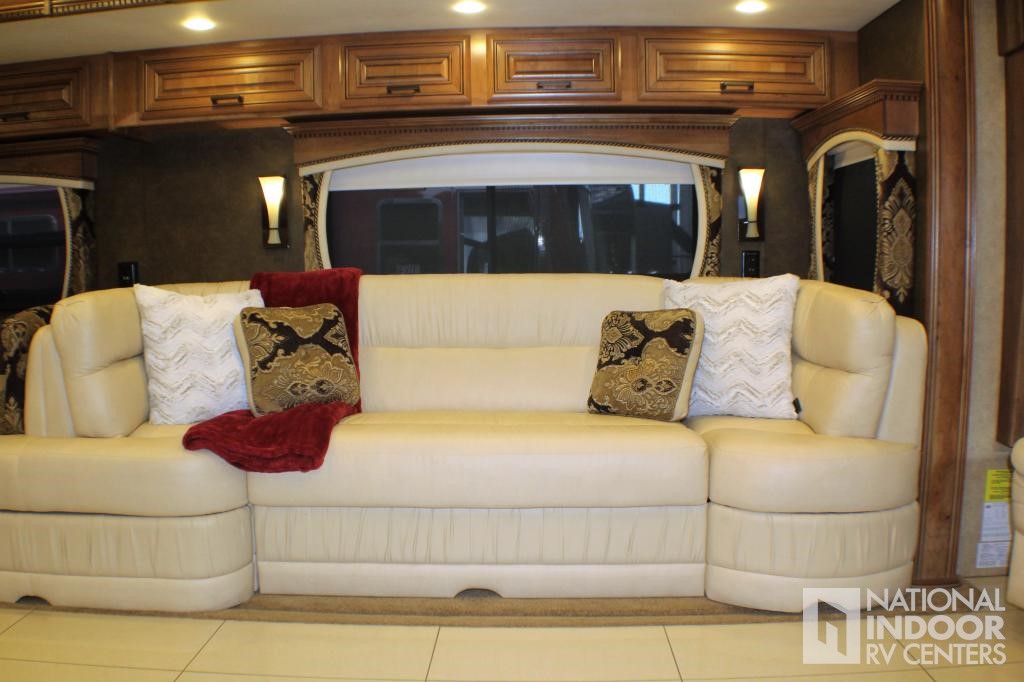

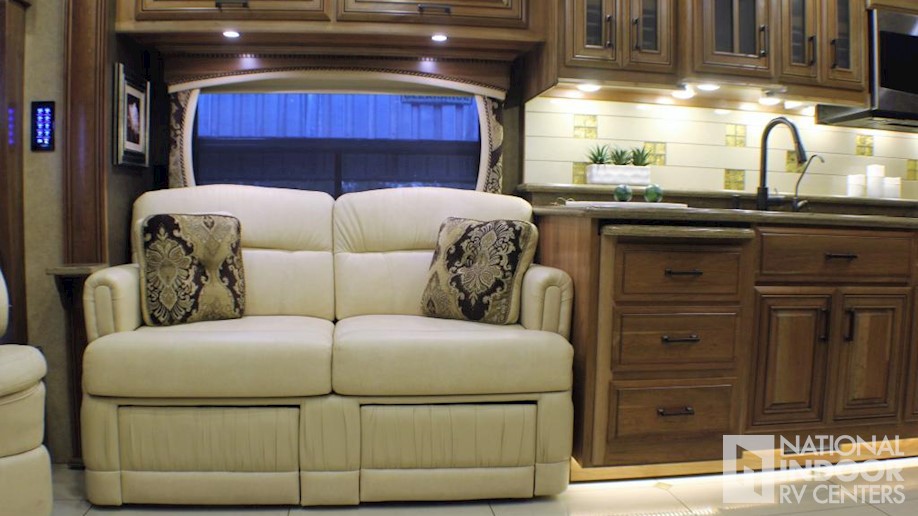

| Ultraleather furniture package; Ultraleather hide-a-bed sofa |
| Lighting |
| Decorative oil rubbed bronze lighting throughout; LED recessed 12V lighting package; Multiplex lighting; Lights at entrance steps |
| Central Vacuuming System |

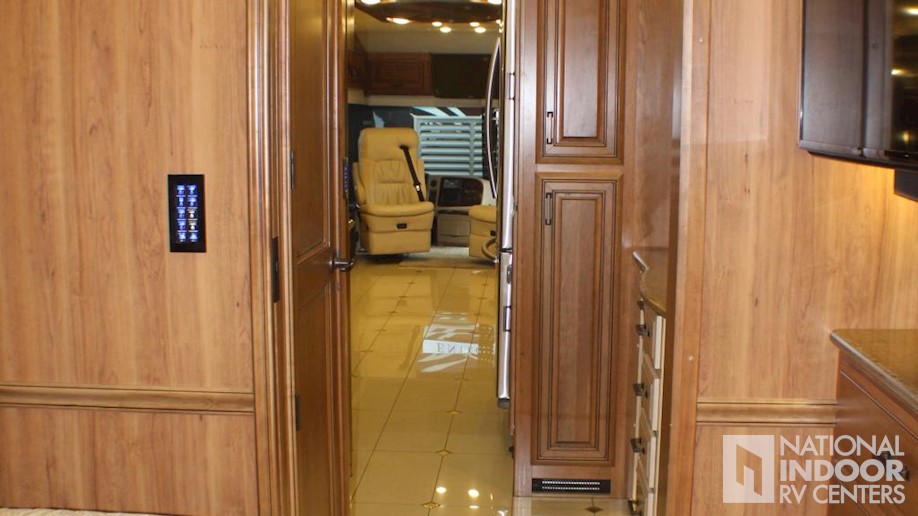

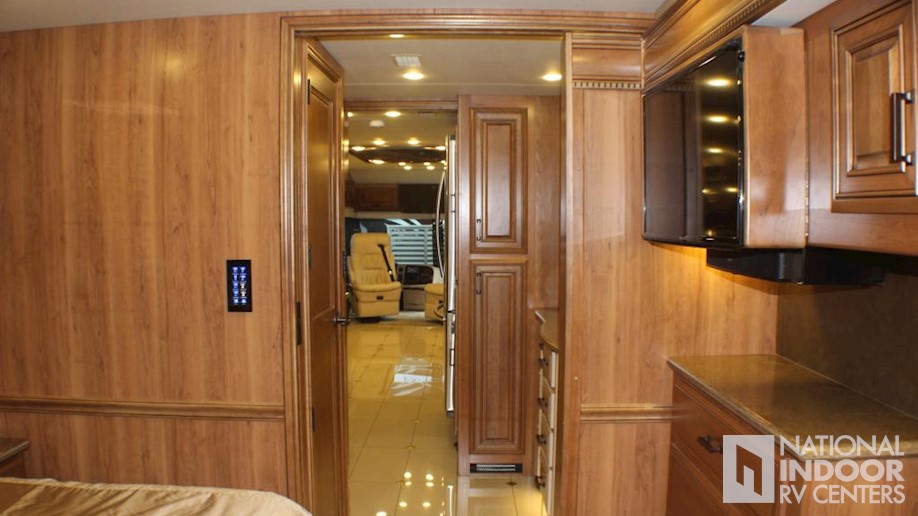

| 2-panel residential-style solid hardwood passage doors throughout |
| Window Treatments |
| Fabric and wood-covered box valances with lambrequin legs; Day/night solar shades throughout |
| Flooring |
| High gloss 12" x 24" porcelain tile floor with glass inserts |

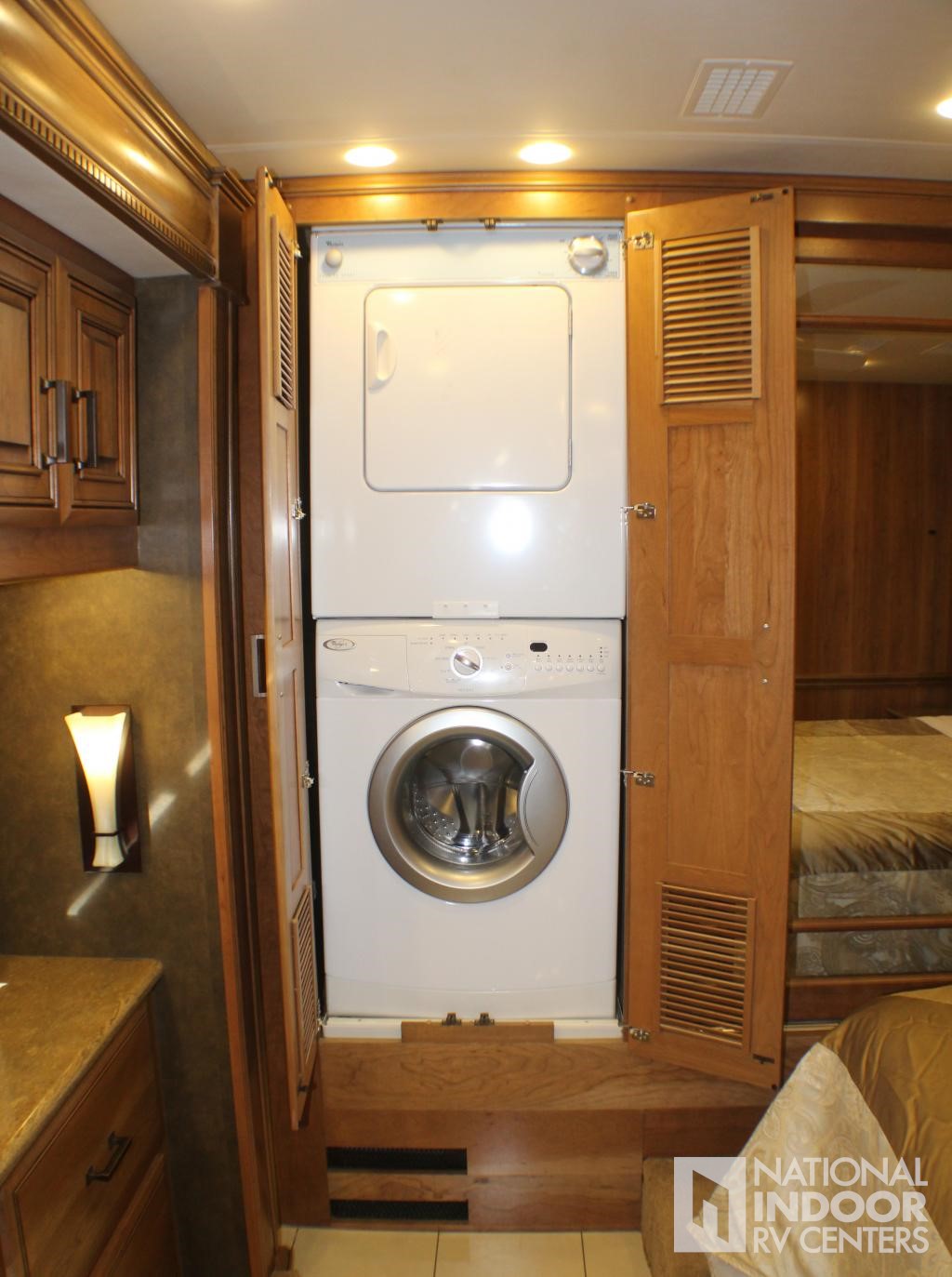

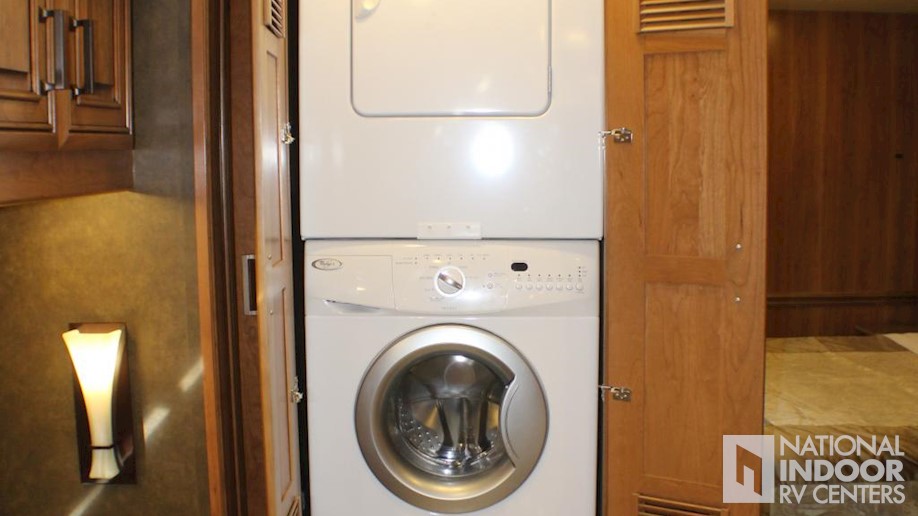

| Washer/Dryer |
| Yes |

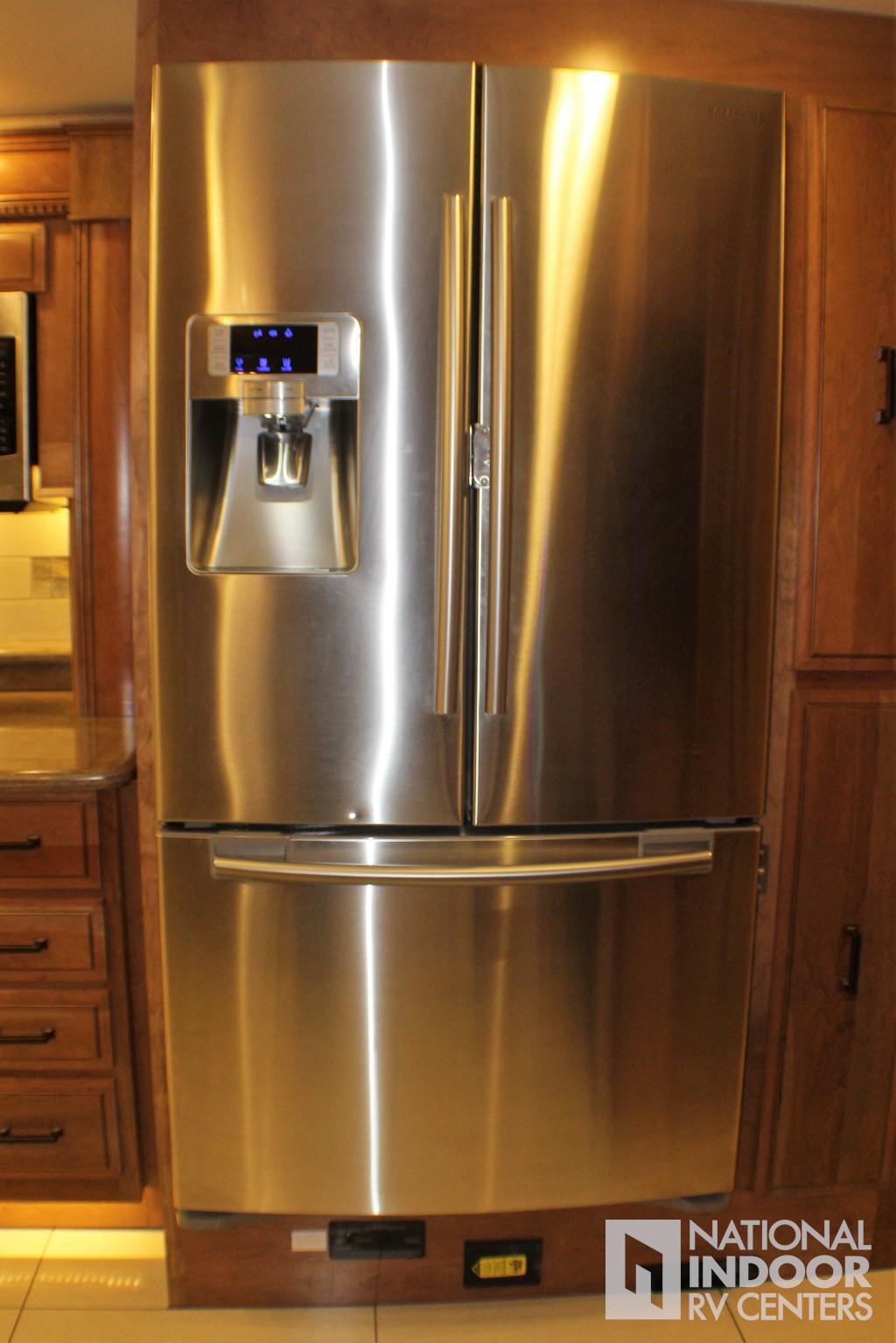

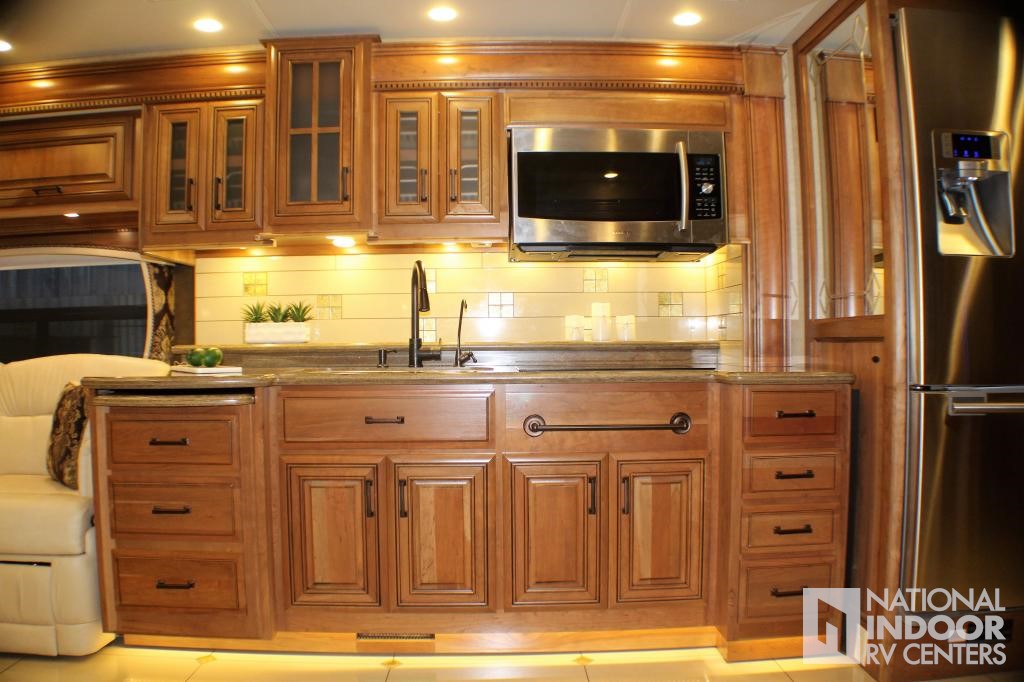

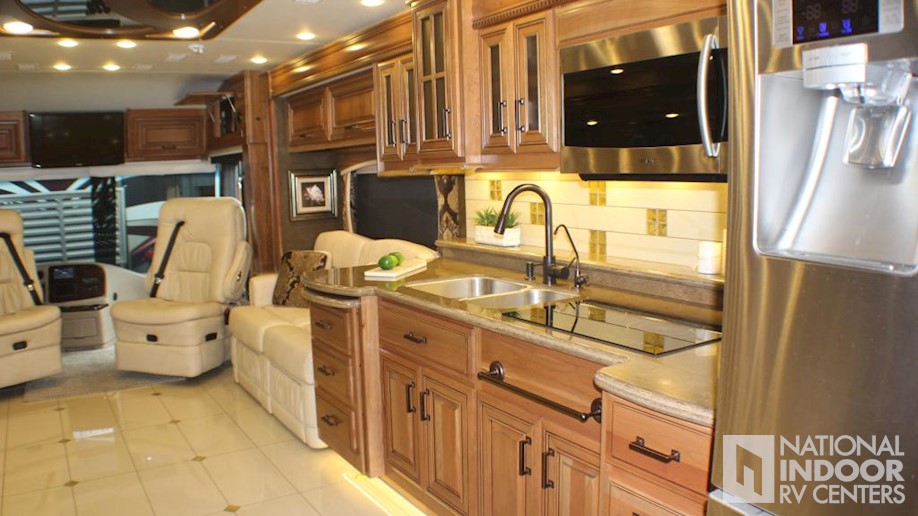

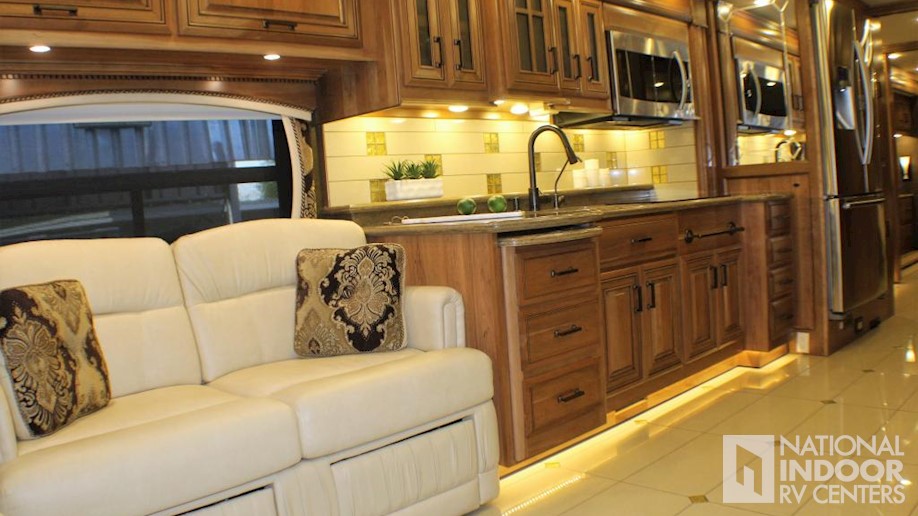

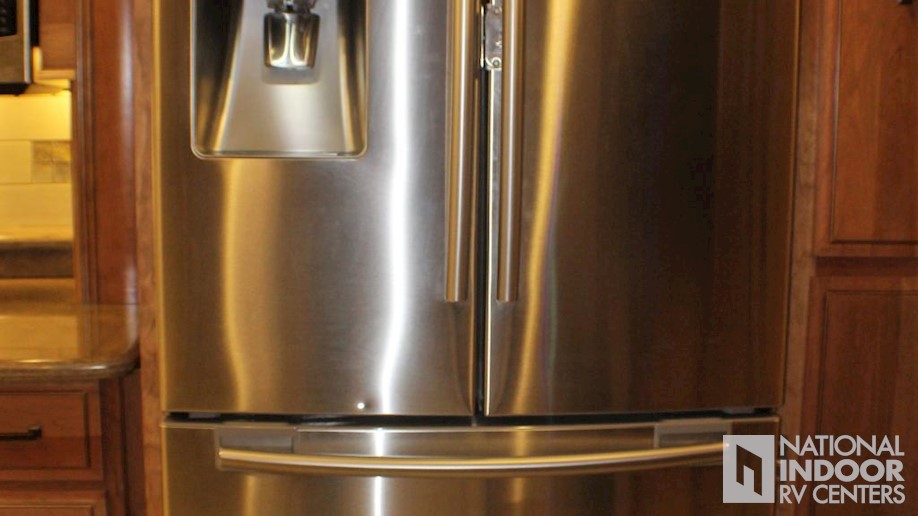

| Refrigerator |
| Samsung residential 23 cu. ft. refrigerator with ice maker and water dispenser |

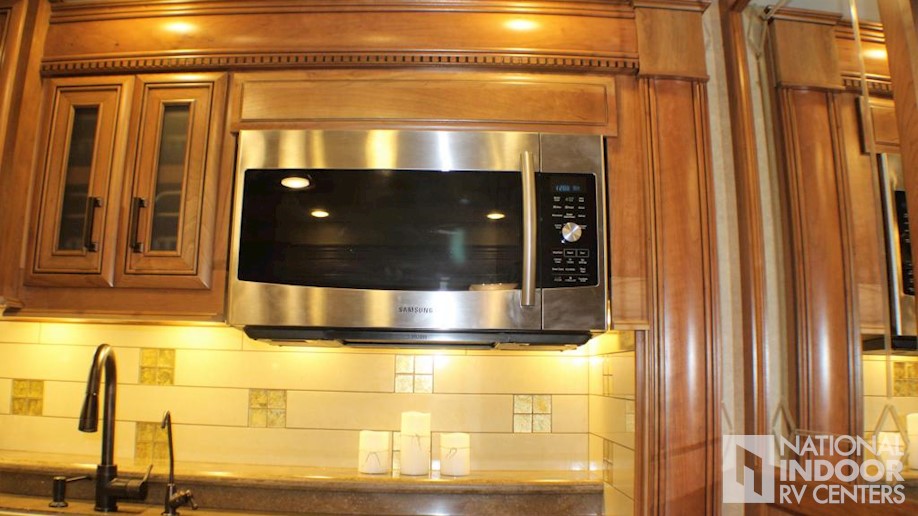

| Microwave |

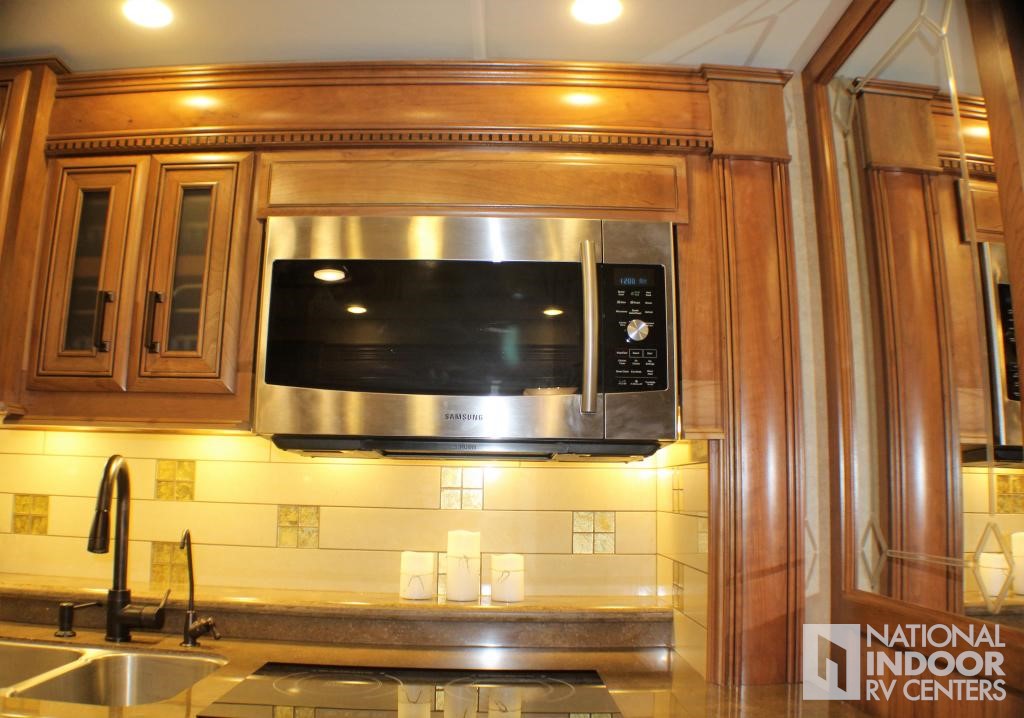

| Samsung 1.7 cu. ft. convection microwave oven |

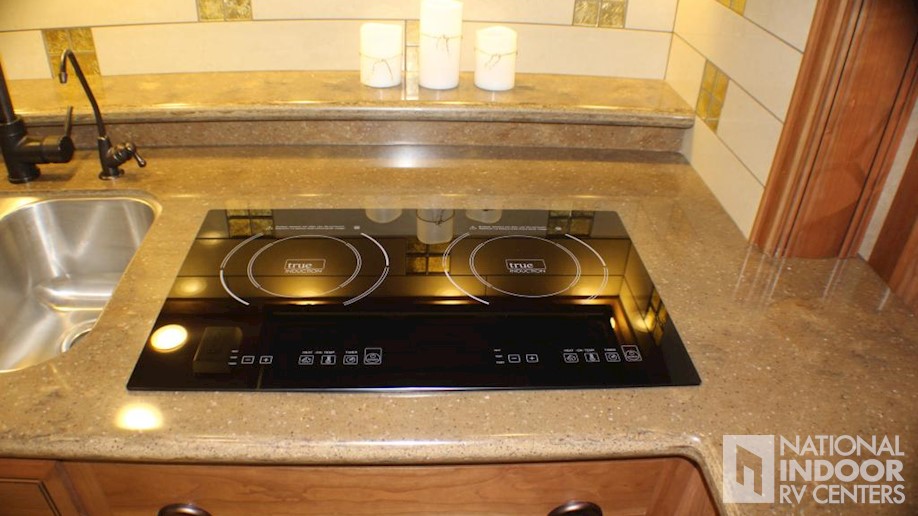

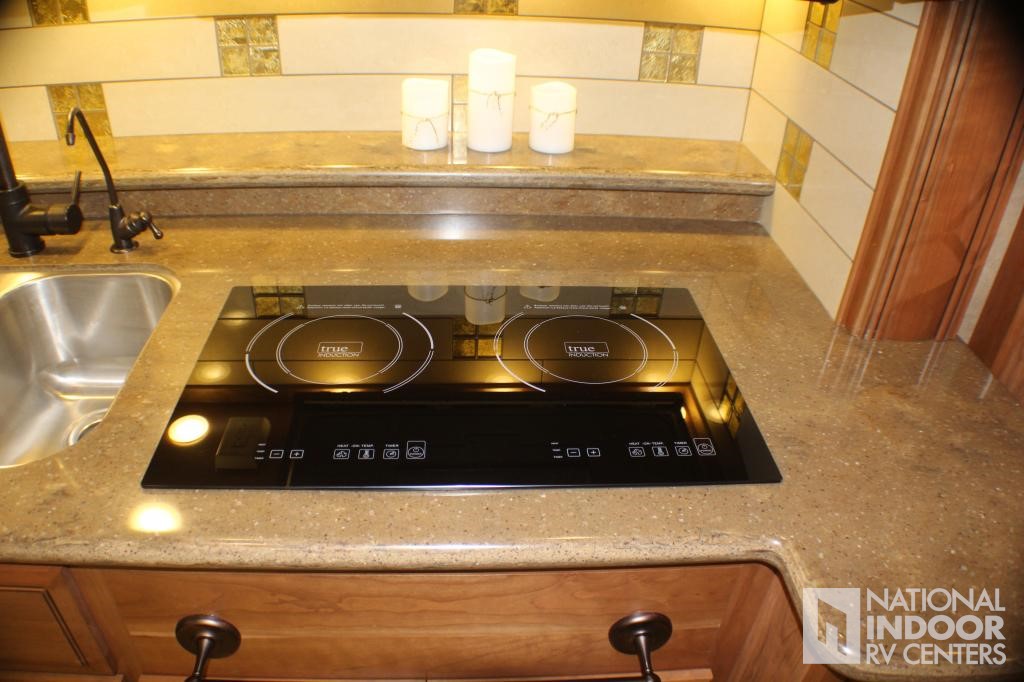

| Cooktop |
| Recessed, glass top gas range |

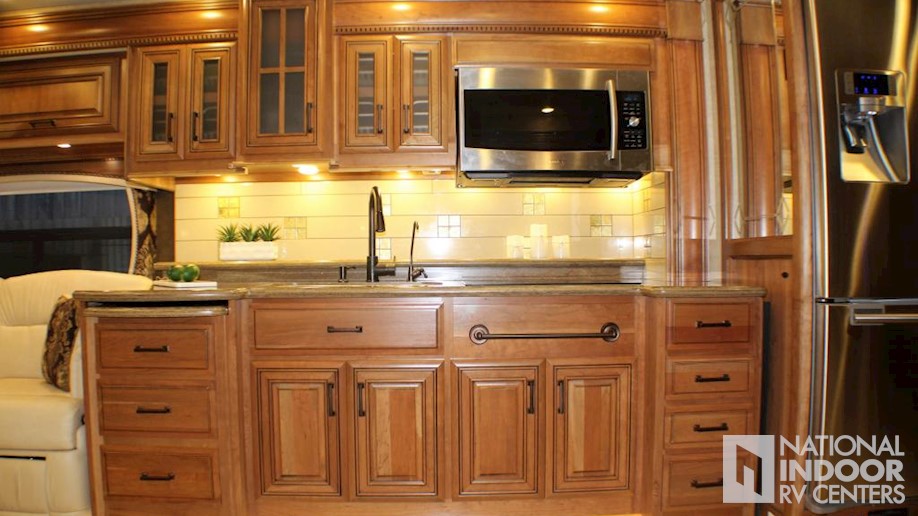

| Countertops |

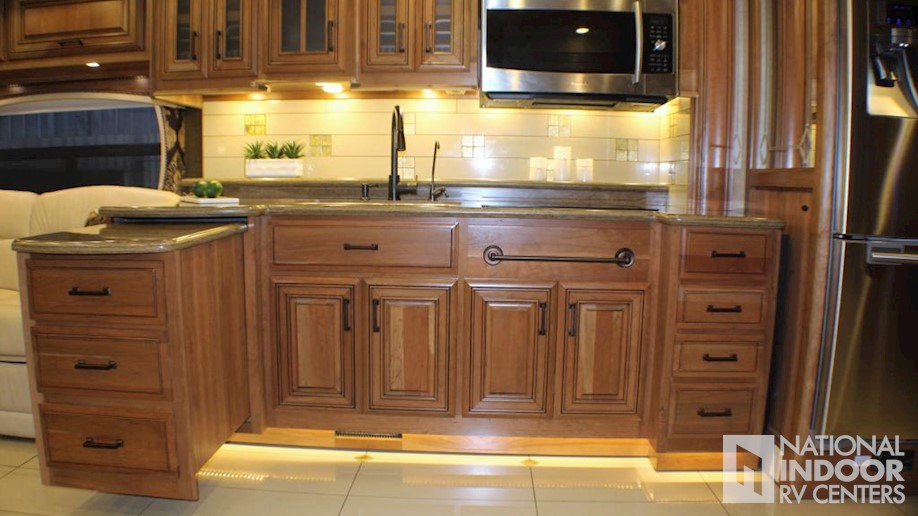

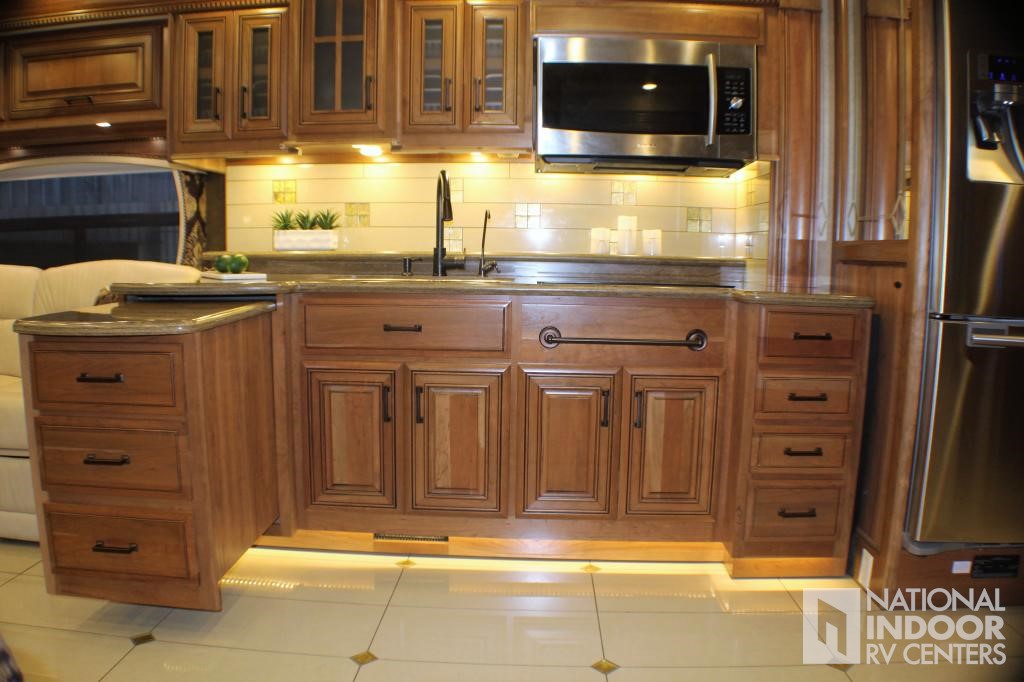

| Solid surface countertops with stainless steel sink; Pullout cabinet extension with countertop |

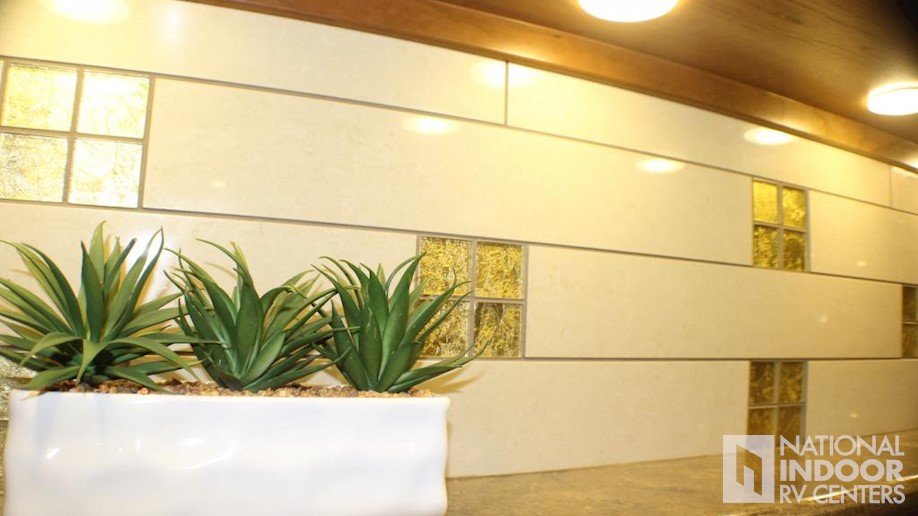

| Backsplash |

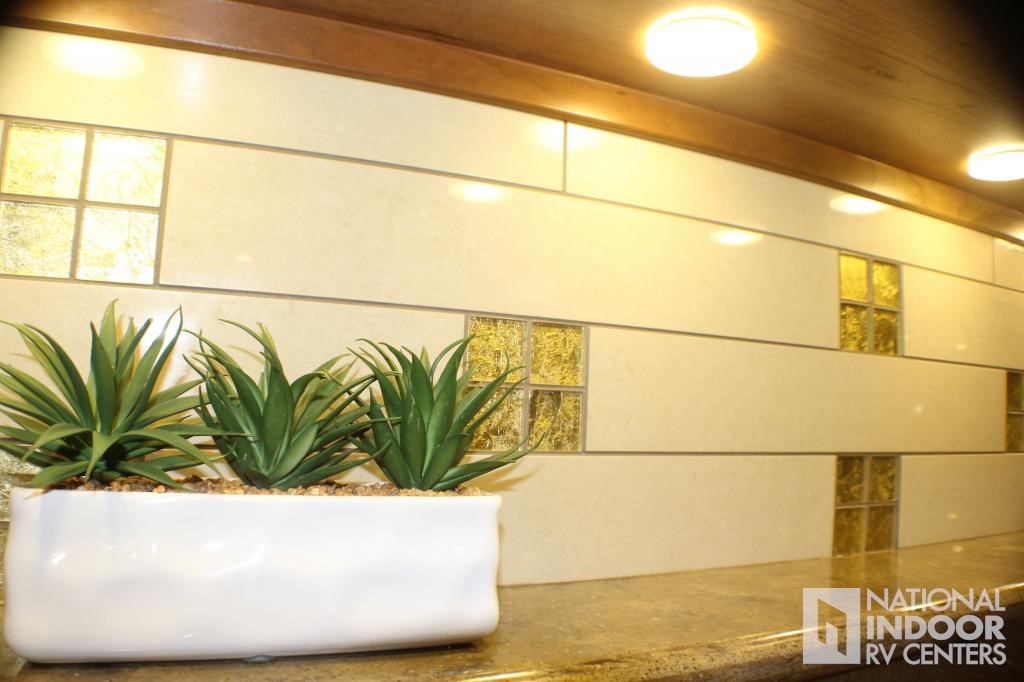

| Porcelain tile backsplash with glass design inlays |
| Waste Basket |
| Large deep drawer with waste basket |
| Silverware Drawer |
| Silverware drawer, divided for utensils |

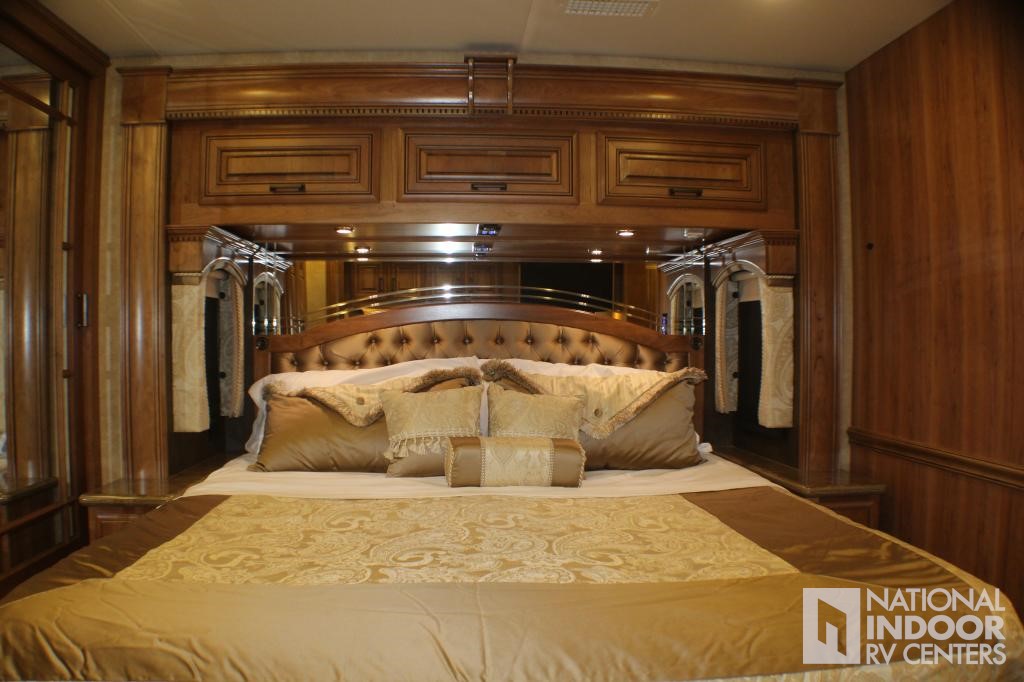

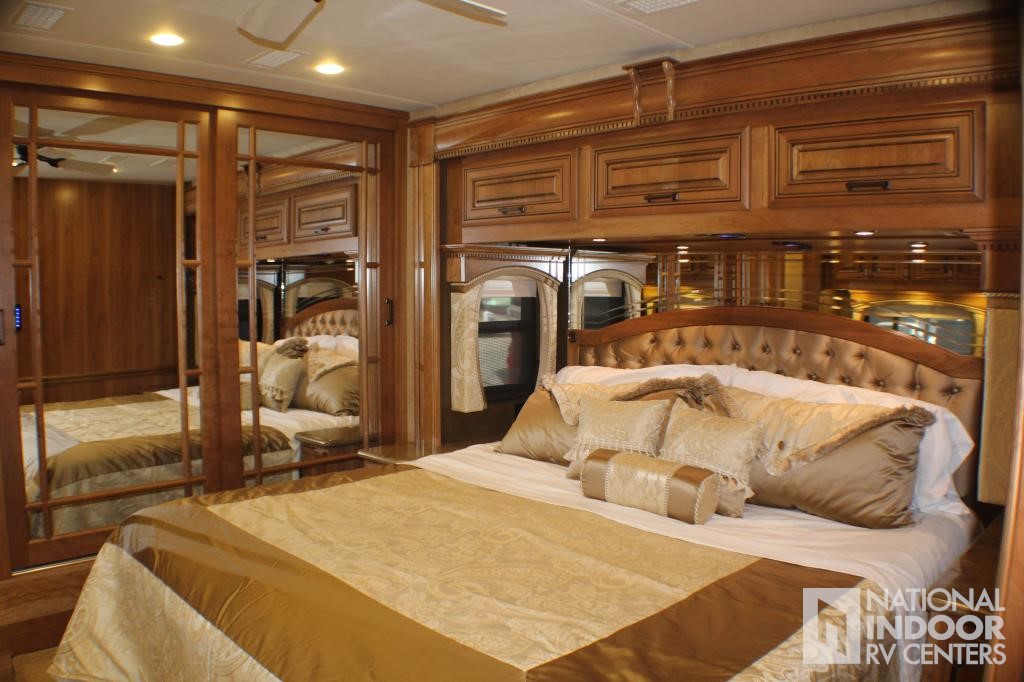

| Bed |

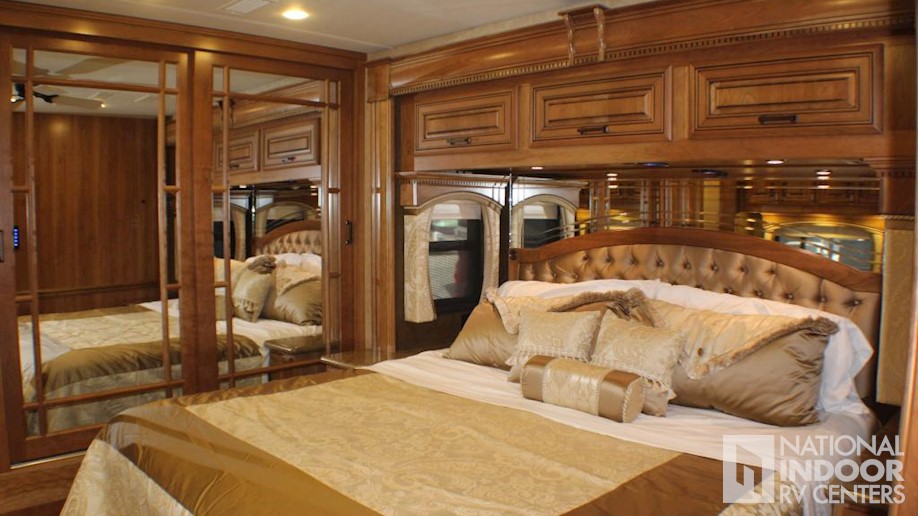

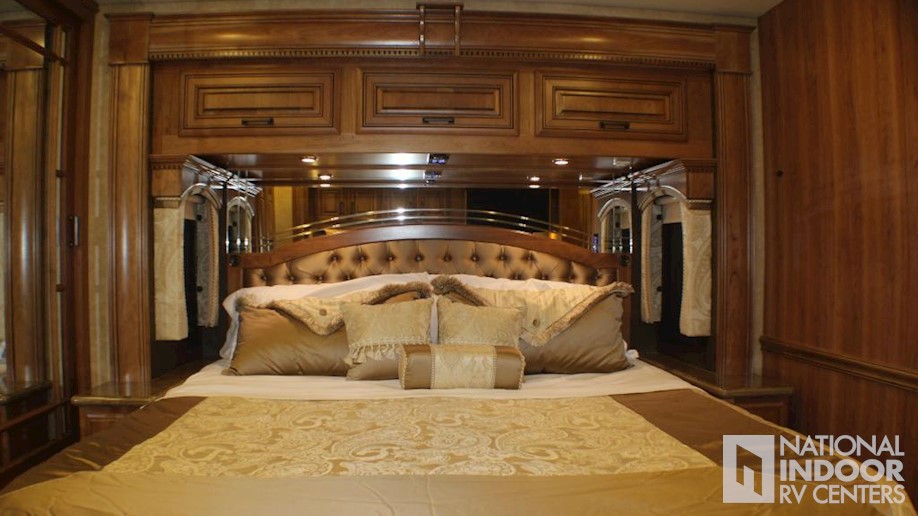

| King Sleep Number air mattress; Quilted bedspread |
| Wardrobe |
| Hardwood wardrobe doors with mirrors |
| Countertop(s) |

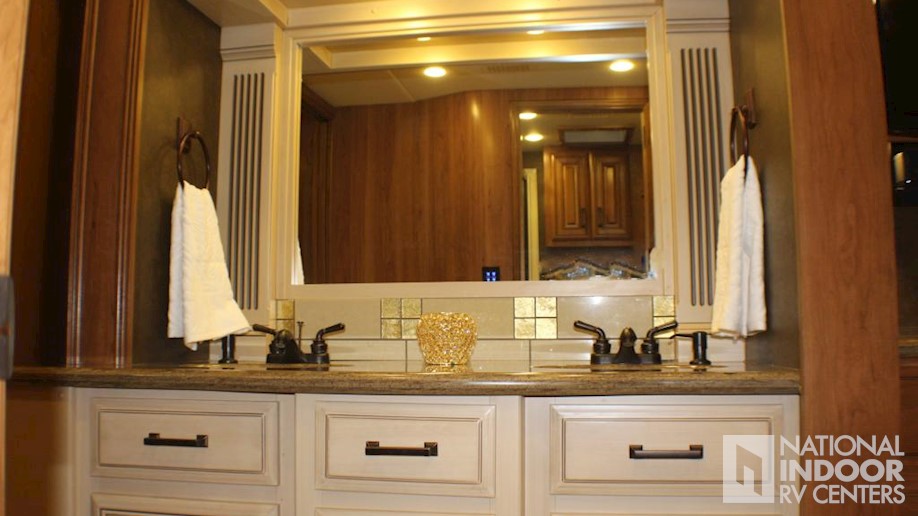

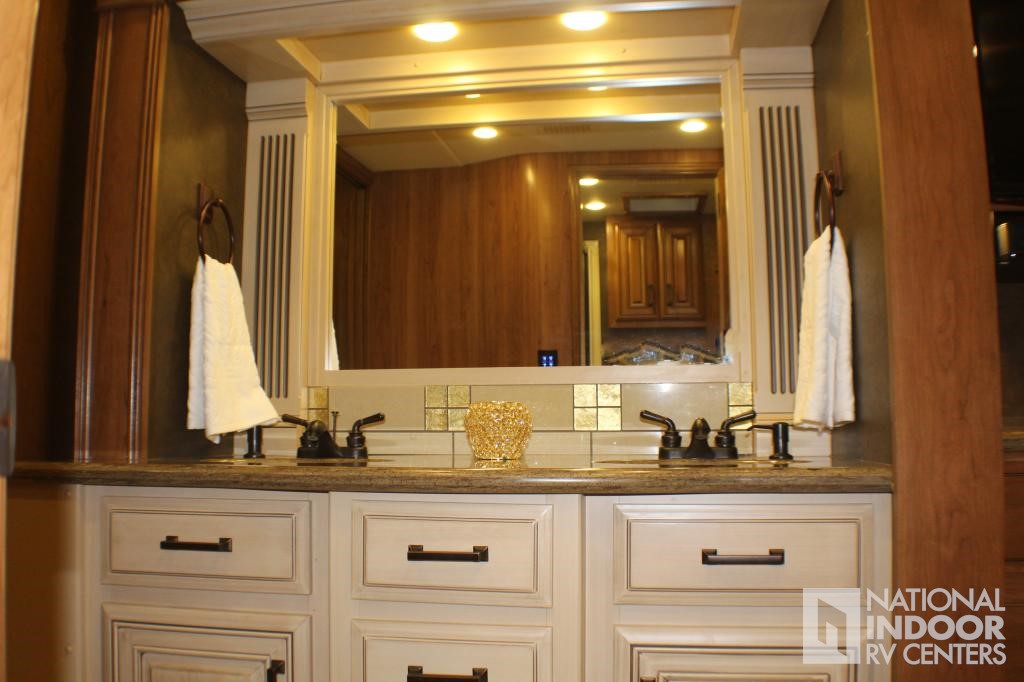

| Solid-surface countertop(s) with integrated sink |

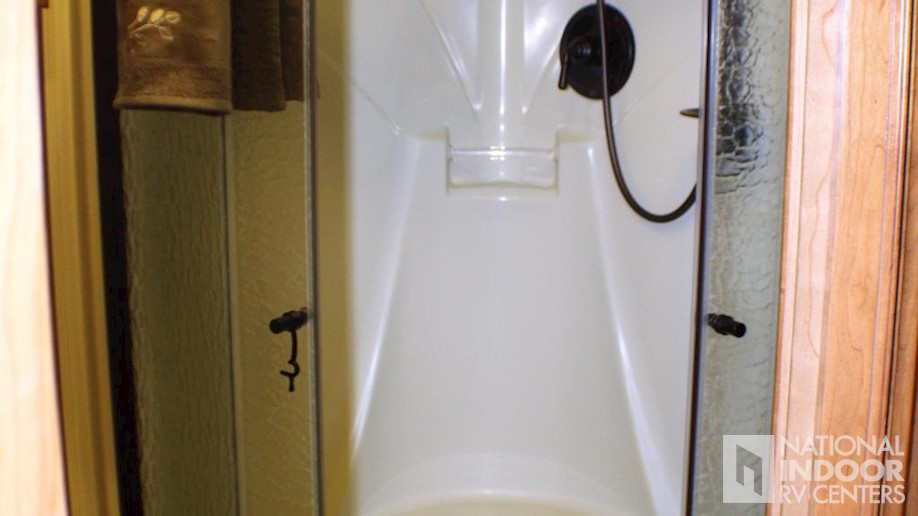

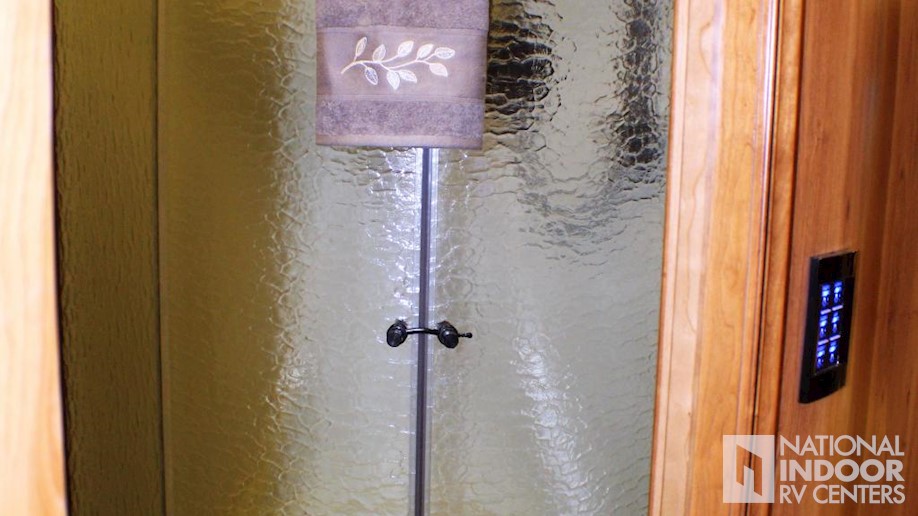

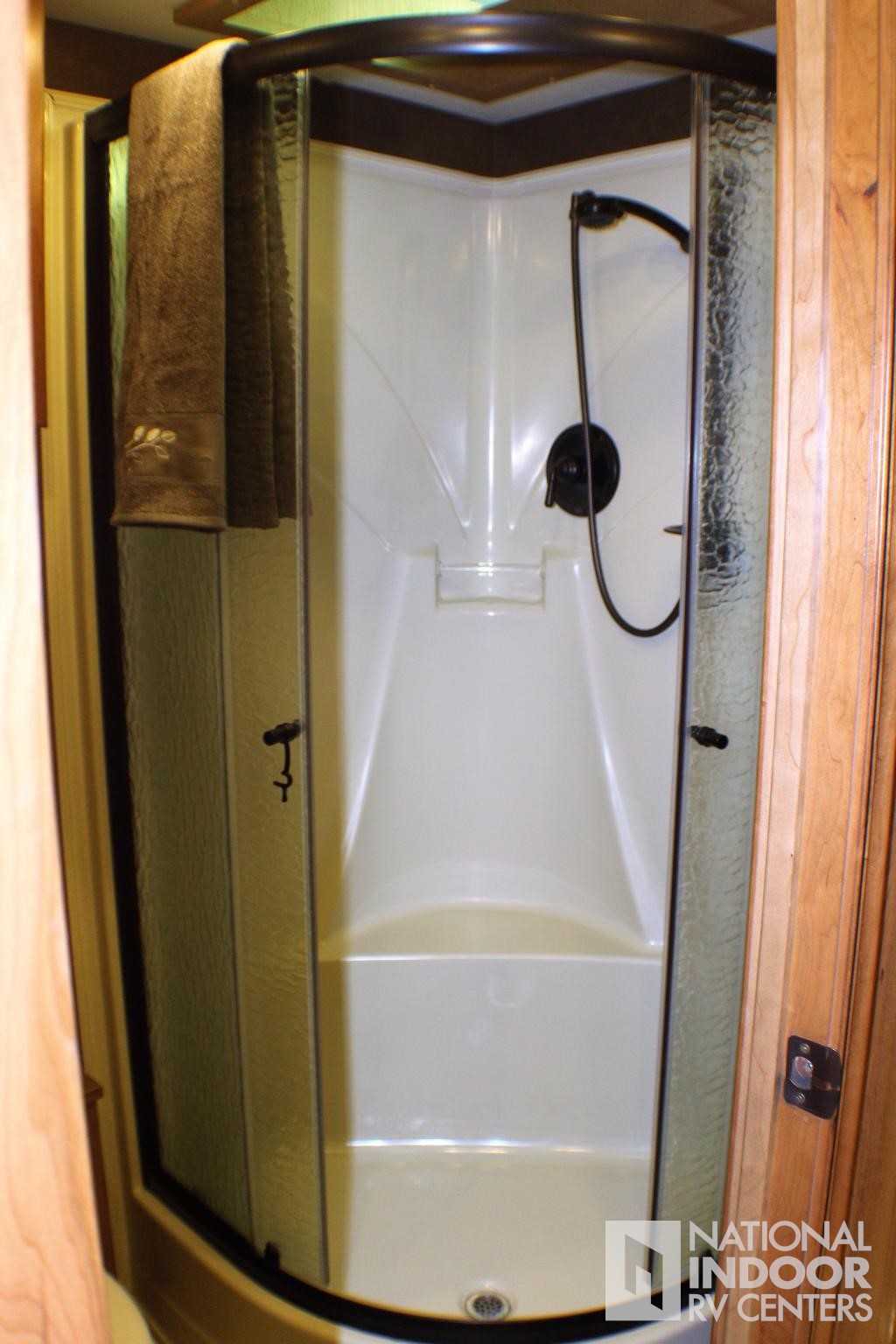

| Shower Door |

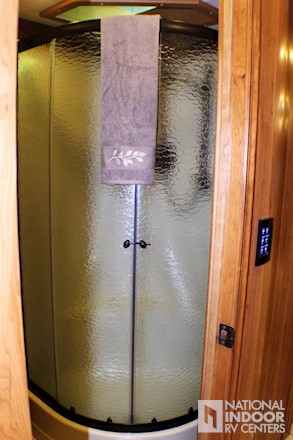

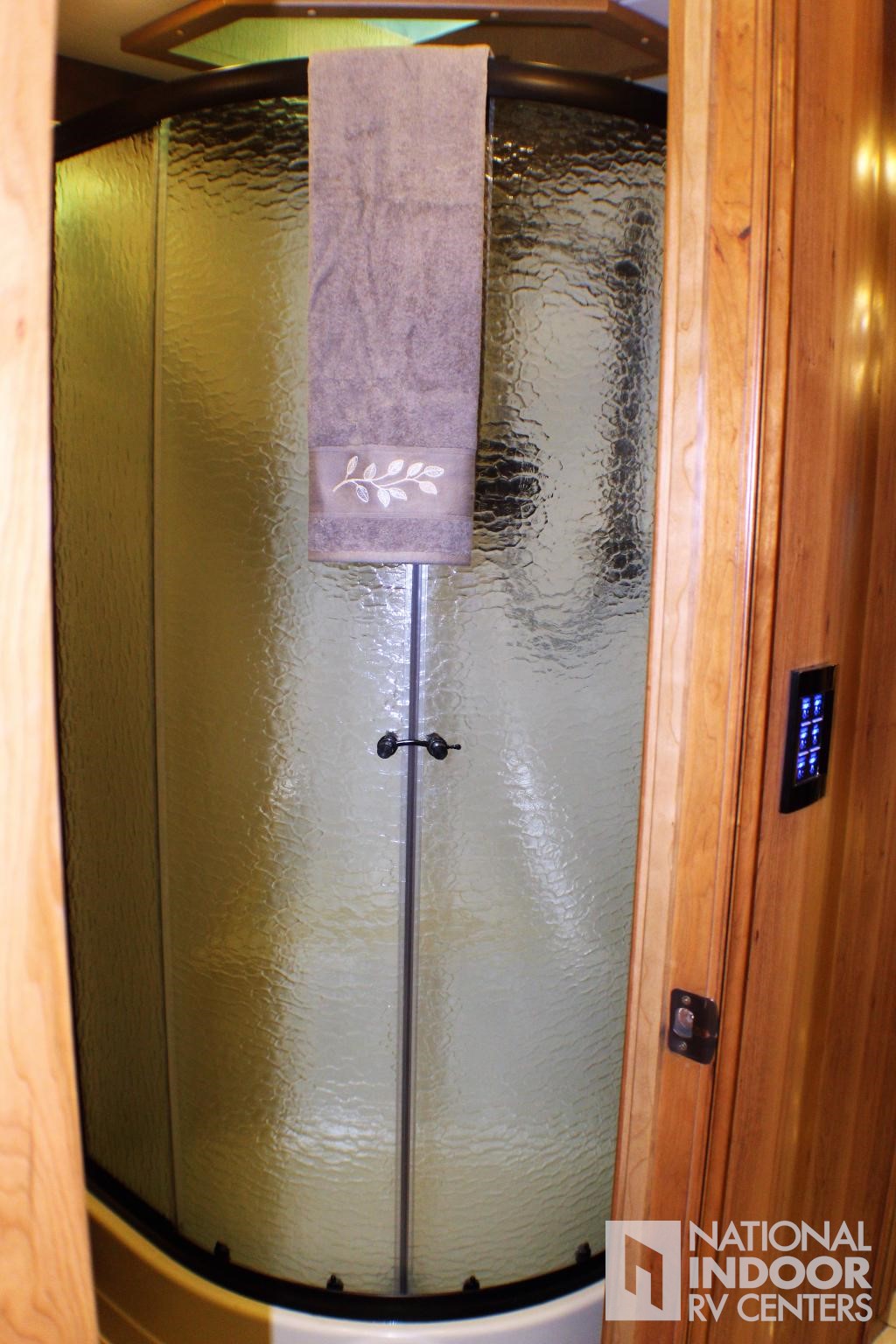

| One-piece fiberglass shower with skylight |
| Vent |
| Power vent |
| Smoke Alarm |
| Yes |
| Propane Alarm |
| Yes |
| Carbon Monoxide Detector |
| Yes |
| Security System |
| Yes |
| Canadian Standards |
| Yes |
| Satellite Dish - US |
| Winegard Trav'ler satellite dish with DIRECTV. Shaw Direct Canada Satellite TV |
