| Chassis |
| Spartan K2 raised rail chassis |
| Engine |
| Cummins L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM |
| Transmission |
| Allison 3000 MH 6-speed transmission |
| Engine Block Heater |
| 1,000 watt engine block heater |
| Front Suspension |
| Reyco Granning IFS independent front air suspension |
| Rear Suspension |
| Hendrickson rear suspension |
| Front Axle |
| Reyco Granning IFS independent 17,000-lb. front axle with air suspension |
| Rear Axle |
| Rear axle 20,000-lb., tag axle 12,000-lb. |
| Rear Axle Ratio |
| 4.88 rear axle ratio |
| Hitch |
| 15,000-lb. hitch with 7/4-pin plug |
| Tag Axle |
| Tag axle air dump |
| Leveling System |
| Hadley air leveling system with auxiliary air compressor |
| Radiator |
| Side-mounted radiator |
| Braking System |
| ABS disc brakes on front axle, drum brakes on drive and tag axle |
| Engine Brake |
| Two-stage engine brake |
| Traction Control |
| Automatic traction control |
| Shocks |
| Bilstein shocks- 60MM front & 46MM rear/tag |
| Fuel Tank |
| 150-gal. fuel tank (dual fill) |
| DEF Tank |
| 15 gallon DEF tank (dual fill) |
| Tires |
| Michelin 315/80R 22.5" tires (front) and 295/80R 22.5" tires (rear) |
| Turning Radius |
| 55-degree turning radius |
| Chassis Battery |
| Chassis batteries 2-12 volt |
| Alternator |
| 170-amp alternator |
| Air Connection |
| Remote air connection |
| Tow Air Brake System |
| Safehaul tow air brake system |
| Tire Pressure Monitoring |
| Tire pressure monitor system |
| Frame |
| X-Bridge frames welded into chassis frame |
| Underbelly |
| Insulated, enclosed, thermostat controlled storage area with heated floor |
| Insulation |
| Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
| Floor |
| 2" x 4" floor truss construction |
| Floor Decking |
| 3/4" 7-ply plywood main floor decking |
| Walls |
| Aluma-Tru superstructure construction on 12"-16" centers |
| Slideouts |
| Flush-mounted electric-powered slideout rooms with VegaTouch control |
| Roof |
| One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss |
| Heating System |
| Aqua-Hot® 450 diesel hydronic water and heating system with in-floor heat throughout and engine preheat |
| Air Conditioning |
| 15,000-BTU low profile A/Cs (3) with heat pumps and condensation drain system |
| Electrical Hookup |
| 50-amp power cord with electric reel |
| Generator |
| Onan 12,500-watt diesel generator with auto gen start, on powered slide-out tray |
| Inverter |
| 3,000 watt pure sine wave inverters (2) |
| Batteries |
| L16 AGM batteries (4) |
| Power Management |
| Premium surge protector transfer switch |
| Water Hose w/ Electric Reel |
| Water hose with electric reel |
| Tank Flush |
| Black holding tank sprayer |
| Black Tank Management |
| Macerator holding tank dump system with manual gate valves |
| Water Filtration |
| City and tank water filtration system |
| Winterization Drain System |
| Winterizing drain system |
| Water Monitoring |
| SeeLevel tank monitoring system |
| Exterior Walls |
| 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
| Front/Rear Cap |
| Steel-reinforced front cap and windshield frame |
| Stainless Steel Accents |
| Premier Bus Armor 8" stainless steel trim |
| Clearance Accent |
| Lighted, chrome clearance accent |
| Exterior |
| 3M front protective film mask |
| Headlights |
| LED high and low beam headlights |
| Fog Lights |
| LED fog lights |
| Daytime Running Lights |
| Daytime running lights |
| LED Lights |
| LED marker lights, turn lights and license plate light |
| Docking Lights |
| LED docking lights |
| Accent Lights |
| LED accent lights on underside of slideout rooms passenger side |
| Third Brake Light |
| Third brake light |
| Keypad |
| Lighted grab handle with keypad system |
| Entrance Door |
| Aire-Secure travel locks for all pocket doors |
| Door Awning |
| Girard power entrance door awning with LED lights |
| Window Awnings |
| Girard Ultra window shade awning and Ultra slide-out awnings |
| Patio Awnings |
| Roof mounted Girard Vision dual pitched patio awnings with LED lights |
| Mirrors |
| Chrome, heated, remote control, Ramco side-view mirrors with blind-spot indicators |
| Windows |
| Frameless, tinted, dual-pane, Hehr safety-glass windows |
| Entertainment |
| 40" Samsung LED HDTV and Bose Solo 5 sound bar on TV bracket with extend, tilt and swivel arm |
| Utility Center |
| Exterior utility center, heated and enclosed with system monitor panel |
| Cargo Features |
| Manual slideout cargo tray |
| Satellite Dish |
| Winegard in-motion, dome, roof-mounted satellite dish with prep for Trav'ler satellite dish |
| TV Antenna |
| Winegard Rayzar automatic powered TV antenna |
| Engine Door |
| Power engine door with manual override |

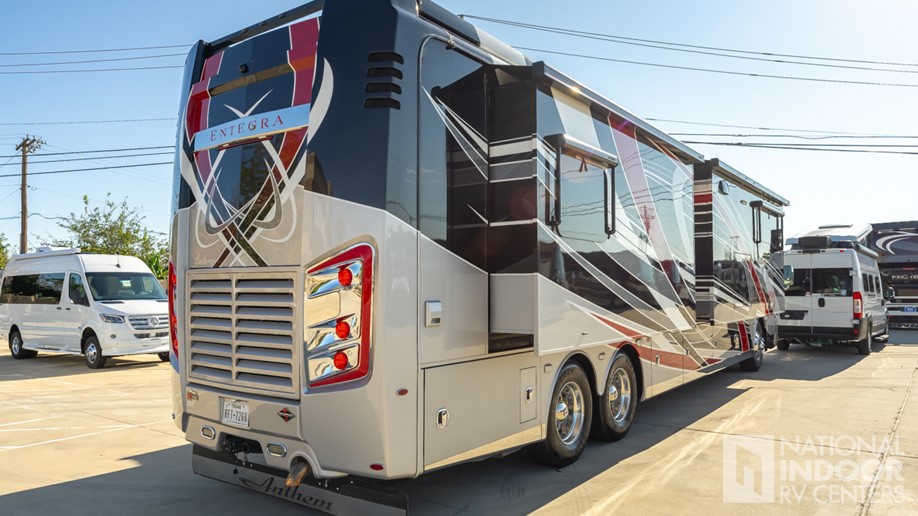

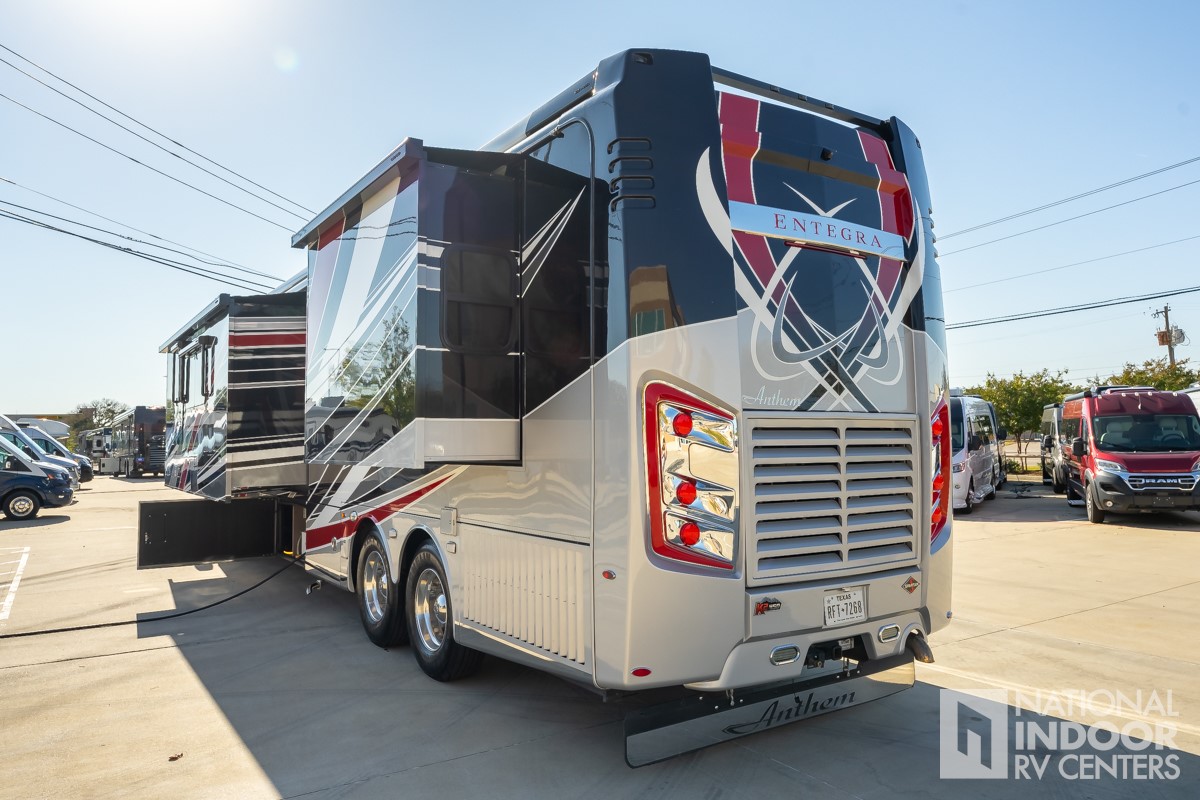

| Rear Mudflap |
| Full-width rear mudflap, with chrome "Anthem" nameplate |
| Lights |
| Porch light and Motion sensor security lights |
| Flooring |
| Powered flush stepwell cover |
| Visors & Privacy Shade |
| Powered front sun visors and privacy shade |
| Windshield |
| Ultra-Vision one-piece wrap-around tinted windshield |
| Driver / Passenger Seats |
| 6-way power, lumbar, Ultraleather driver and passenger seats with integrated 3-point belt |
| Start |
| Push button start |
| Steering Wheel |
| Wood-grain, leather-wrapped, tilt and telescoping steering wheel with integrated controls for radio, cruise, and wipers |
| Side Consoles |
| Molded side consoles |

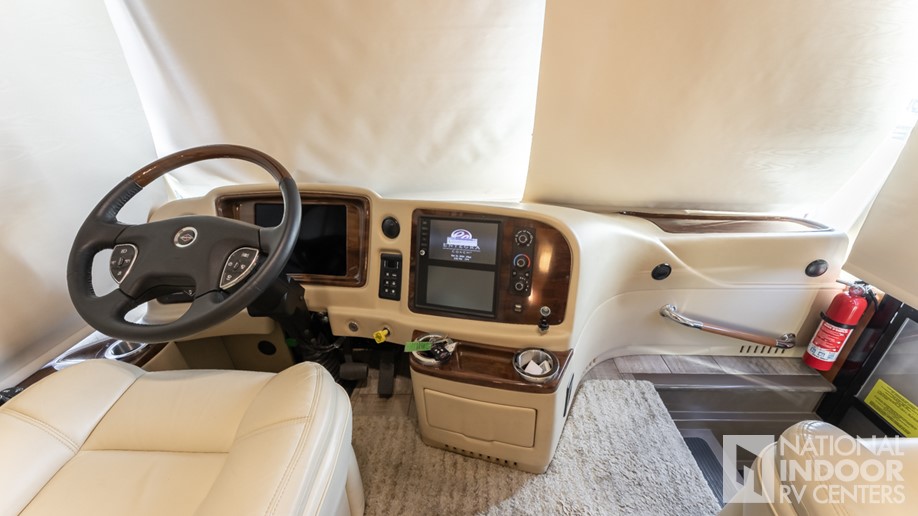

| Dash |

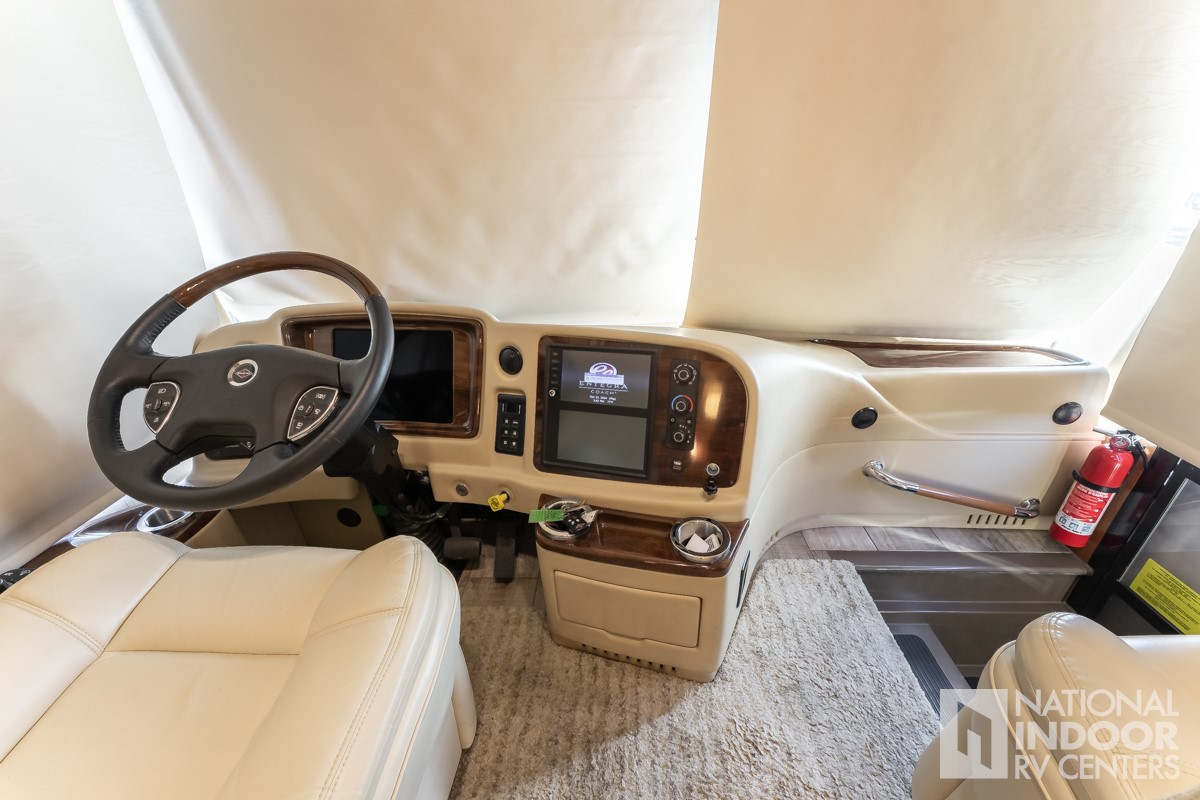

| Message center and monitoring systems included in Valid digital dash |
| Monitoring System(s) |
| Message center and monitoring systems included in Valid digital dash |
| Infotainment System(s) |
| Glass panel, dual 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control, house mode whole coach audio distribution, and integrated VegaTouch coach control |
| Sound System |
| JBL® premium audio sound system with amplifier, speakers and subwoofer |
| Leveling System |
| Equalizer hydraulic automatic leveling |
| Power Features |
| Battery boost system |
| Pedals |
| Powered adjustable foot pedals |
| Cameras |
| High definition digital side and rear view cameras |
| Additional Amenities |
| Two dual USB ports |
| Blind Spot Monitoring |
| Blind spot monitoring system |
| Lighting System |
| VegaTouch pad system, for complete integration of coach controls |
| Lighting |
| Dimmable LED recessed 12V lighting |

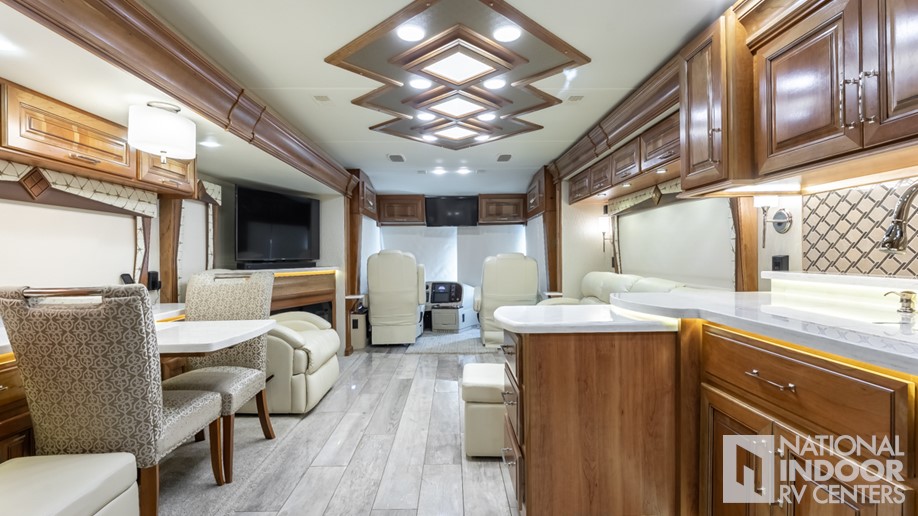

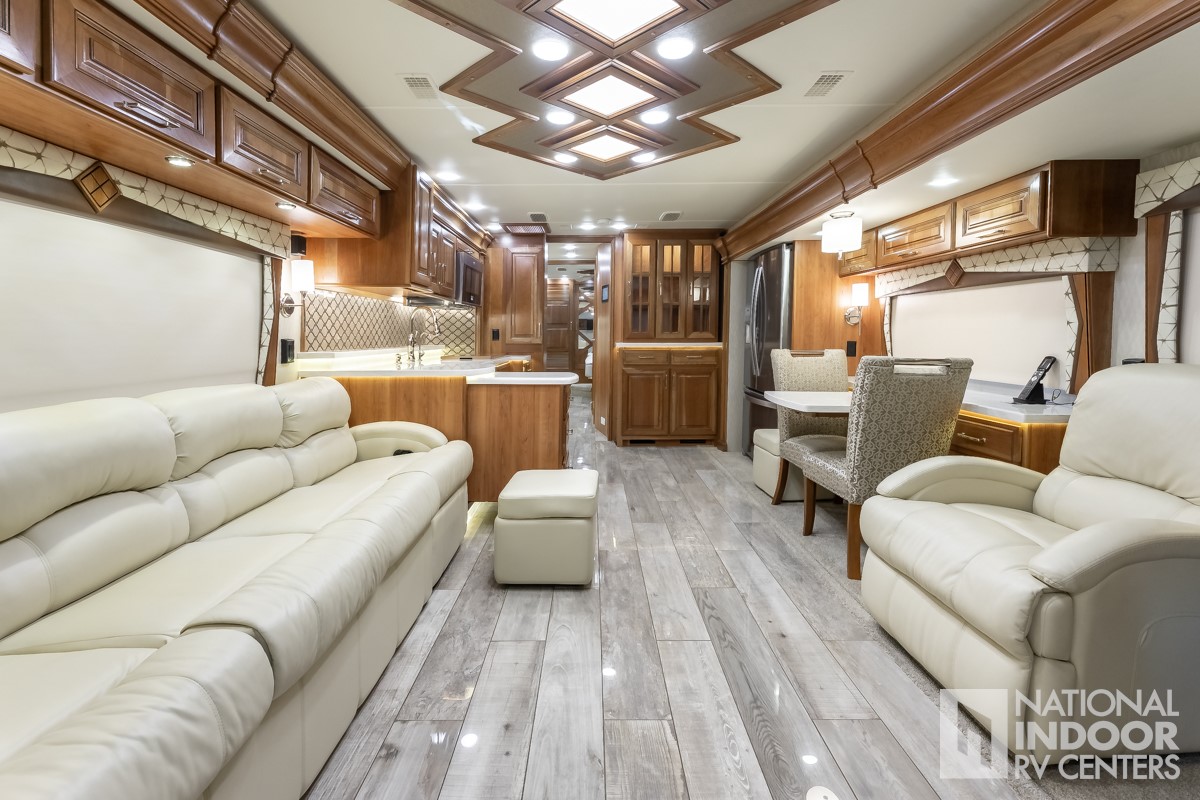

| Flooring |
| Hand laid high gloss 8" x 48" porcelain tile floor |
| Window Treatments |
| Powered solar day and black out night shades |
| Television - Living Room |
| Samsung 50" 4K UHDTV |
| Television - Front Overhead |
| Samsung 32" LED HDTV in front overhead |
| DVD Systems |
| Blu-ray players in living area & bedroom |
| Sound - Living Room |
| Bose SoundTouch 300 sound system |

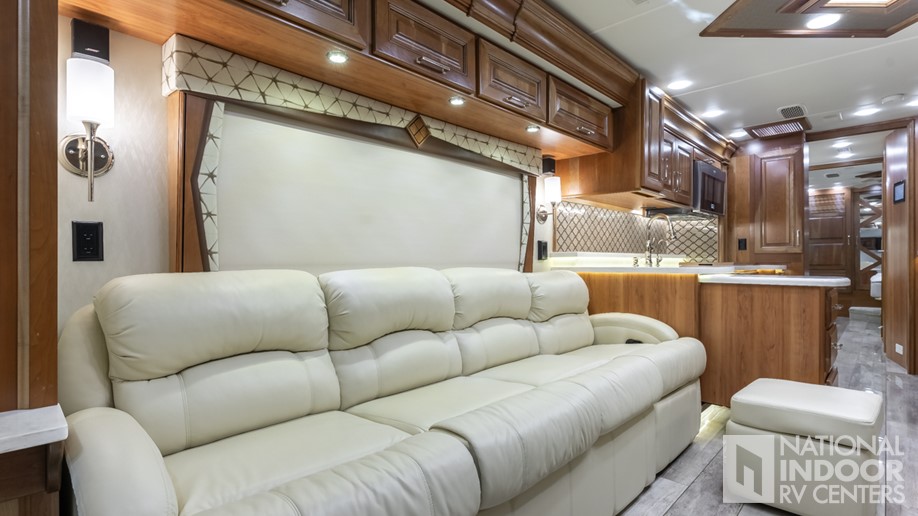

| Furniture |

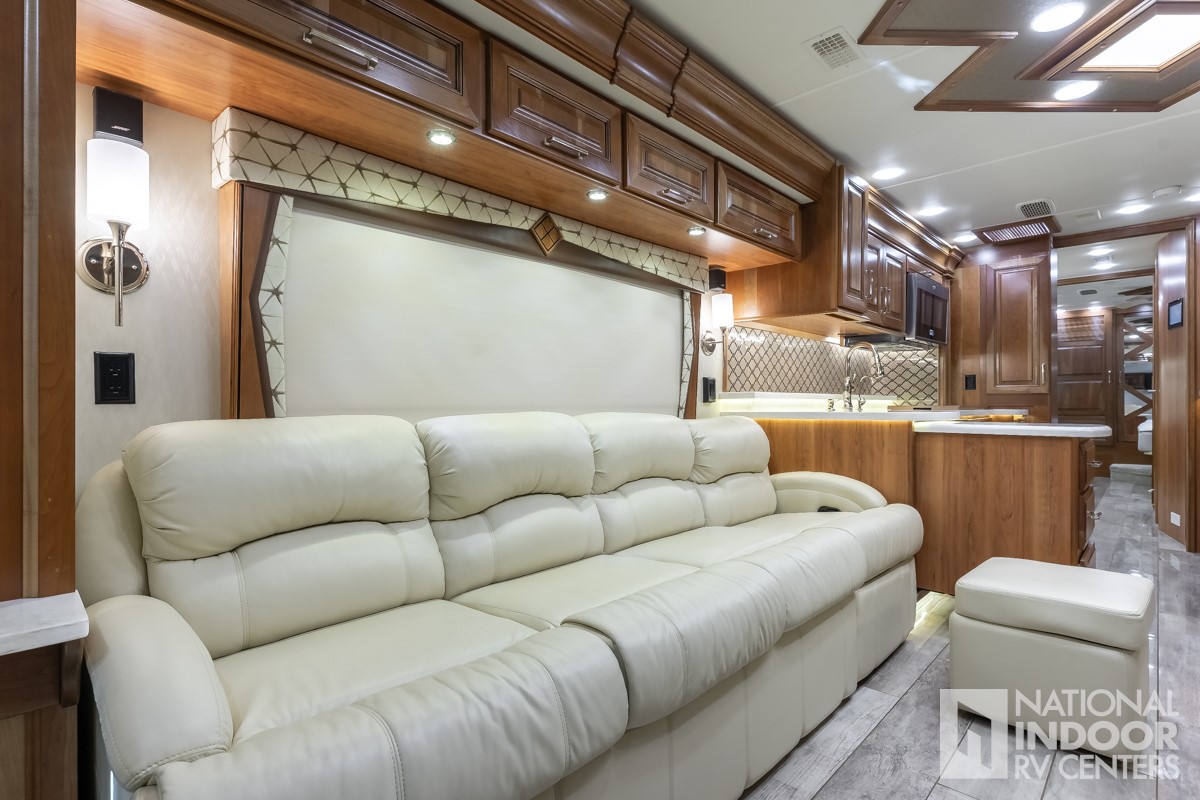

| Ultraleather hide-a-bed(s) |

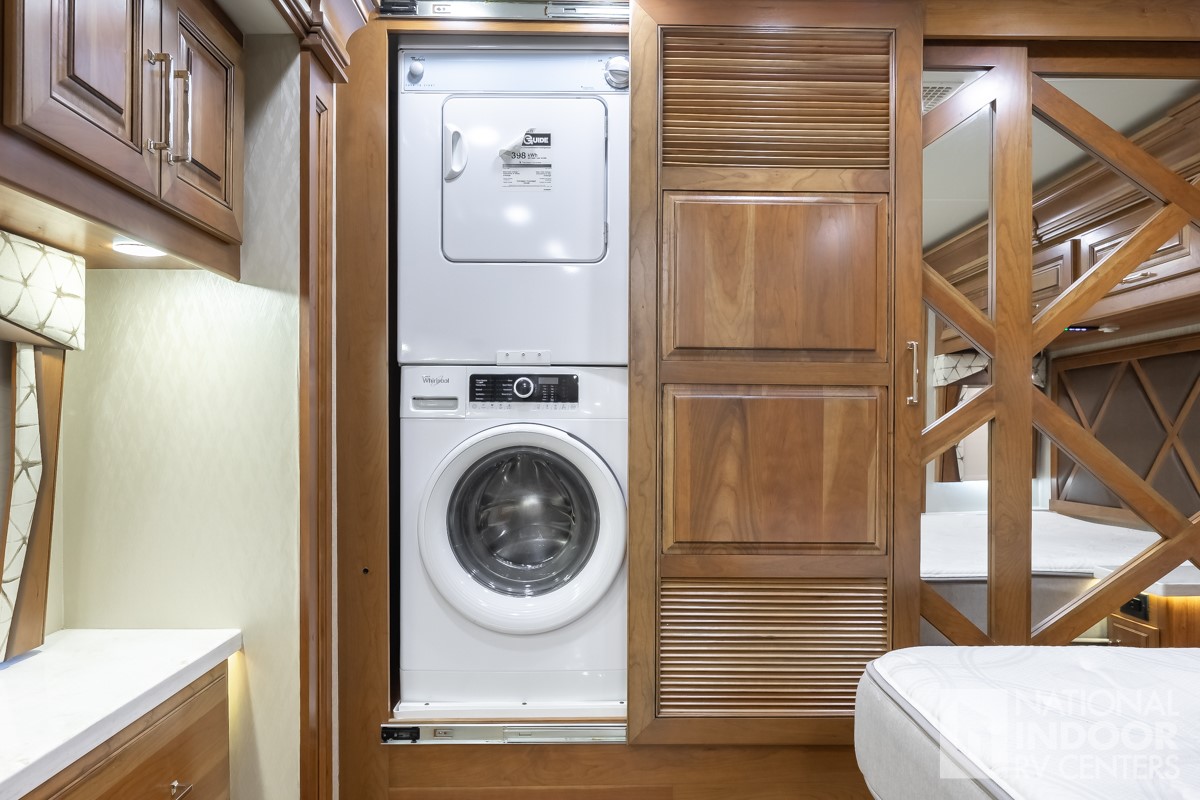

| Washer/Dryer |

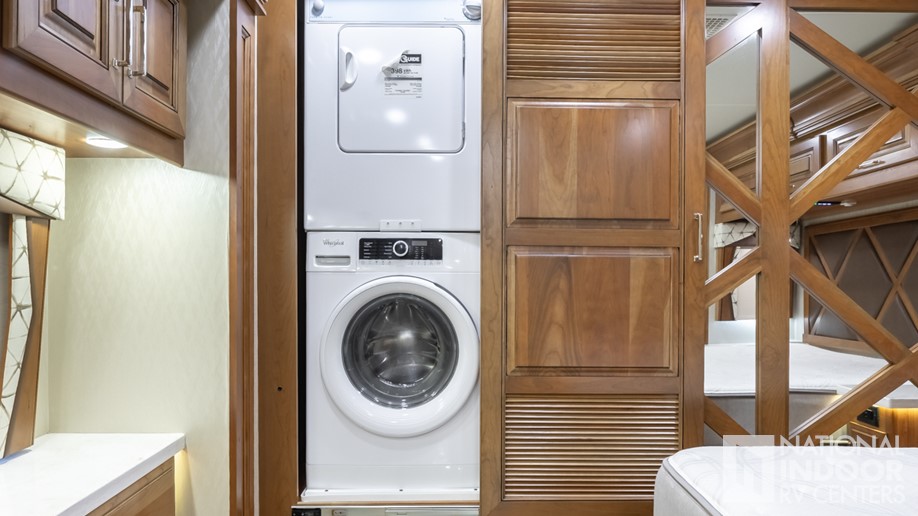

| Stacked washer and dryer |
| Central Vacuuming System |
| Central vacuum system |
| Additional Storage |
| In-step storage with pull-out tray |

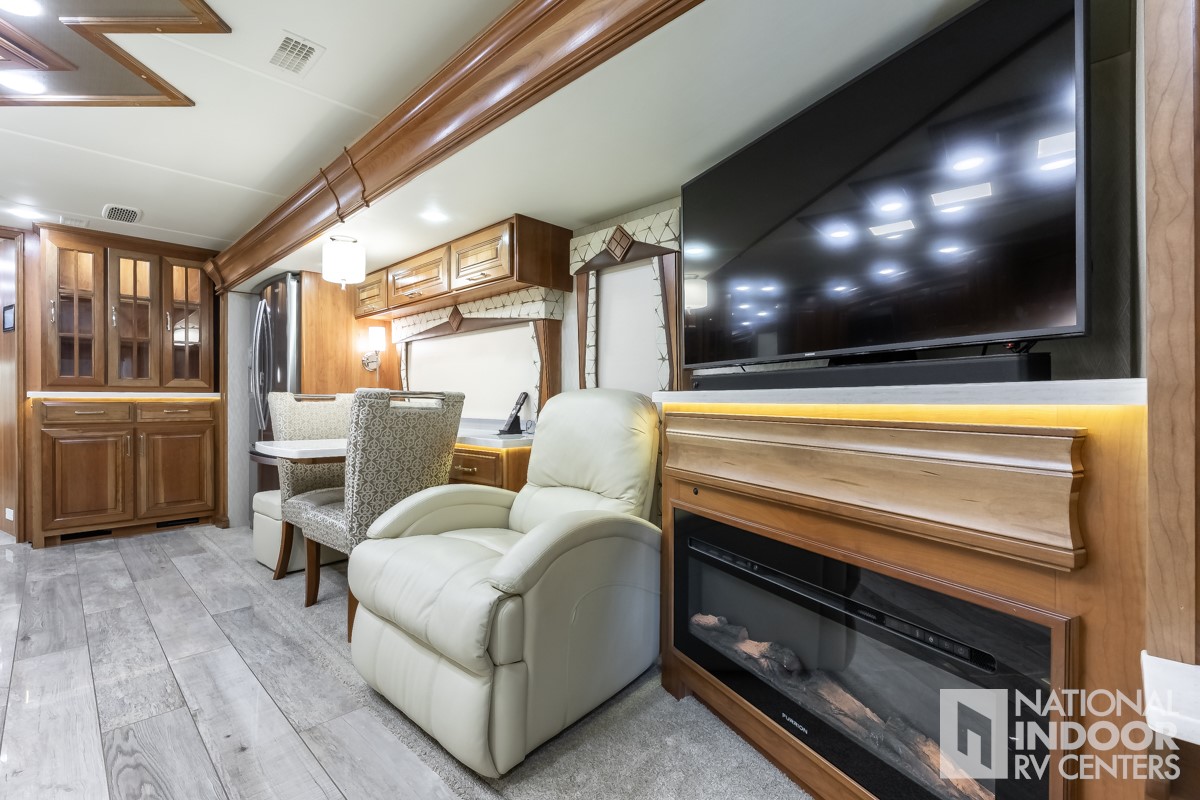

| Electric Fireplace |

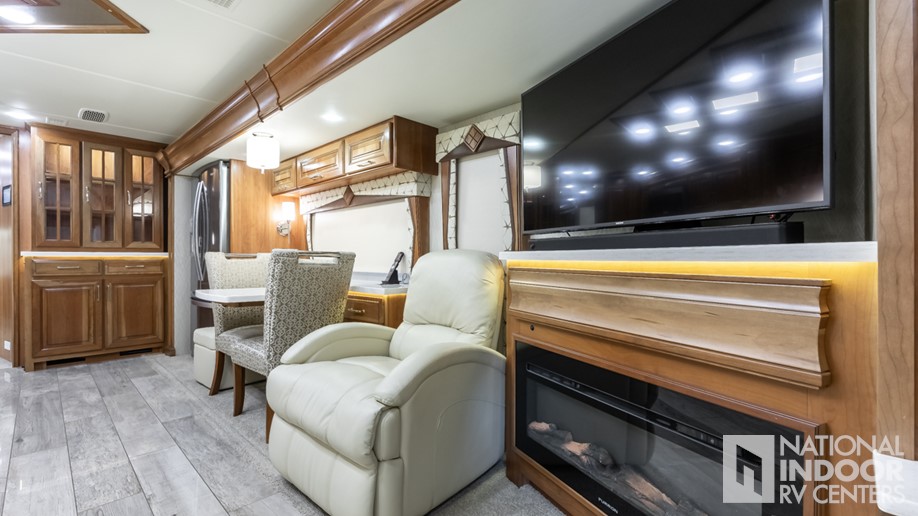

| LED fireplace (44B, 42DEQ) |

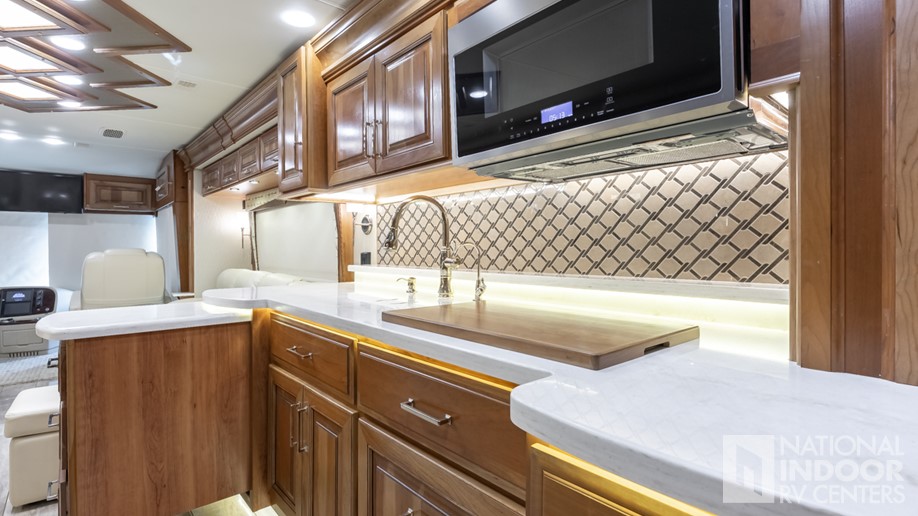

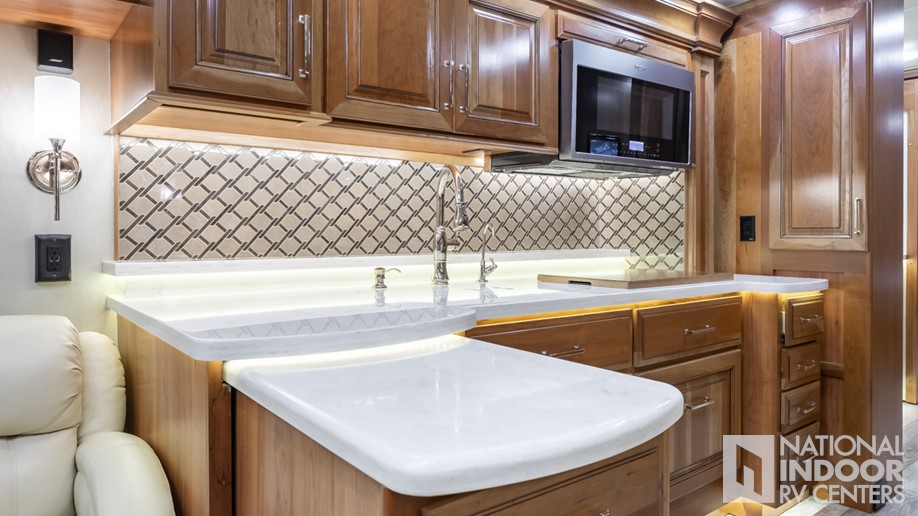

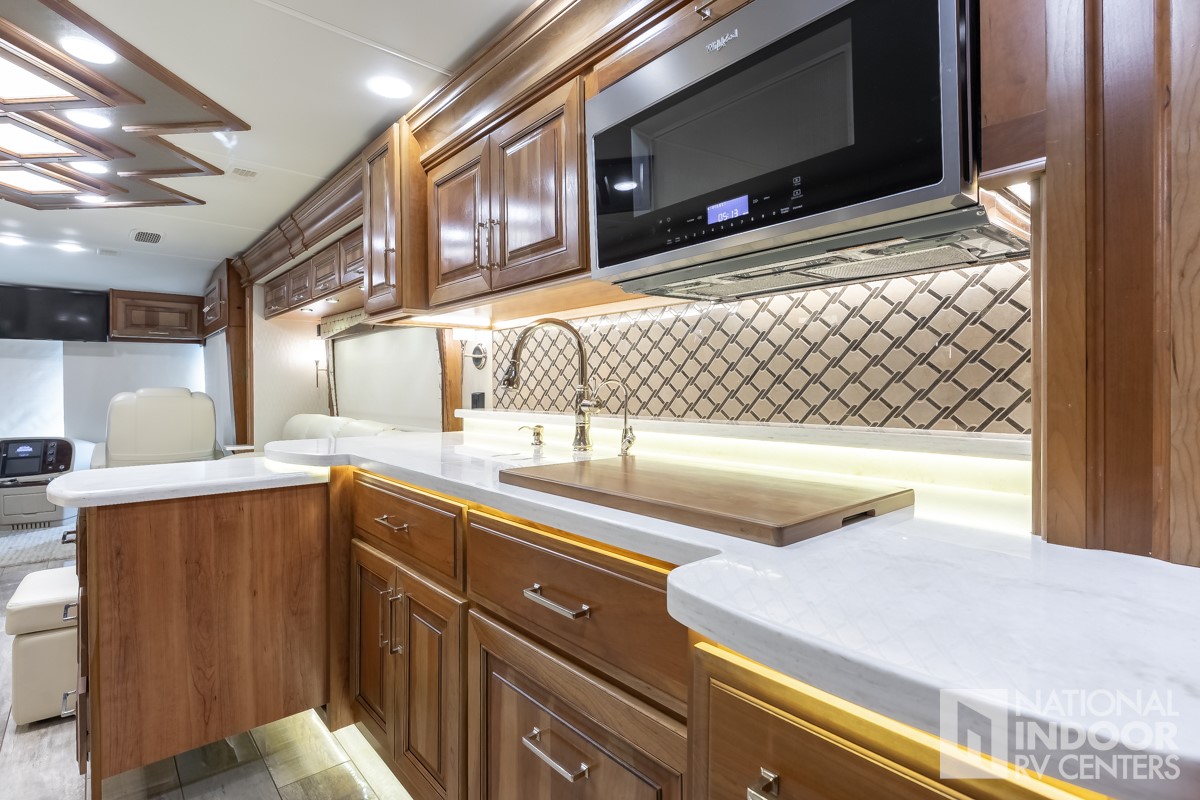

| Countertops |

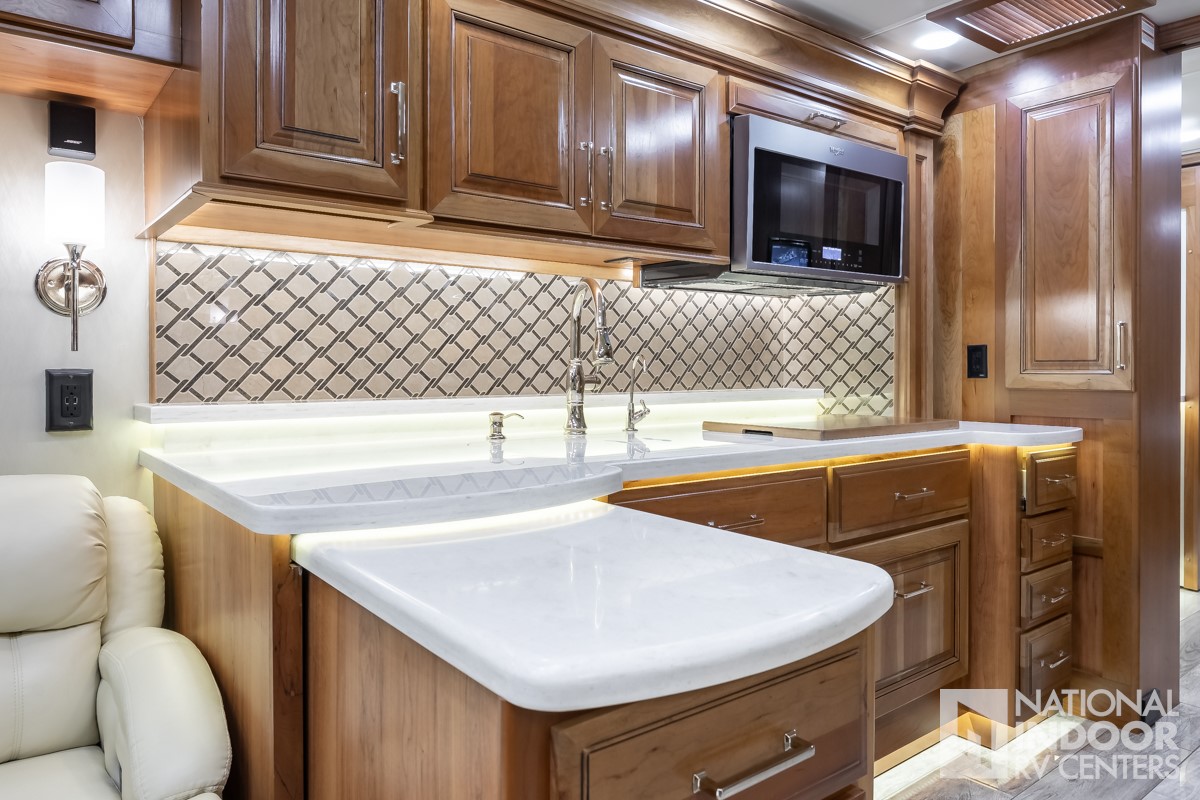

| Solid surface countertops with stainless steel sink and dimable LED accent lighting |
| Cabinet Extension |
| Pullout countertop extension with drawers |
| Backsplash |
| Porcelain tile backsplash |
| Waste Basket |
| Large deep drawer for waste basket with easy access trash chute (trash chute not available in 44F) |
| Dishwasher |
| Dishwasher with wood raised panel door front |
| Cooktop |
| Induction cooktop |
| Microwave |
| Whirlpool Gold 1.9 cu. ft. convection microwave oven |
| Refrigerator |
| Whirlpool residential refrigerator with ice maker and water dispenser |
| Vent |
| Maxxair power vent |

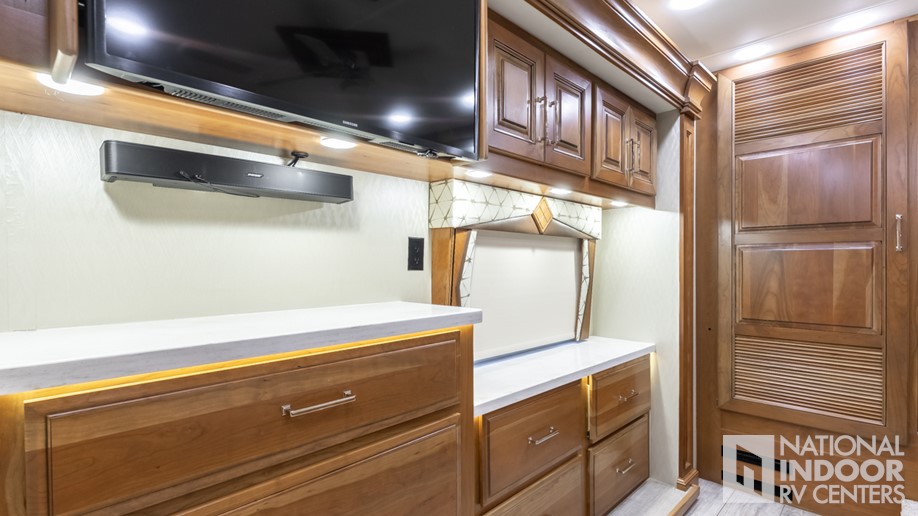

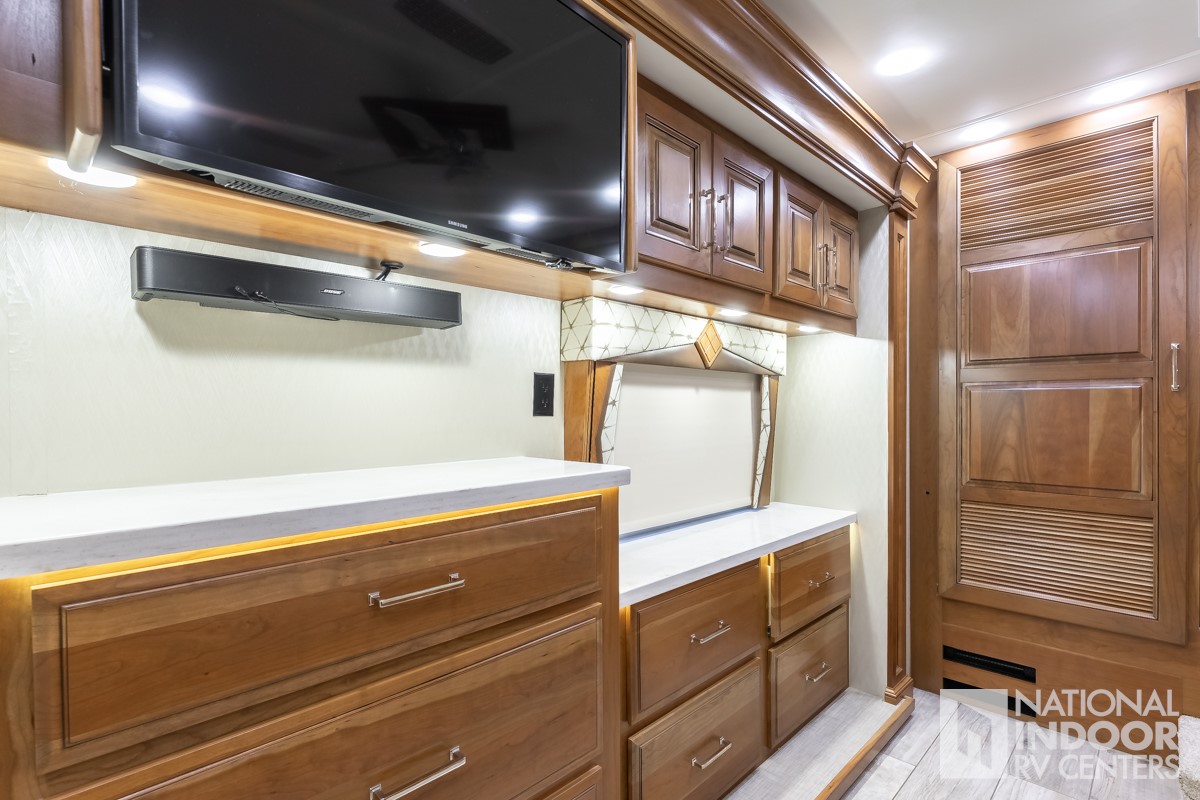

| Television |
| Samsung 32" LED HDTV in bedroom |
| Sound |
| Bose Solo 5 sound bar in bedroom |

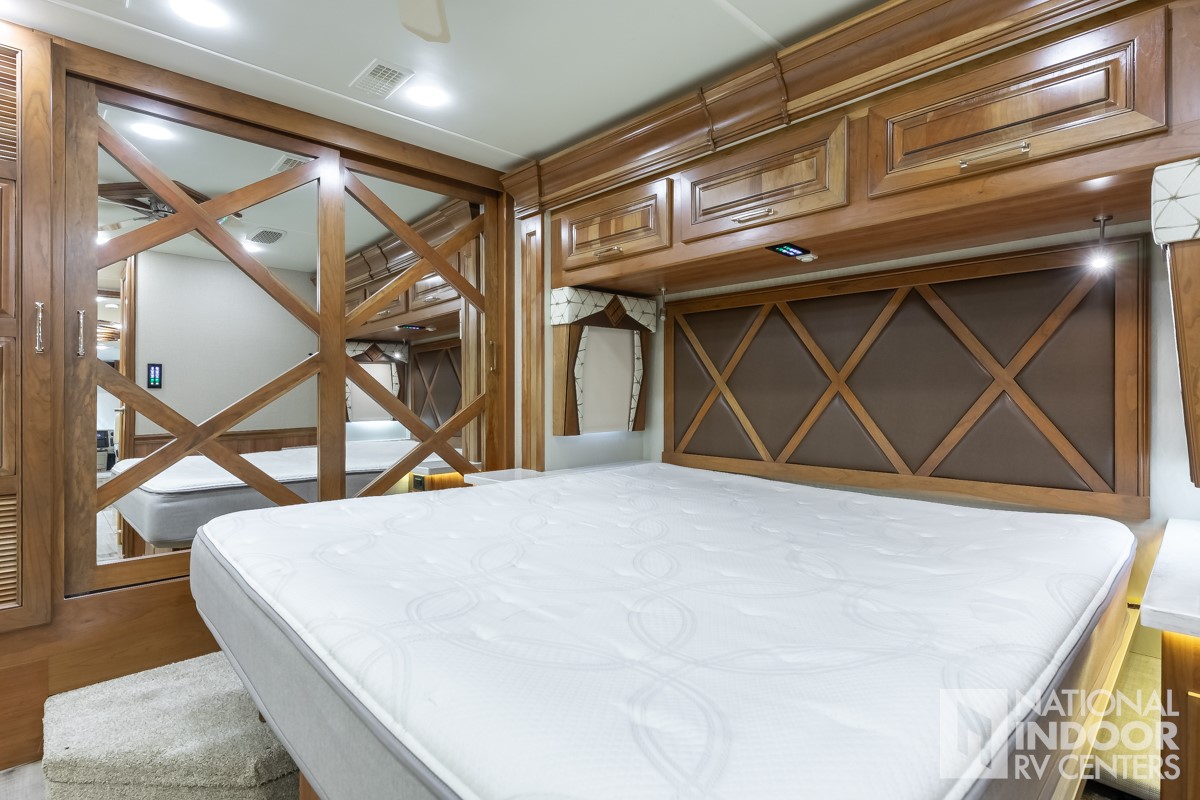

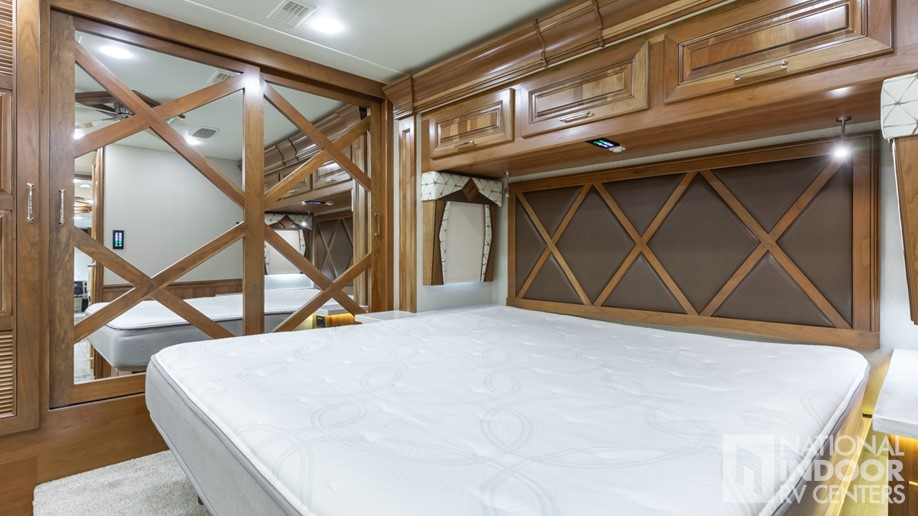

| Bed |
| Select Comfort Sleep Number king size mattress |
| Ceiling Fan |
| Ceiling fan |
| Wardrobe |
| Large cedar-lined wardrobe with automatic lights (Automatic lights not available in 44F) |
| Nightstands |
| Nightstands with USB ports and solid surface tops |

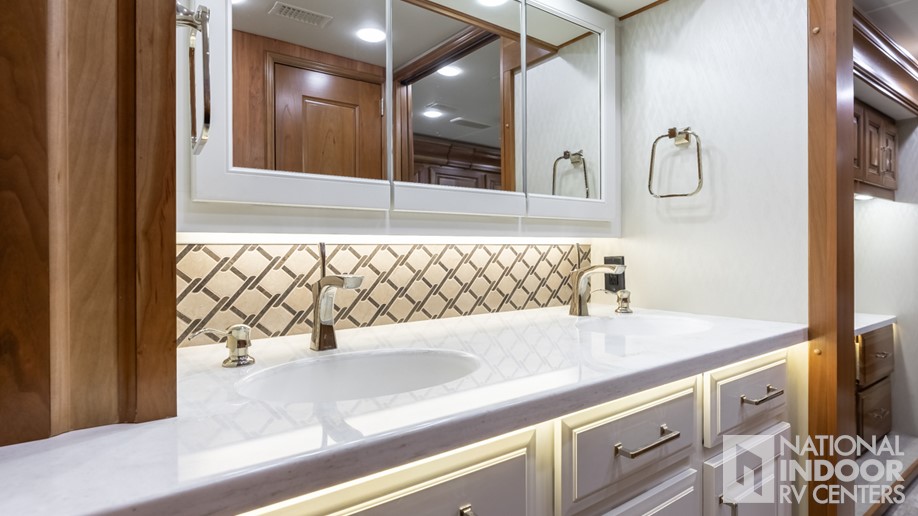

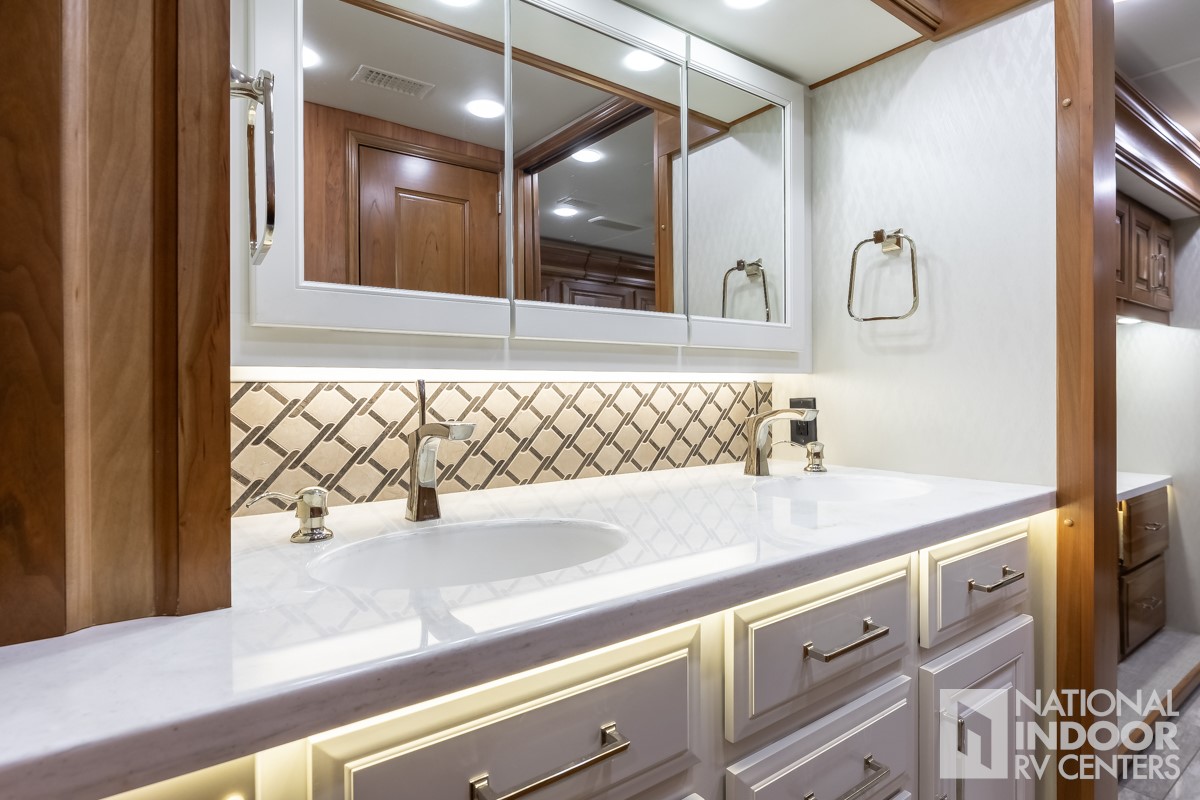

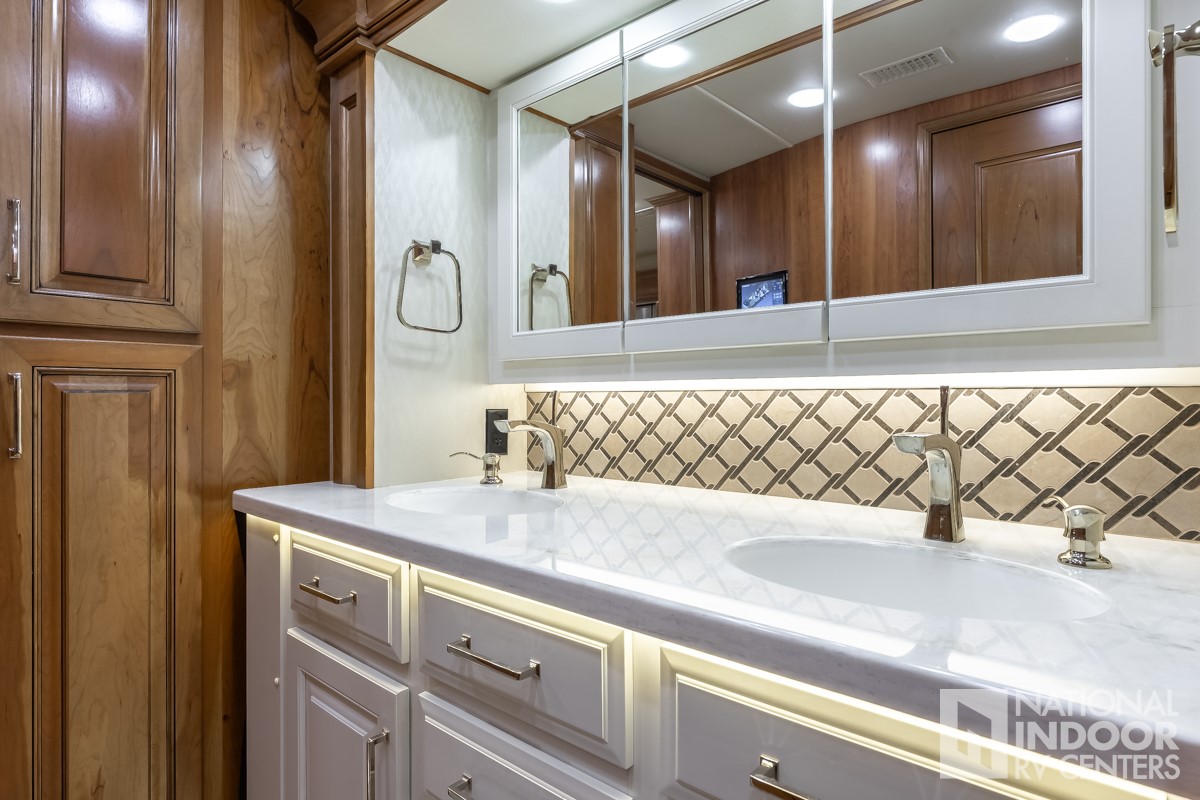

| Countertop(s) |

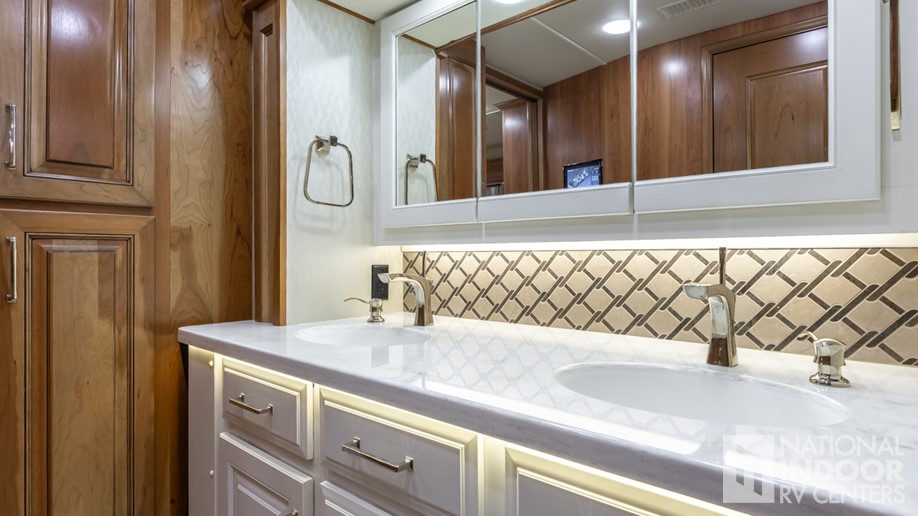

| Solid surface countertops with integrated sink and dimmable LED accent lighting |
| Toilet |
| Thetford® Tecma china toilet(s) with push button flush |

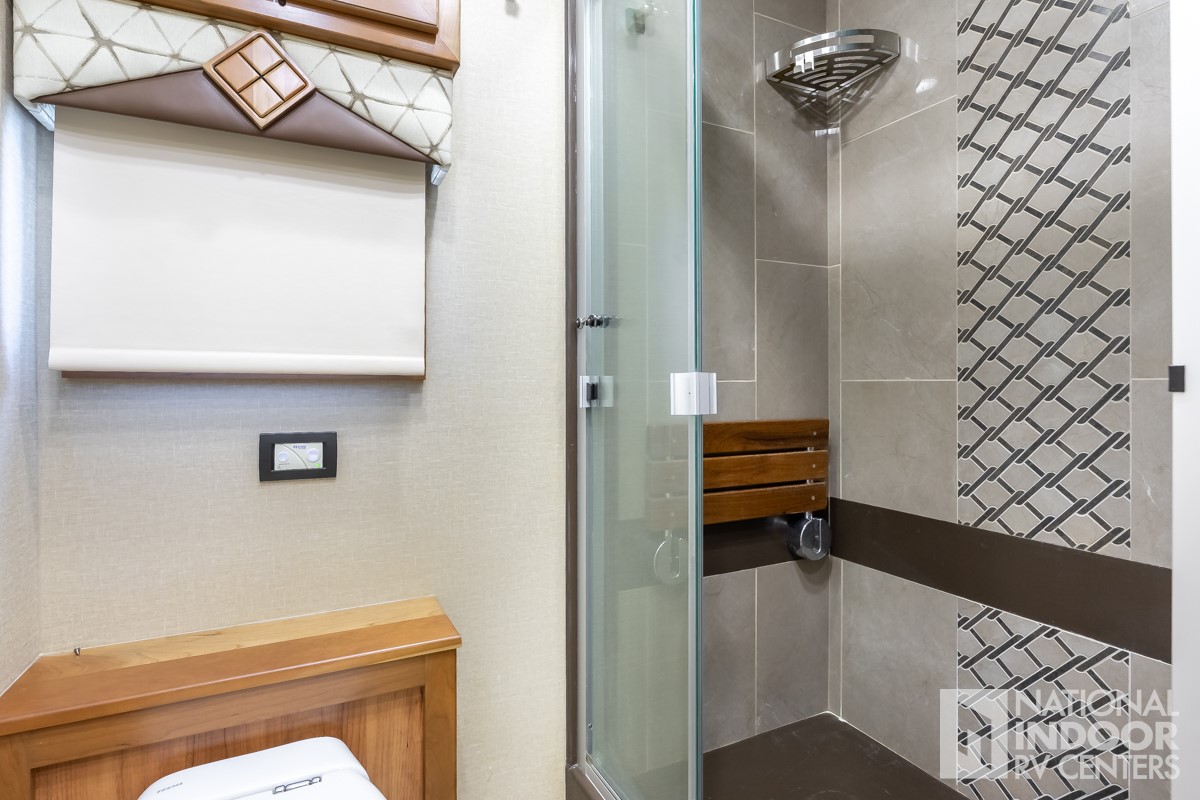

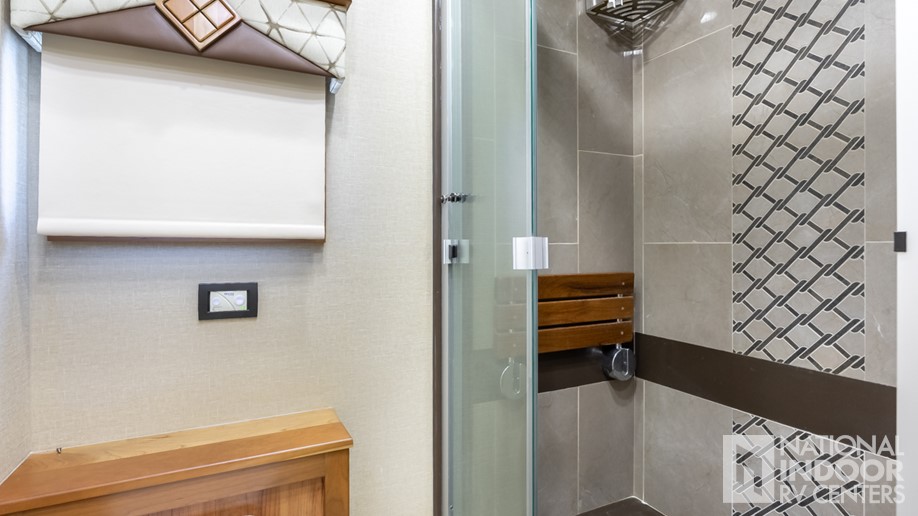

| Shower |
| Porcelain tiled shower wall with skylight |
| Shower Seat |
| Teakwood shower seat (Not available in 44F) |
| Vent |
| Maxxair Deluxe power vent |
| Security System |
| Security system with glass shatter sensors |
| Smoke Alarm |
| Smoke alarm |
| Carbon Monoxide Detector |
| Carbon monoxide alarm |
| Security Safe |
| Safe |
| Canadian Standards |
| Optional |
| Fireplace |
| LED lit fireplace standard (42DEQ, 44B) |
| Dishwasher Drawer |
| Standard |
| Dinette |
| Ultraleather dinette booth (N/A 44F) |

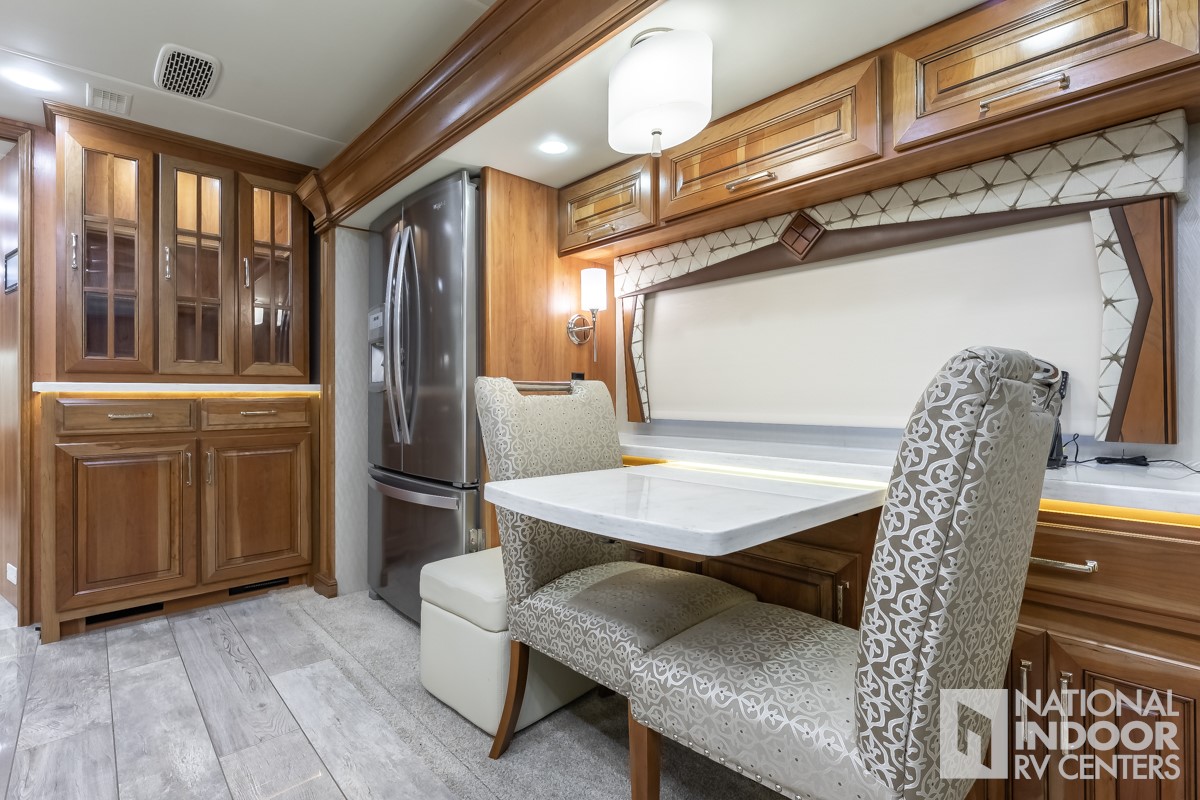

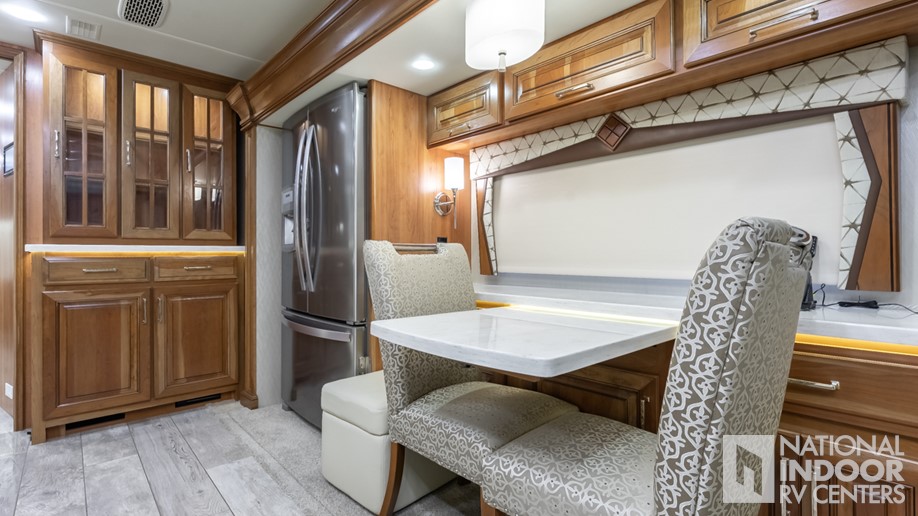

| Freestanding Table |
| Freestanding table with 4 chairs standard |
| Satellite Dish - US |
| Winegard Trav'ler satellite dish - DIRECTV |
| Satellite Dish - CA |
| Winegard Trav'ler satellite dish - Shaw Direct |
| Solar |
| Solar panels (Dual-100 watt) |
| Freezer |
| Optional exterior freezer |
| Front Overhead TV |
| Standard |
| Central Vacuum System |
| Standard |
| WiFi Extender Antenna |
| Winegard WIFI Extender with 4G/LTE |
| Theater Seating |
| Theater seating with power recliners and fixed center console |
