| Chassis |
| Spartan K2 raised rail chassis |
| Engine |
| Cummins L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM |
| Transmission |
| Allison 3000 MH 6-speed transmission |
| Engine Block Heater |
| 1,000 watt engine block heater |
| Front Suspension |
| Reyco Granning IFS independent front air suspension |
| Rear Suspension |
| Reyco Granning rear suspension |
| Front Axle |
| Reyco Granning IFS independent 17,000-lb. front axle with air suspension |
| Rear Axle |
| Rear axle 20,000-lb., tag axle 12,000-lb. (Rear axle 24,000-lb. and no tag on 38M and 40P) |
| Rear Axle Ratio |
| 4.88 rear axle ratio |
| Hitch |
| 15,000-lb. hitch with 7/4-pin plug, (10,000-lb. hitch on 38M and 40P) |
| Tag Axle |
| Tag axle air dump (Not available on 38M and 40P) |
| Radiator |
| Side-mounted radiator |
| Braking System |
| ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 38M and 40P) |
| Engine Brake |
| Two-stage engine brake |
| Shocks |
| Bilstein 46mm shocks |
| Fuel Tank |
| 150-gal. fuel tank (100-gal. fuel tank on 38M and 40P) dual fill |
| DEF Tank |
| 15 gallon DEF tank (dual fill except on 38M, 40P, 44R) |
| Tires |
| Michelin® 315/80R 22.5" Tires (Front) 295/80 R 22.5" Tires (Rear) |
| Turning Radius |
| 55-degree turning radius |
| Chassis Battery |
| Chassis batteries 2-12 volt |
| Alternator |
| 170-amp alternator |
| Air Connection |
| Remote air connection |
| Tow Air Brake System |
| Safehaul tow air brake system |
| Frame |
| X-Bridge frames welded into chassis frame |
| Underbelly |
| Insulated, enclosed, thermostat controlled storage area with heated floor |
| Insulation |
| Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
| Floor |
| 2" x 4" floor truss construction |
| Floor Decking |
| 3/4" 7-ply plywood main floor decking |
| Walls |
| Aluma-Tru Superstructure construction on 12"-16" centers |

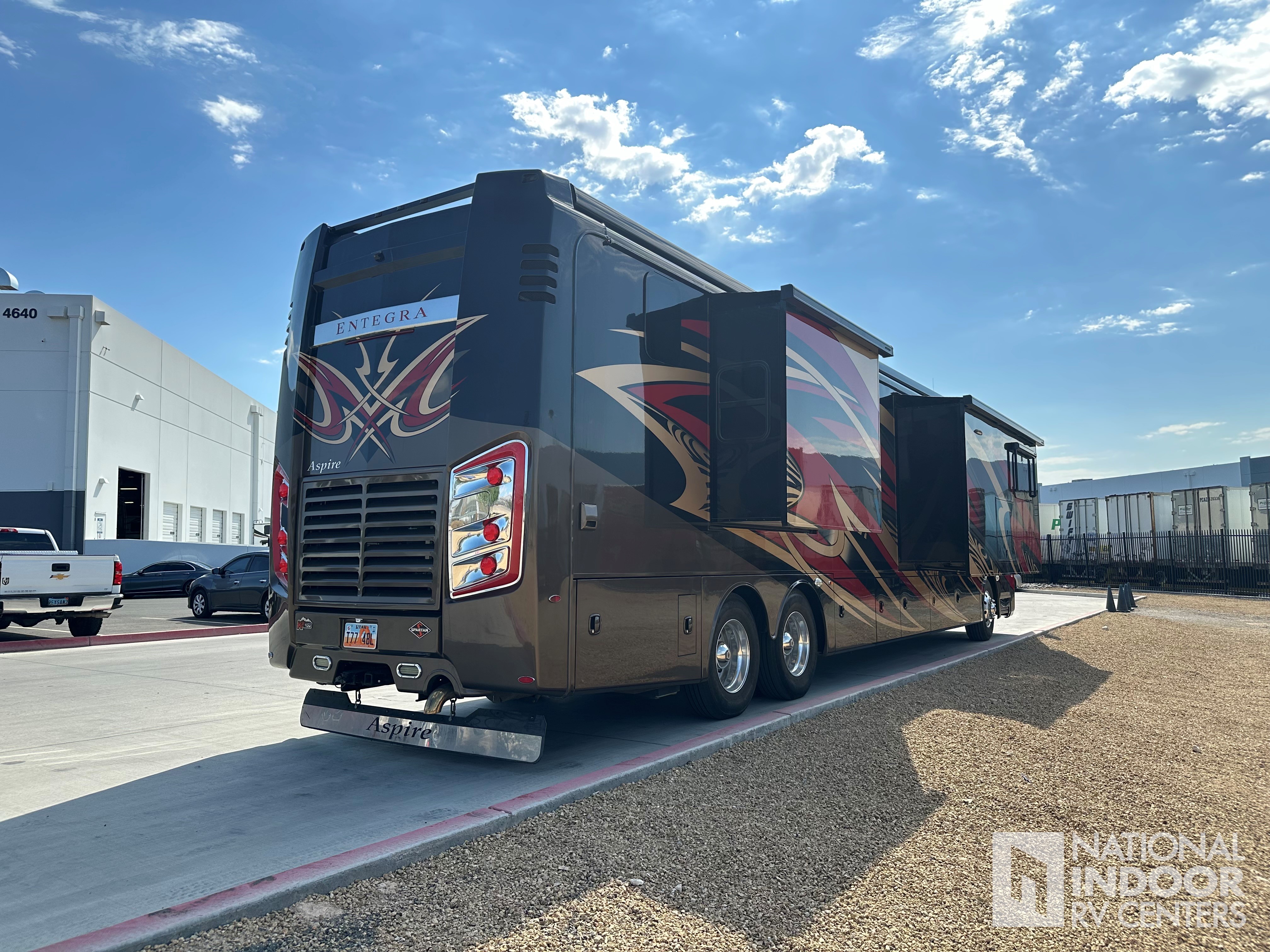

| Slideouts |
| Flush-mounted electric-powered slideout rooms with remote control |
| Roof |
| One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss |
| Heating System |
| Aqua-Hot 400 diesel hydronic water and heating system with in-floor heat throughout |
| Air Conditioning |
| 15,000-BTU low profile A/Cs (3) with heat pump, and condensation drain system |
| Electrical Hookup |
| 50-amp power cord with electric reel |
| Generator |
| Onan 10,000-watt diesel generator with auto gen start on slide-out tray |
| Inverter |
| 3,000-watt pure sine wave inverter |
| Batteries |
| L16 AGM batteries (2), (6v/390 amp hrs. ea.) |
| Power Management |
| Surge protector transfer switch |
| Water Hose w/ Electric Reel |
| Water hose with electric reel |
| Tank Flush |
| Black holding tank sprayer |
| Black Tank Management |
| Macerator holding tank dump system with manual gate valves |
| Water Monitoring |
| SeeLevel tank monitoring system |
| Water Filtration |
| City and tank water filtration system |
| Winterization Drain System |
| Winterizing drain system |

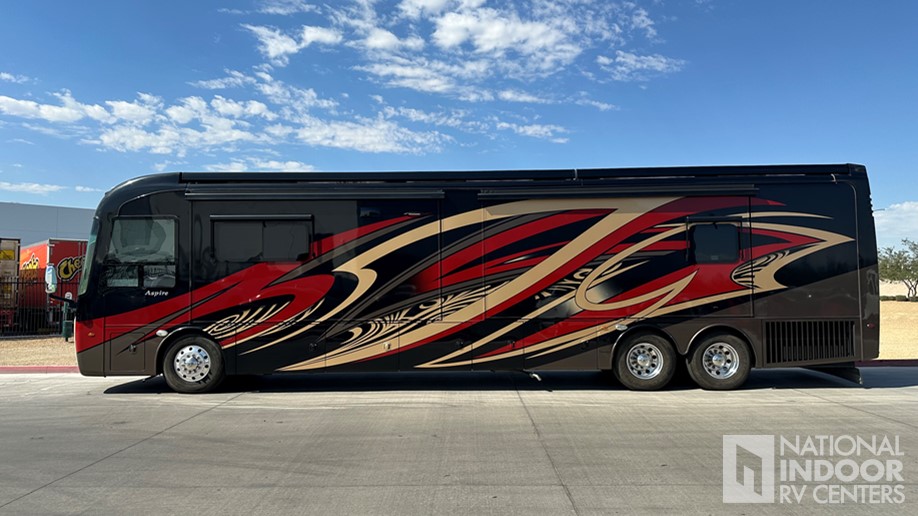

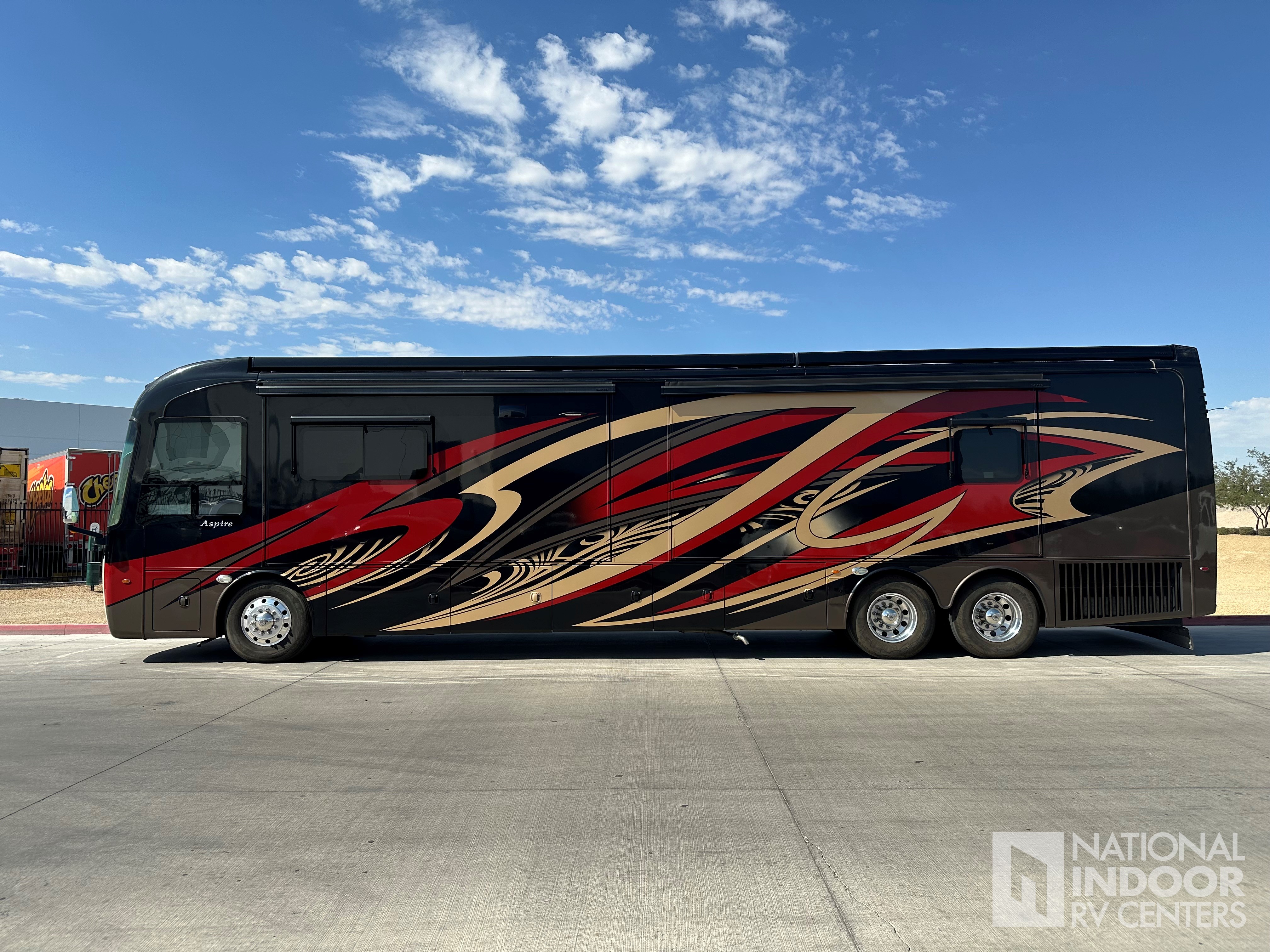

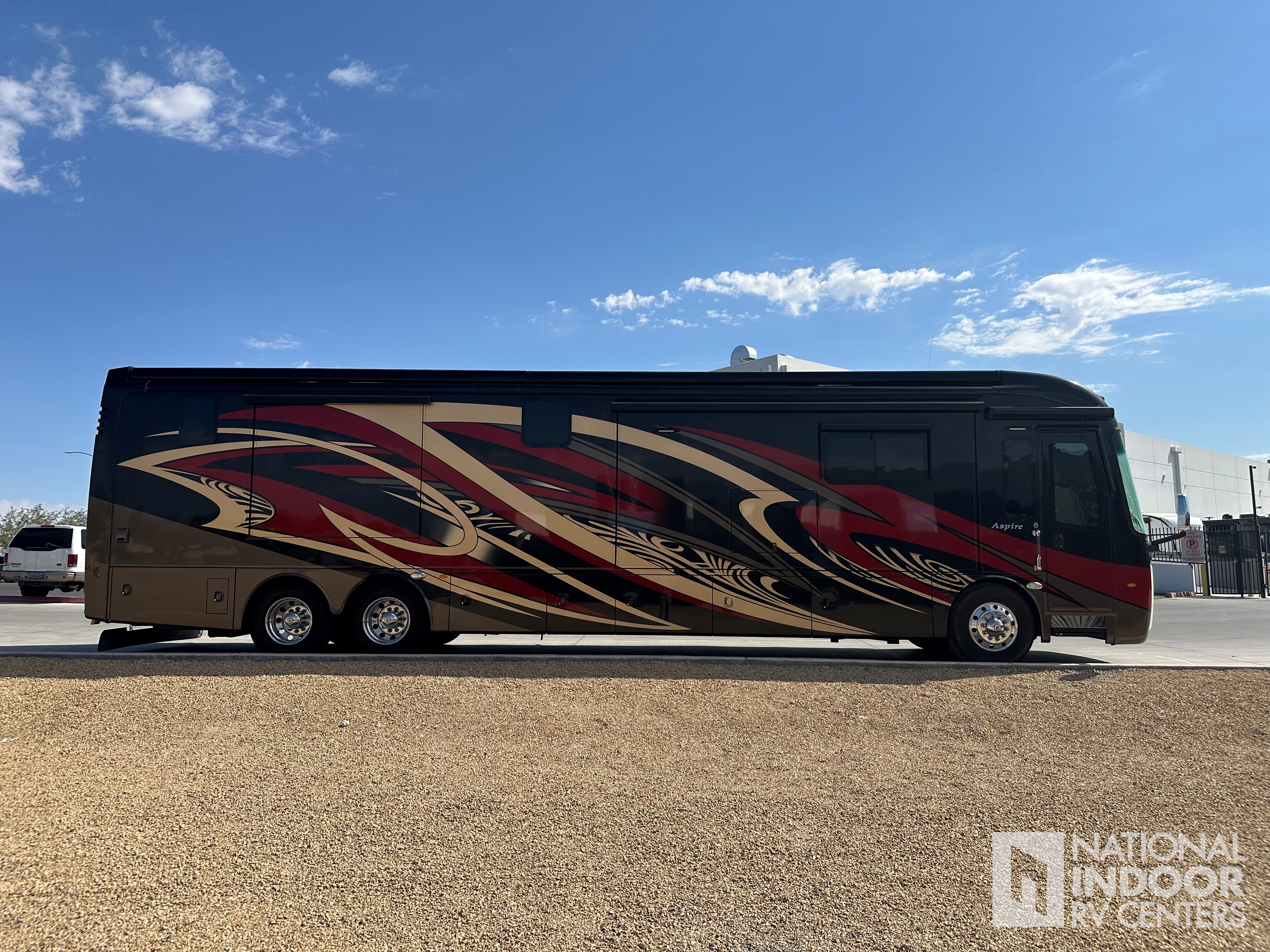

| Exterior Walls |
| 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
| Front/Rear Cap |
| Steel-reinforced front cap and windshield frame |
| Headlights |
| LED low beam headlights, Halogen high beam headlights |
| Fog Lights |
| Halogen fog lights |
| Daytime Running Lights |
| Daytime running lights |
| LED Lights |
| LED marker lights, turn lights and license plate light |
| Docking Lights |
| LED docking lights |
| Accent Lights |
| LED accent lights on underside of slideout room passenger side |
| Third Brake Light |
| Third brake light |
| Keypad |
| Lighted grab handle with keypad system |
| Entrance Door |
| Aire-Secure™ travel locks for all pocket doors |
| Door Awning |
| Girard power entrance door awning with LED lights |
| Window Awnings |
| Girard window shade awning and slide-out awnings |
| Patio Awnings |
| Roof mounted Girard Vision dual pitched patio awning with LED lights |
| Mirrors |
| Chrome, heated, remote control, Ramco side-view mirrors with integrated cameras |
| Windows |
| Frameless, dual-pane, tinted, Hehr safety-glass windows |
| Entertainment |
| 40" Samsung LED HDTV and JBL Bar Studio sound bar on TV bracket with extend, tilt and swivel arm |
| Utility Center |
| Exterior utility center, heated and enclosed with system monitor panel |
| Satellite Dish |
| Winegard in-motion satellite dome with prep for Trav'ler satellite dish |
| TV Antenna |
| Winegard Rayzar Z1 TV antenna |
| Engine Door |
| Power rear engine door with manual override |

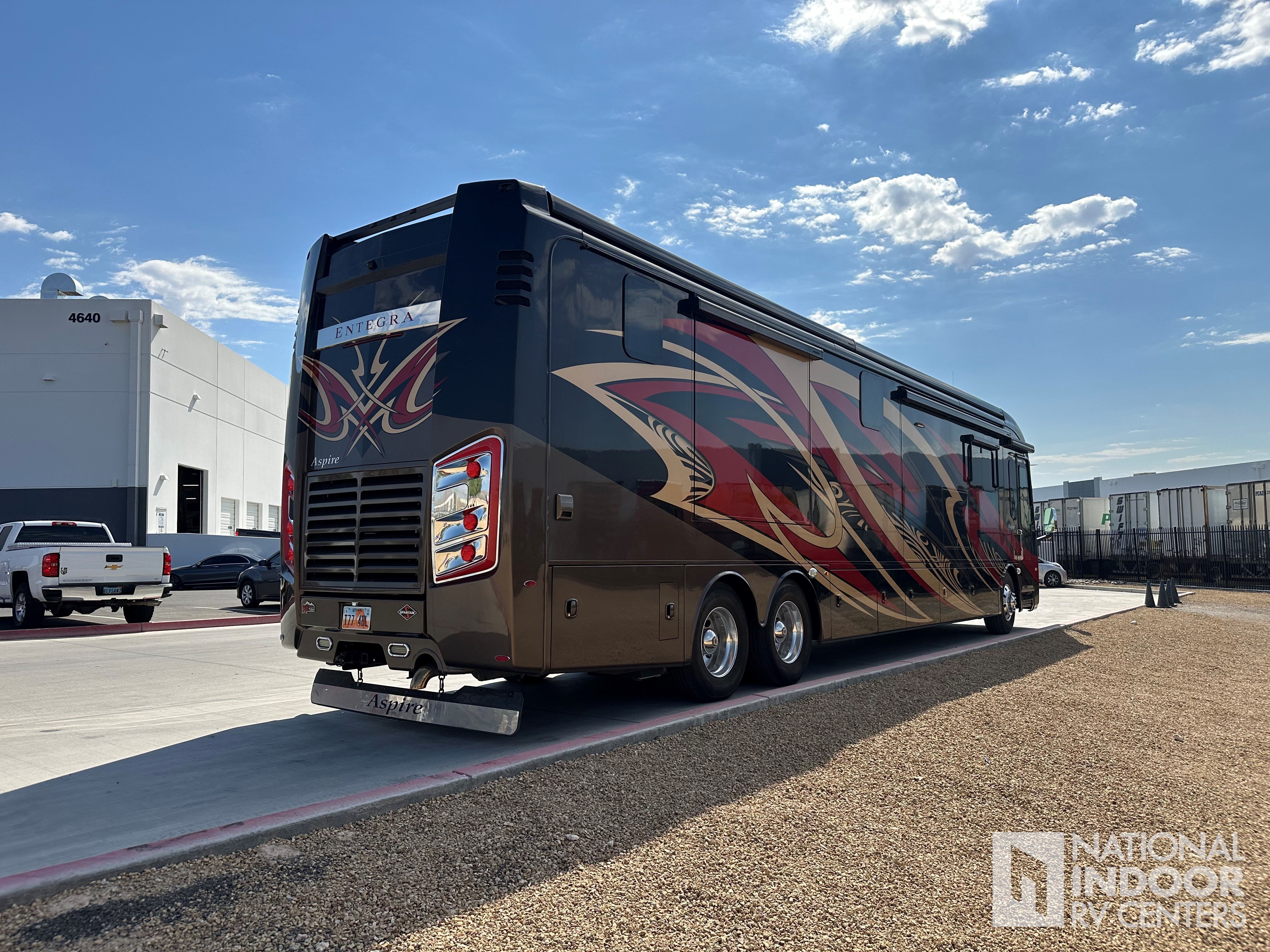

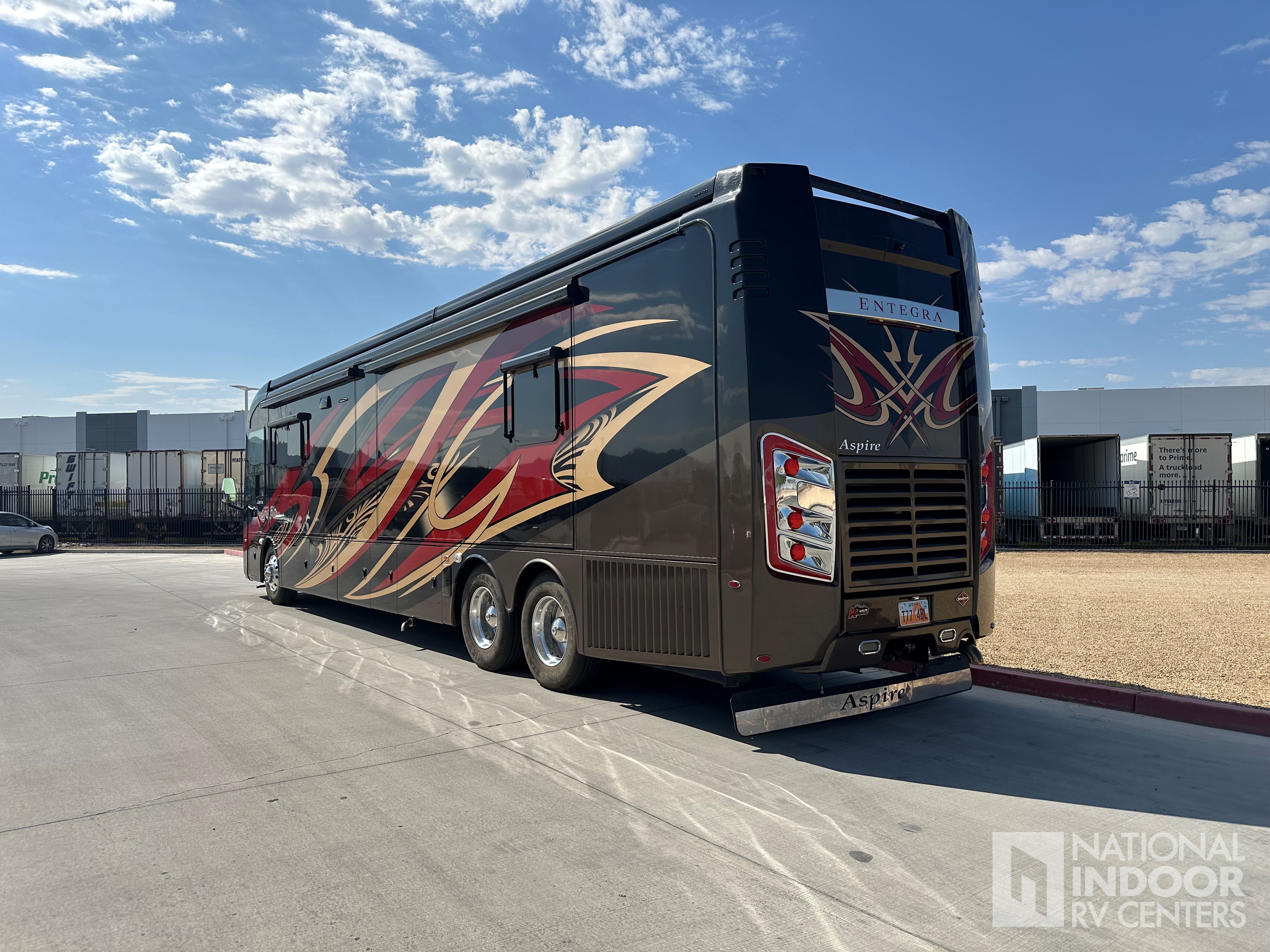

| Rear Mudflap |
| Full-width rear mudflap, with chrome "Aspire" nameplate |
| Lights |
| Porch light and motion sensor security lights |
| Exterior |
| 3M front protective film mask |
| Flooring |
| Powered flush stepwell cover |
| Visors & Privacy Shade |
| Powered front sun visors and privacy shade |

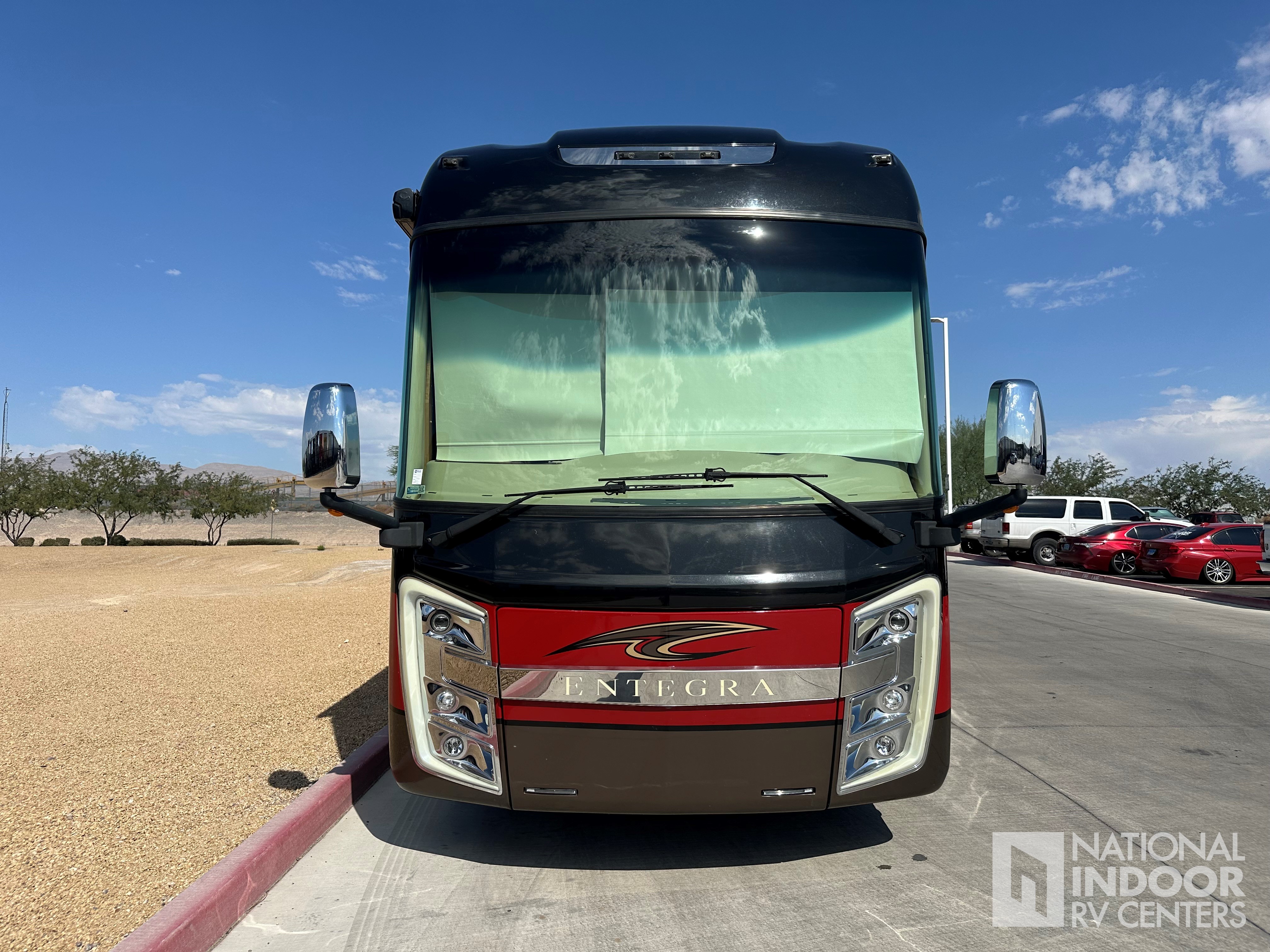

| Windshield |

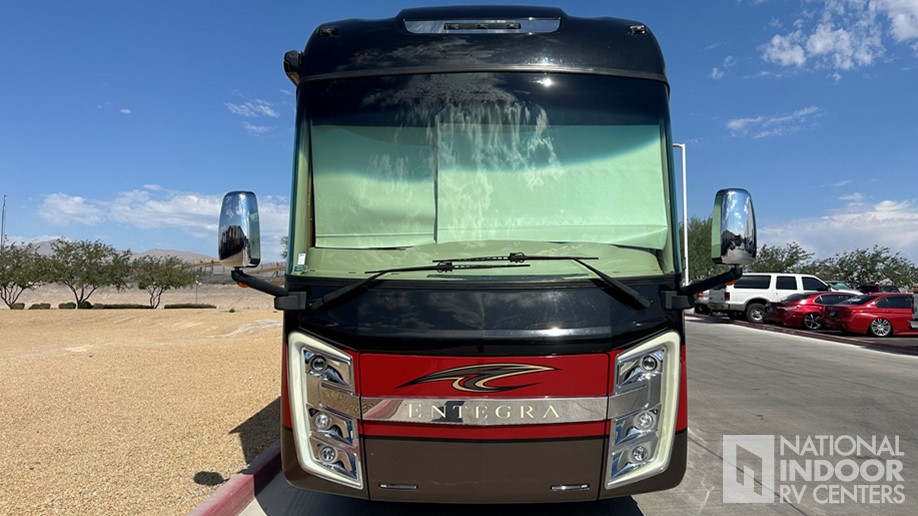

| Ultra-Vision one-piece wrap-around tinted windshield |

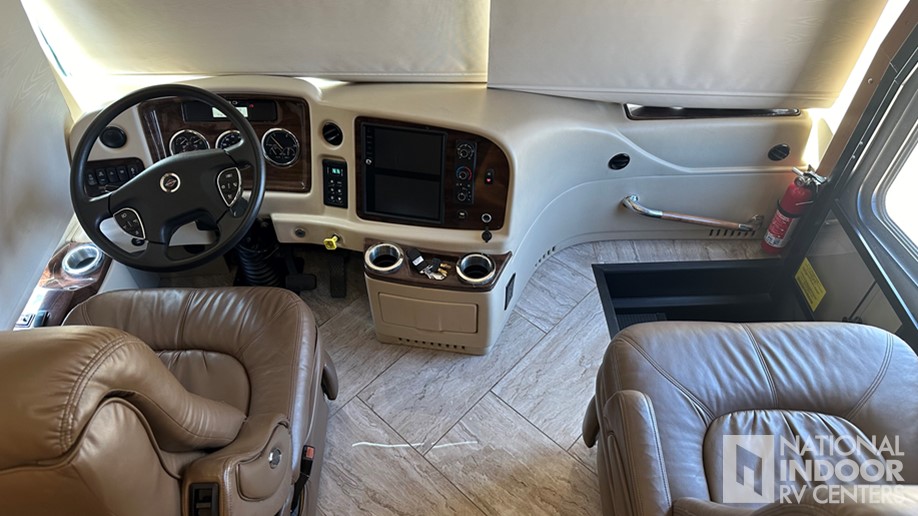

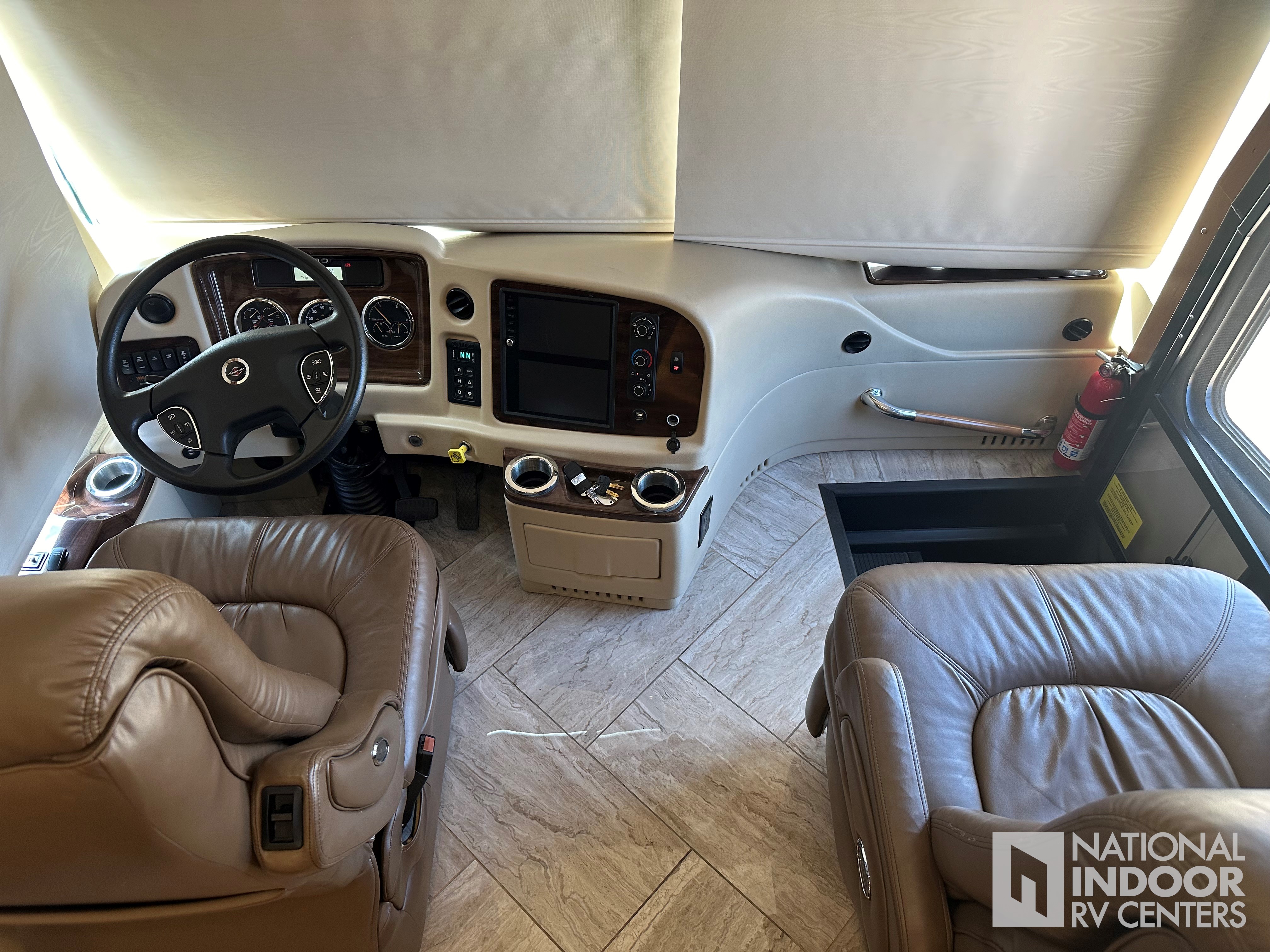

| Driver / Passenger Seats |

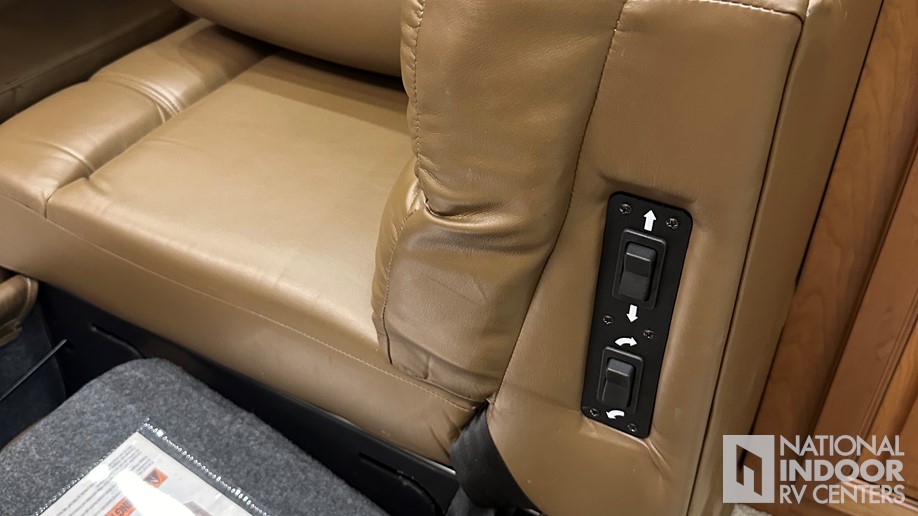

| 6-way power, lumbar Ultraleather driver and passenger seats with 3-point belt |
| Start |
| Push button start |
| Steering Wheel |
| Tilt and telescoping steering wheel with integrated controls for cruise and wipers |
| Side Consoles |
| Molded side consoles |
| Monitoring System(s) |
| Spartan Message Center with LCD display |
| Infotainment System(s) |
| Dual 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control |
| Sound System |
| JBL® premium audio sound system with speakers, amplifier, and subwoofer |
| Leveling System |
| Equalizer hydraulic automatic leveling. |
| Power Features |
| Battery boost system |
| Pedals |
| Powered adjustable foot pedals |
| Cameras |
| Camera system with side cameras and digital rear camera |
| Additional Amenities |
| Two dual USB ports |
| Lighting System |
| Multiplex controlled lighting system |
| Lighting |
| Dimmable LED recessed 12V lighting |

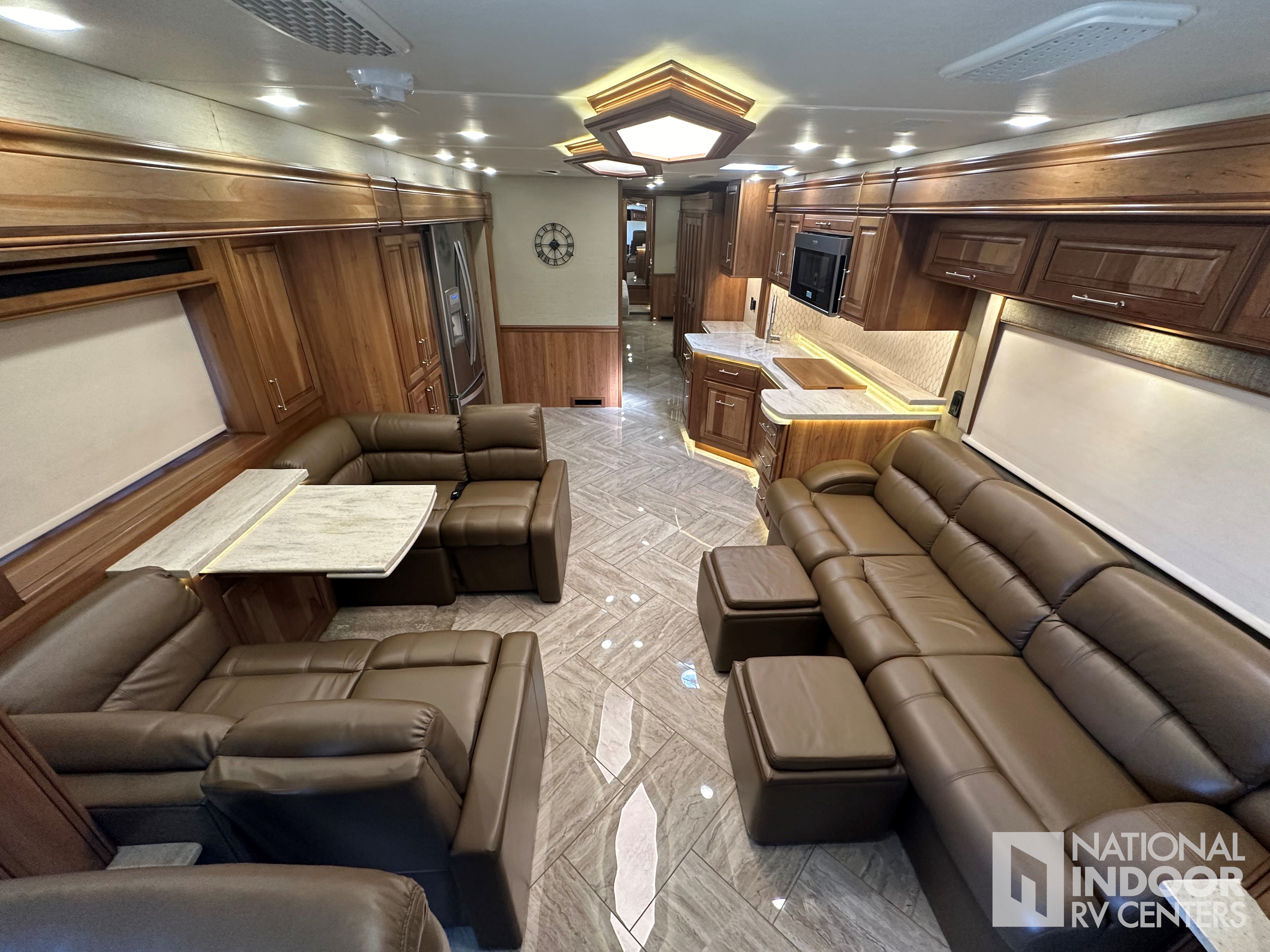

| Flooring |
| High gloss 12" x 24" porcelain tile floor hand laid in a herringbone pattern |
| Window Treatments |
| Manual solar day and black out night shades |
| Television - Living Room |
| Samsung® 50" LED HDTV (49" in 38M) |
| Television - Front Overhead |
| Samsung 32" LED HD TV in front overhead |
| Sound - Living Room |
| Samsung® sound bar with wireless subwoofer in living area |
| DVD Systems |
| Blu-ray players in living area & bedroom |

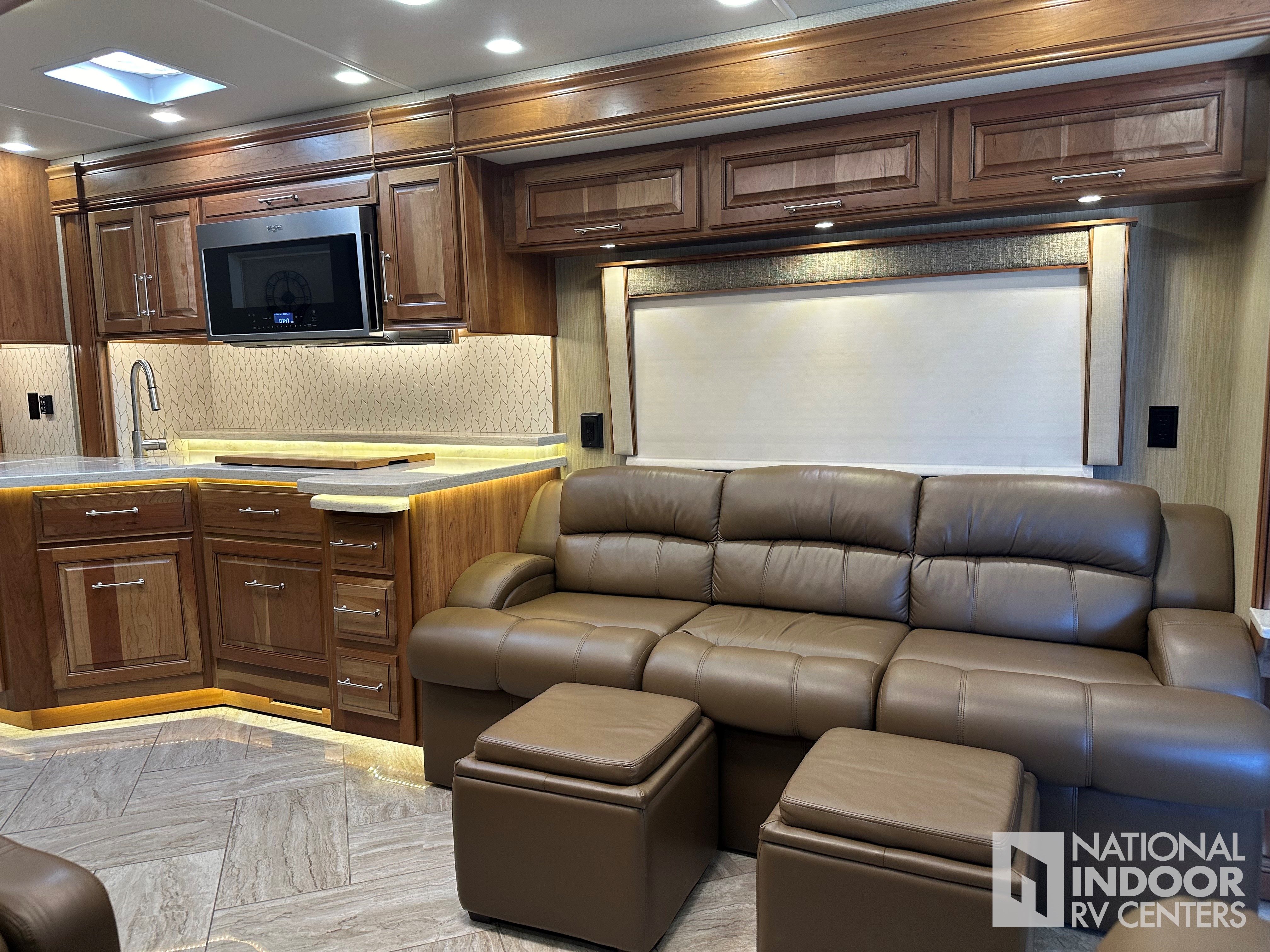

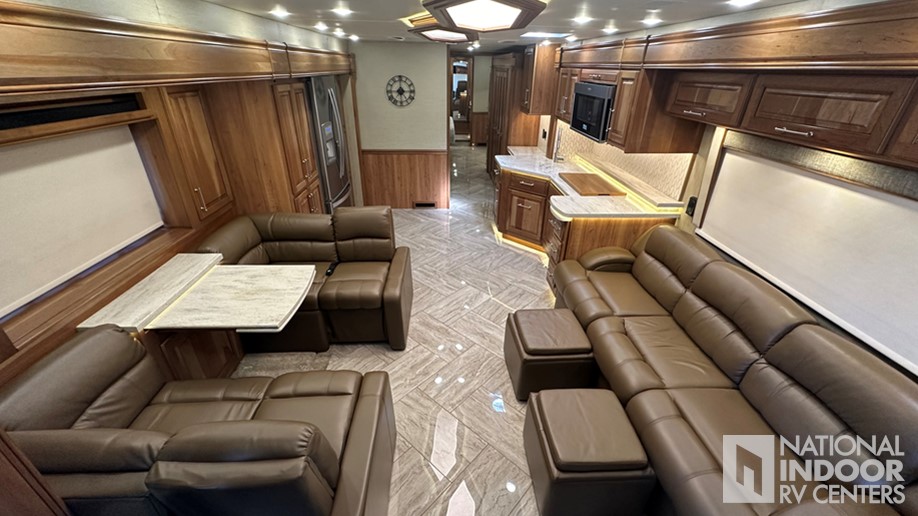

| Furniture |
| Ultraleather hide-a-bed sofa(s) |

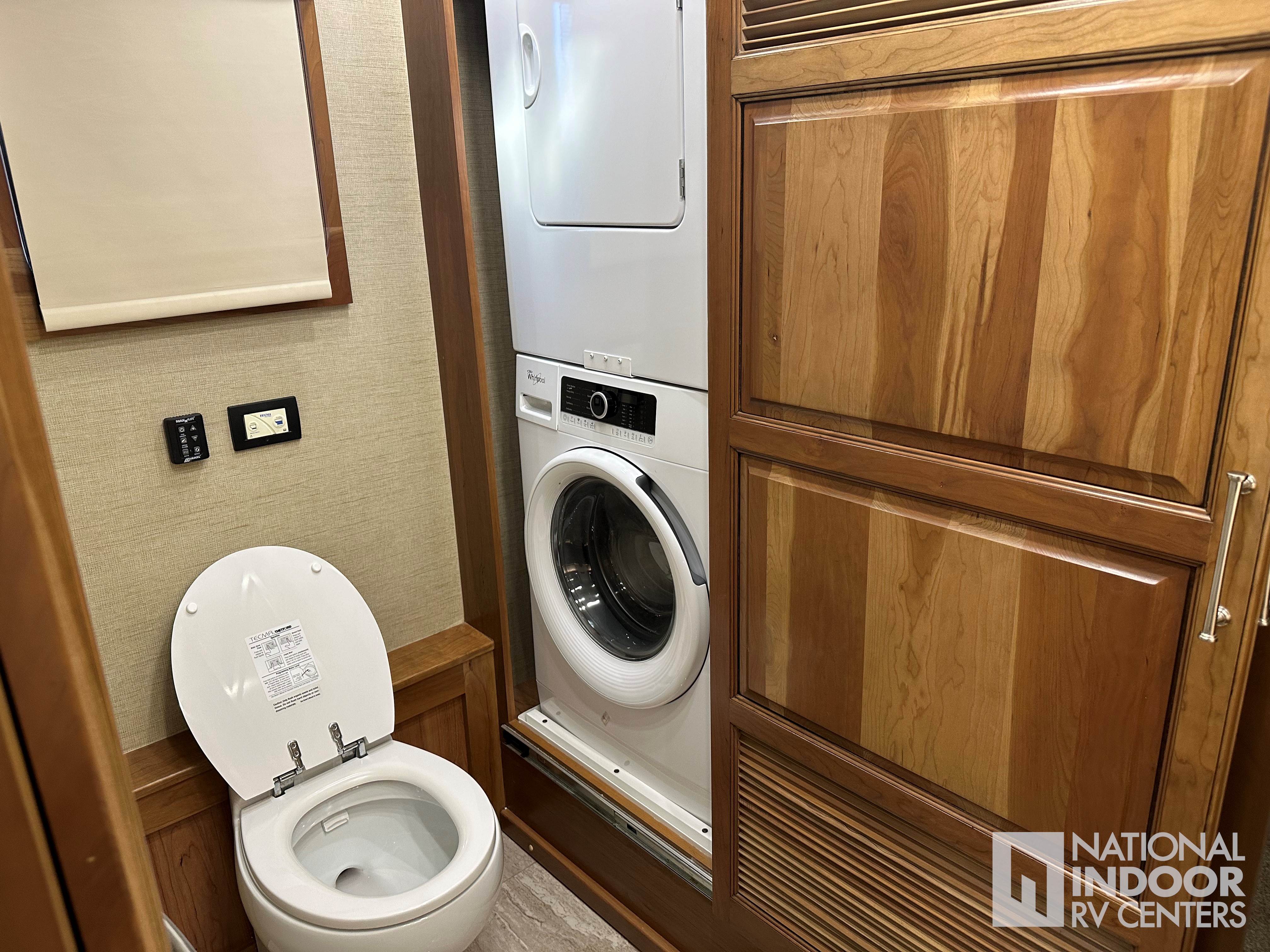

| Washer/Dryer |

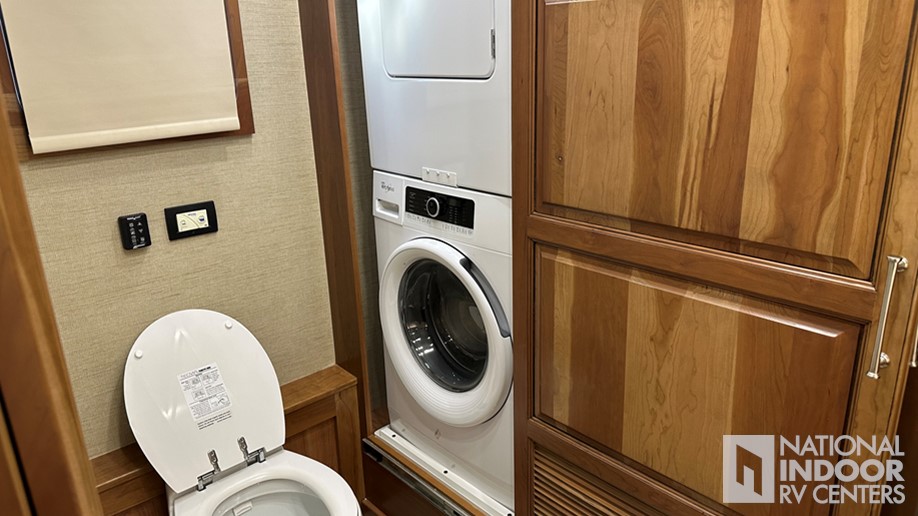

| Stacked washer and dryer |
| Central Vacuuming System |
| Central vacuum system |
| Additional Storage |
| In-step storage with pull-out tray |

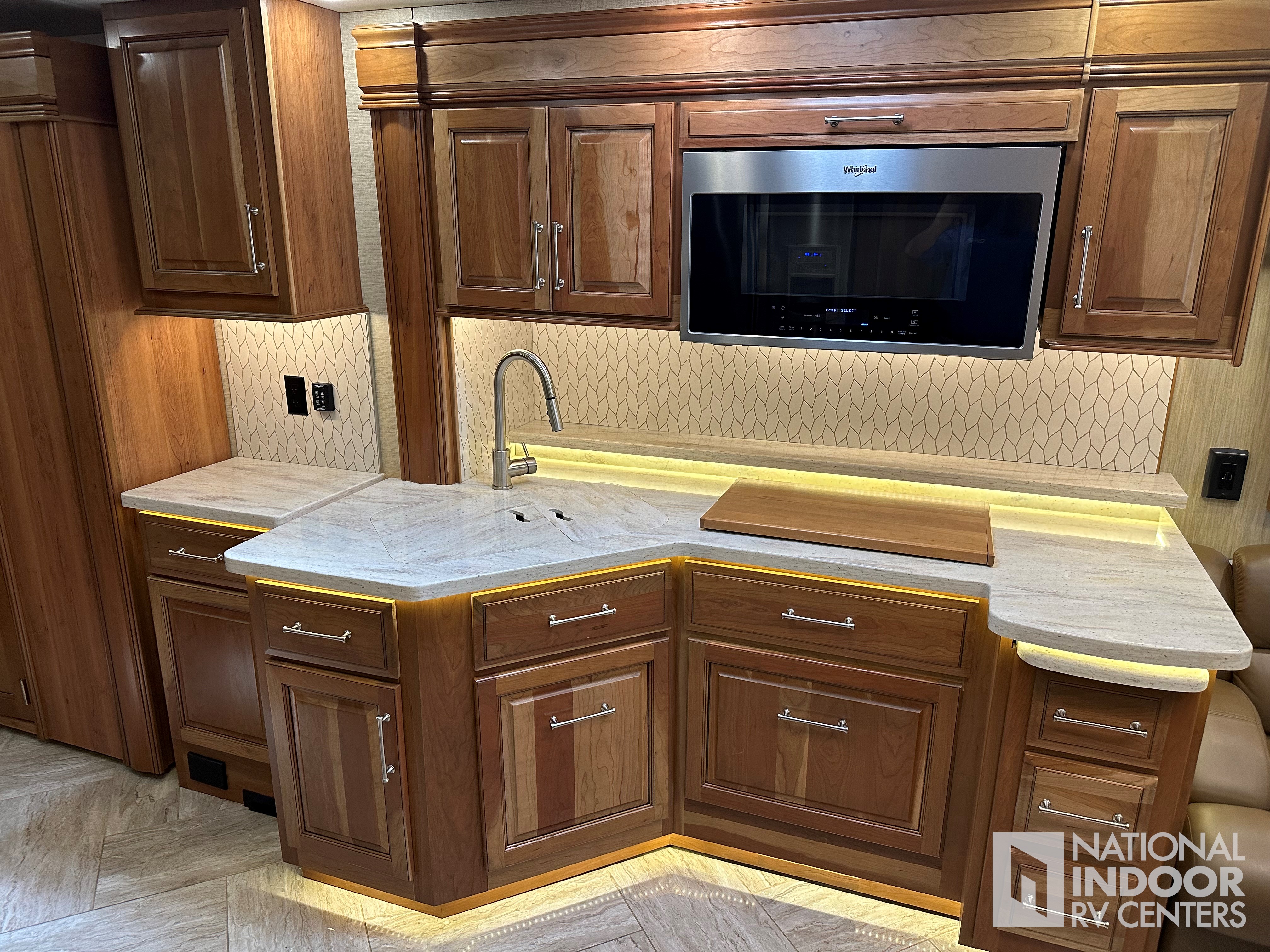

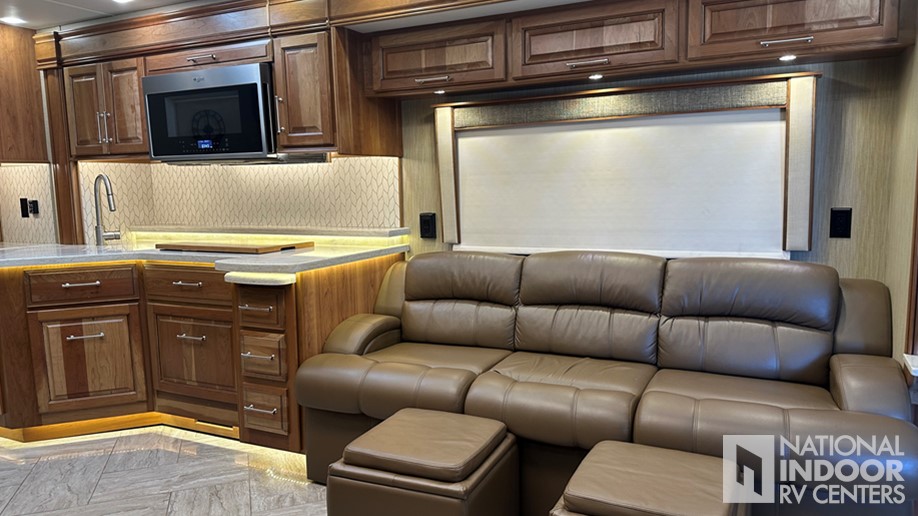

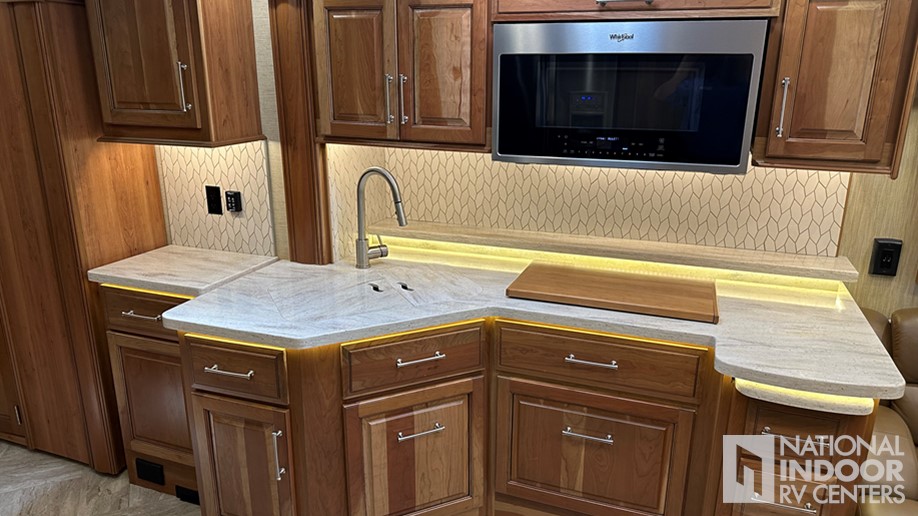

| Countertops |
| Solid surface countertops with stainless steel sink and dimmable LED accent lighting |
| Cabinet Extension |
| Pullout countertop extension with drawers |
| Backsplash |
| Porcelain tile backsplash |
| Waste Basket |
| Large deep drawer for waste basket with easy access trash chute (Trash chute not available on 40P and 44R) |
| Dishwasher |
| Optional dishwasher |
| Cooktop |
| Induction cooktop with cover |
| Microwave |
| Whirlpool 1.9 cu. ft. convection microwave oven |

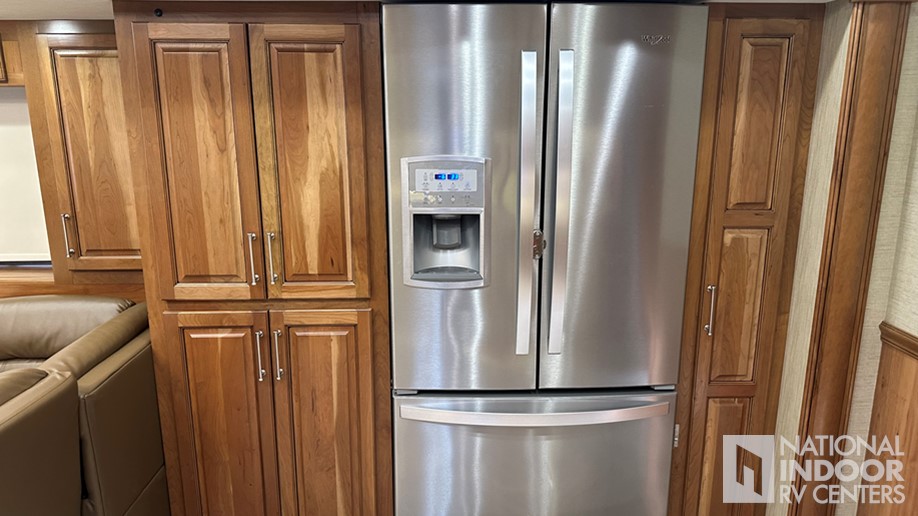

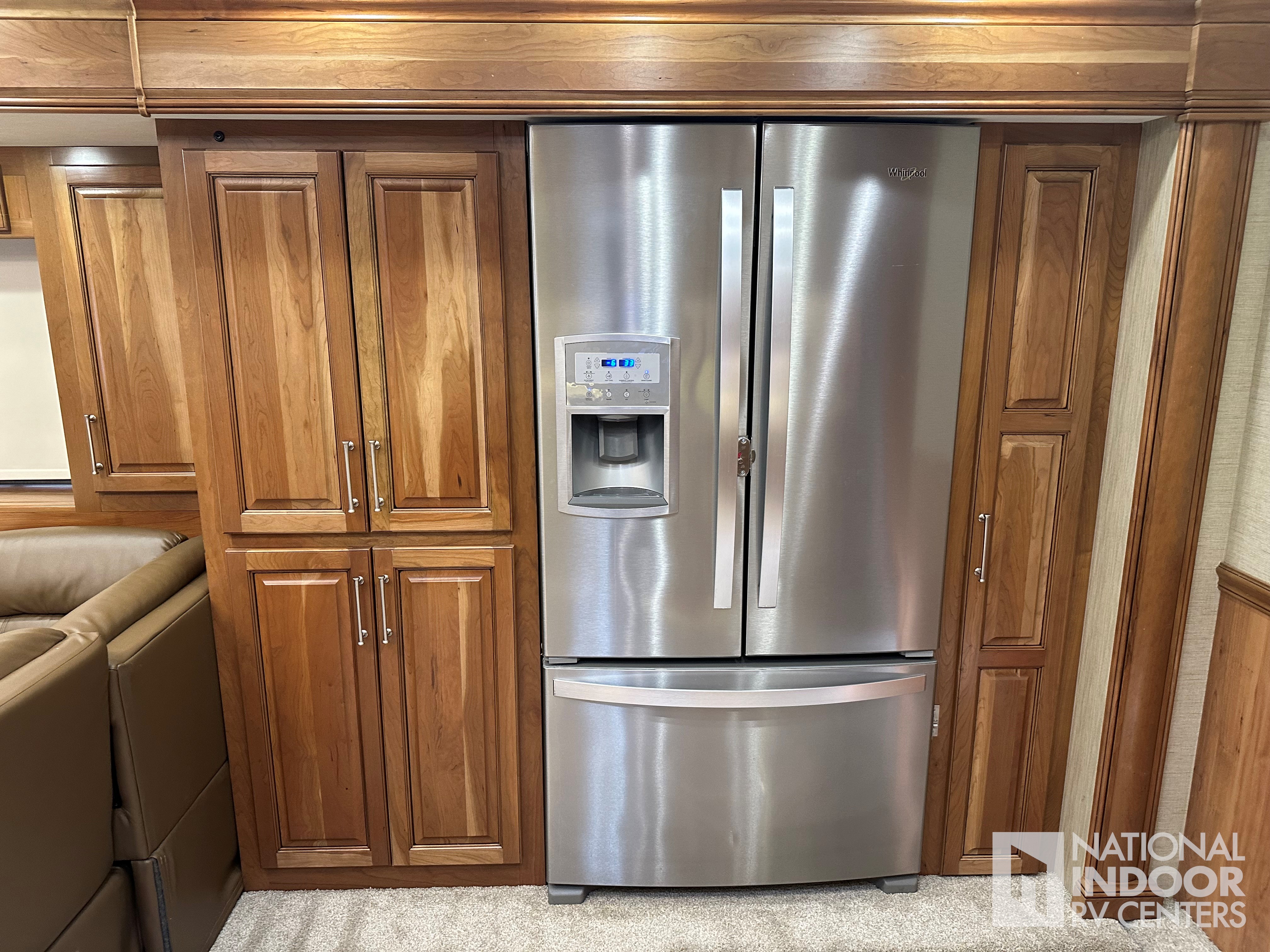

| Refrigerator |
| Whirlpool residential refrigerator with ice maker and water dispenser |
| Vent |
| Maxxair power vent |

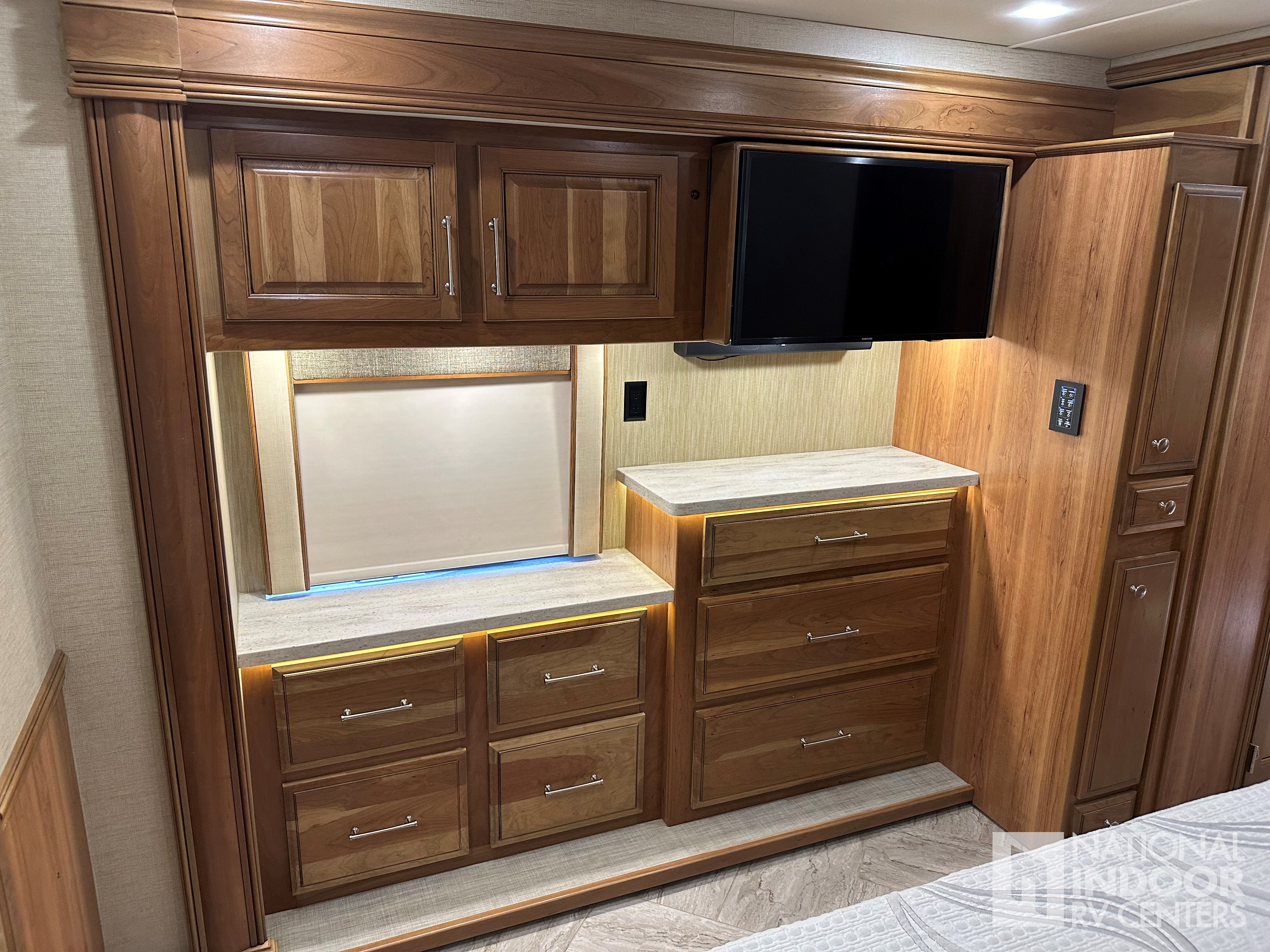

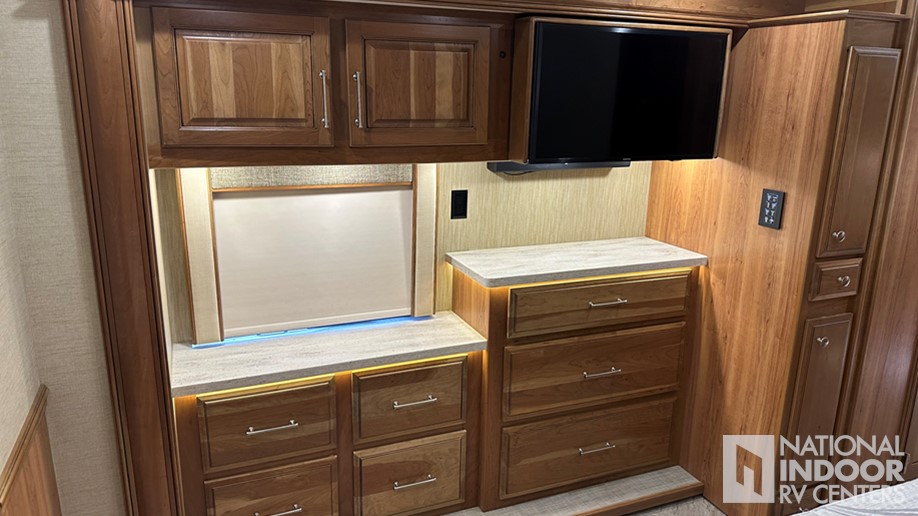

| Television |
| Samsung 32" LED HDTV in bedroom |
| Sound |
| JBL Bar Studio sound bar in bedroom |

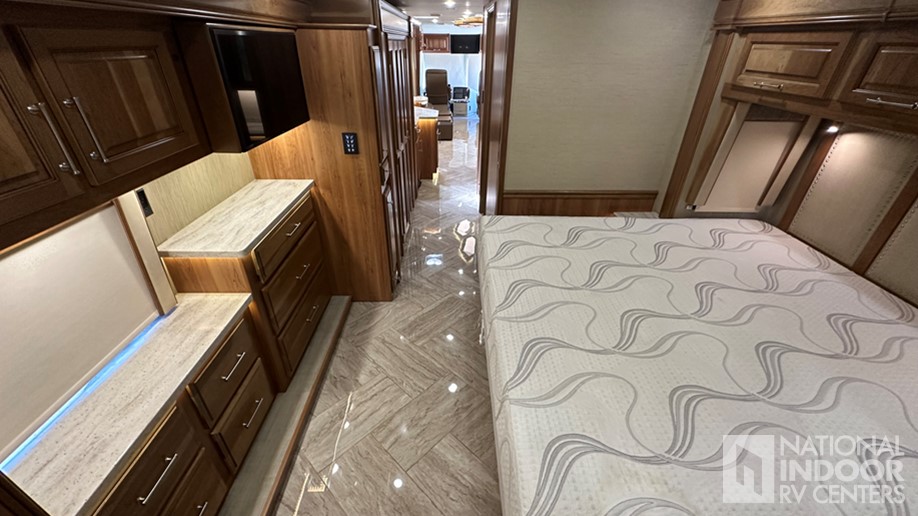

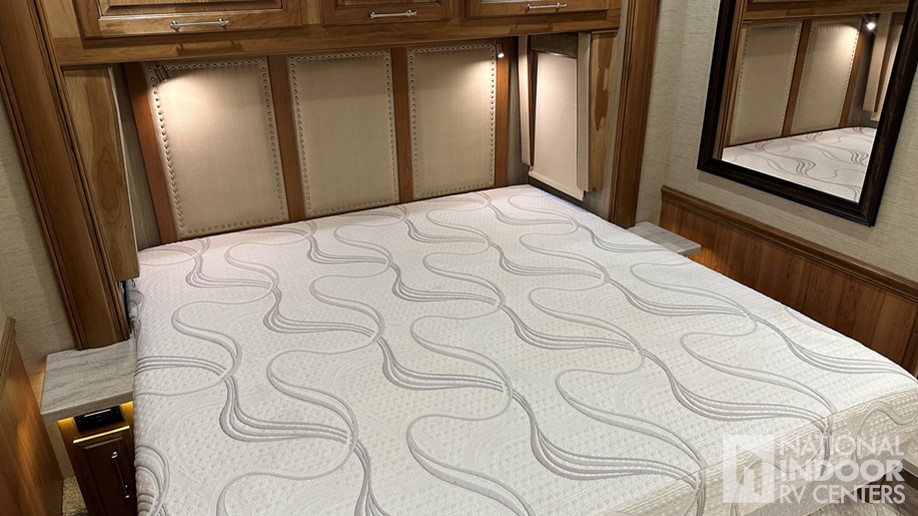

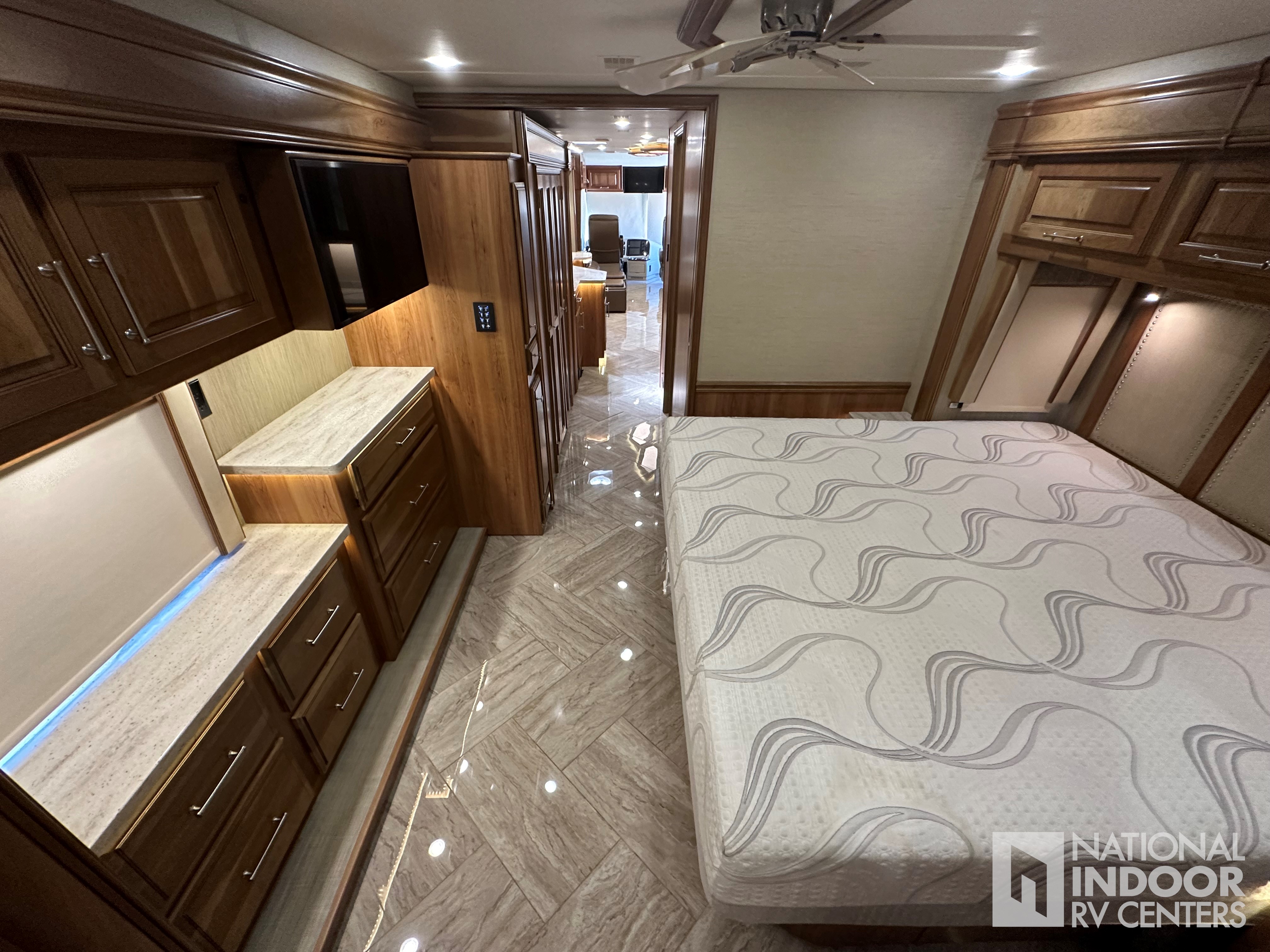

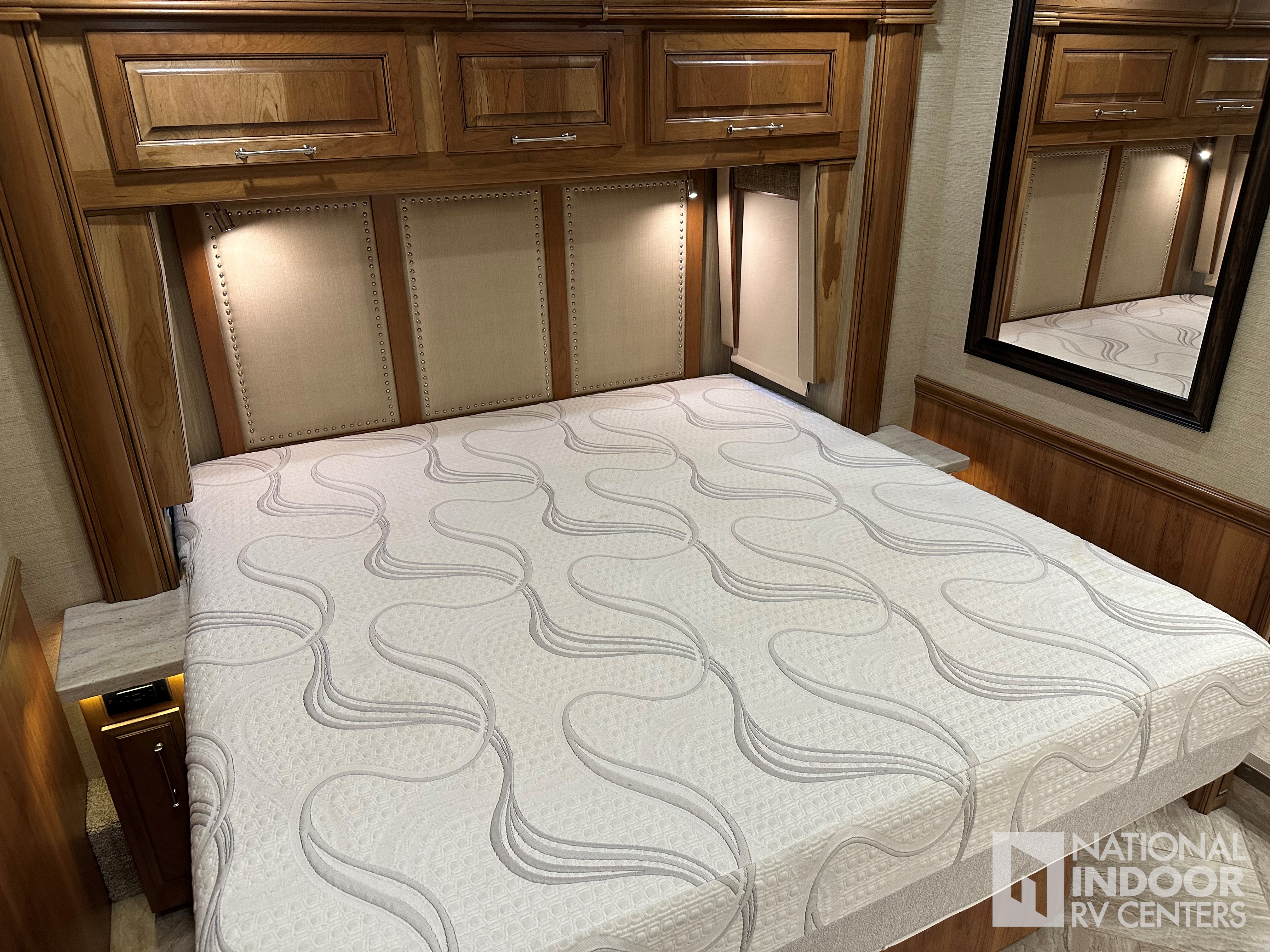

| Bed |
| King size gel memory foam mattress |
| Ceiling Fan |
| Ceiling fan |
| Wardrobe |
| Automatic lights in wardrobe |
| Nightstands |
| Nightstands with USB ports and solid surface tops |

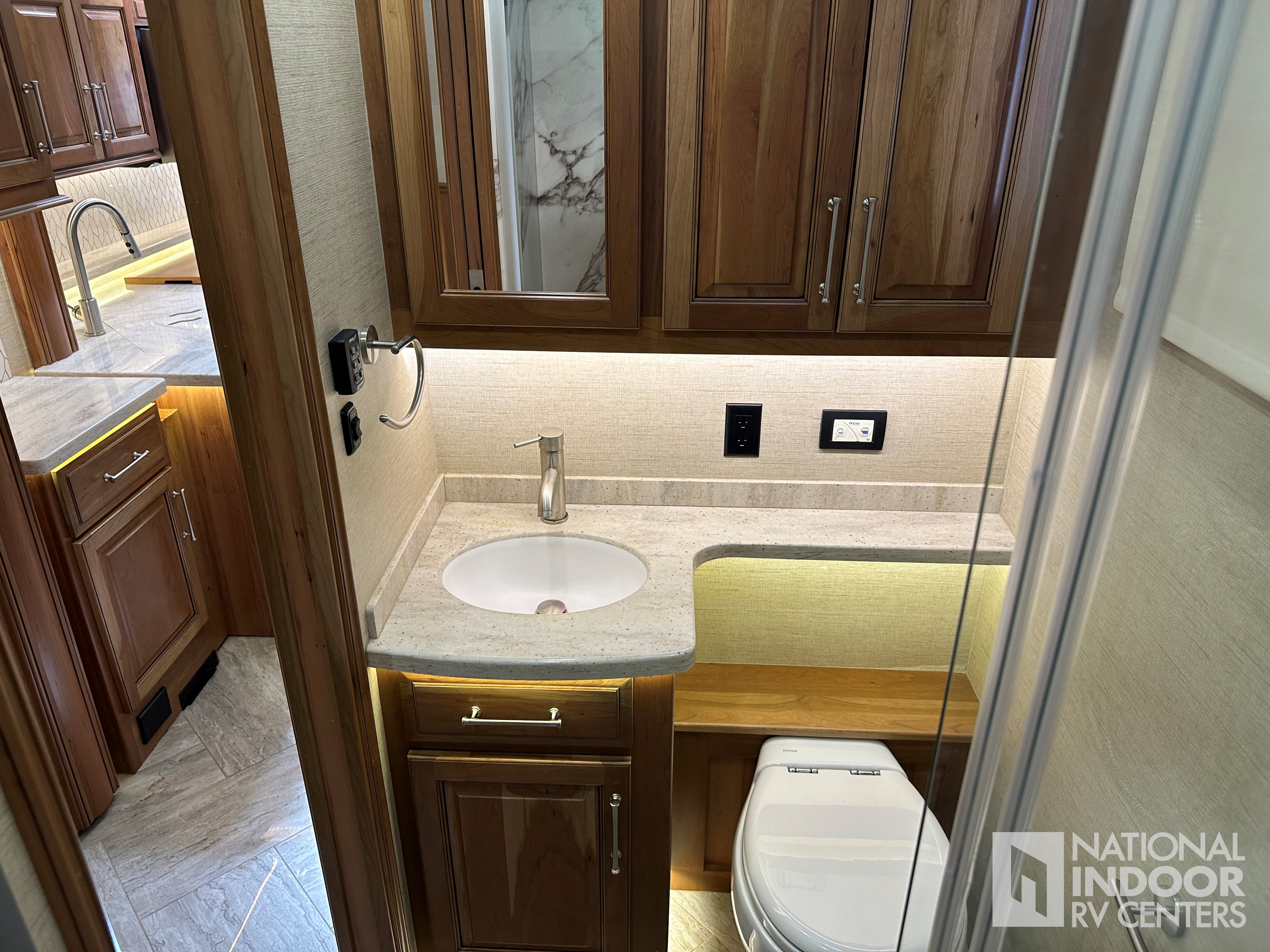

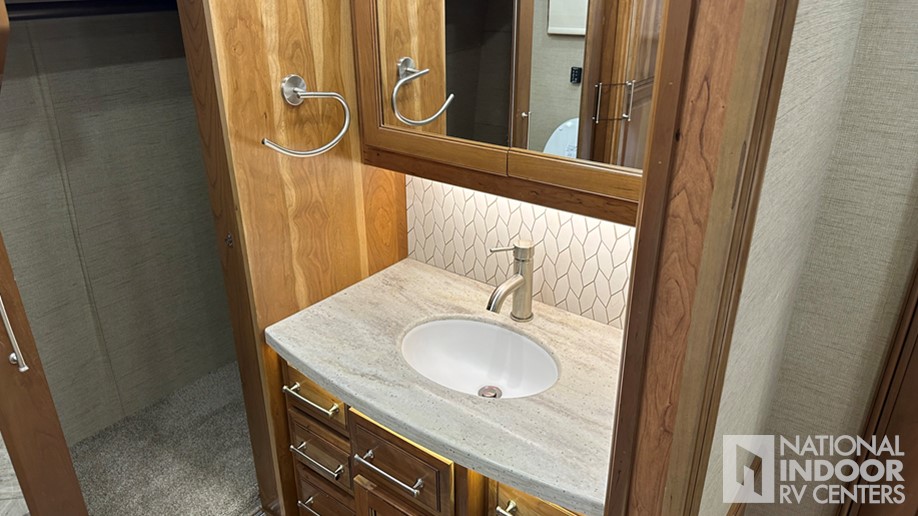

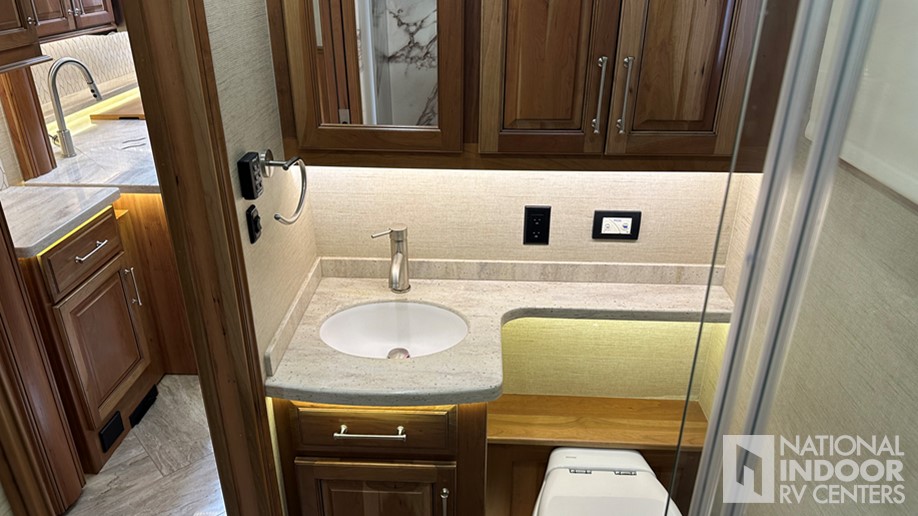

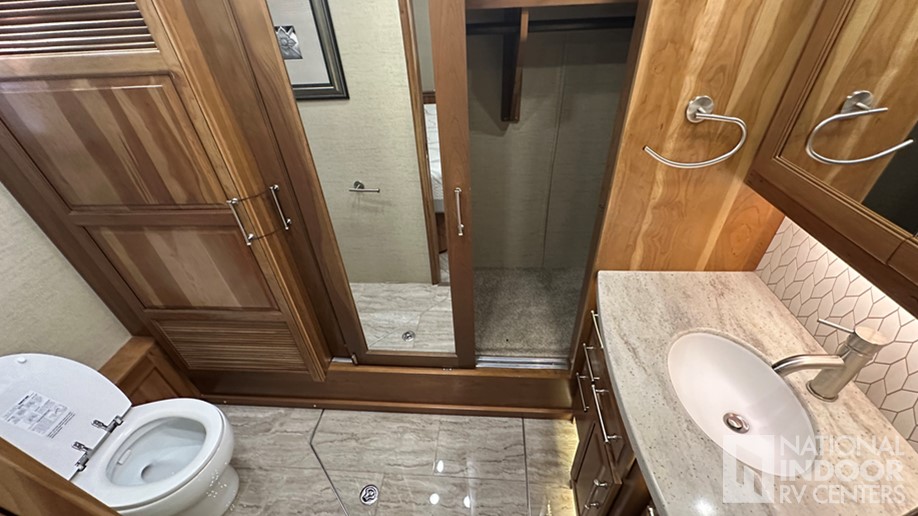

| Countertop(s) |

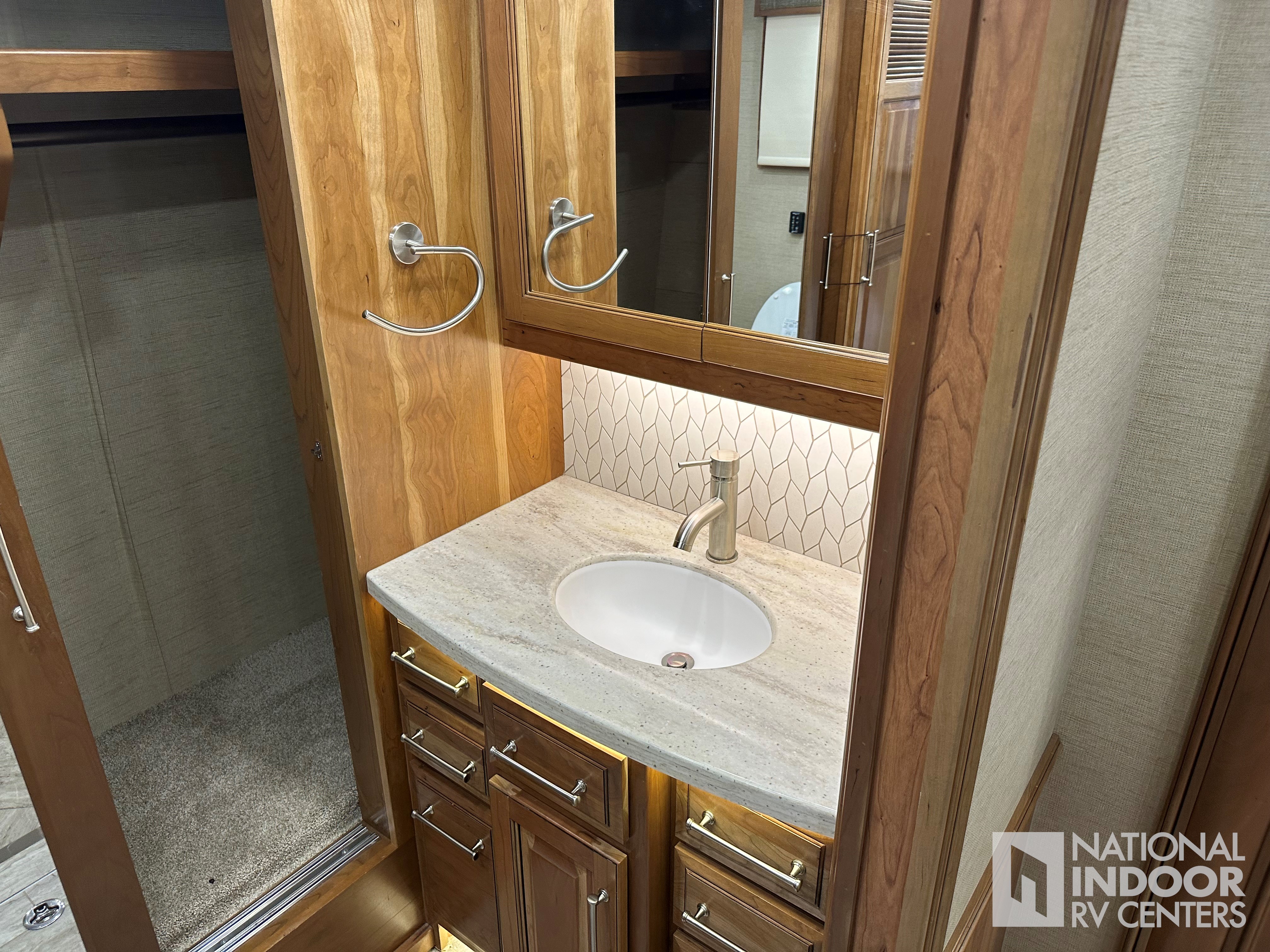

| Solid surface countertops with integrated sink and LED accent lighting |

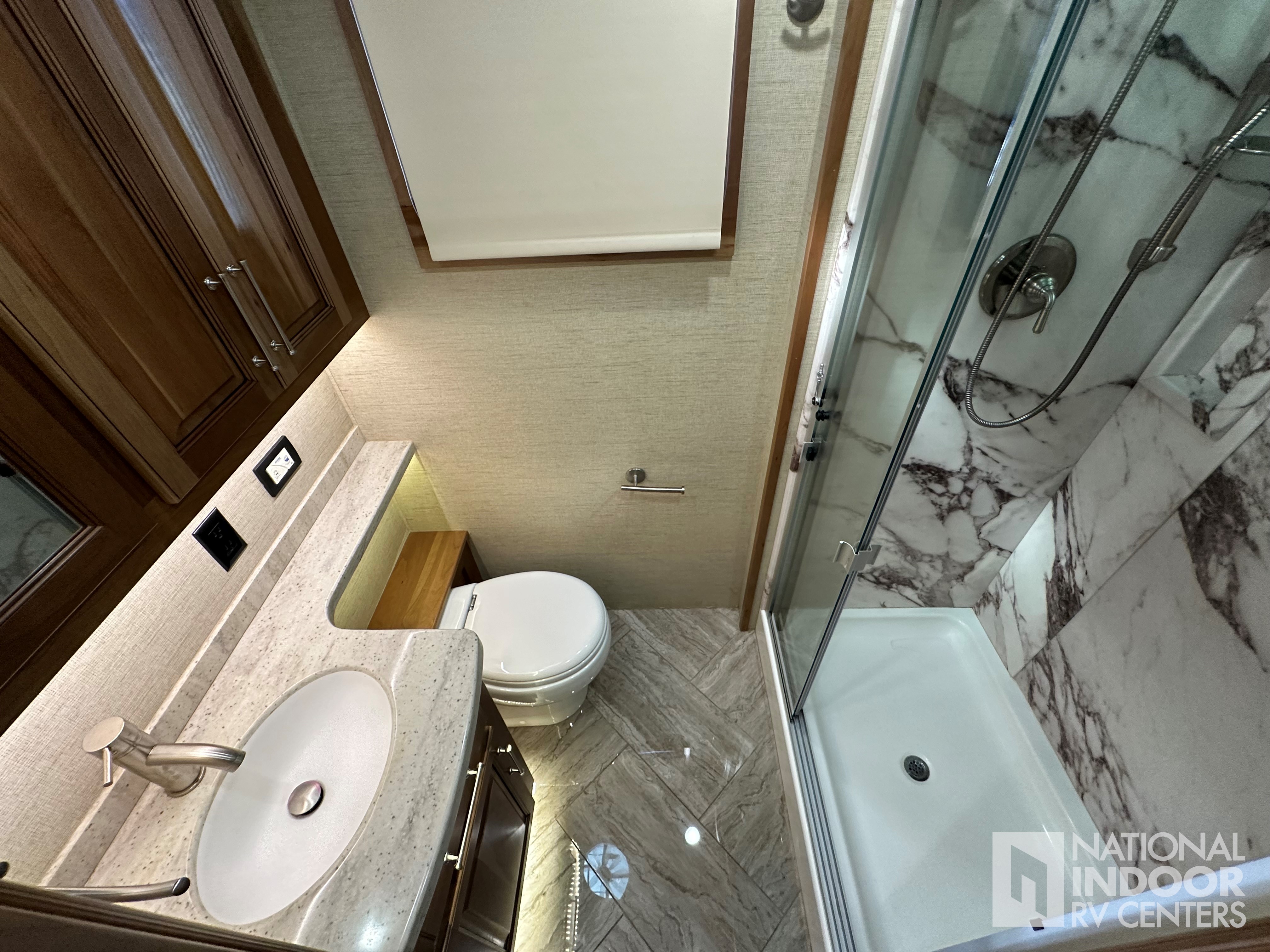

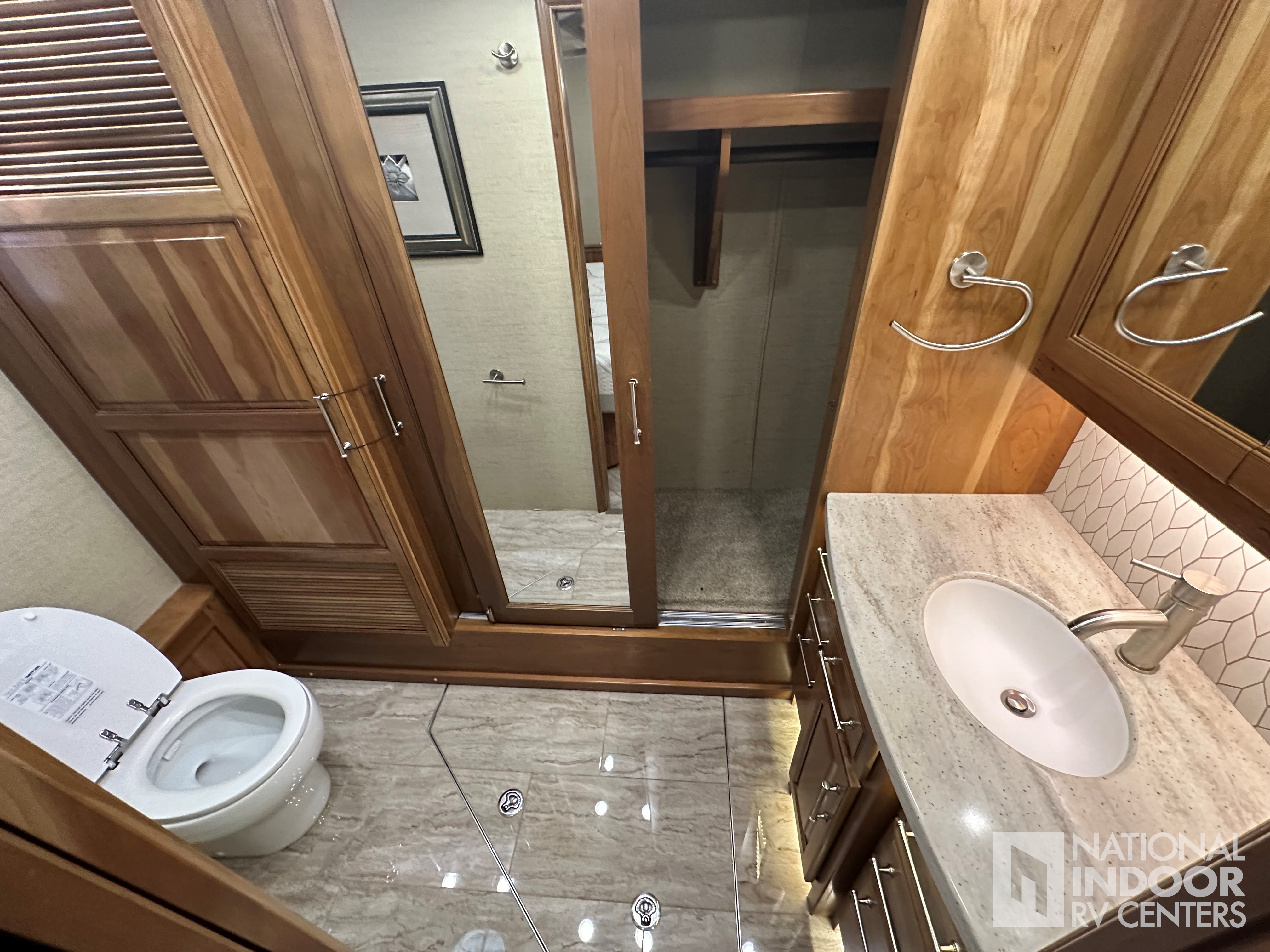

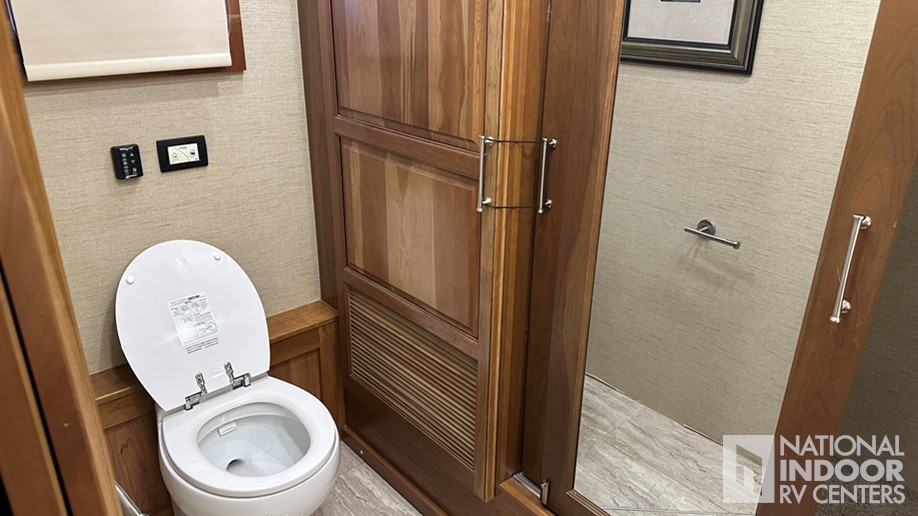

| Toilet |

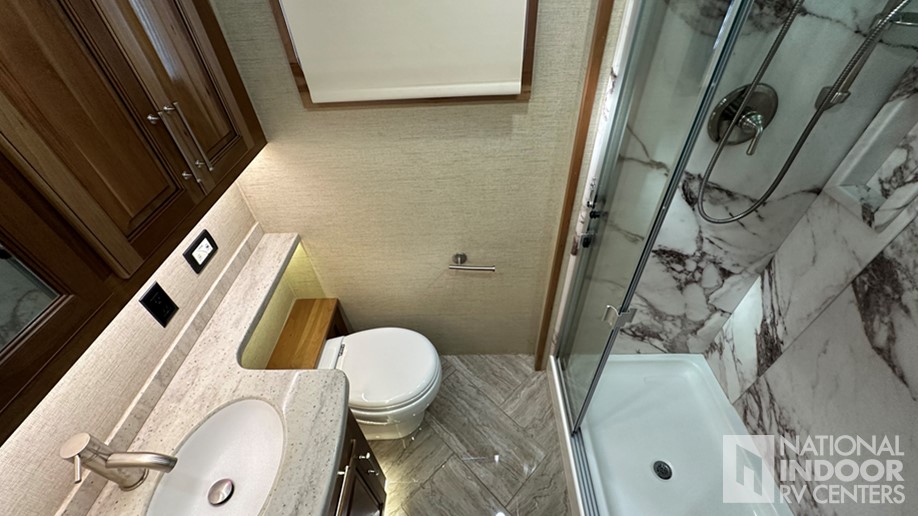

| Thetford Tecma china toilets |

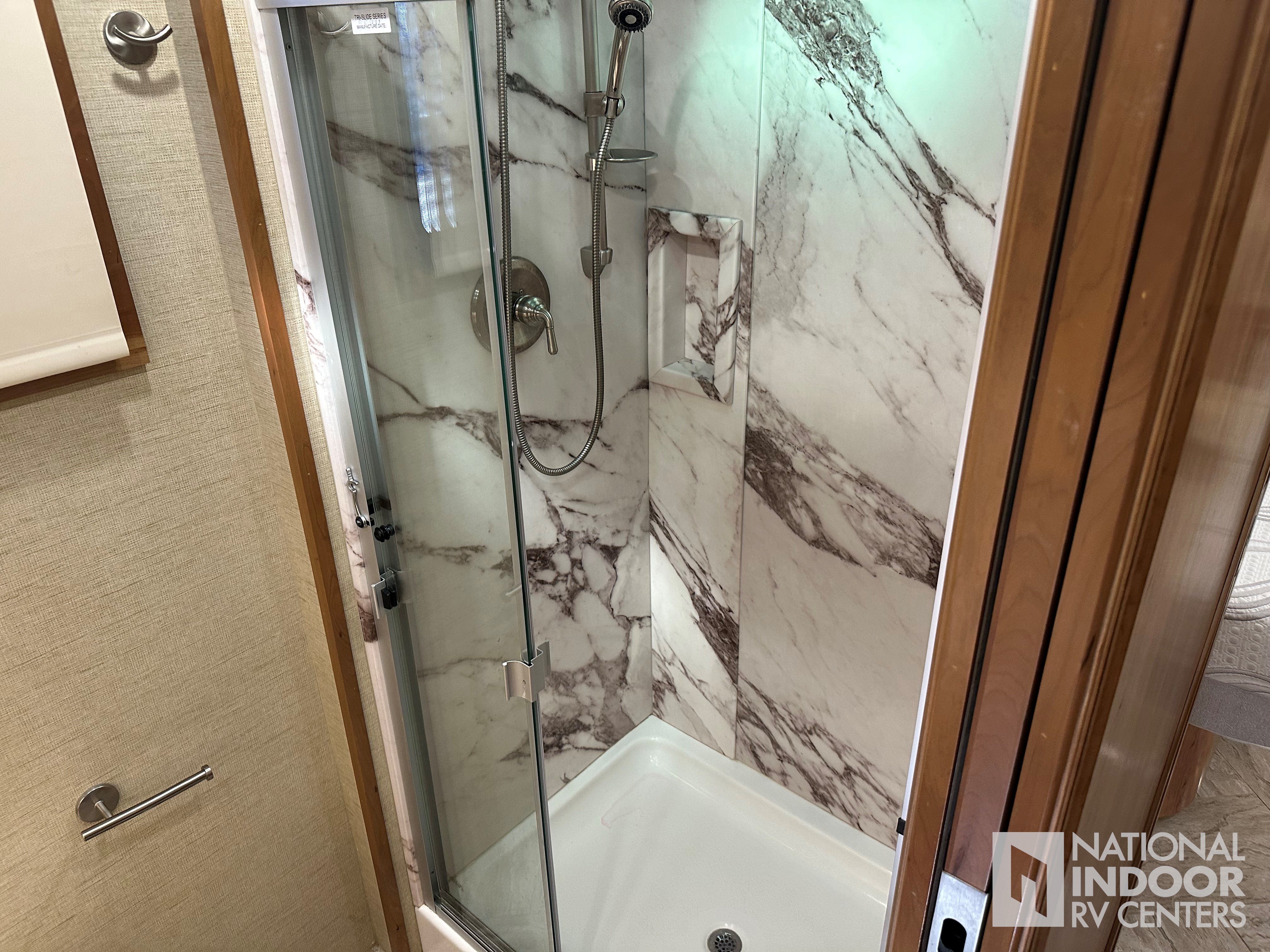

| Shower |

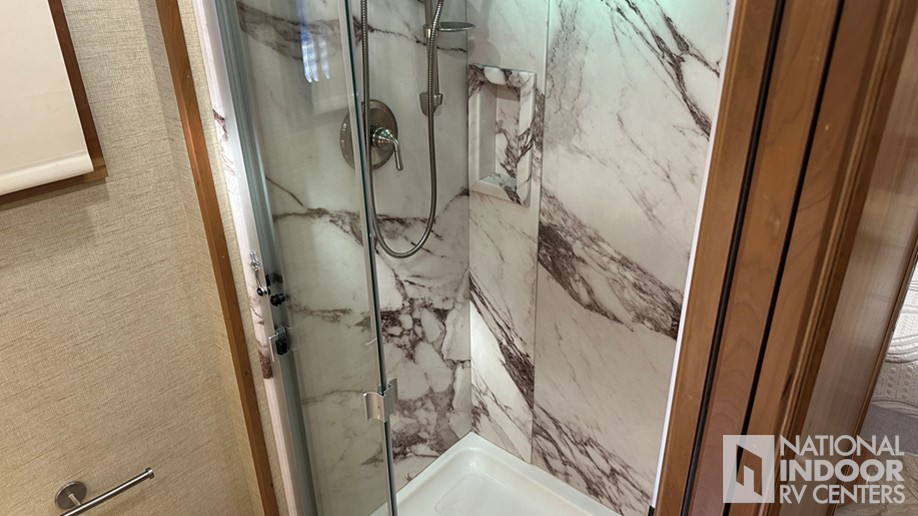

| Marble patterned shower with skylight and clear glass shower door |
| Vent |
| Maxxair Deluxe power vent |
| Security System |
| Security system with glass shatter sensors |
| Smoke Alarm |
| Smoke alarm |
| Carbon Monoxide Detector |
| Carbon monoxide detector |
| Security Safe |
| Safe |
| Canadian Standards |
| Optional |
| Fireplace |
| LED lit fireplace (N/A on 40P, 44R, 44W) |
| Dishwasher Drawer |
| Optional |

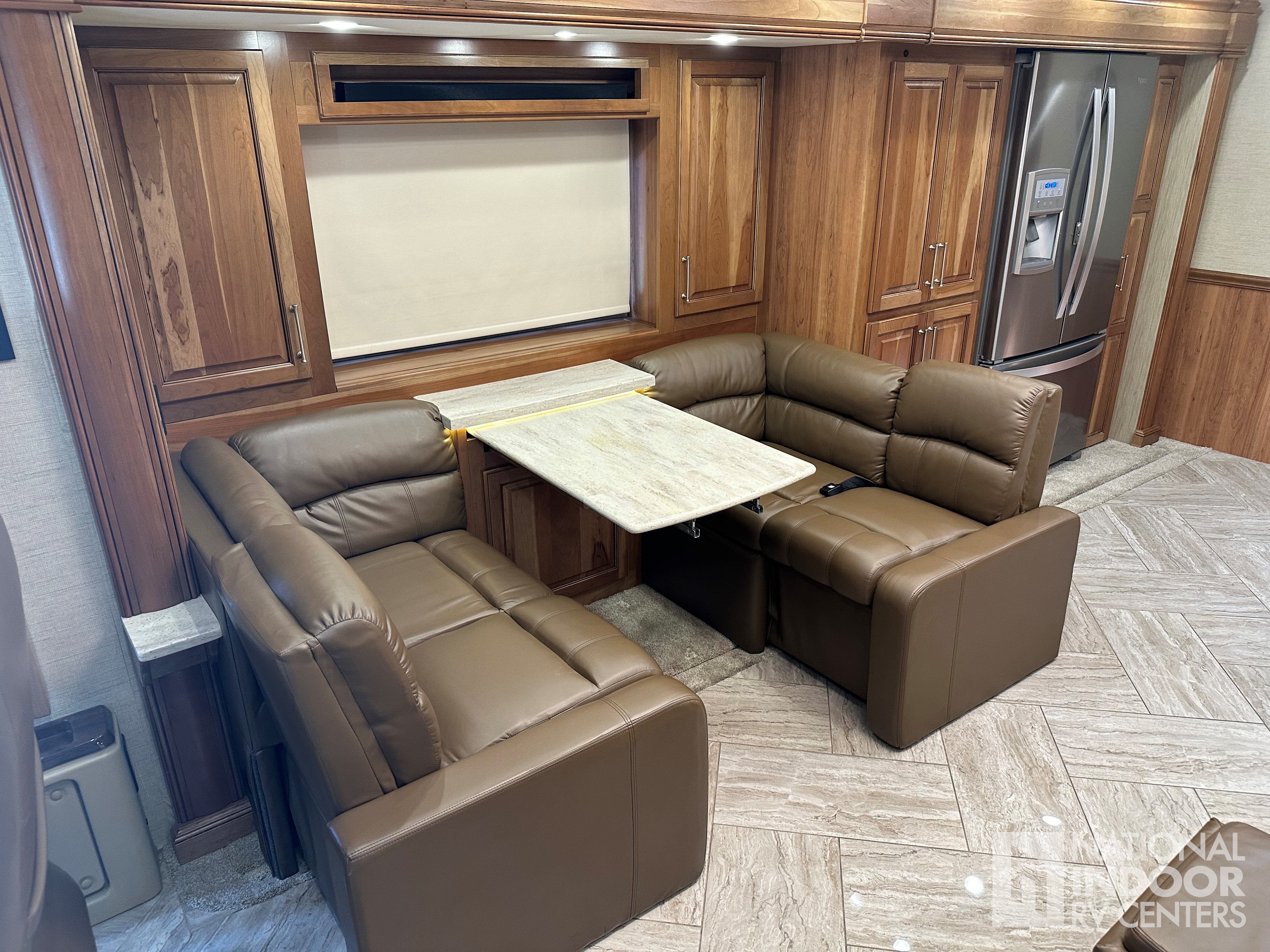

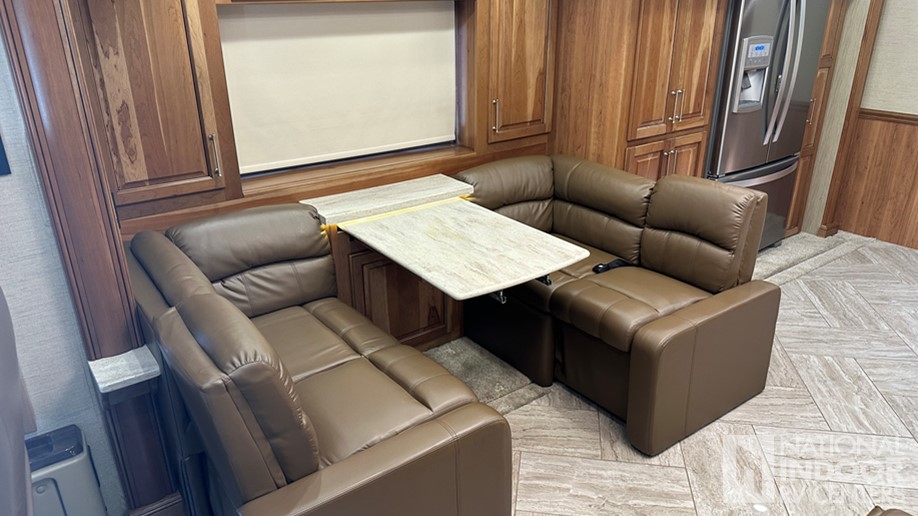

| Dinette |
| Optional dinette booth (N/A on 44R) |
| Dinette Option 2 |
| Dinette booth standard (44R) |
| Freestanding Table |
| Freestanding table with 4 chairs standard (N/A on 44R) |

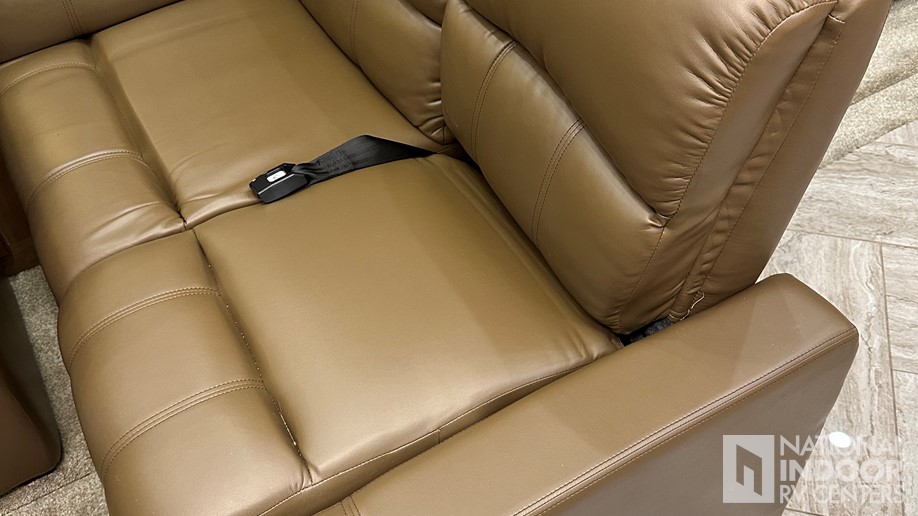

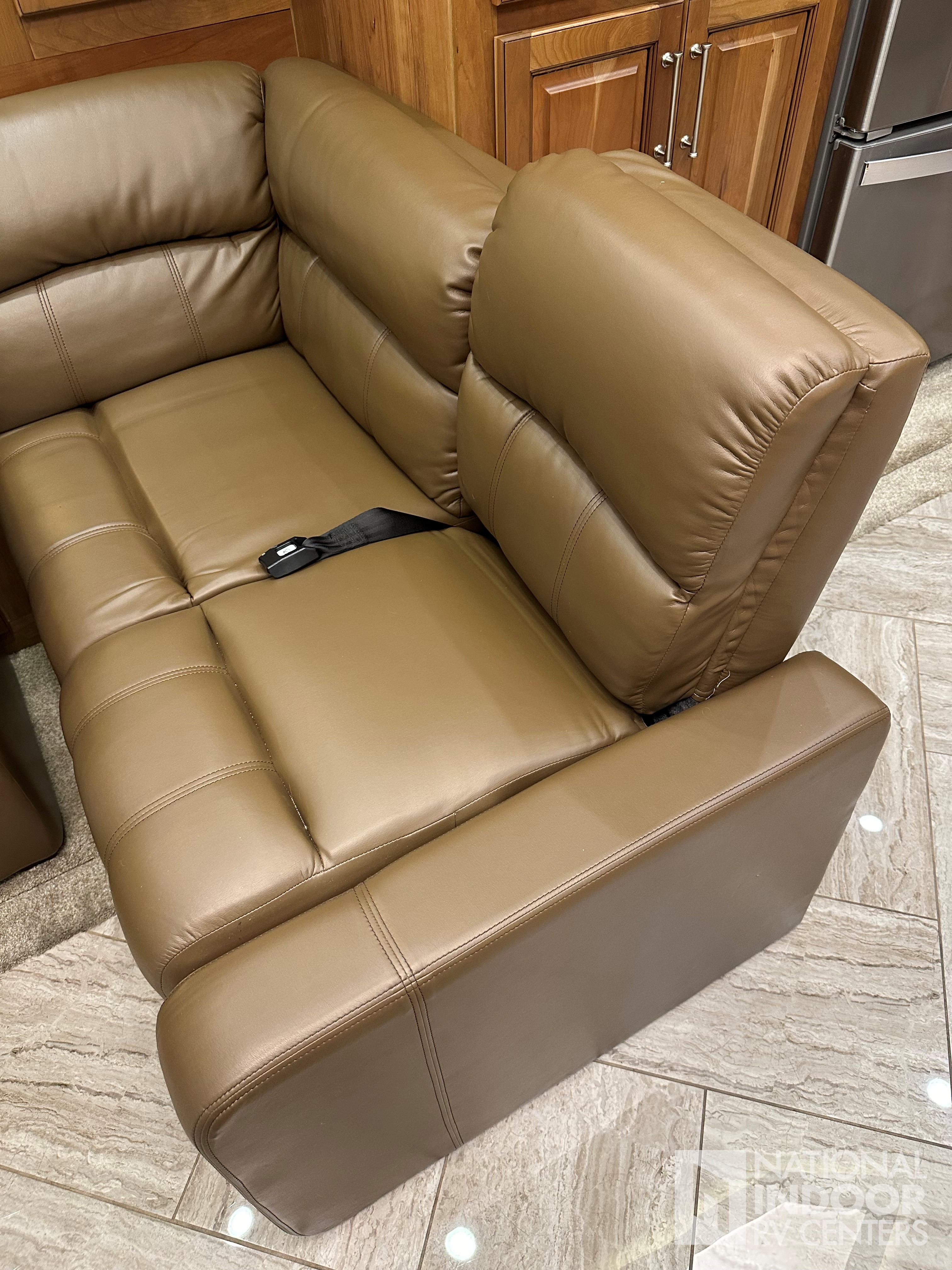

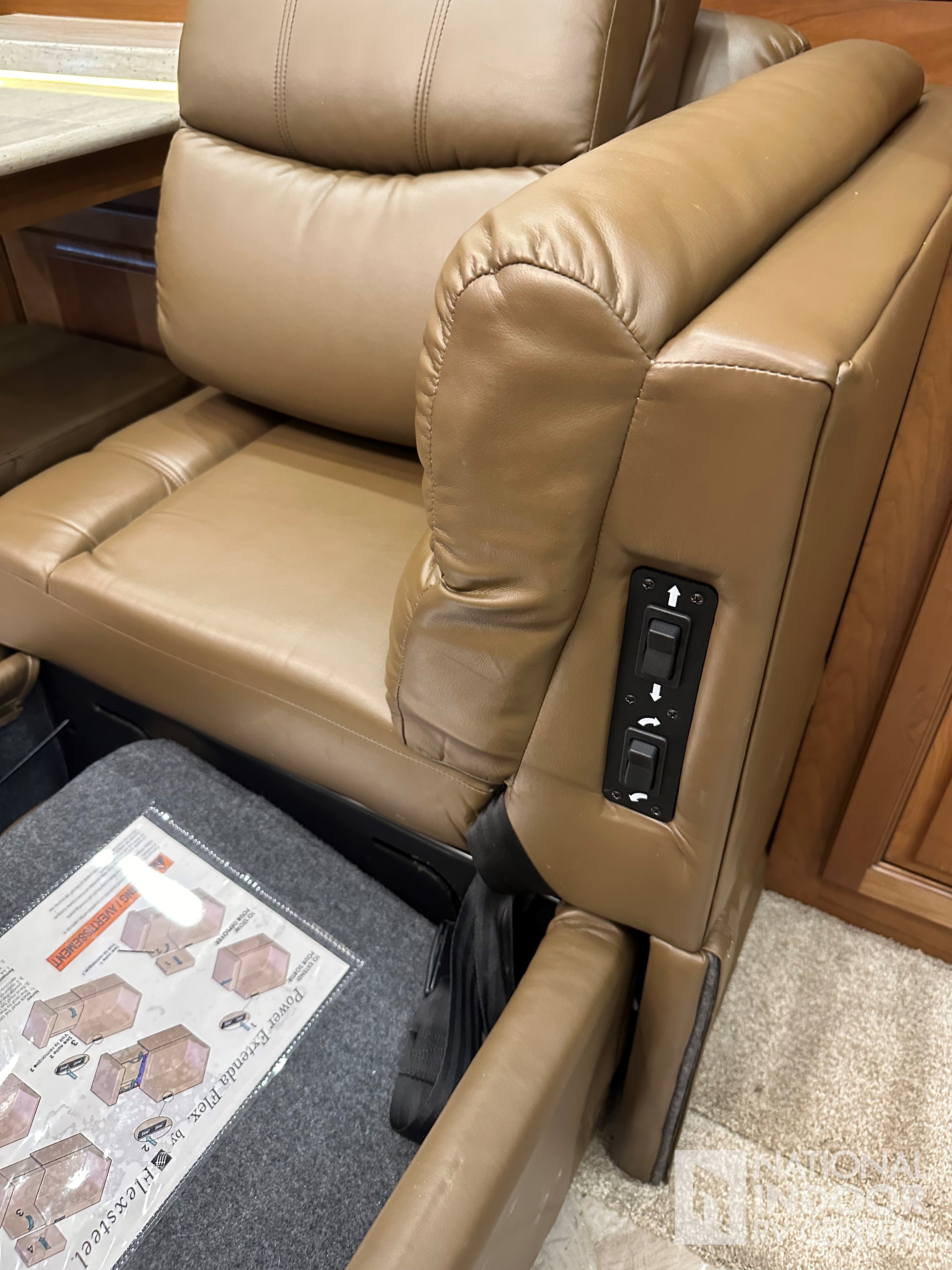

| Theater Seating |
| Theater seating with power recliner (N/A on 40P) |
| Theater Seating Option 2 |
| Theater seating with power recliner mechanism and hide-a-bed (40P) |
| Satellite Dish - US |
| Winegard Trav'ler satellite dish - DIRECTV |
| Satellite Dish - CA |
| Winegard Trav'ler satellite dish - Shaw Direct |
| Solar |
| Solar panels |
| Slideout Storage Tray |
| Slideout Storage Tray |
| Front Overhead TV |
| Standard |
| Central Vacuum System |
| Standard |
| Second Girard Patio Awning |
| Second Girard Patio Awning |
| WiFi Extender Antenna |
| Winegard WIFI Extender with 4G/LTE |
| Batteries |
| Batteries - 2 additional AGM, 4 total (Not available on 38M and 40P) |
| Baggage Doors |
| Power Locking |
