| Chassis |
| Spartan K3 raised rail chassis |
| Engine |
| Cummins 15 liter X15 turbocharged 605HP engine 1,950-lb. ft. torque at 1,200 RPM |
| Transmission |
| Allison 4000 MH 6-speed transmission |
| Engine Block Heater |
| 1,500 watt engine block heater |
| Front Suspension |
| Independent front air suspension |
| Rear Suspension |
| Dana rear suspension |
| Front Axle |
| Reyco Granning IFS independent 20,000-lb. front axle and air suspension |
| Rear Axle |
| Dana rear axle 20,000-lb., tag axle 14,000-lb. |
| Rear Axle Ratio |
| 4.30 rear axle ratio |
| Hitch |
| 20,000-lb. hitch with 7/4-pin plug |
| Tag Axle |
| Reyco Granning passive steer tag axle and tag axle air dump |
| Leveling System |
| Valid air leveling system with auxiliary air compressor |
| Radiator |
| Side-mounted radiator |
| Braking System |
| All-wheel ABS disc brakes |
| Engine Brake |
| Three-stage engine brake |
| Traction Control |
| Automatic traction control |
| Shocks |
| Bilstein shocks- 60MM front & 46MM rear/tag |
| Fuel Tank |
| 150-gal. fuel tank (dual fill) |
| DEF Tank |
| 15-gal. DEF tank (dual fill) |
| Tires |
| Michelin 365/ 70R 22.5" tires (front) and 315/80R 22.5" tires (rear) |
| Turning Radius |
| 55-degree turning radius |
| Chassis Battery |
| Chassis batteries 2-12 volt |
| Alternator |
| 210-amp alternator |
| Air Connection |
| Remote air connection |
| Tow Air Brake System |
| Safehaul tow air brake system |
| Tire Pressure Monitoring |
| Tire pressure monitor system |
| Frame |
| X-bridge frames welded into chassis frame |
| Underbelly |
| Heated basement storage area |
| Insulation |
| Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
| Floor |
| 2" x 4" floor truss construction |
| Floor Decking |
| 3/4" 7-ply plywood main floor decking |
| Walls |
| Aluma-Tru superstructure construction on 12"-16" centers |
| Slideouts |
| Flush-mounted electric-powered slideout rooms with both VegaTouch and separate rocker switch controls |
| Roof |
| One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss |
| Heating System |
| Aqua-Hot 450 diesel hydronic water and heating system with in-floor heat throughout and engine preheat |
| Air Conditioning |
| 15,000-BTU low profile A/Cs (3) with heat pumps and condensation drain system |
| Electrical Hookup |
| 50-amp power cord with electric reel |
| Generator |
| Onan 12,500-watt diesel generator with auto gen start, on powered slide-out tray |
| Inverter |
| 3,000 watt pure sine wave inverters (2) |
| Batteries |
| L16 AGM batteries (4), (6v/390 amp hrs. ea.) |
| Power Management |
| Premium surge protector transfer switch |
| Water Hose w/ Electric Reel |
| Water hose with electric reel |
| Tank Flush |
| Black holding tank sprayer |
| Black Tank Management |
| Macerator holding tank dump system with electric gate valves, & manual back-up system |
| Water Monitoring |
| Trutank ultrasonic tank monitoring system displayed on VegaTouch screen |
| Water Filtration |
| City and tank water filtration system |
| Winterization Drain System |
| Winterizing drain system |
| Exterior Walls |
| 2- 1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
| Front/Rear Cap |
| Steel-reinforced front cap and windshield frame |
| Stainless Steel Accents |
| Executive Bus Armor 10" stainless steel trim |
| Clearance Accent |
| LED lit chrome clearance accent light |
| Exterior |
| 3M front protective film mask |
| Headlights |
| LED high and low beam headlights |
| Fog Lights |
| LED fog lights |
| LED Lights |
| LED marker lights, turn lights, accent lights and license plate light |
| Docking Lights |
| LED docking lights |
| Keypad |
| Lighted grab handle with keypad system |
| Door Awning |
| Girard power entrance door awning with LED lights |
| Window Awnings |
| Girard Ultra window shade awnings |
| Patio Awnings |
| Roof mounted Girard Vision dual pitched patio awnings with LED lights |
| Mirrors |
| Chrome, heated, remote control, Ramco side-view mirrors with blind-spot indicators |
| Windows |
| Hehr frameless, tinted, dual-pane, safety-glass windows |

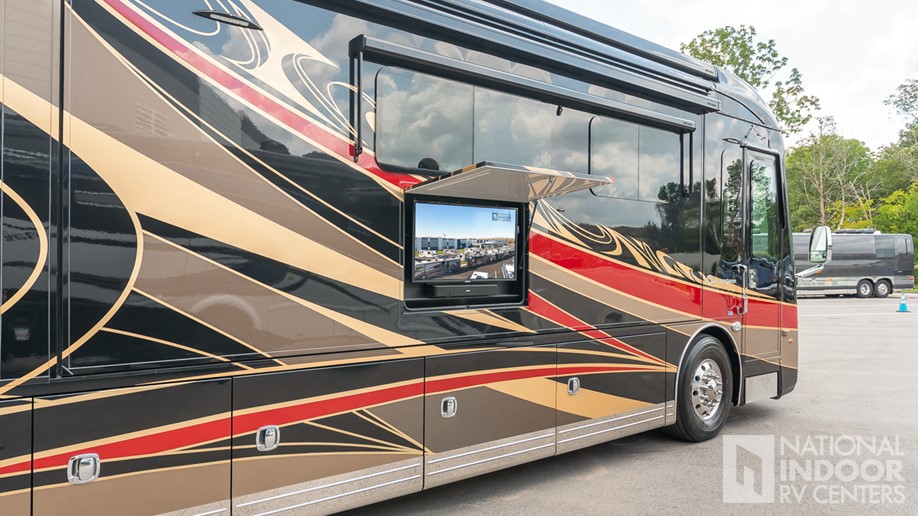

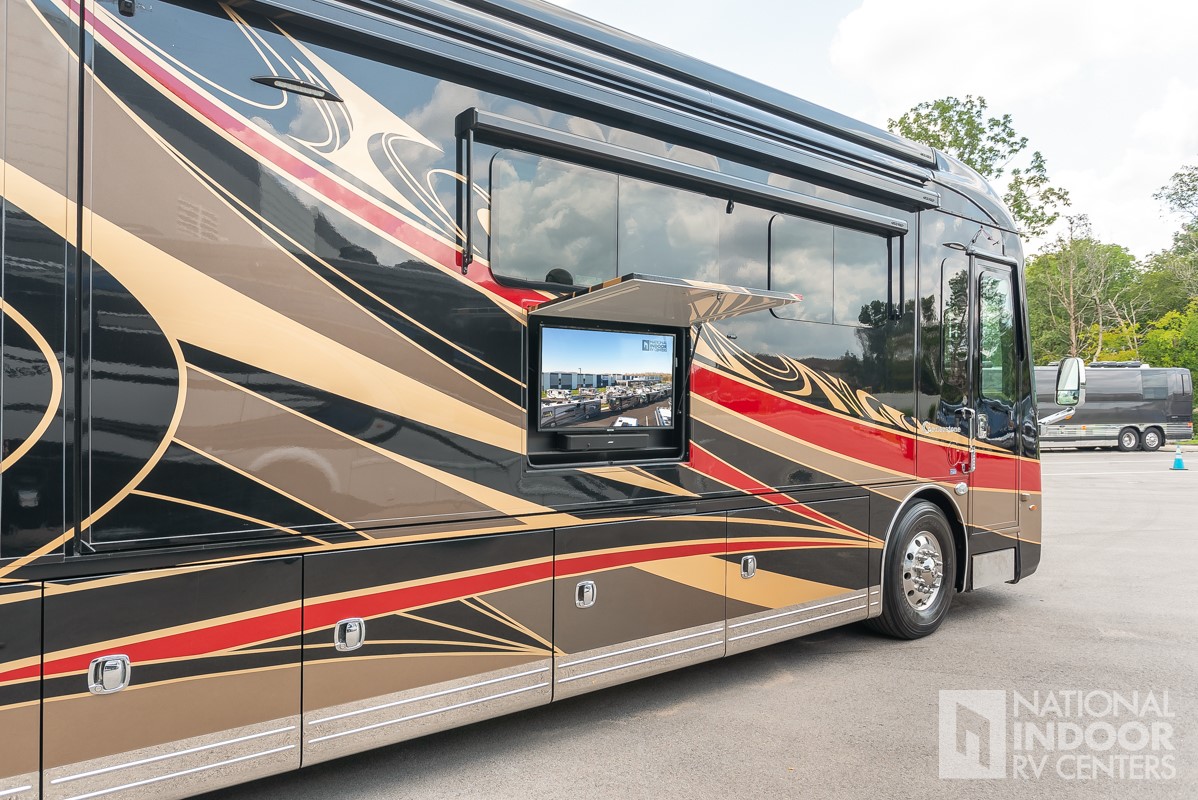

| Entertainment |
| Samsung 40" 4K UHD Slim, Smart TV and Bose Solo 5 sound bar on TV bracket with extend, tilt and swivel arm |
| Utility Center |
| Exterior heated utility center with 5" Firefly system monitor panel |
| Cargo Features |
| Power slide-out cargo trays; 2.8 cu. ft. exterior Dometic refrigerator/ freezer on slide-out tray |
| TV Antenna |
| Winegard Rayzar automatic powered TV antenna |
| Engine Door |
| Power engine door with manual override |

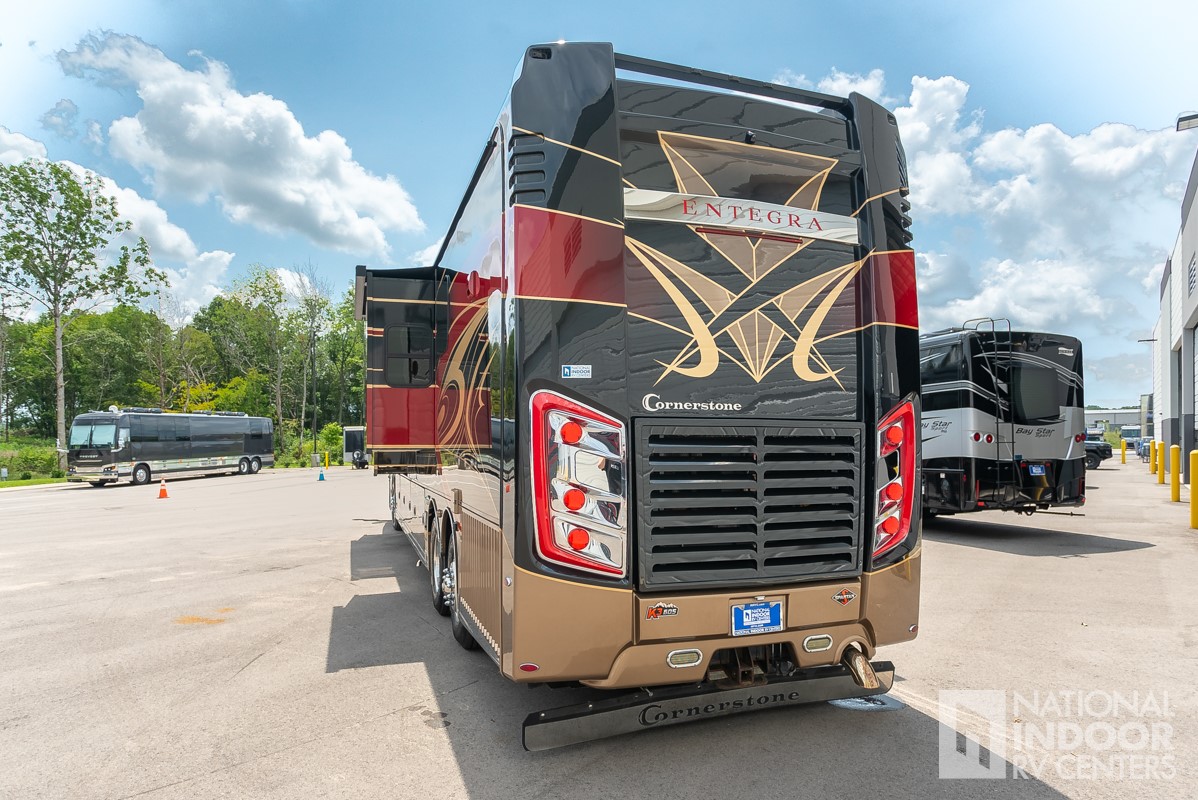

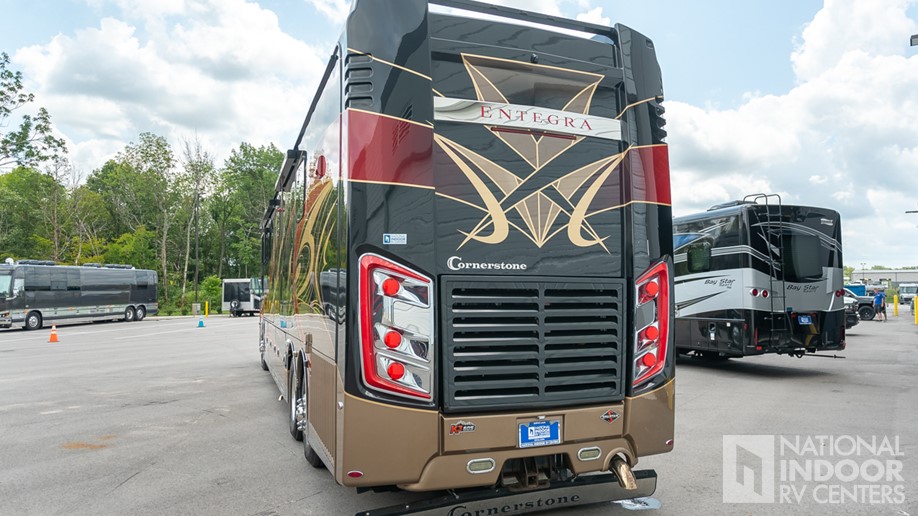

| Rear Mudflap |

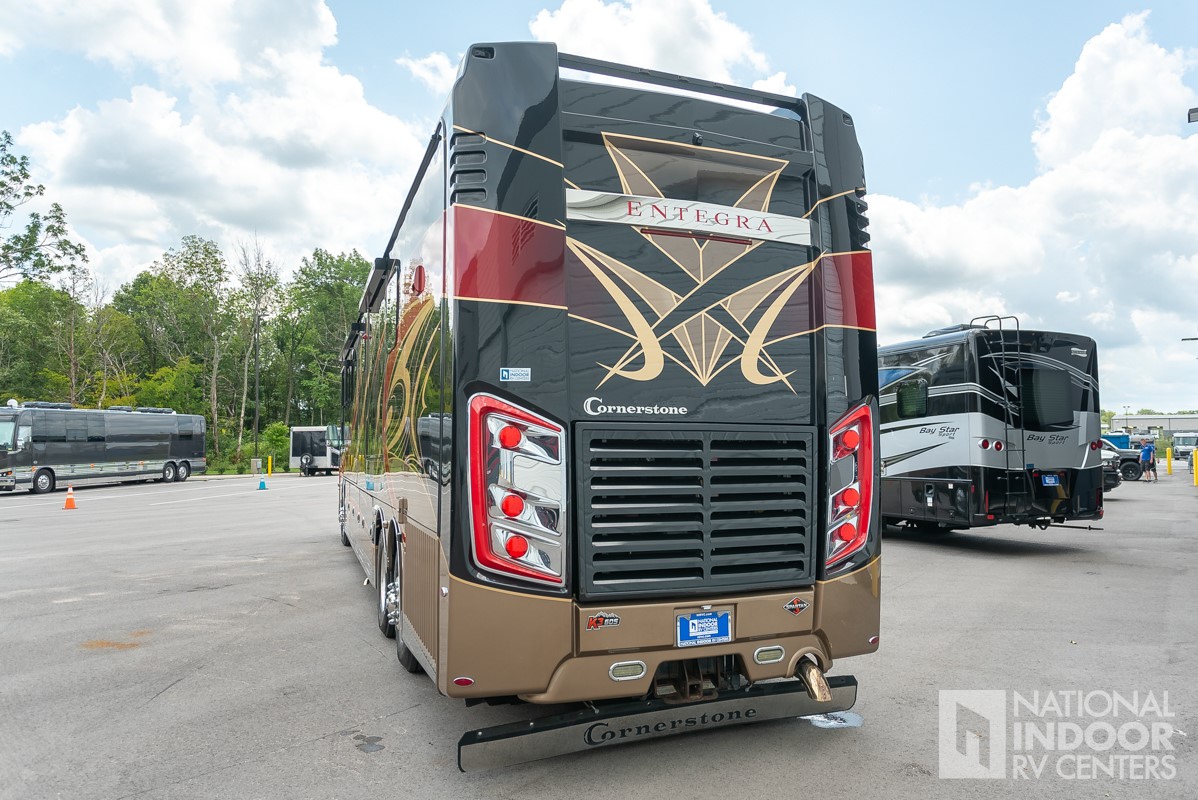

| Full-width rear mudflap, with chrome "Cornerstone" nameplate |
| Lights |
| Porch light and motion sensor security lights |
| Slideout Awnings |
| Girard Ultra slide-out awnings |
| Satellite Dish - CA |
| Winegard Trav'ler satellite dish Shaw TV - standard w/ CSA option |
| Satellite Dish - US |
| Winegard Trav'ler satellite dish DIRECTV - standard w/ USA option |
| Visors & Privacy Shade |
| Power front sun visors and privacy shade |

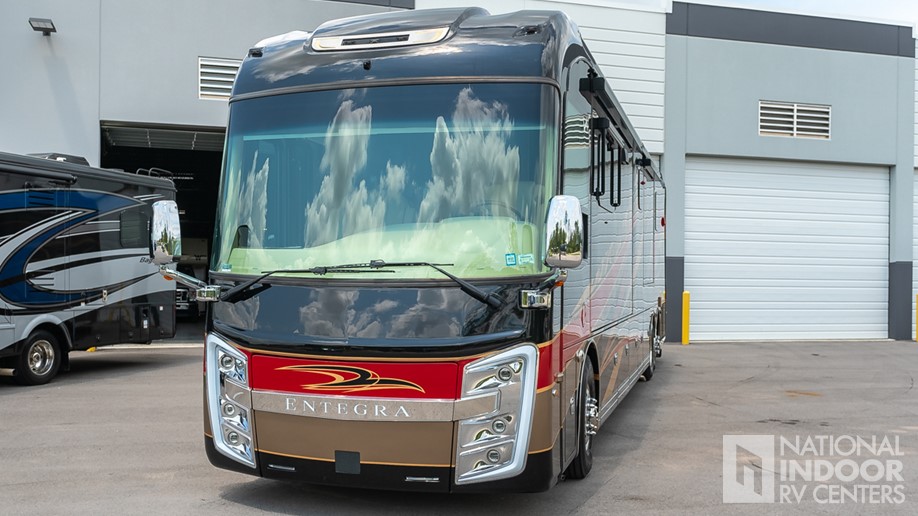

| Windshield |
| Ultra-Vision one-piece wrap-around tinted windshield |
| Driver / Passenger Seats |
| Villa 6-way power, lumbar, air cooled, heated, leather driver and passenger seats with integrated seatbelt |
| Start |
| Push button start |
| Steering Wheel |
| E-Z Steer electric, adjustable power steering assist; VIP wood-grain, leather-wrapped, tilt and telescoping steering wheel with integrated controls for cruise and wipers |

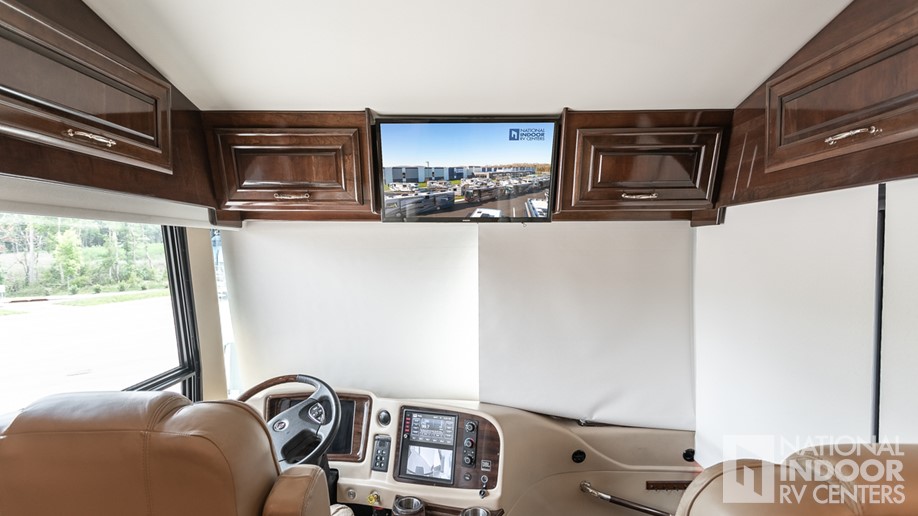

| Dash |
| Valid 15" digital dash with selector knob and three selection main screens |
| Monitoring System(s) |
| Blind spot monitoring system displayed on digital dash screen |
| Infotainment System(s) |
| Glass panel, dual 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control, house mode whole coach audio distribution, and integrated VegaTouch coach control |
| Sound System |
| JBL premium audio sound system with amplifier, speakers and DVC sub-woofer |
| Pedals |
| Power adjustable brake and accelerator pedals |
| Cameras |
| Xite 360 camera system that displays on digital dash screen |
| Additional Amenities |
| Two dual USB ports and 12v socket for charging |
| Blind Spot Monitoring |
| Blind spot monitoring system displayed on digital dash screen |
| Lighting System |
| 10" VegaTouch touchpad system, for complete integration of coach controls/ mobile app control also |
| Lighting |
| Premium LED 12V recessed ceiling lighting |
| Flooring |
| Hand laid 16" x 32" porcelain tile floor |
| Window Treatments |
| Powered solar day and black out night shades |

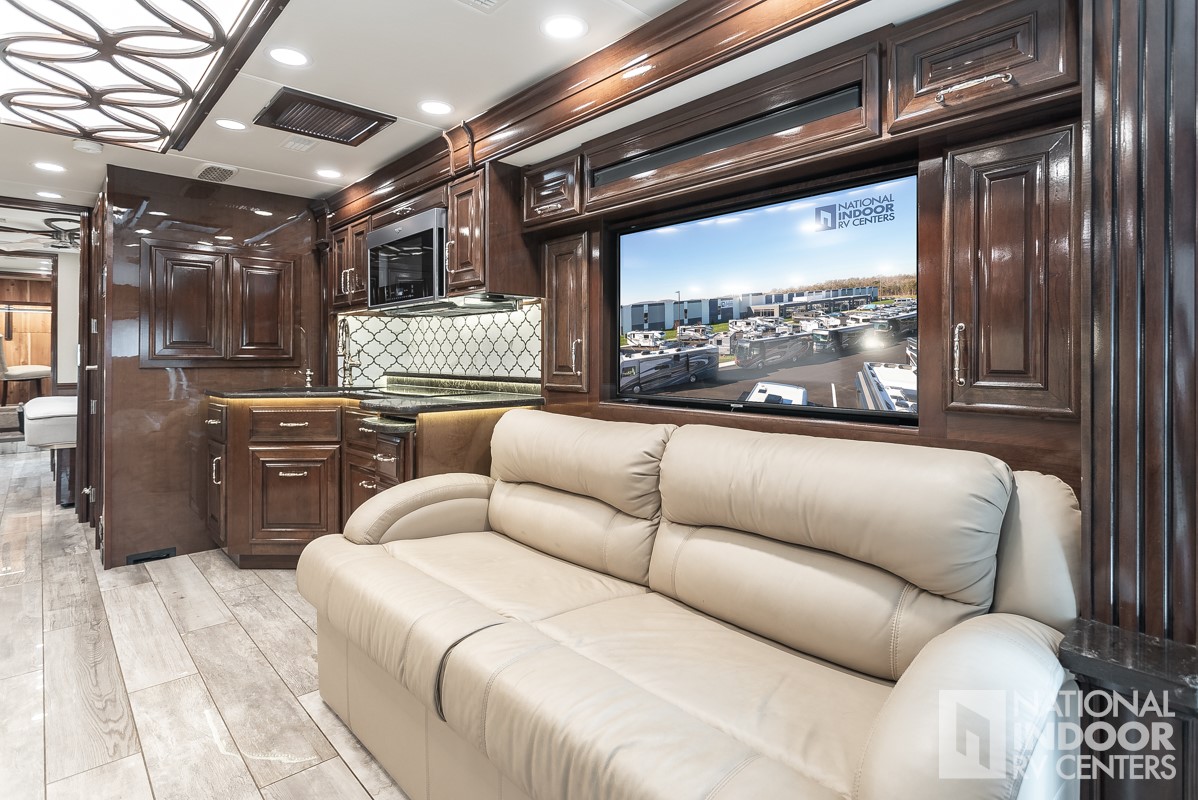

| Television - Living Room |
| Samsung 50" 4K UHD Smart TV |

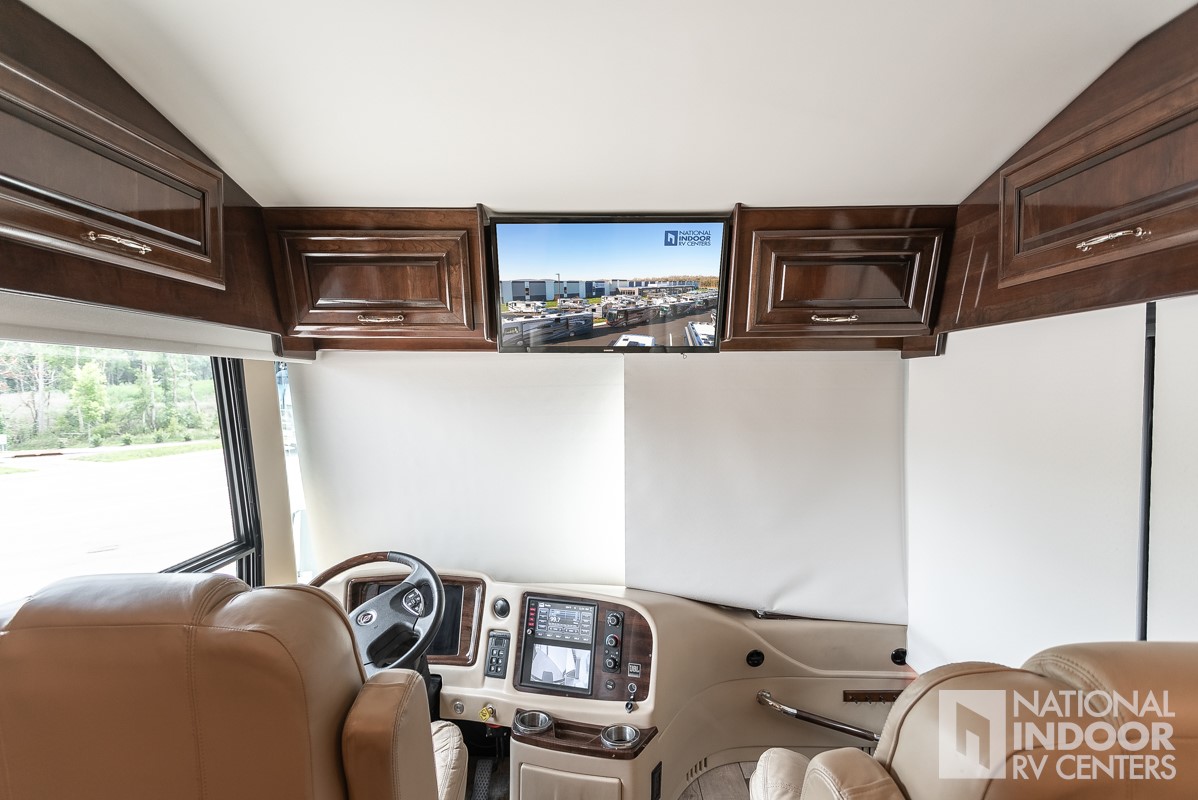

| Television - Front Overhead |
| Samsung 32" LED Slim 1080P Smart TV in front overhead |
| Sound - Living Room |
| Bose SoundTouch 300 sound system with wireless surround sound speakers |
| DVD Systems |
| Samsung HD Blu-ray player |
| Furniture |
| Villa Italian leather furniture |

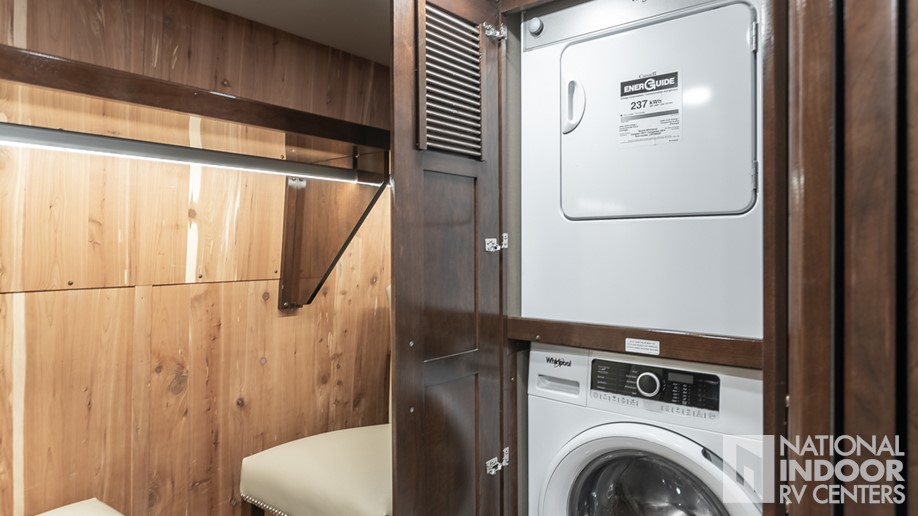

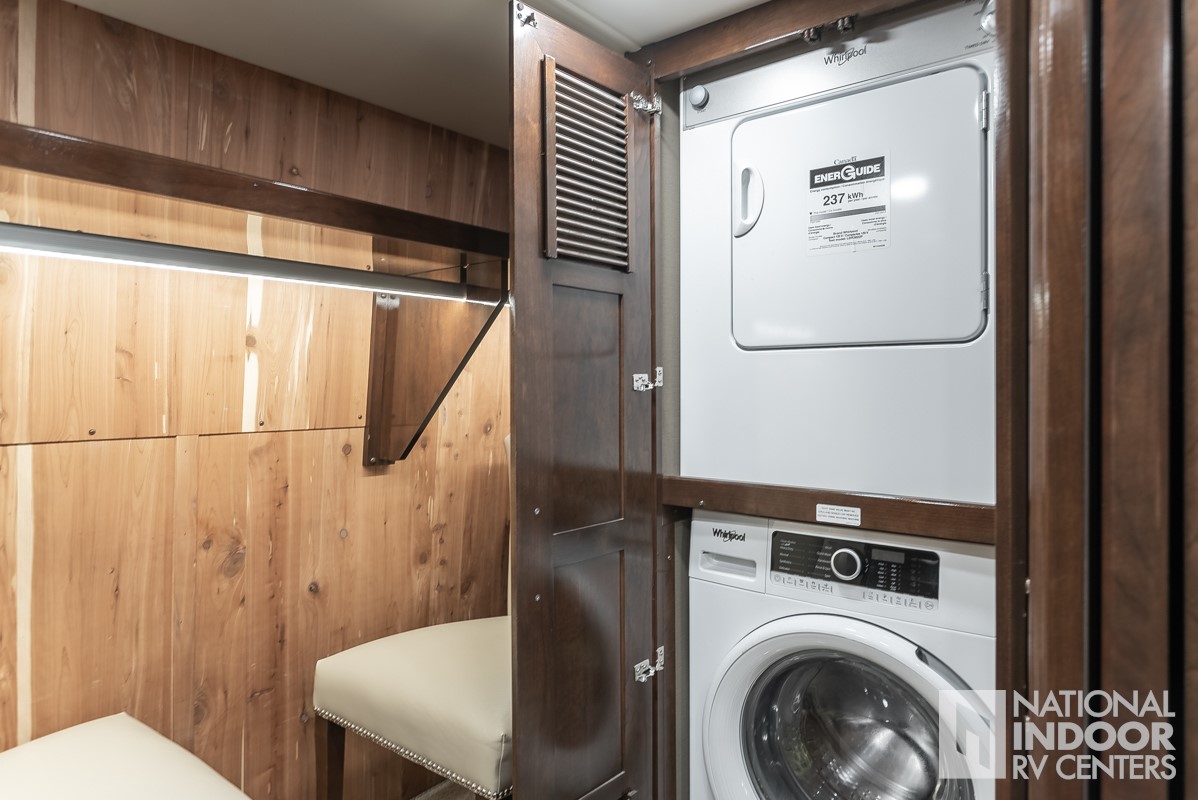

| Washer/Dryer |
| Whirlpool stacked washer and dryer |
| Central Vacuuming System |
| Central vacuum system |
| Electric Fireplace |
| LED lit fireplace with 1500w heating element (45B and 45Y) |
| Interior Doors |
| Aire-Secure travel locks for all pocket doors |

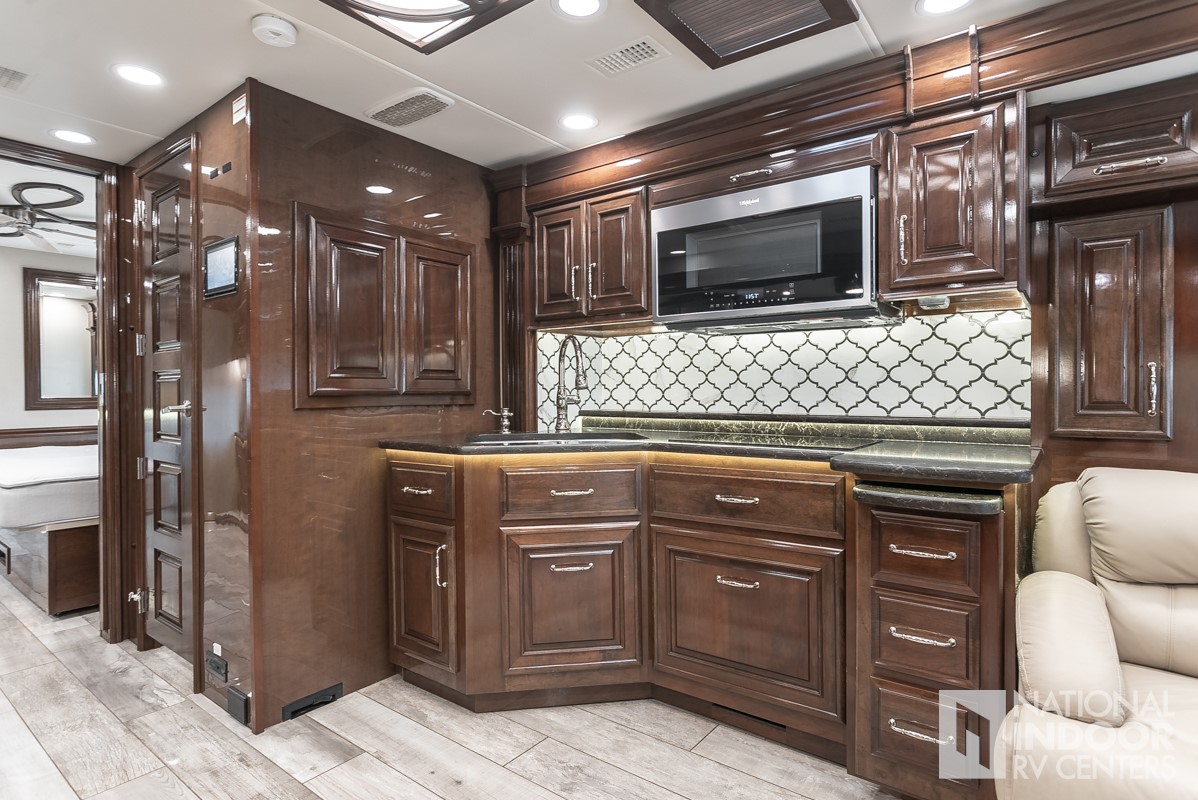

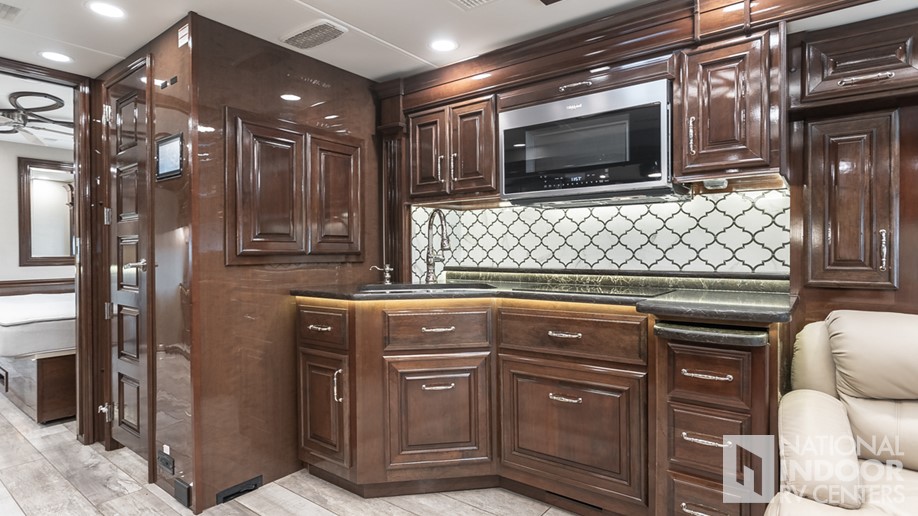

| Countertops |
| Quartz countertops with stainless steel sink and dimmable LED accent lighting |
| Waste Basket |
| Large deep drawer for waste basket with easy access trash chute (trash chute not available in 45F) |
| Dishwasher |
| Dishwasher with wood raised panel door front |
| Cooktop |
| Induction cooktop with matching wood cover |
| Microwave |
| Whirlpool Gold 1.9 cu. ft. convection microwave oven |

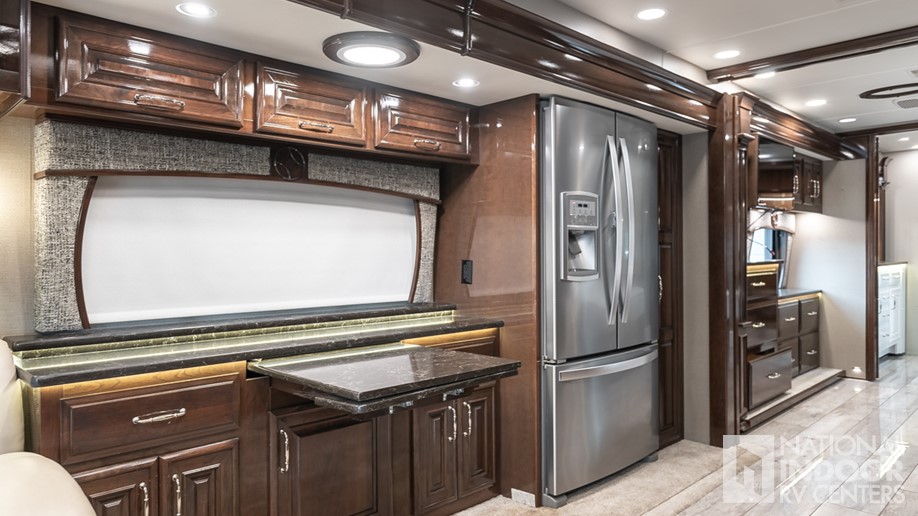

| Refrigerator |

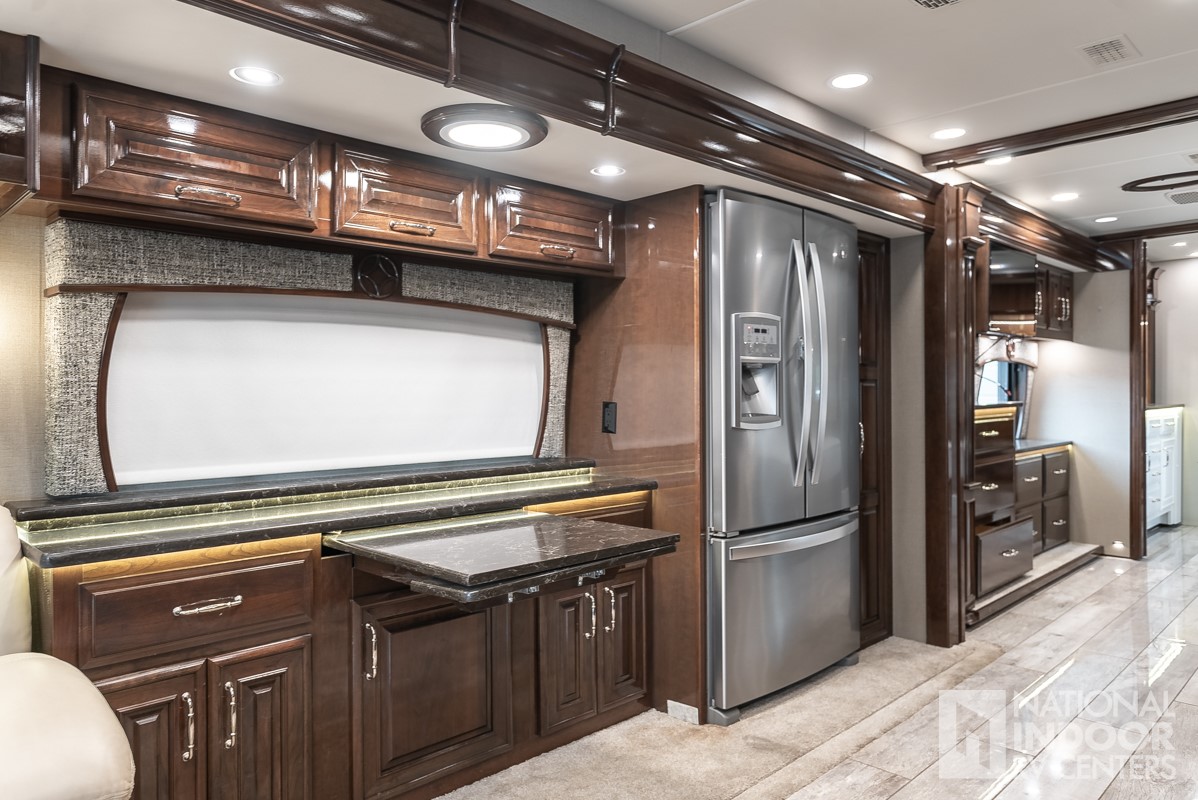

| Whirlpool stainless steel residential refrigerator with ice maker and water dispenser |
| Vent |
| Maxxair power exhaust vent fan |

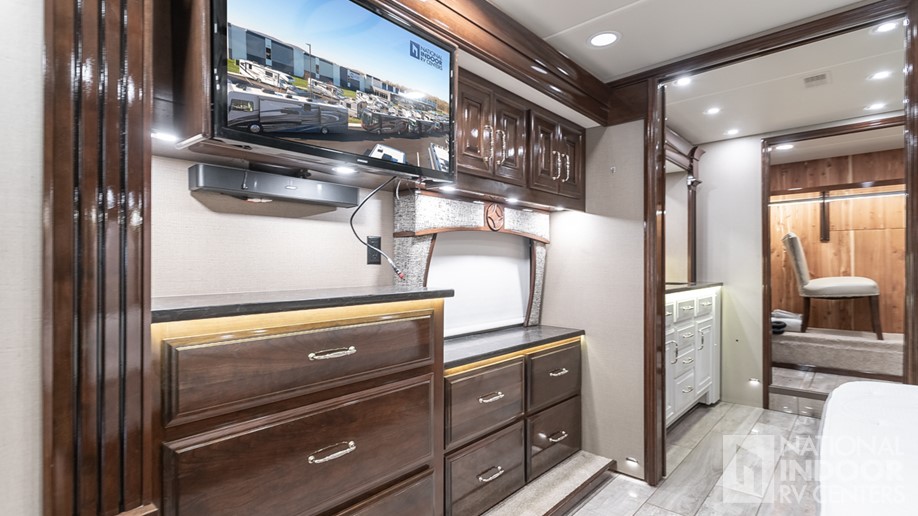

| Television |
| Samsung 32" LED Slim 1080P Smart TV |
| Sound |
| Bose Solo 5 sound bar |

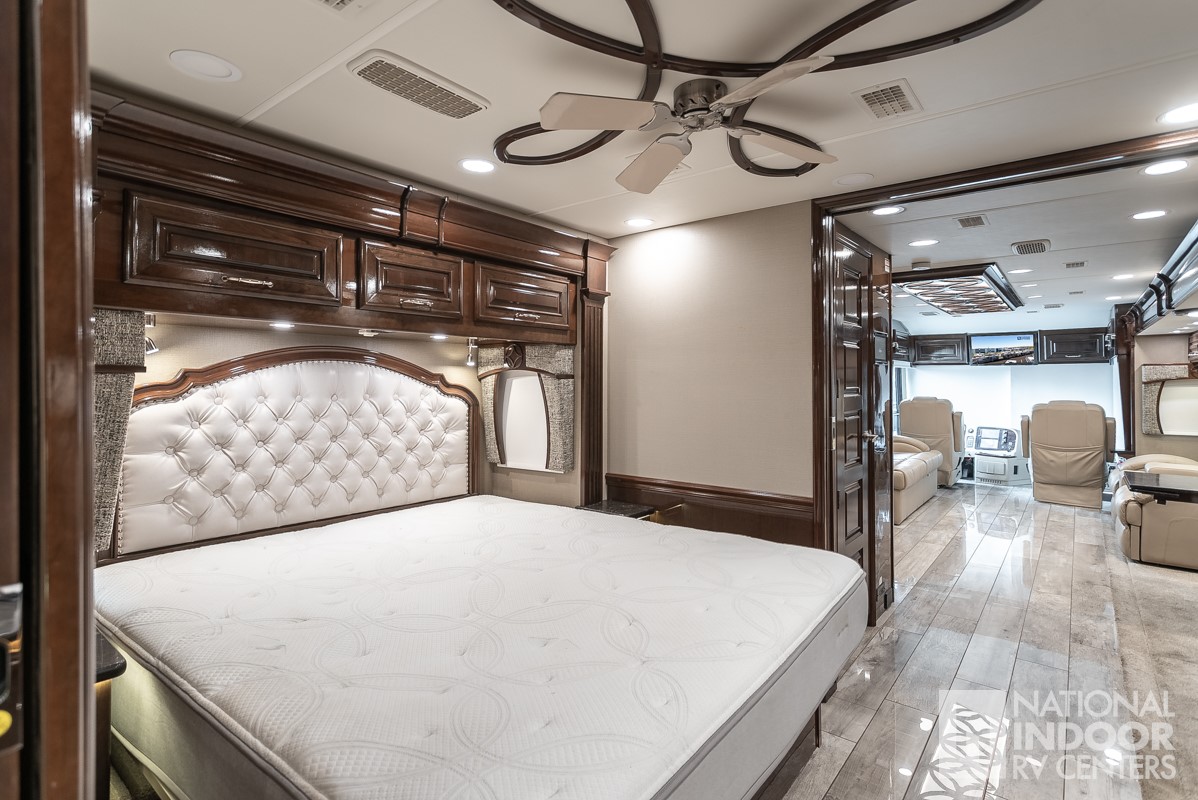

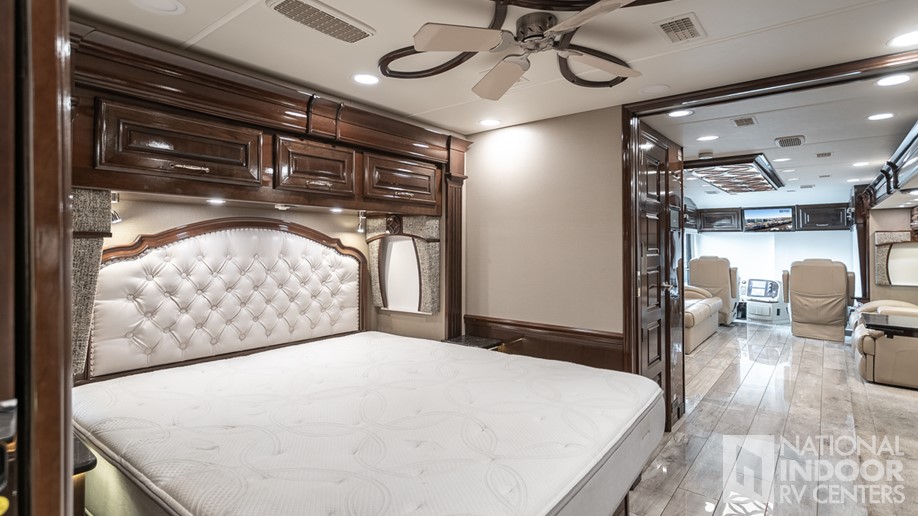

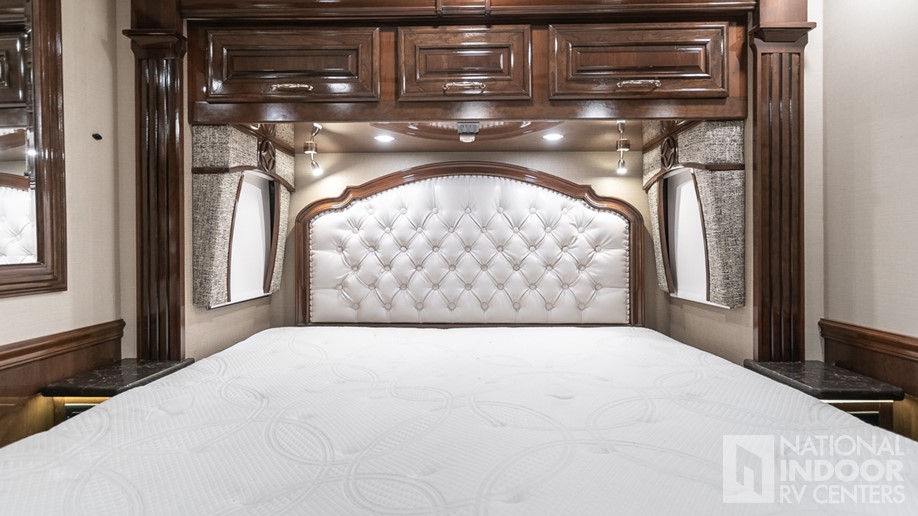

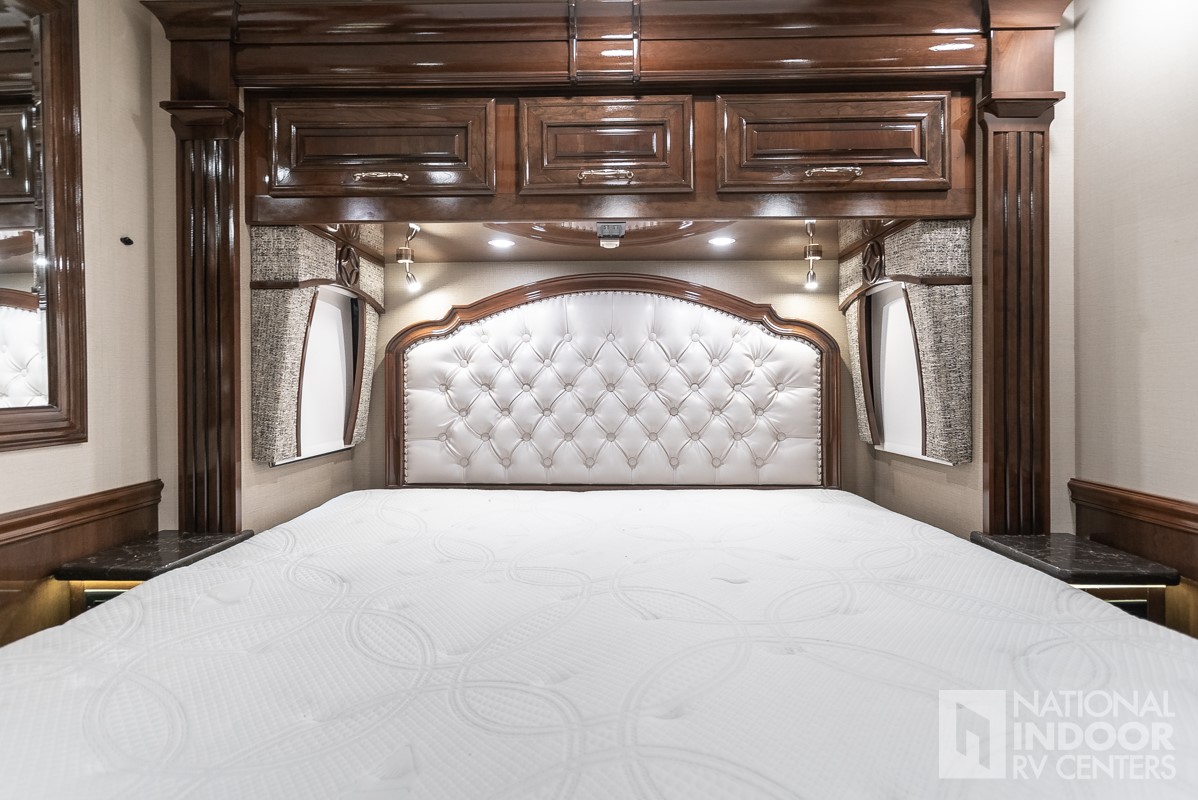

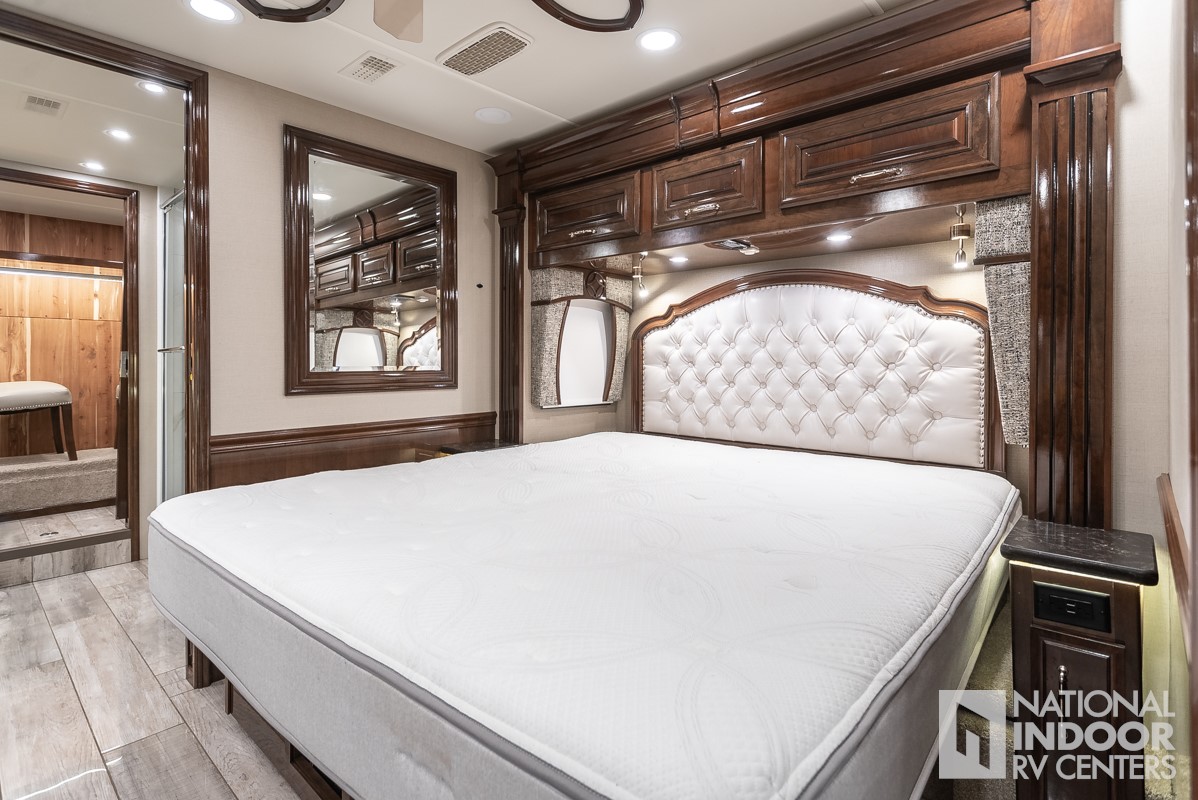

| Bed |

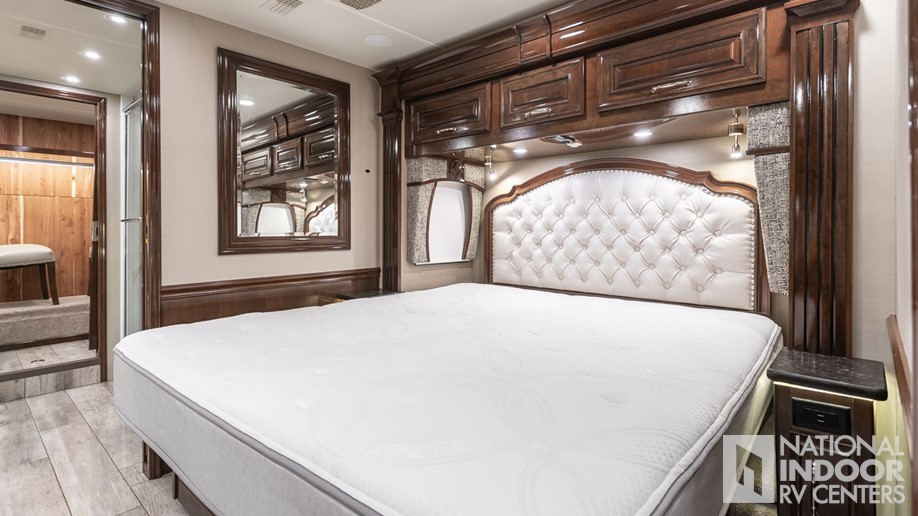

| Select Comfort Sleep Number king size mattress |
| Nightstands |
| Nightstands with USB ports and quartz tops |
| Ceiling Fan |
| Ceiling fan |

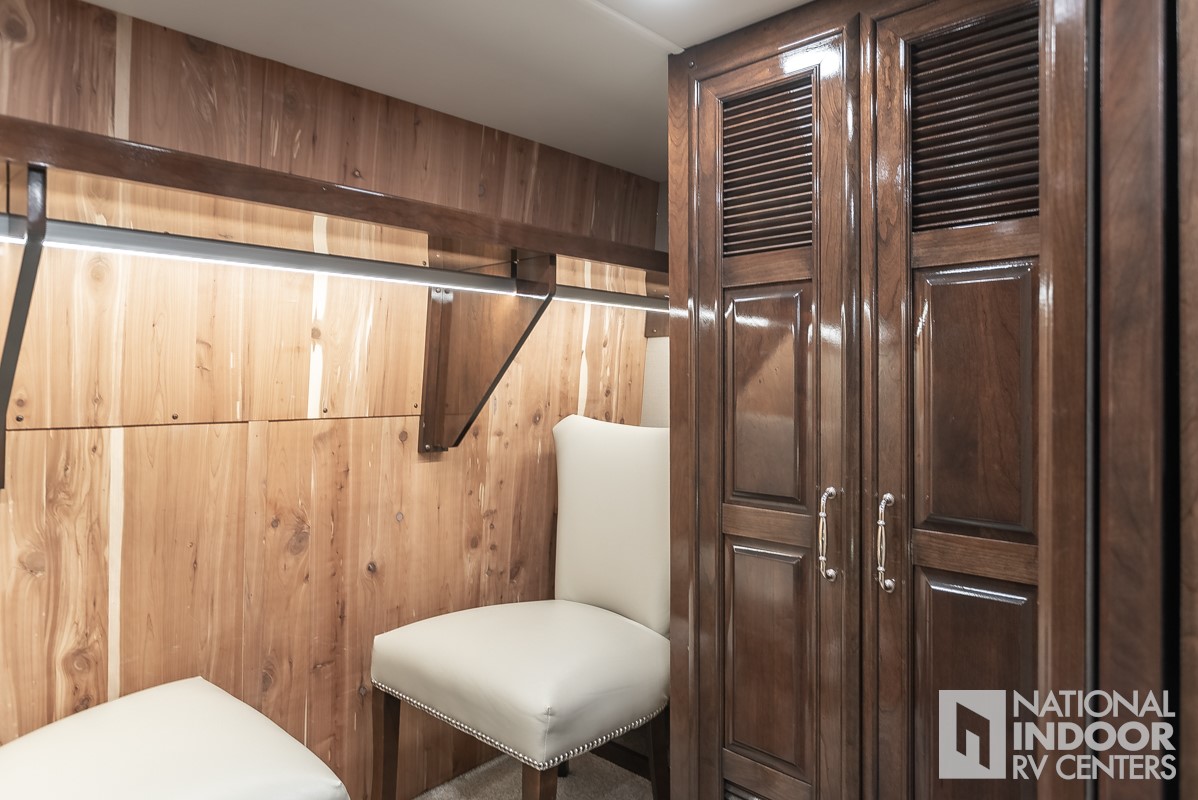

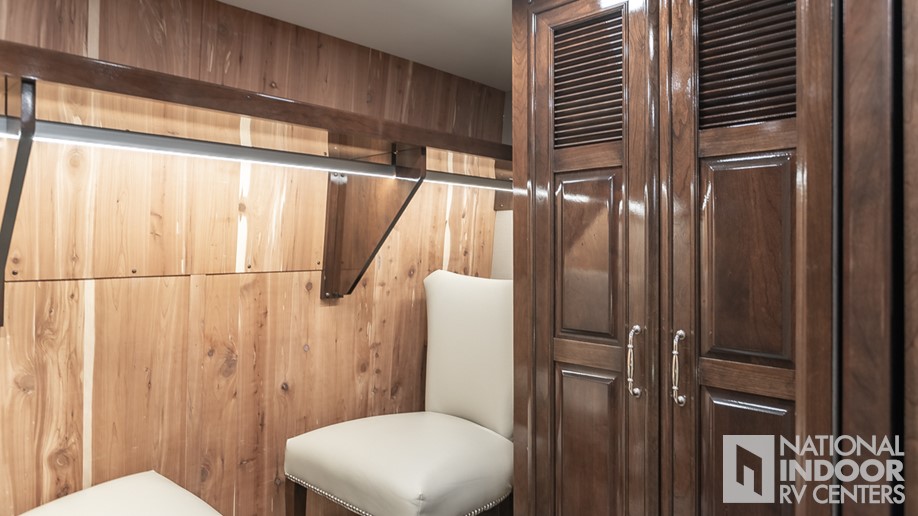

| Wardrobe |
| Large cedar-lined wardrobe with LED lit, motion activated closet rod |
| DVD Systems |
| Samsung Blu-ray player |

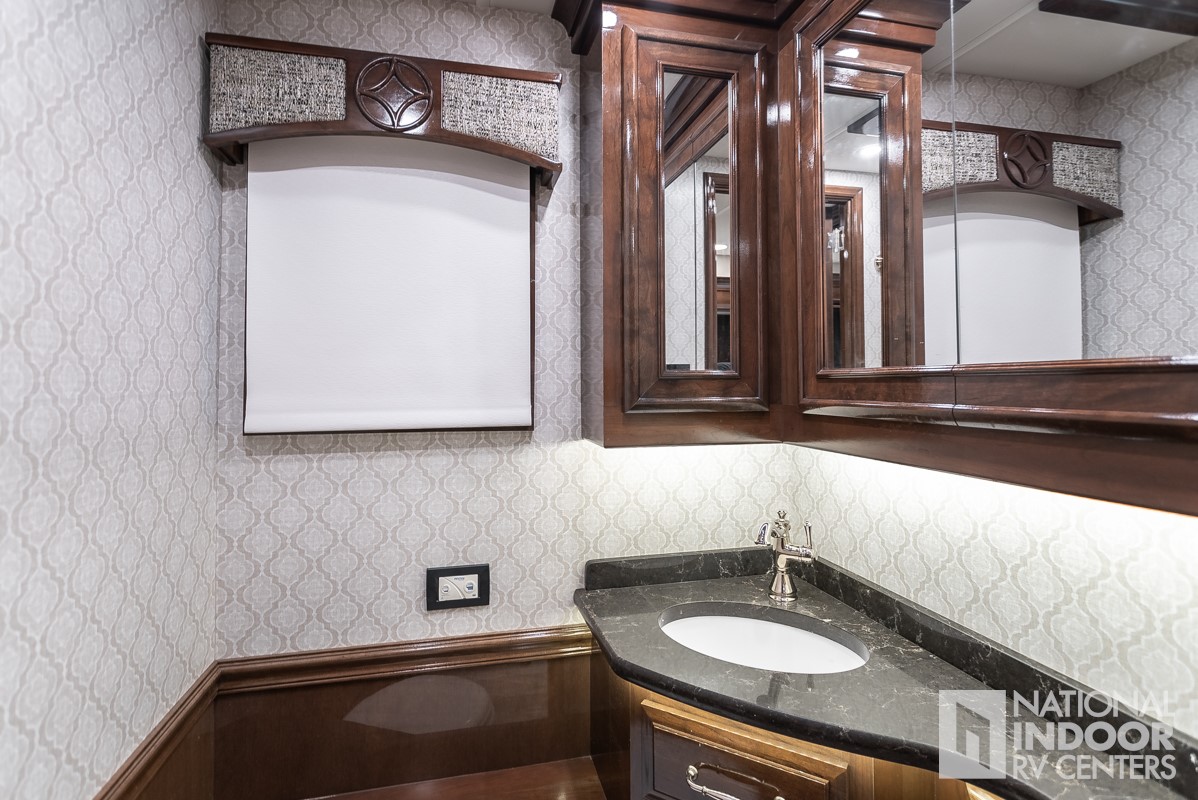

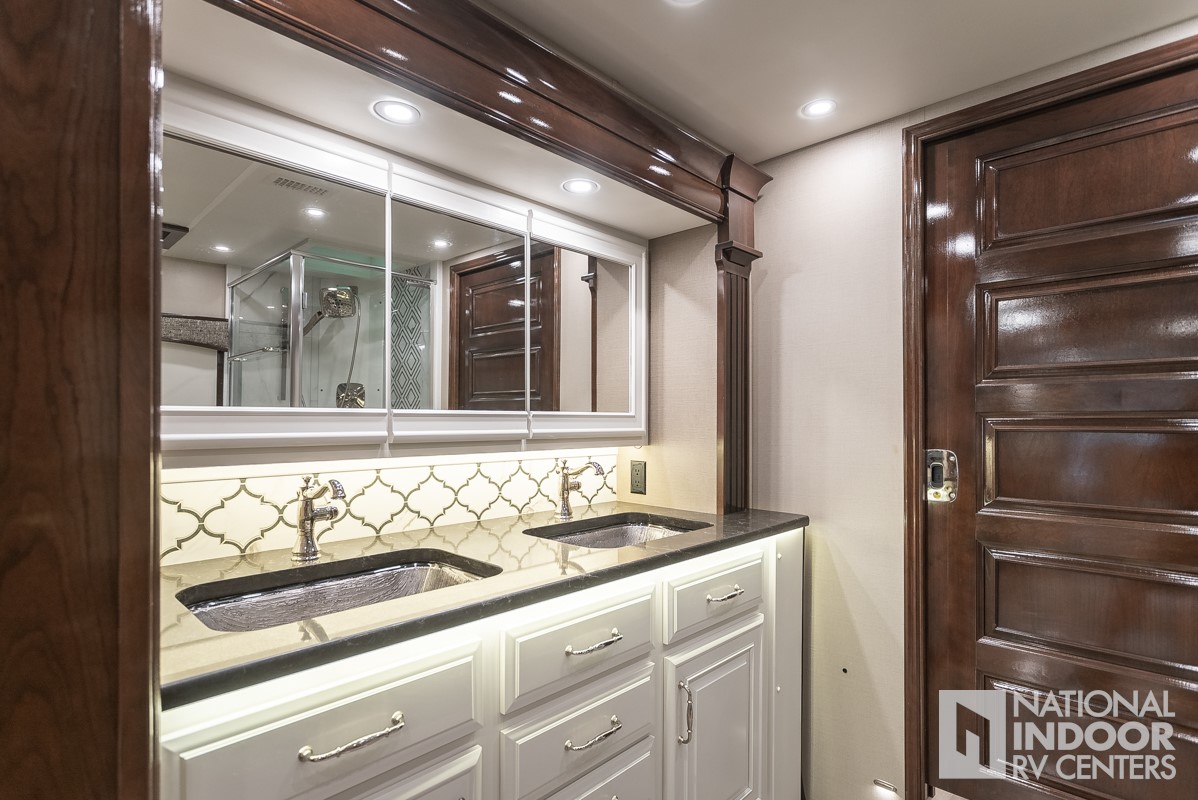

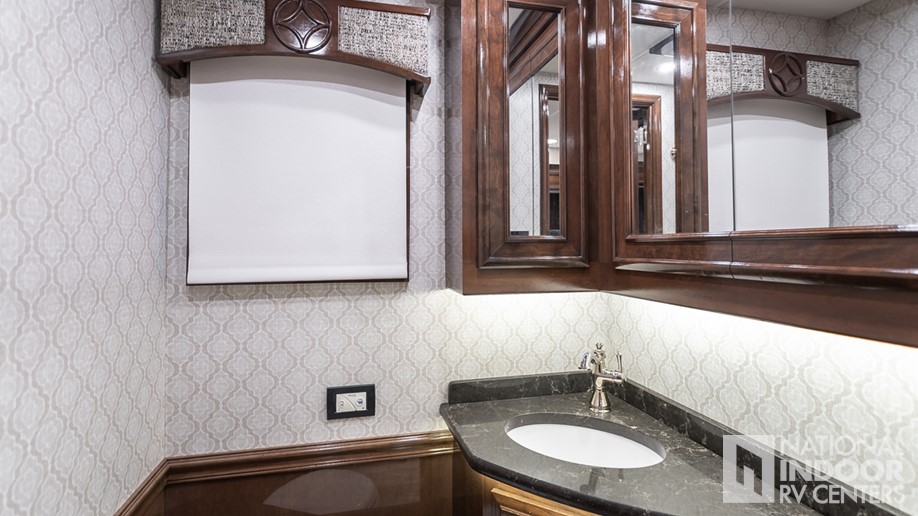

| Countertop(s) |

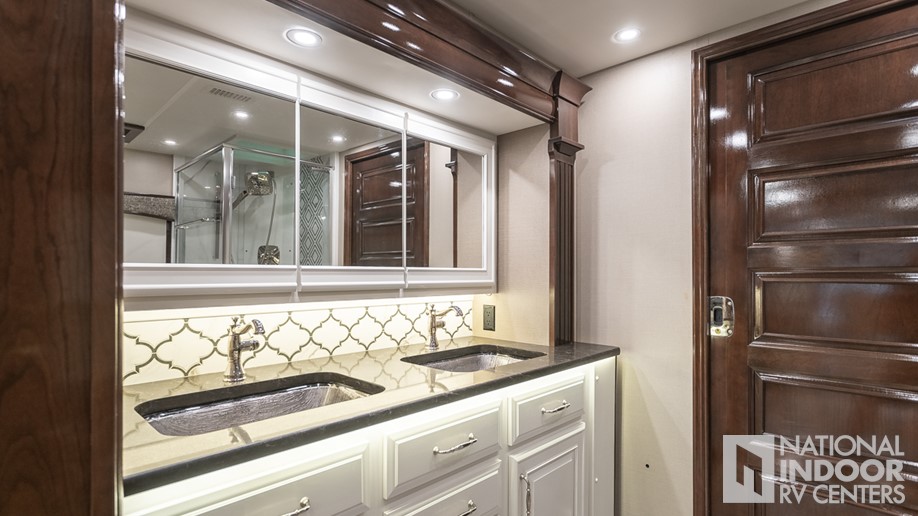

| Quartz countertop with integrated glass sinks and LED accent lighting |
| Toilet |
| Thetford Tecma china toilets with push button flush (45A, 45F, 45W) |

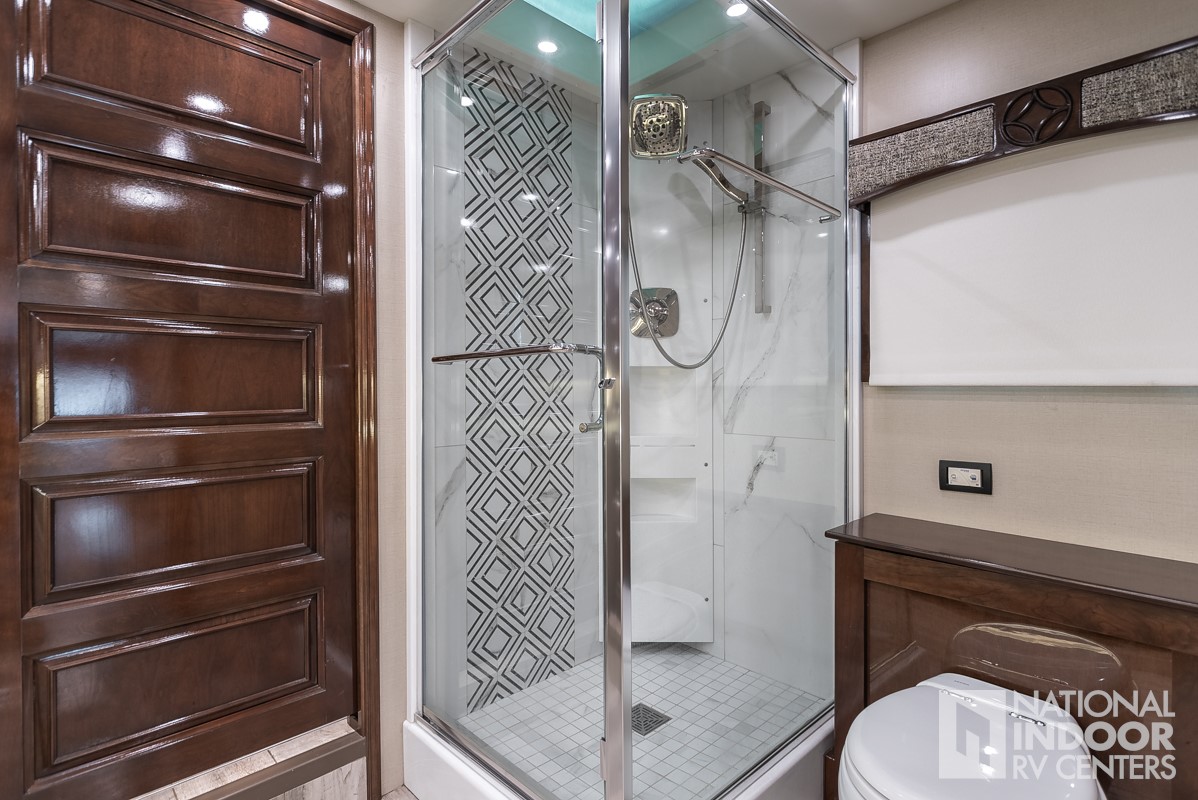

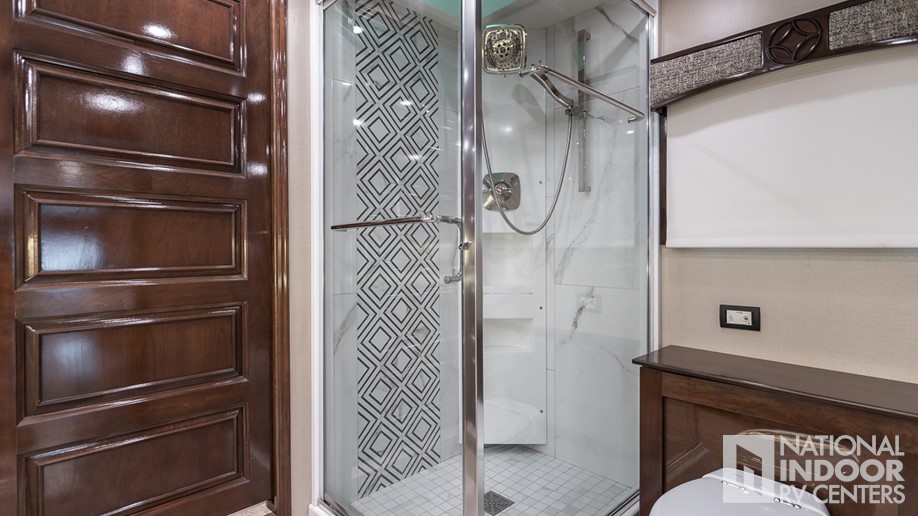

| Shower |
| Porcelain tiled shower walls and floor with skylight and frameless glass shower door |
| Shower Seat |
| Teakwood shower seat (Not available in 45F) |
| Vent |
| Maxxair Deluxe power exhaust vent fan with intake |
| Shower Head |
| Pivoting shower head and separate hand held spray wand |
| Security System |
| Security system with glass shatter sensors |
| Smoke Alarm |
| Smoke alarm |
| Carbon Monoxide Detector |
| Combination carbon monoxide detector and gas alarm |
| Security Safe |
| Safe |
| Canadian Standards |
| CSA Optional |
| Dinette |
| Booth dinette passenger side (45A) |
| Dinette Option 2 |
| Booth dinette driver side (45B, 45W and 45Y) |
| Freestanding Table |
| Free standing table with 4 chairs driver side (45X) |

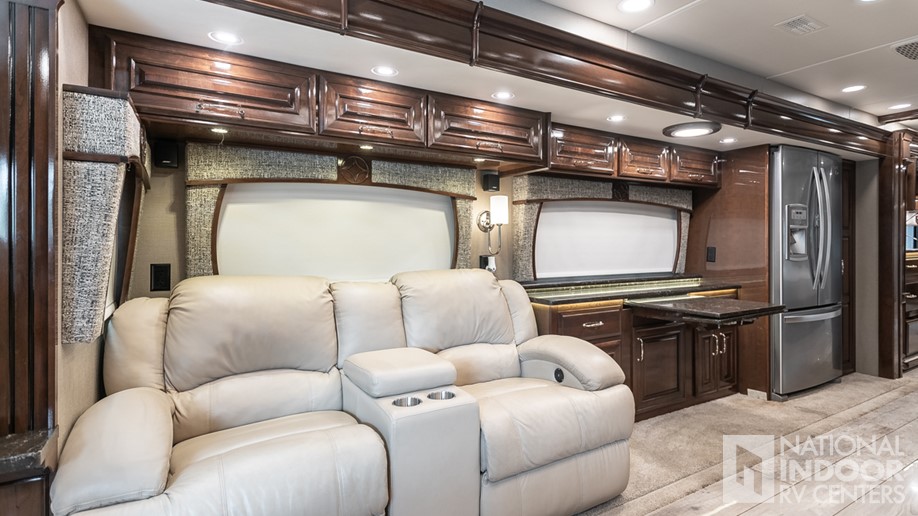

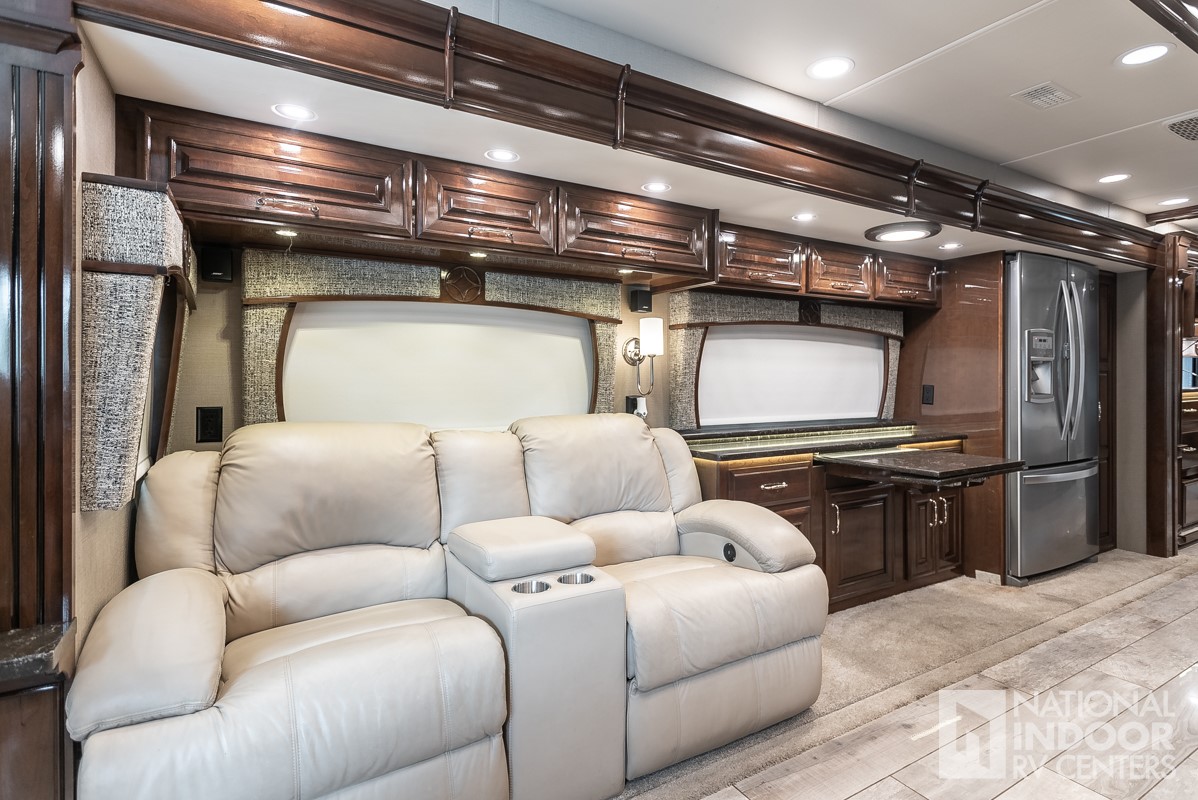

| Theater Seating |
| 100" theater seat passenger side (45B and 45Y) |
| Solar |
| Solar panels (Dual-100 watt) with Morningstar SunSaver Duo solar panel charge controller |
| WiFi Extender Antenna |
| Winegard WIFI extender with 4G/LTE |

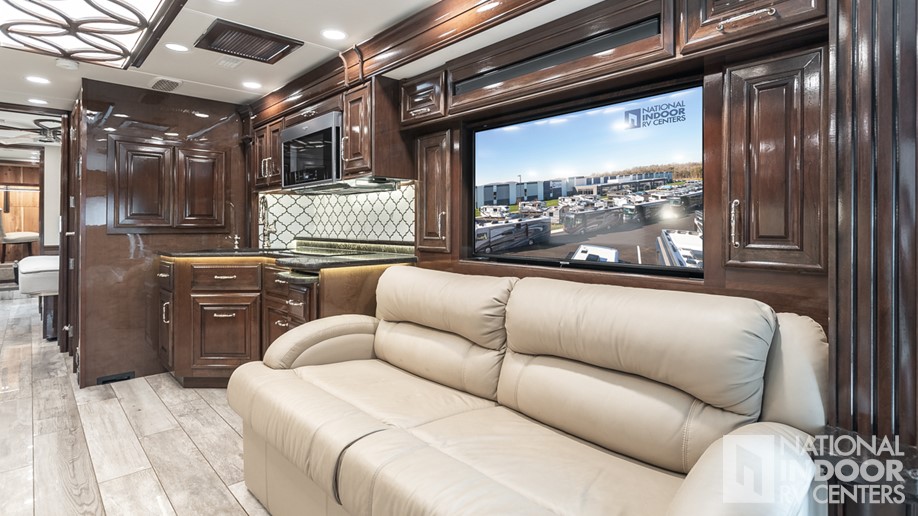

| Reclining Sofa |
| 100" reclining sofa passenger side (45B and 45Y) |
| Theater Seating Option 2 |
| 82" theater seat passenger side (45A) |
| Theater Seating Option 3 |
| 82" theater seat driver side (45W) |
| Theater Seating Option 4 |
| 74" theater seat passenger side (45F and 45X) |
| Satellite Dish |
| Winegard in-motion dome, roof mounted satellite dish |
