| Chassis |
| Spartan® K2 raised-rail chassis |
| Engine |
| Cummins® L9 turbocharged 450 HP engine with 1,250-lb. ft. torque at 1,400 RPM |
| Transmission |
| Allison® 3,000 MH 6-speed transmission |
| Radiator |
| Side-mounted, parallel-airflow radiator |
| Alternator |
| 170-amp alternator |
| Engine Block Heater |
| 1,000-watt engine block heater |
| Engine Brake |
| Two-stage engine brake |
| Front Axle |
| Reyco® Granning® front axle - 20,000 lb. rating |
| Front Suspension |
| Independent front air suspension (IFS) |
| Rear Axle |
| Meritor rear axle - 20,000 lb. rating |
| Tag Axle |
| Tag axle with air dump - 12,000 lb. rating |
| Braking System |
| ABS disc brakes on front axle, drum brakes on drive and tag axle |
| Rear Axle Ratio |
| 4.88 rear axle ratio |
| Tires |
| Michelin® XZA 365/70R 22.5” tires (front) and XZA 315/80R 22.5” tires (rear) |
| Shocks |
| Bilstein® shocks- 60mm front axle & 46mm rear/tag axles |
| Tire Pressure Monitoring |
| Tire pressure monitoring system (TPMS) with temperature monitoring |
| Traction Control |
| Automatic traction control |
| Leveling System |
| Equalizer™ hydraulic automatic coach leveling |
| Air Leveling |
| Valid Truline air leveling system with auxiliary air compressor |
| Air Connection |
| Remote air connection |
| Chassis Battery |
| (2) 12V chassis batteries |
| Fuel Tank |
| 150-gal. fuel tank with dual fills |
| DEF Tank |
| 15-gal. DEF tank with dual fills (single fill on 44D, 44R) |
| Tow Air Brake System |
| Spartan® Safehaul tow vehicle air brake system |
| Hitch |
| 15,000-lb. hitch with 7-pin plug |
| Floor |
| 2" x 4" wood trusses on 16" centers or less filled with bat and Flexfoil insulation then topped with 3/4" 7-ply plywood decking (R-33) |
| Frame |
| X-Bridge™ bracing welded into chassis frame |
| Roof |
| 4" arched aluminum trusses filled with bat insulation and reflective Flexfoil® topped with 3/8" plywood decking then one-piece fiberglass |
| Slideouts |
| Entegra-exclusive Relia-Torque flush-mounted 12V slideout system with VegaTouch and rocker switch controls |
| Walls |
| 2-1/2" exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16" centers or less filled with bat and Flexfoil insulation then covered with high-gloss gelcoat |
| Heated Tanks |
| Aqua-Hot® heated basement storage |
| Generator |
| Onan® 12,500-watt diesel generator, with automatic start, on powered slide-out tray |
| Batteries |
| (4) L16 AGM batteries (6V/390 amp hrs. ea.) |
| Electrical Hookup |
| 50-amp power cord on electric powered reel |
| Power Management |
| Smart automatic transfer switch with surge protection |
| Air Conditioning |
| (3) 15,000-BTU A/C units with heat pumps and condensation drain system |
| Heating System |
| Aqua-Hot® 450D hydronic water and heating system with in-floor heat throughout and engine preheat |
| Black Tank Management |
| Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door |
| Tank Flush |
| Black holding tank sprayer |
| Water Filtration |
| City and tank water filtration system |
| Winterization Drain System |
| Winterizing drain system |
| Water Monitoring |
| Trutank™ ultrasonic tank monitoring system displayed on VegaTouch screen |
| Water Hose w/ Electric Reel |
| Water hose with electric reel |
| Inverter |
| 3,000-watt pure sine wave inverter |
| Front/Rear Cap |
| Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame |
| Stainless Steel Accents |
| Premier Bus Armor 8” stainless-steel trim |
| Engine Door |
| Power rear engine door with manual override |
| Patio Awnings |
| Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights |
| Door Awning |
| Girard® power entrance door awning with LED lights |
| Slideout Awnings |
| Girard® Ultra slideout awnings |
| Window Awnings |
| Girard® Ultra power window awnings |
| Windows |
| Frameless, dual-pane, tinted, safety-glass windows |
| Keypad |
| Lit grab handle with doorbell and keypad system for keyless entry |
| Entertainment |
| 43” Samsung® QLED 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL radio and speakers with USB port and receptacle |
| Mirrors |
| Chrome, heated, remote-control, side-view mirrors with integrated cameras and blind-spot indicators |
| Exterior |
| Diamond Shield™ front protective film mask |
| Headlights |
| LED high and low beam headlights and fog lights |
| Daytime Running Lights |
| Daytime running lights |
| LED Lights |
| LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights |
| Accent Lights |
| LED accent lights under passenger slideout rooms |
| Clearance Accent |
| LED-lit chrome clearance accent light |
| Lights |
| Porch light and motion sensor security lights |
| Rear Mudflap |
| Mudflap with chrome “Anthem” nameplate |
| Satellite Dish - US |
| Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option |
| Satellite Dish - CA |
| Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option |
| TV Antenna |
| Winegard® Rayzar Automatic powered TV antenna |
| Wi-Fi |
| Winegard® WiFi extender with 4G/LTE |
| Utility Center |
| Heated exterior utility center with 5” LED Firefly® tank monitoring panel |
| Cargo Features |
| Power slideout basement storage tray; Push-button power-unlatching baggage doors with LED indicator light |
| Paint |
| Sikkens custom full-body paint |
| Entrance Door |
| Removable screen on entry door |
| Freezer |
| 2.8-cu. ft. exterior Dometic® refrigerator/freezer on slideout tray |

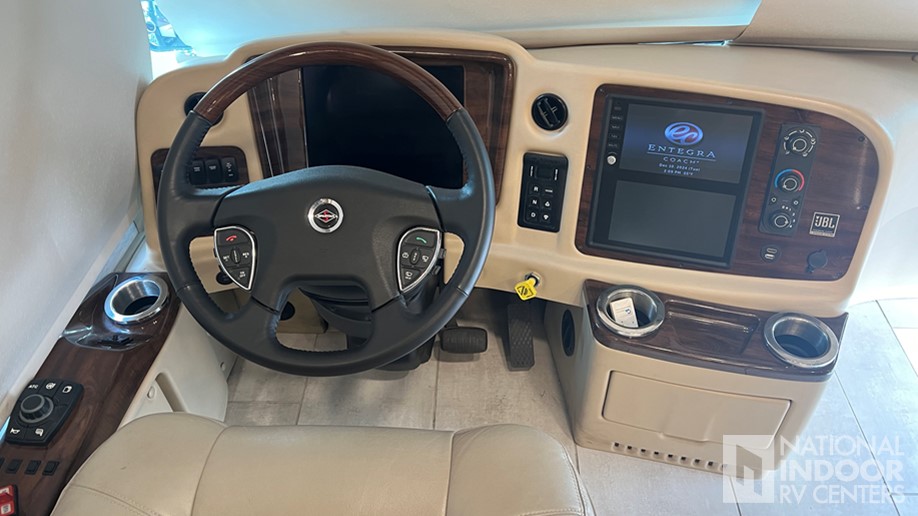

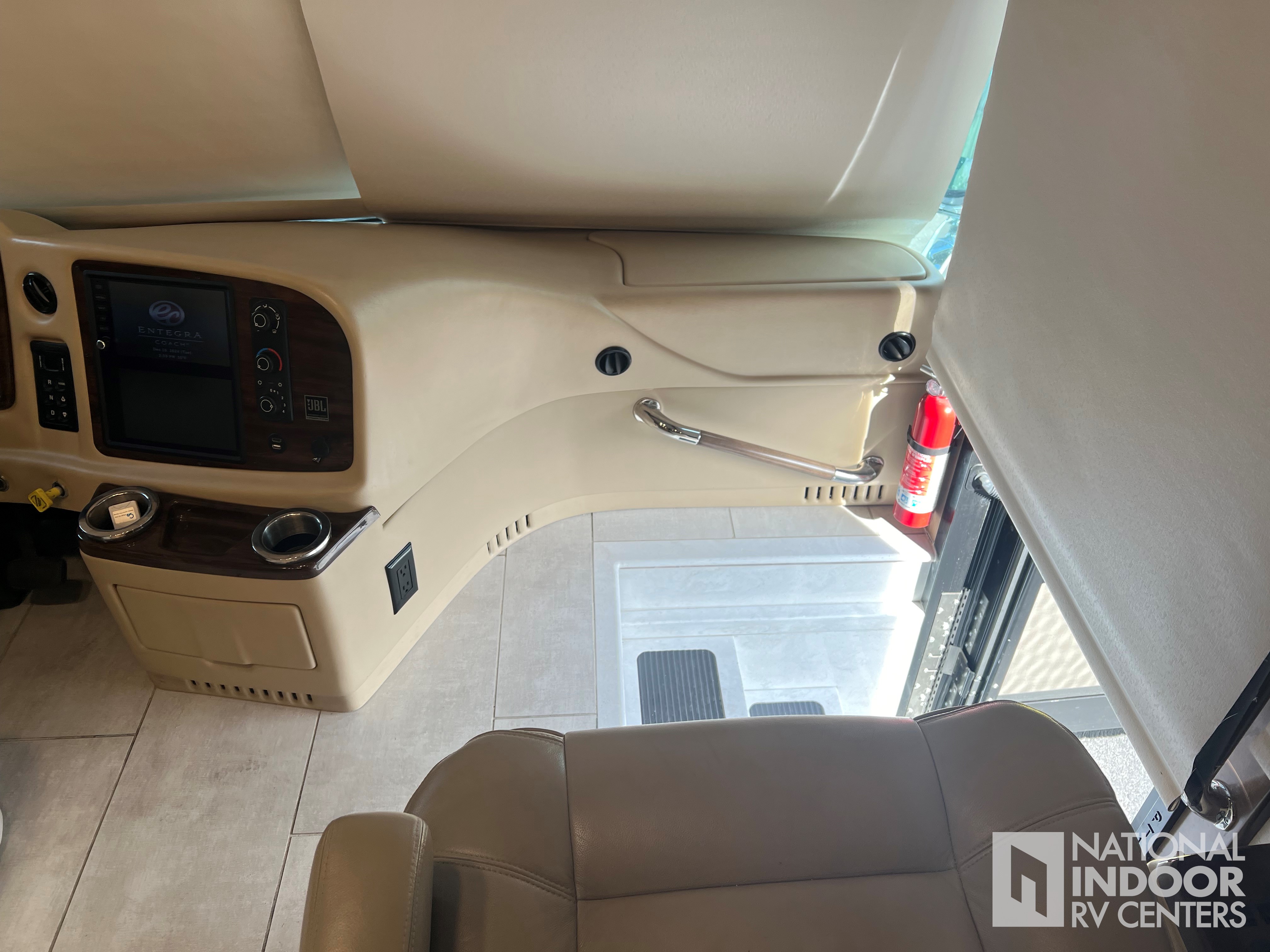

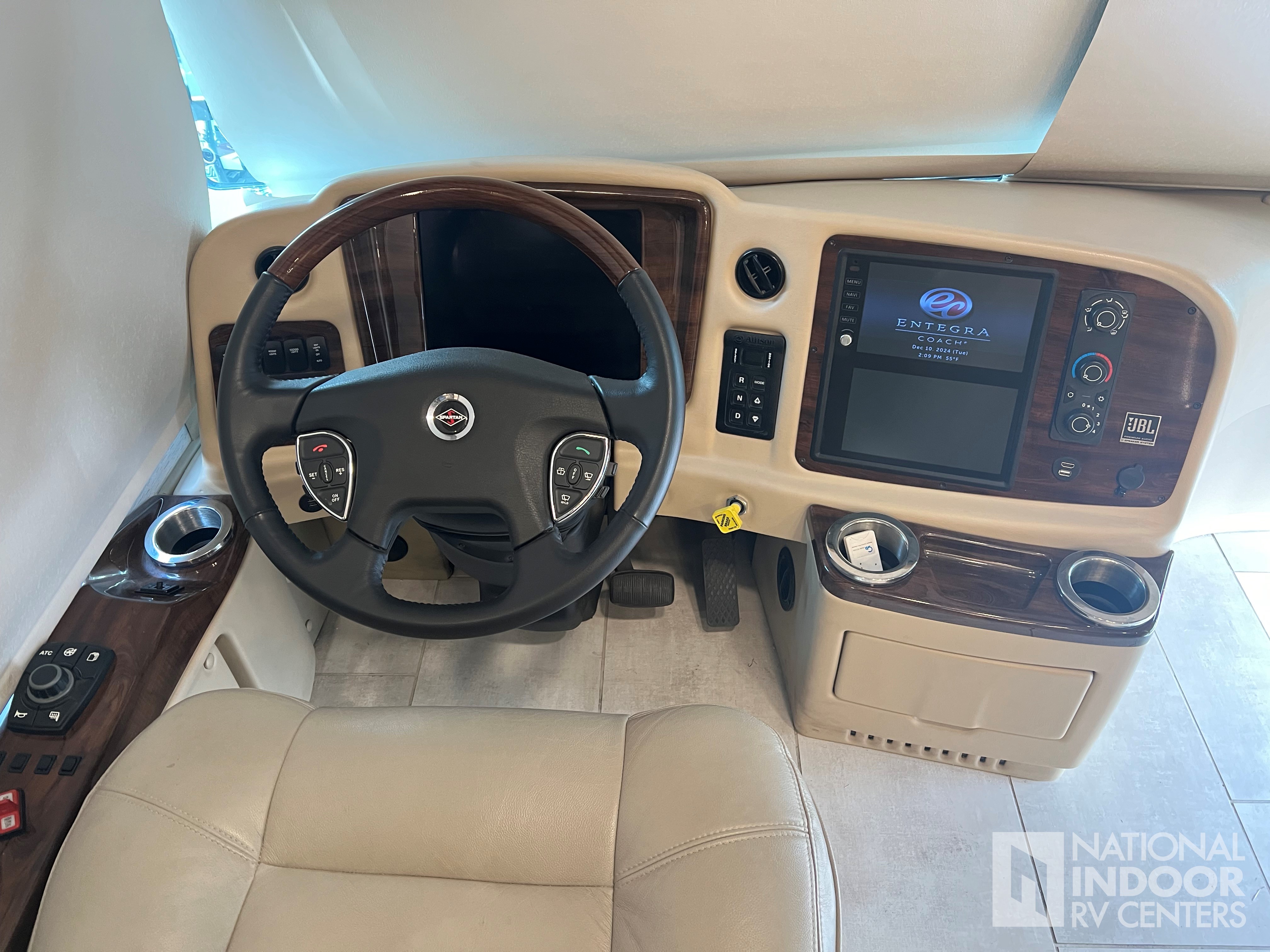

| Dash |
| Valid 15" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instument cluster, 360° camera system or GPS navigation |
| Blind Spot Monitoring |
| Blind spot monitoring system displayed on digital dash screen |
| Cameras |
| Xite™ 360° HD digital camera system |
| Infotainment System(s) |
| Xite™ XSG4 infotainment system with dual 9" touchscreens, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, house mode whole-coach audio distribution and integrated VegaTouch coach control |
| Driving Features |
| E-Z Steer™ adjustable power steering assist |
| Steering Wheel |
| Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality |
| Steering Column |
| Power tilt and telescoping steering column |
| Sound System |
| JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer |
| Windshield |
| Ultra-Vision® one-piece wrap-around tinted windshield |

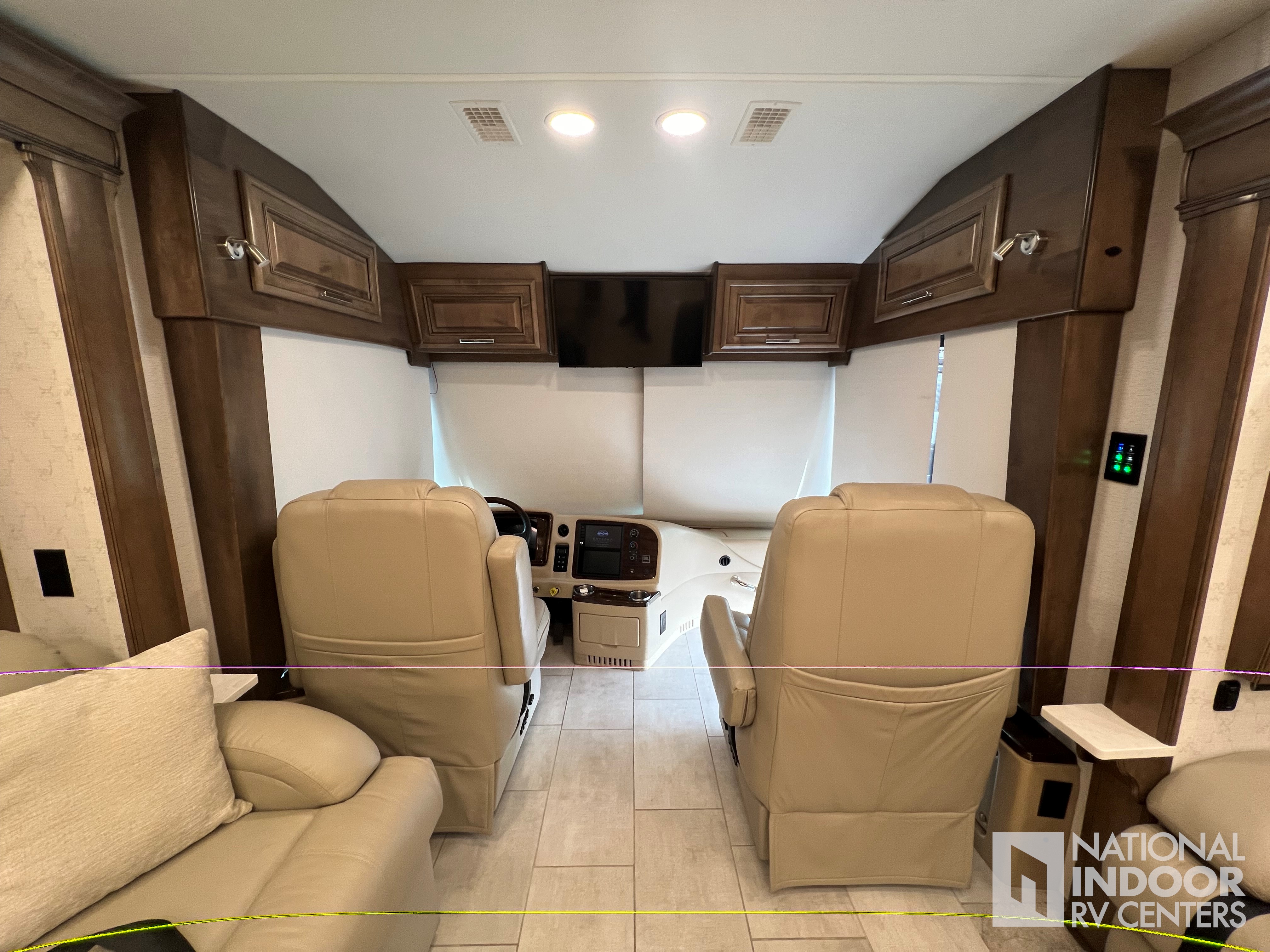

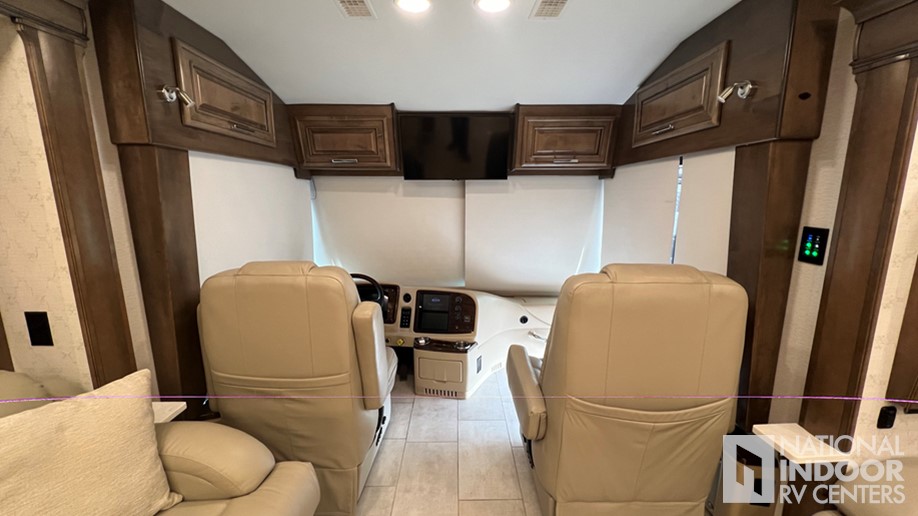

| Driver / Passenger Seats |
| Villa® heated leather driver and passenger seats with powered 6-way adjustment, lumbar, recline and footrest functions |
| Power Features |
| Powered flush stepwell cover |
| Pedals |
| Powered adjustable brake and accelerator pedals |
| Visors & Privacy Shade |
| Powered front sun visors and privacy shades |
| Additional Amenities |
| (2) dual USB ports and (2) 12V sockets for charging |
| Electric Fireplace |
| LED-lit fireplace with 5,000-BTU heating element (44B, 44Z) |
| Television - Front Overhead |
| 32" Samsung® QLED 4K UHD Smart TV in front overhead |
| Command Center |
| Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls, with remote monitoring and control (mobile app available) |
| Television - Living Room |
| 50” Samsung® QLED 4K UHD Smart TV |
| Sound - Living Room |
| Bose® sound bar with subwoofer and universal remote control |
| DVD Systems |
| Sony® Blu-ray™ player |

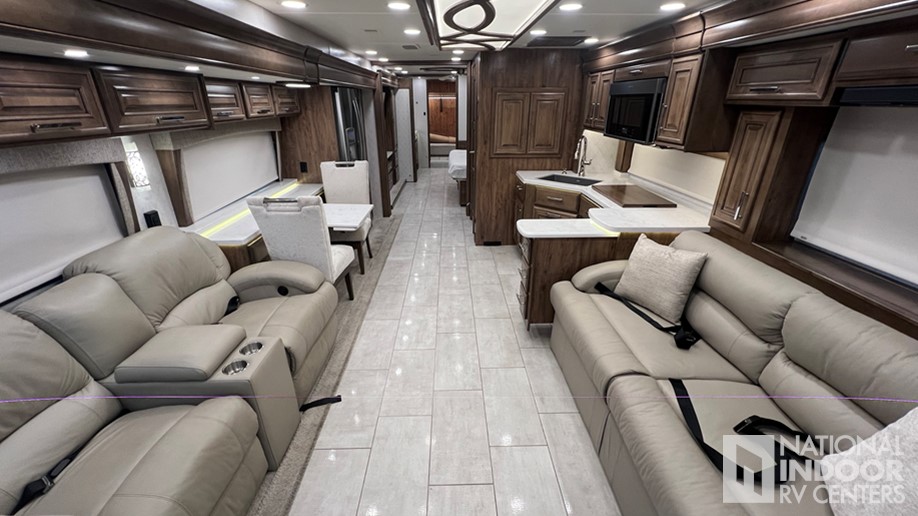

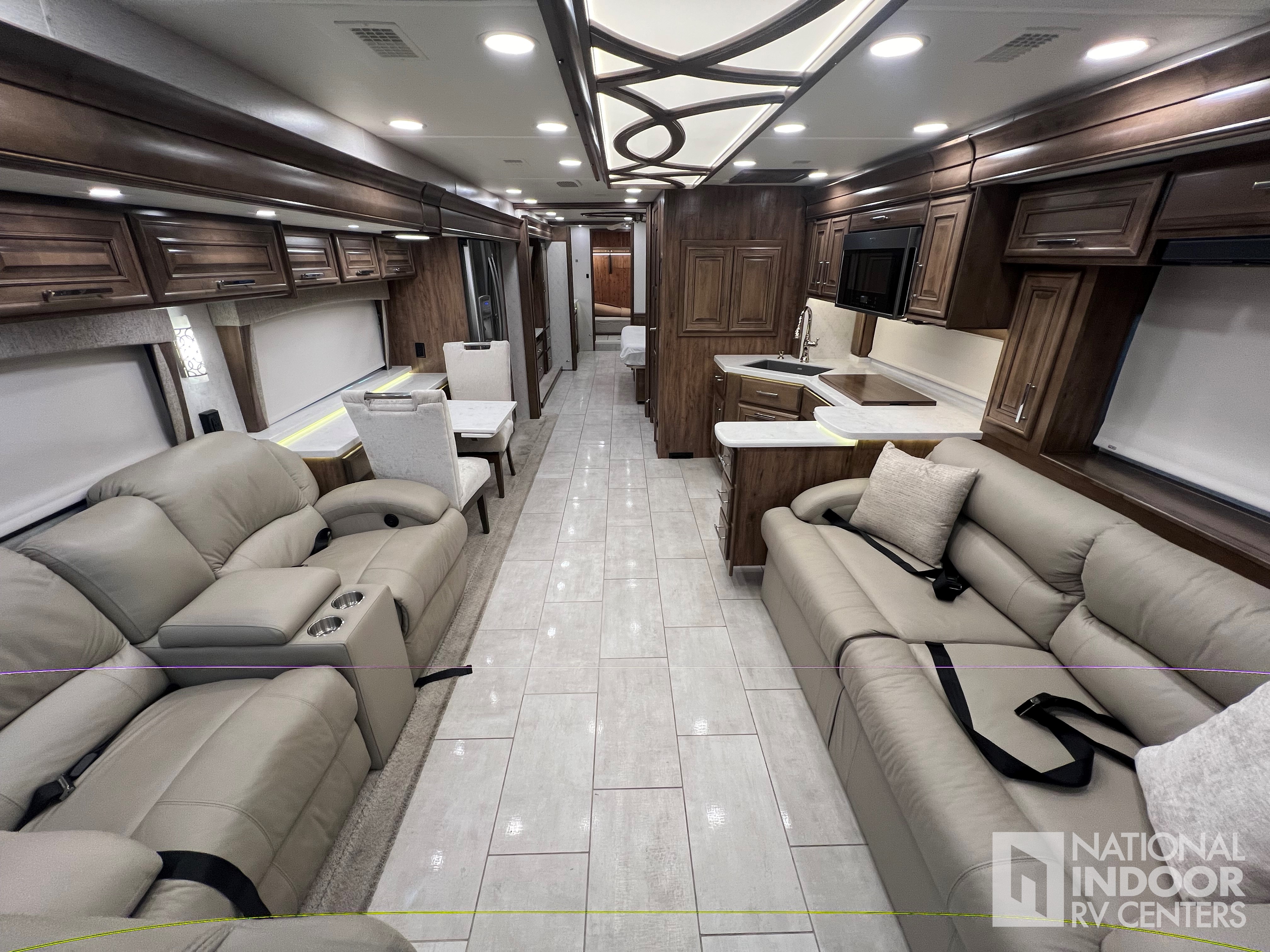

| Furniture |
| Premium leather Villa® furniture |
| Flooring |
| Hand-laid porcelain tiled floors |
| Lighting |
| LED interior lighting |
| Ceiling |
| Decorative ceiling feature with integrated accent lighting |
| Window Treatments |
| Powered solar day and blackout night shades |
| Central Vacuuming System |
| Central vacuum system |
| Interior Doors |
| Aire-Secure™ travel locks for all pocket doors |
| Bar |
| Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only) |

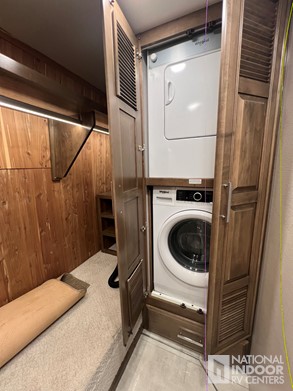

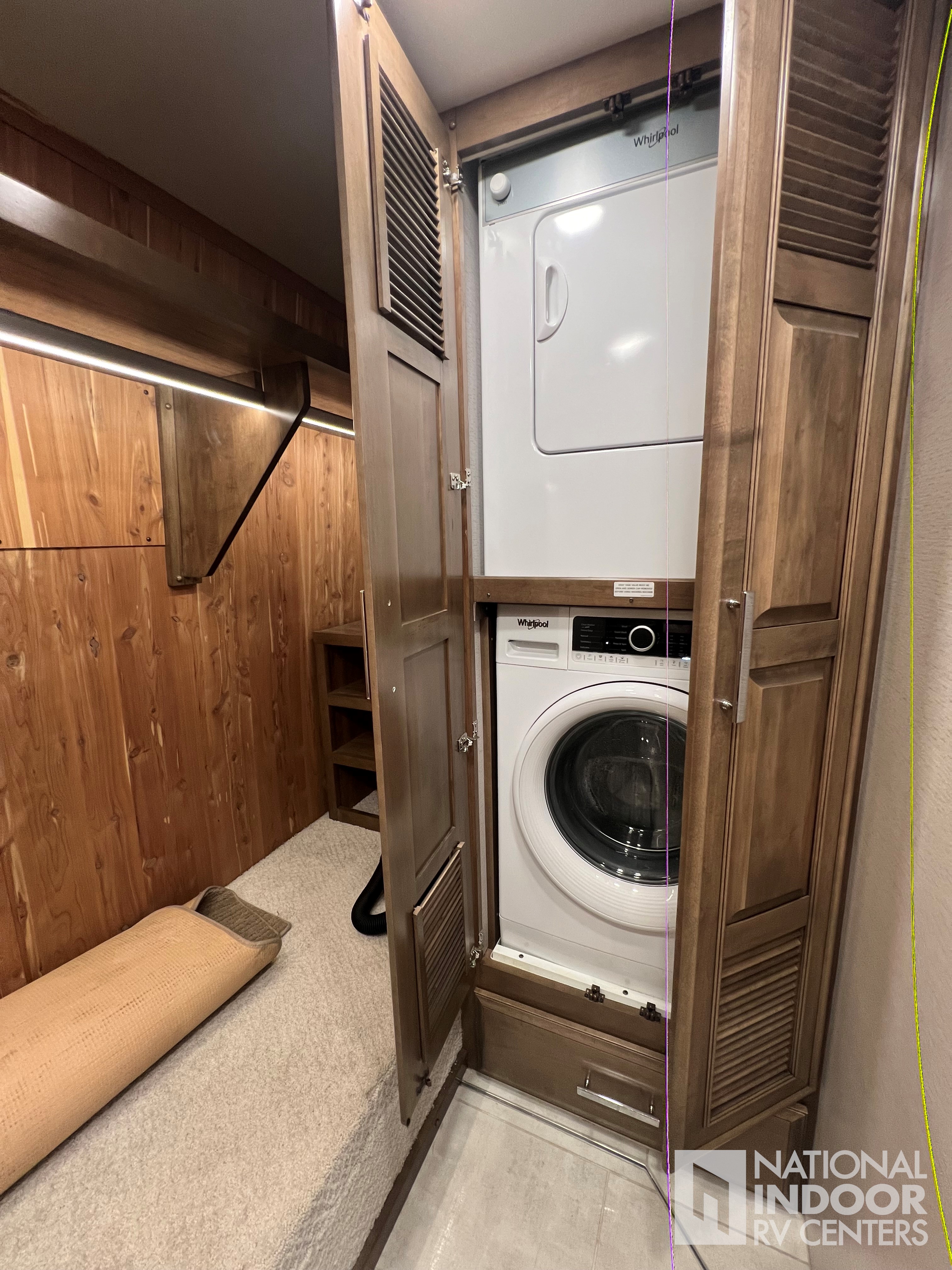

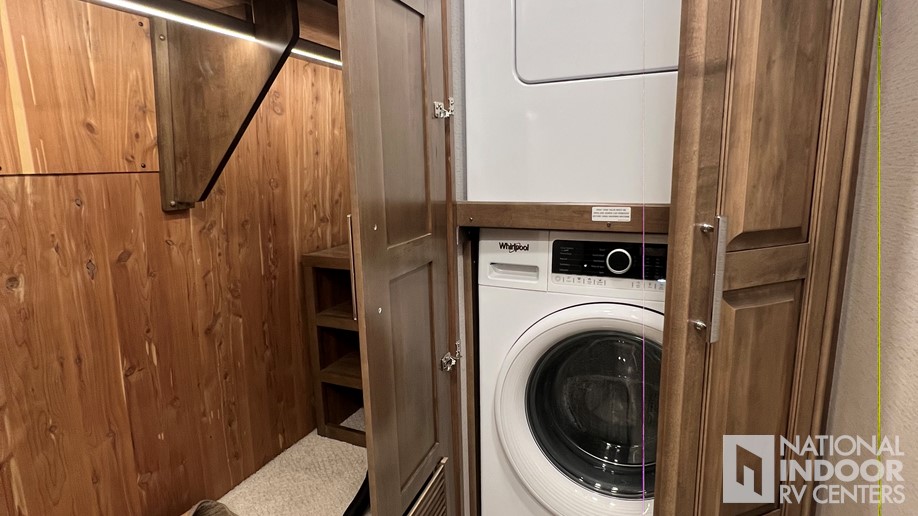

| Washer/Dryer |
| Whirlpool® stacked washer and dryer |

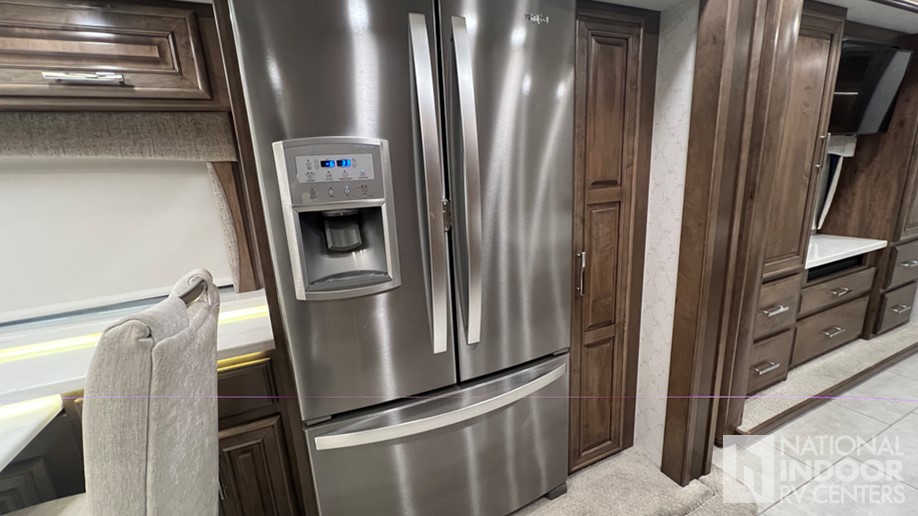

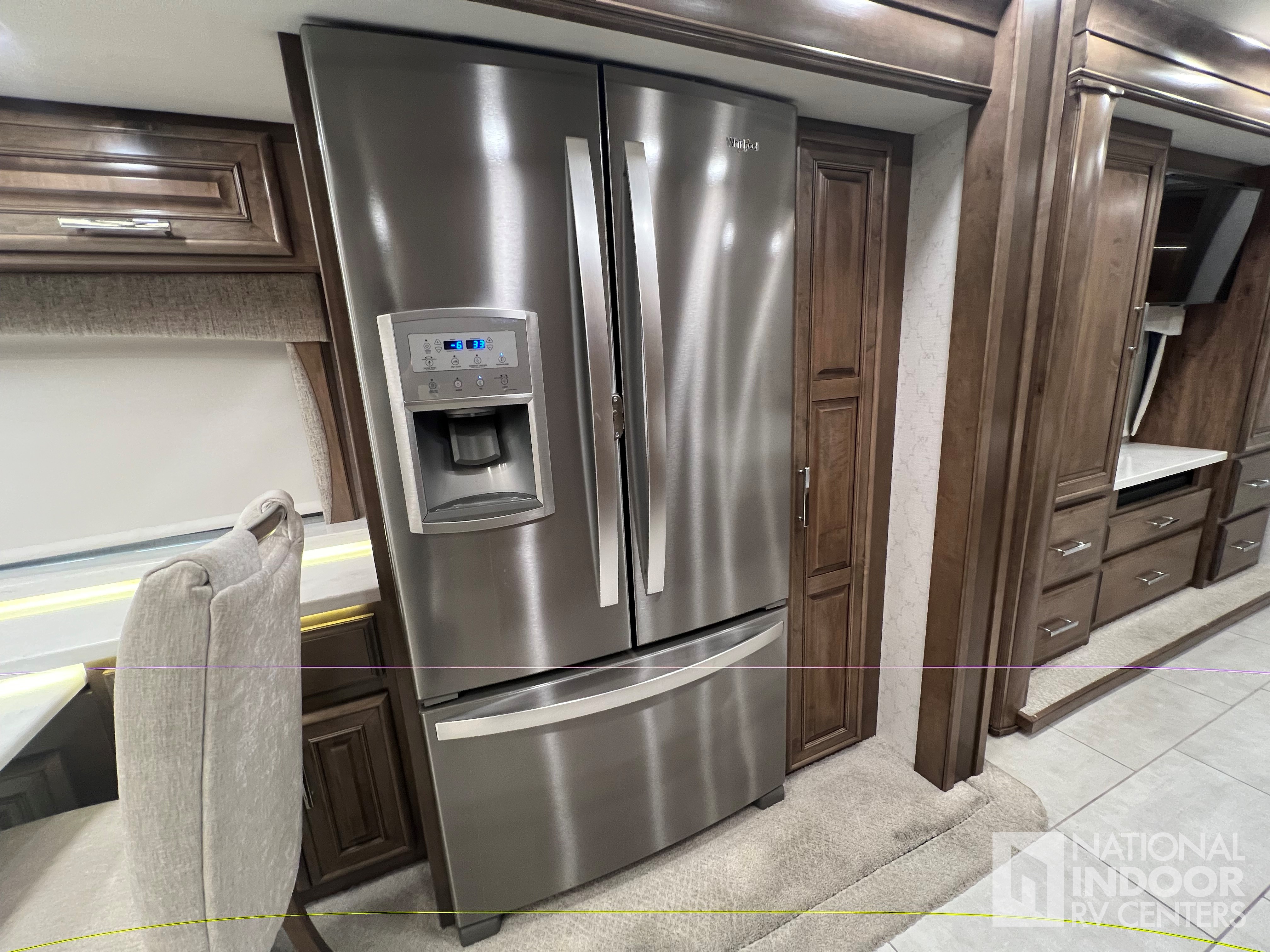

| Refrigerator |
| Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser |

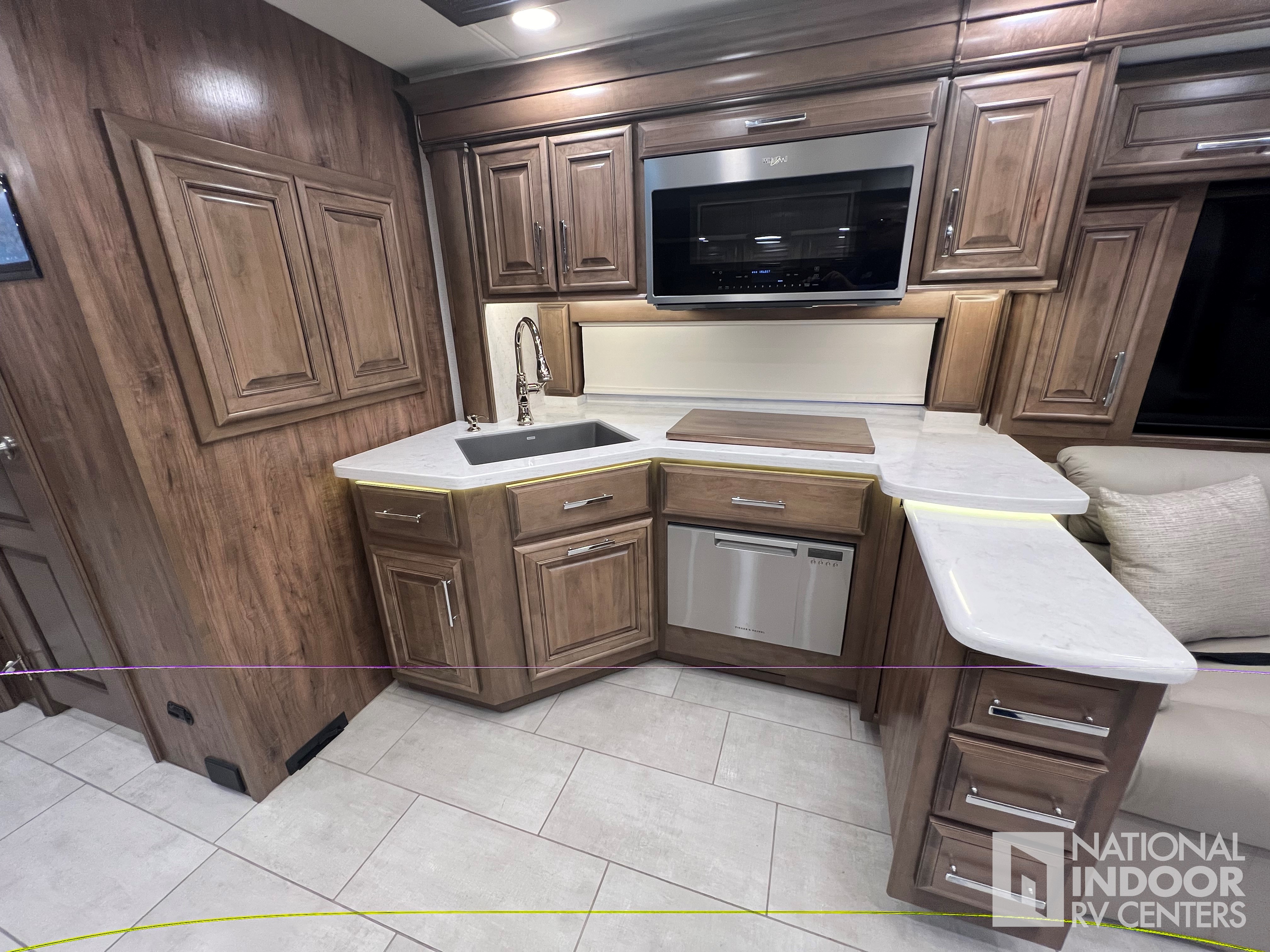

| Cooktop |
| Induction cooktop with matching wood cover |
| Microwave |
| Whirlpool® 1.9-cu. ft. convection microwave oven |
| Dishwasher |
| Fisher & Paykel dishwasher |
| Backsplash |
| Porcelain tile backsplash |
| Countertops |
| Solid-surface countertops with dimmable LED accent lighting |
| Sink |
| Blanco single-bowl granite sink |
| Vent |
| Maxxair® power vent exhaust fan with intake and touch screen control |
| Waste Basket |
| Large, deep drawer for waste basket with easy access trash chute (trash chute not available in 44F, 44R) |
| Storage |
| Slide-out storage tray(s) in overhead cabinet |

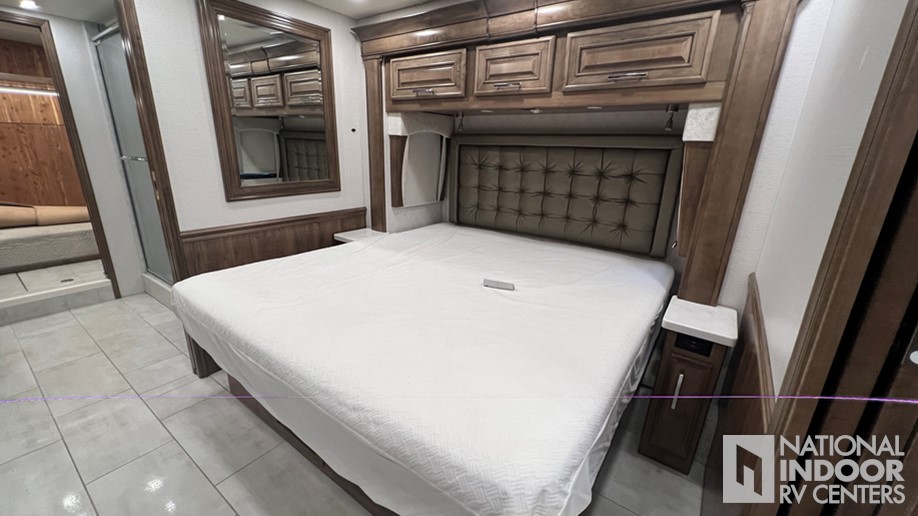

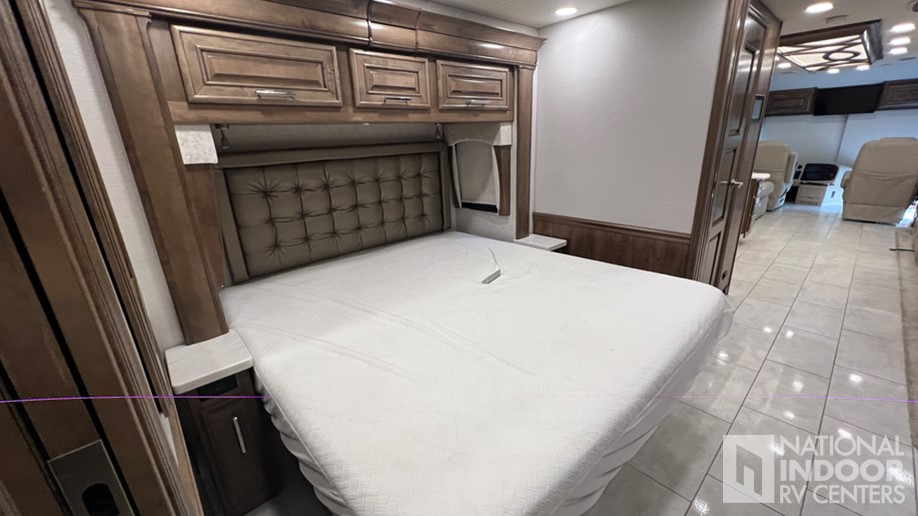

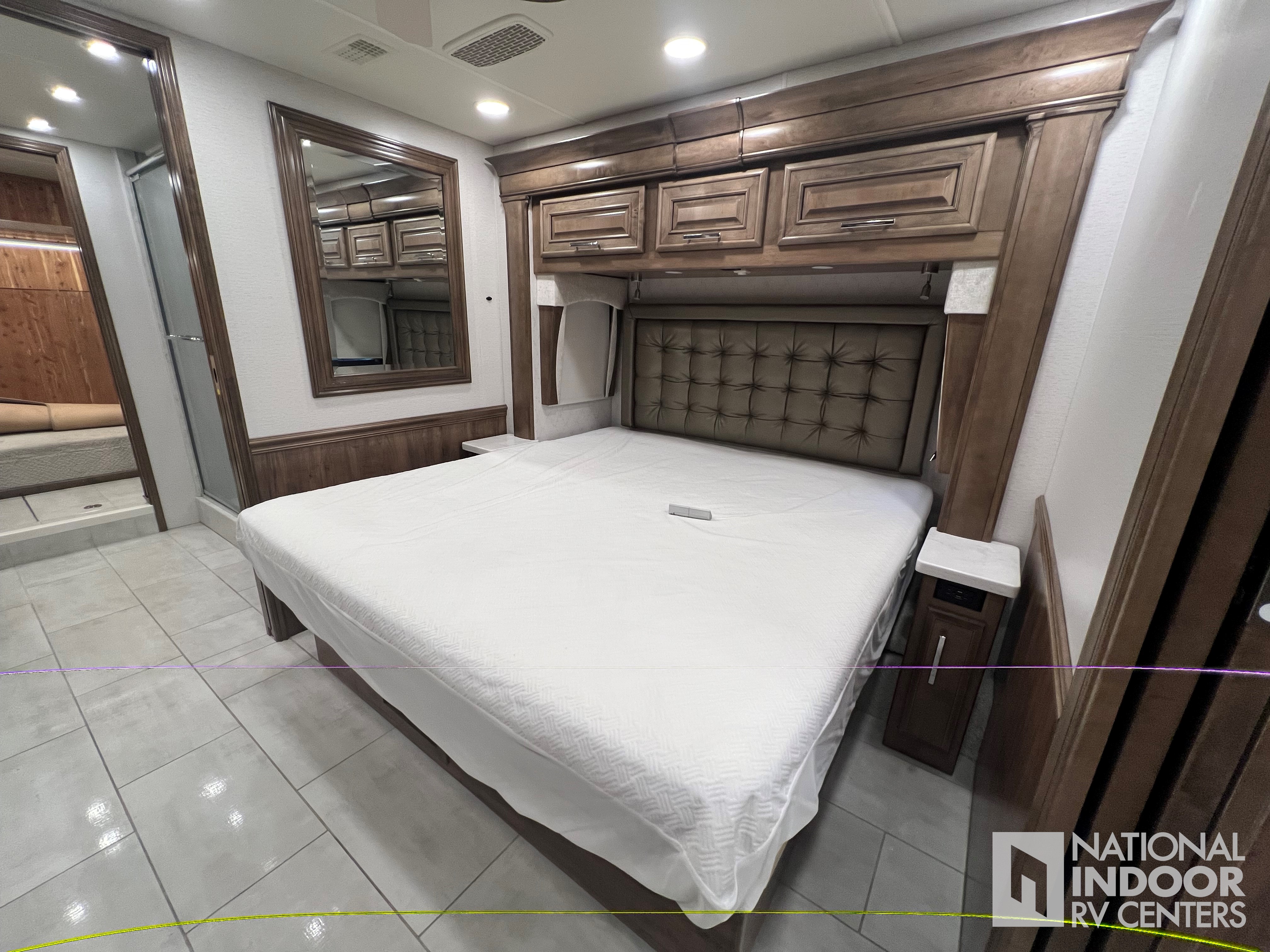

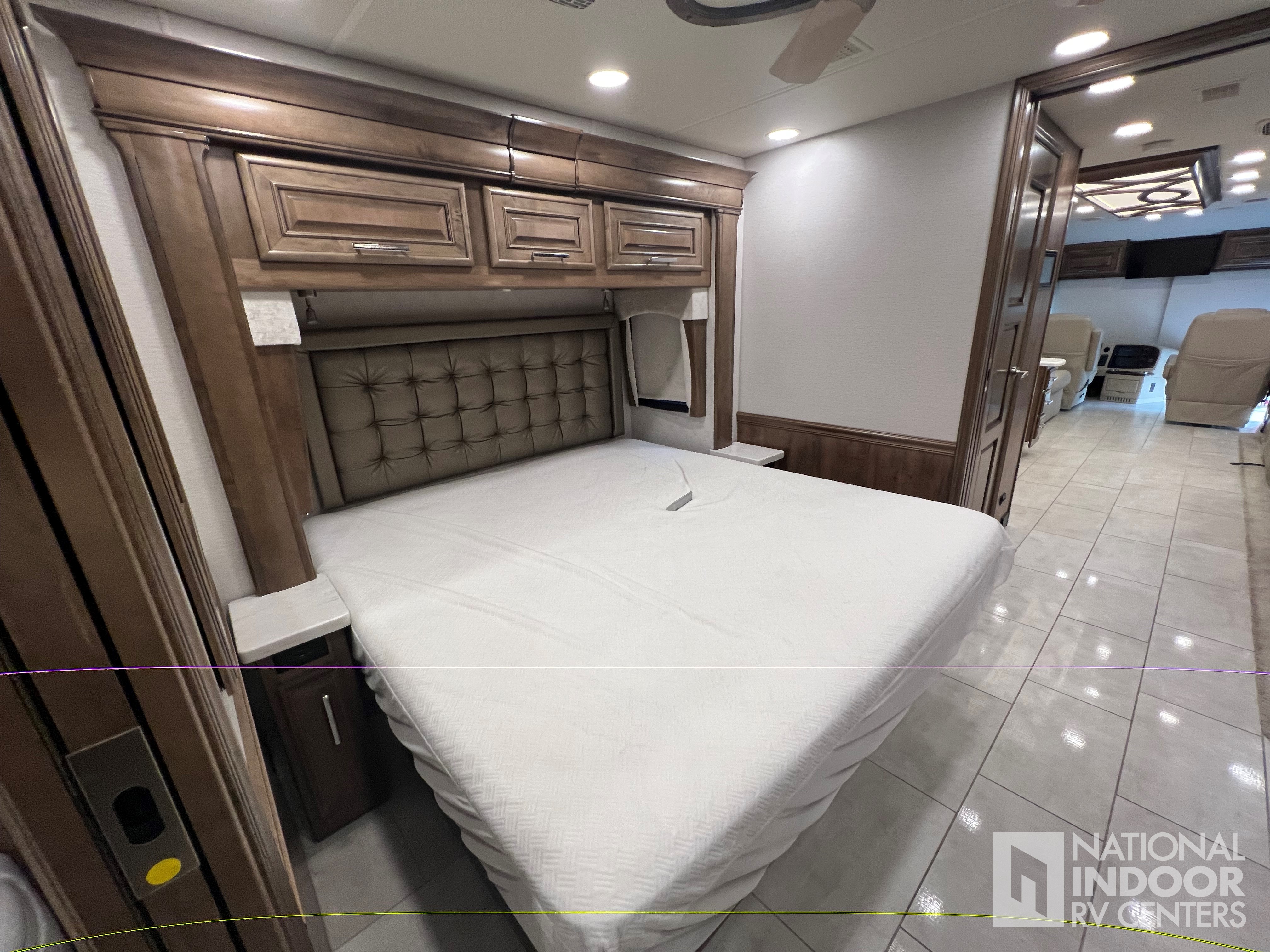

| Bed |
| Select Comfort® Sleep Number® King-size mattress |

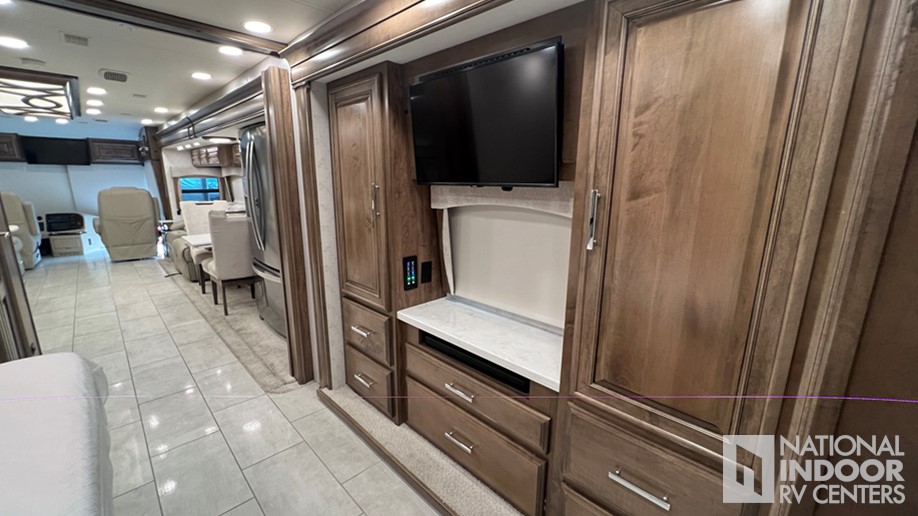

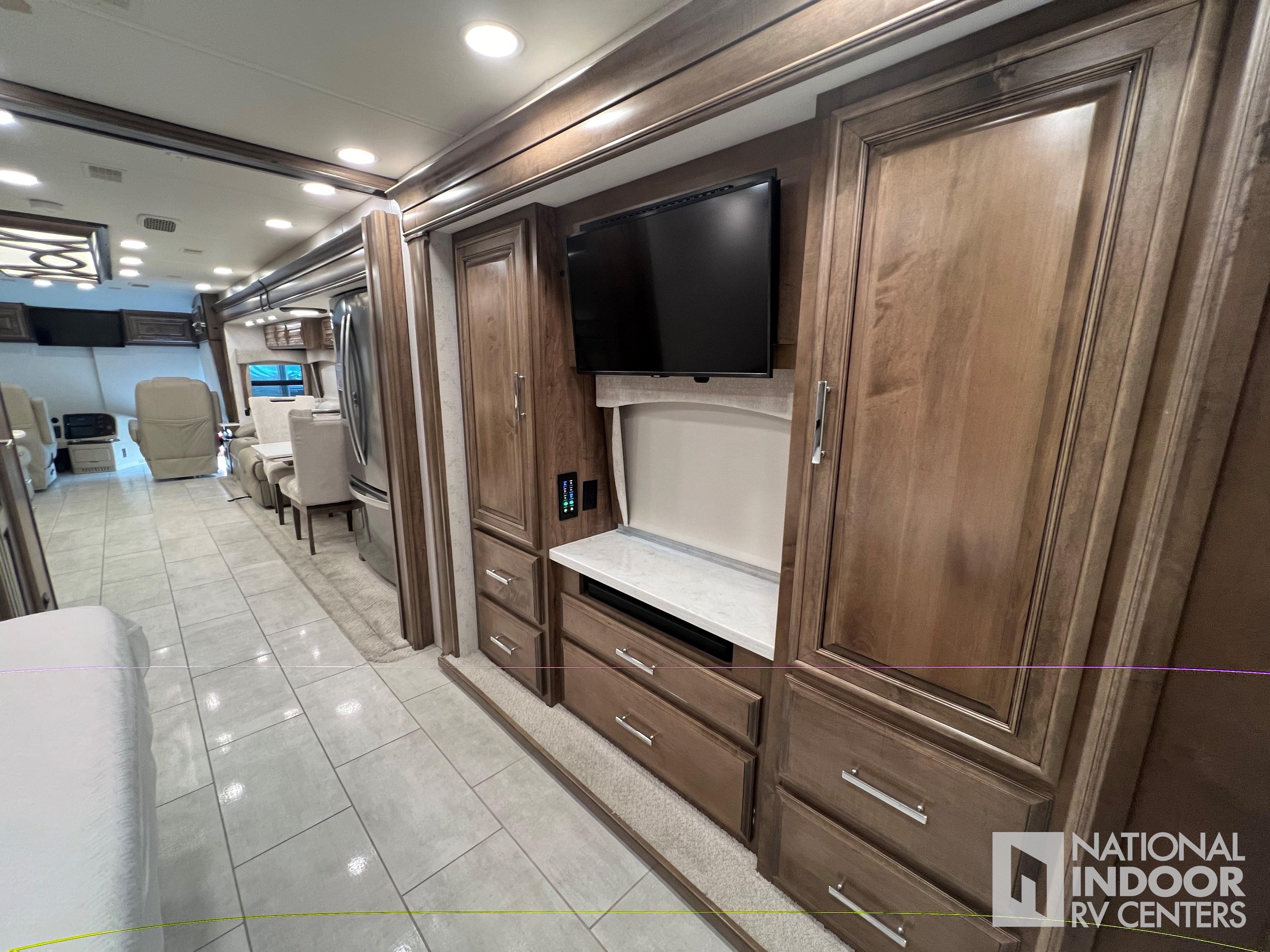

| Television |
| 32" Samsung® QLED 4K UHD Smart TV |
| Sound |
| Bose® sound bar with universal remote control |
| DVD Systems |
| Sony® Blu-ray™ player |
| Ceiling Fan |
| Ceiling fan |
| Nightstands |
| Nightstands with solid-surface tops |

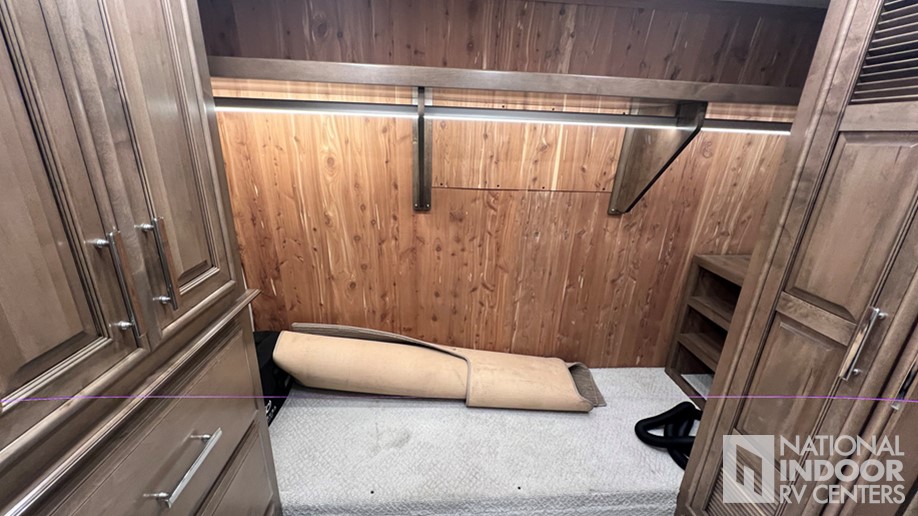

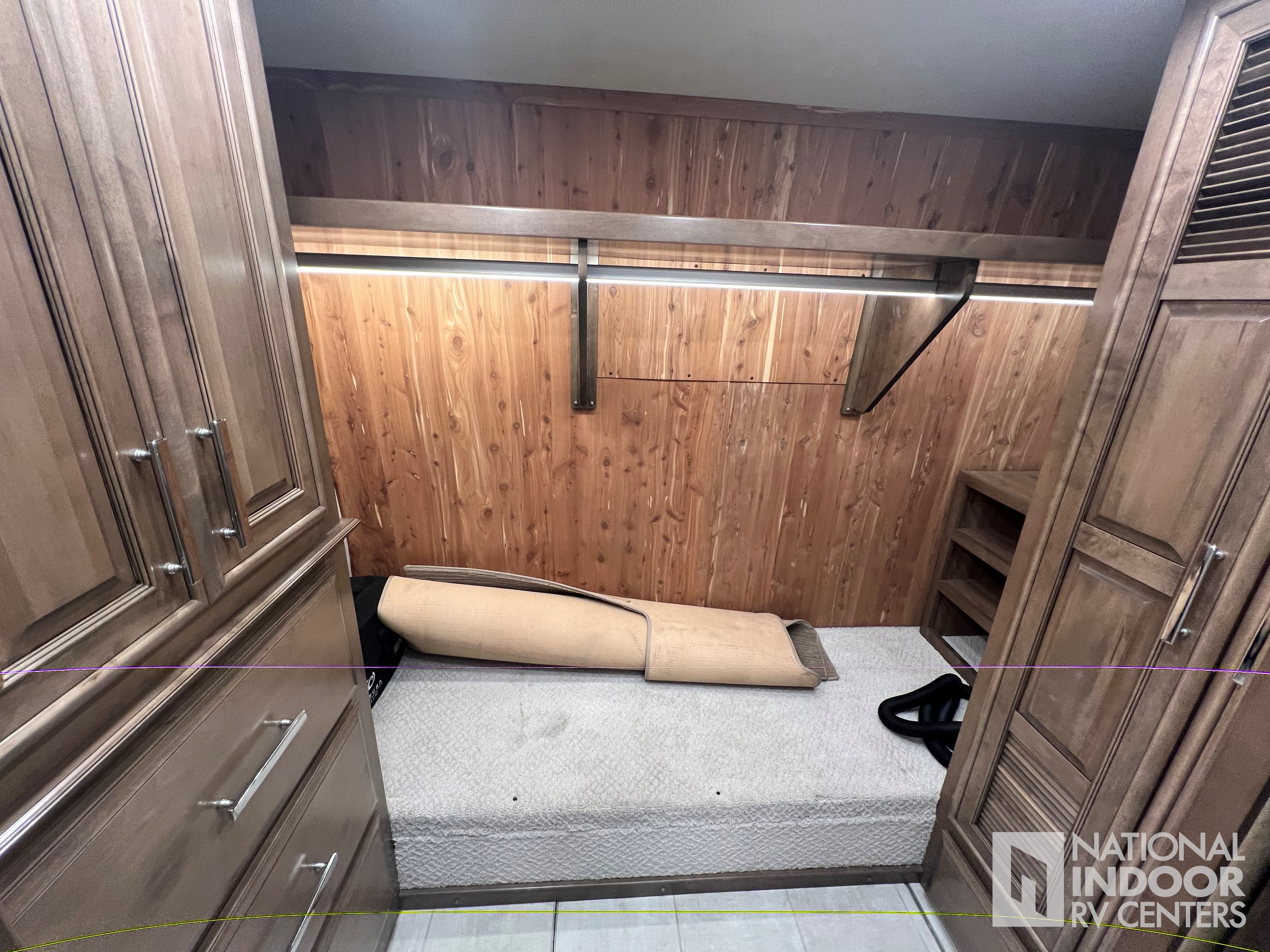

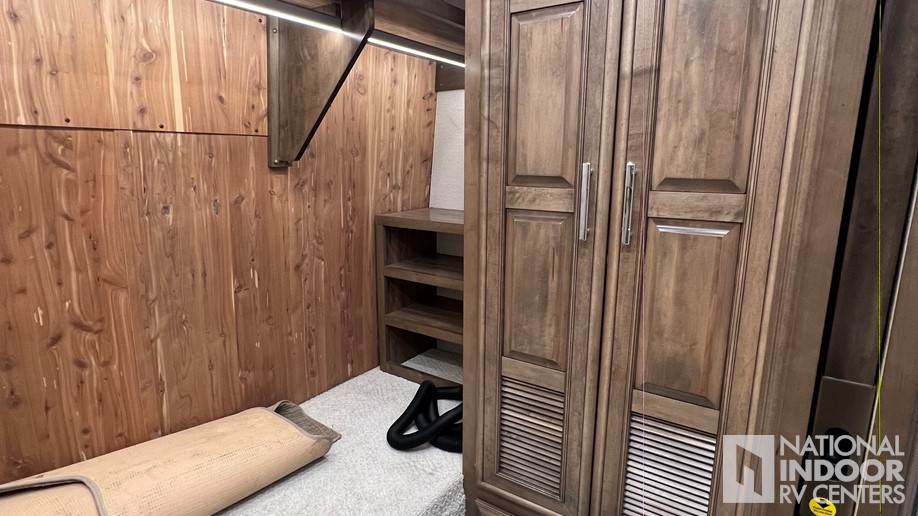

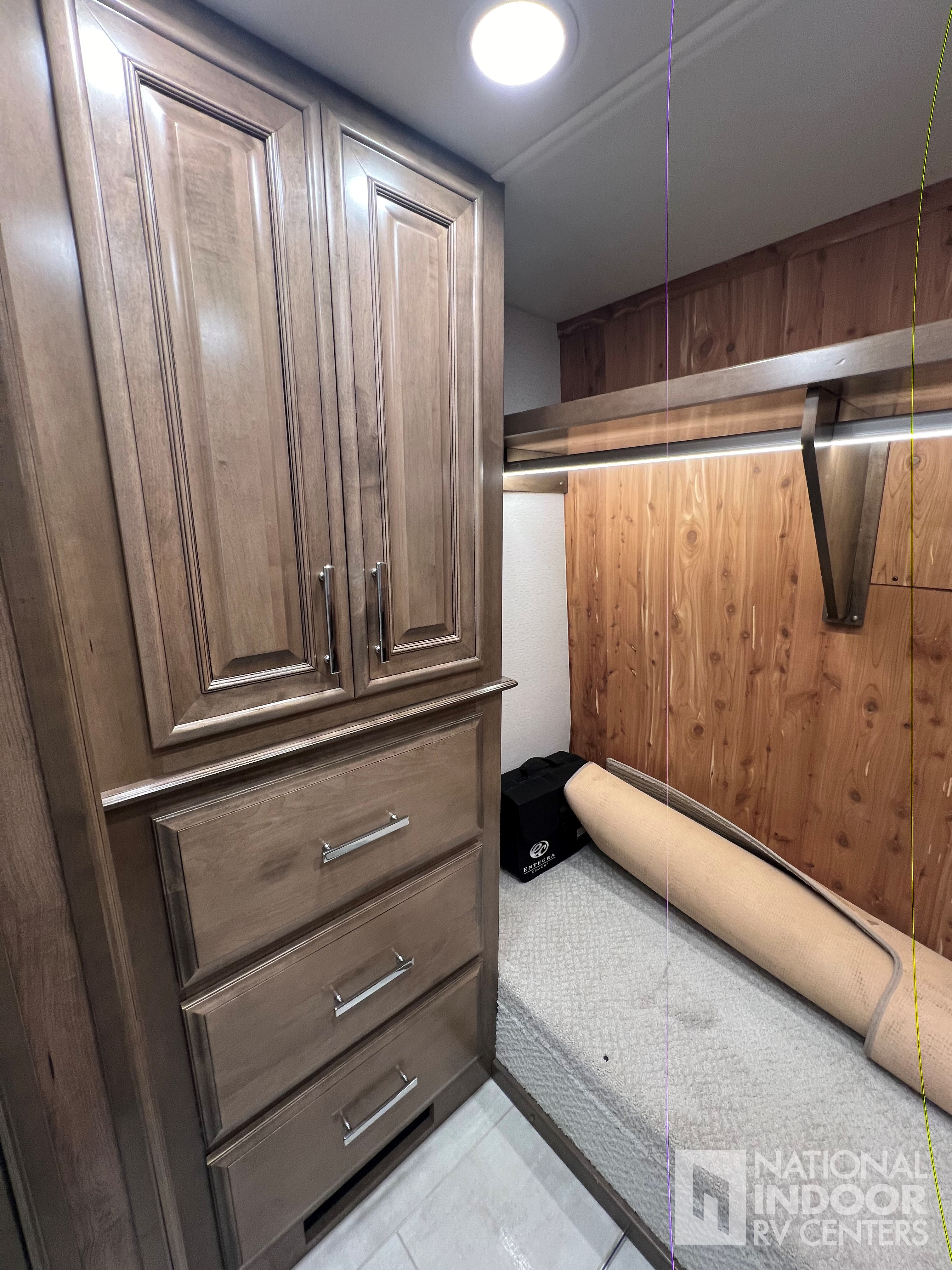

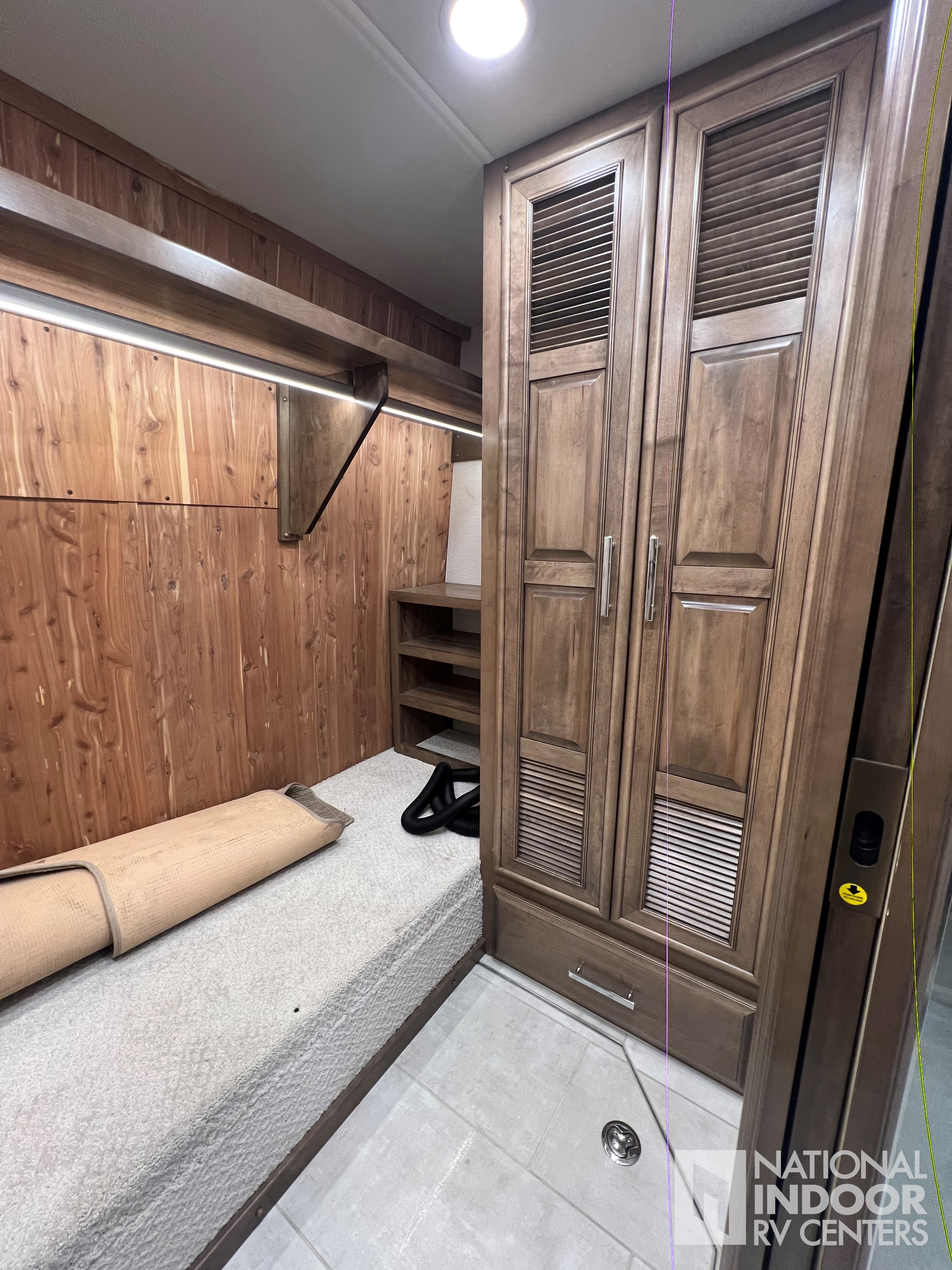

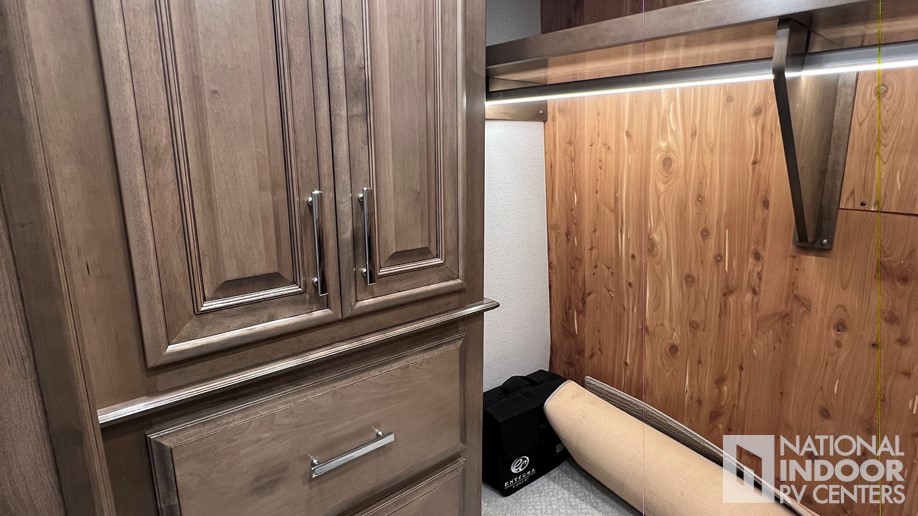

| Wardrobe |
| Large cedar-lined wardrobe |

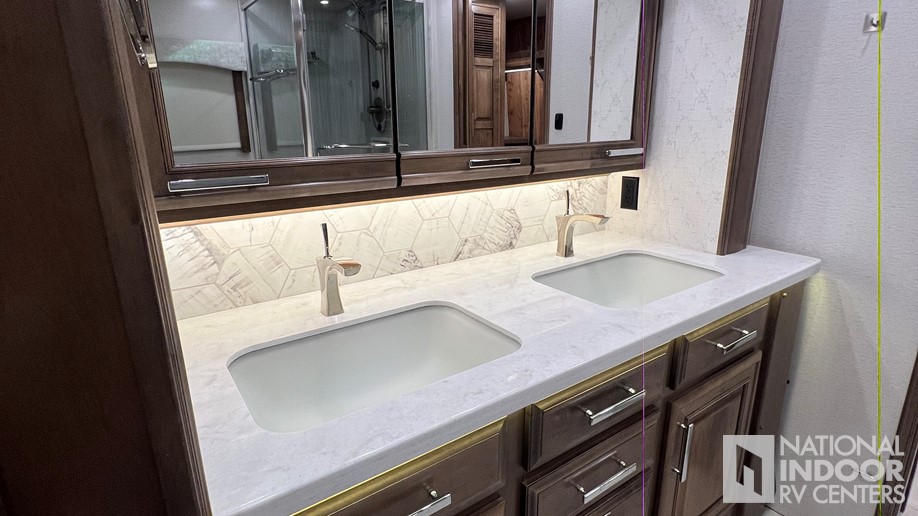

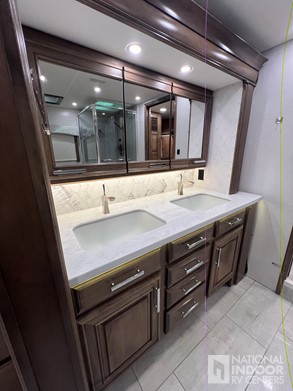

| Countertop(s) |
| Solid-surface countertops with dimmable LED accent lighting |

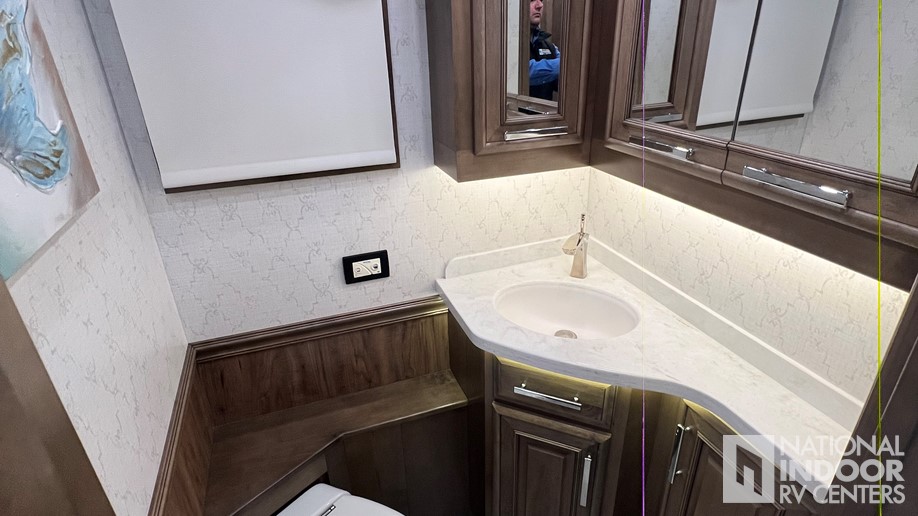

| Sink |
| Integrated glass sink |

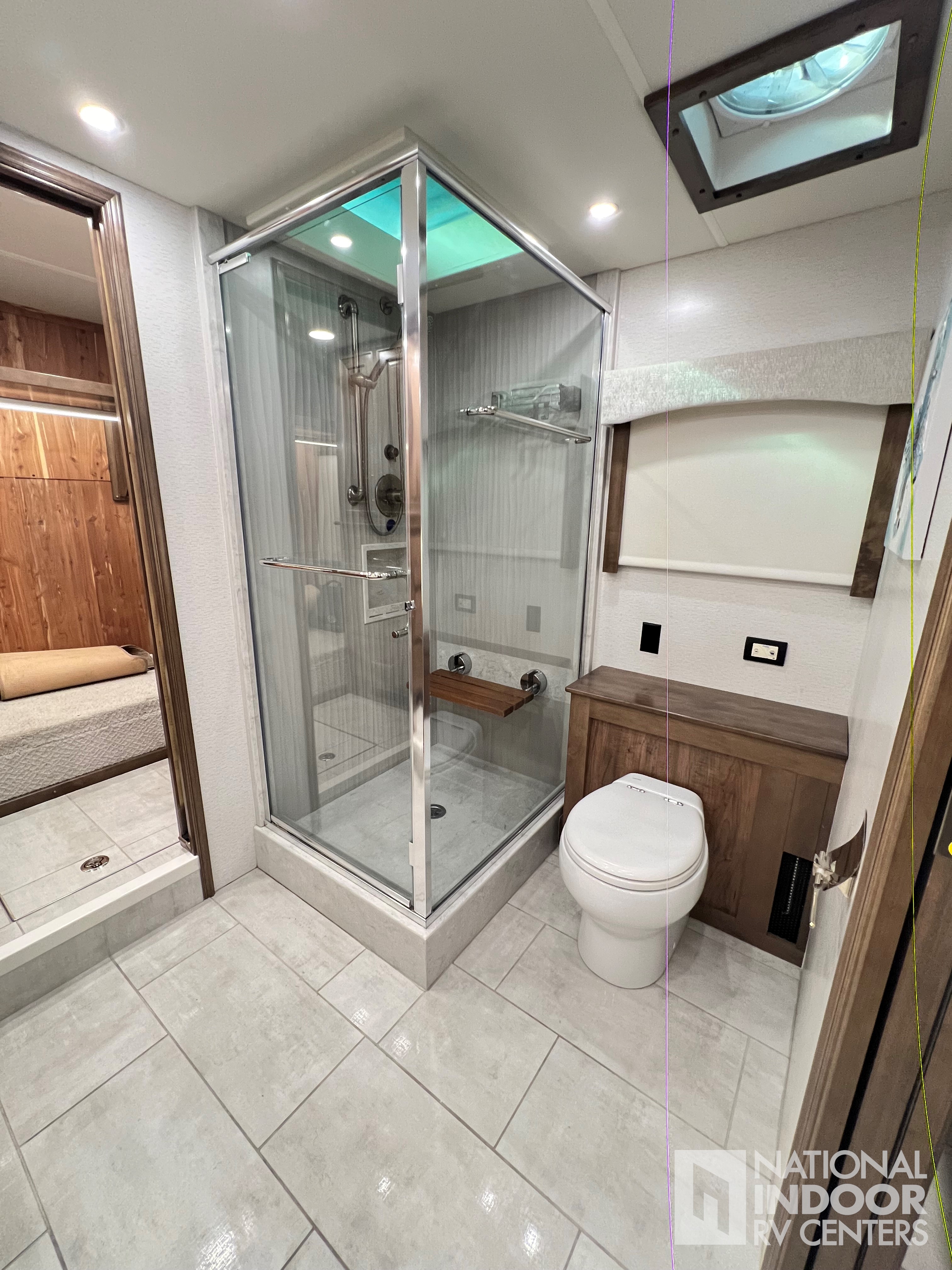

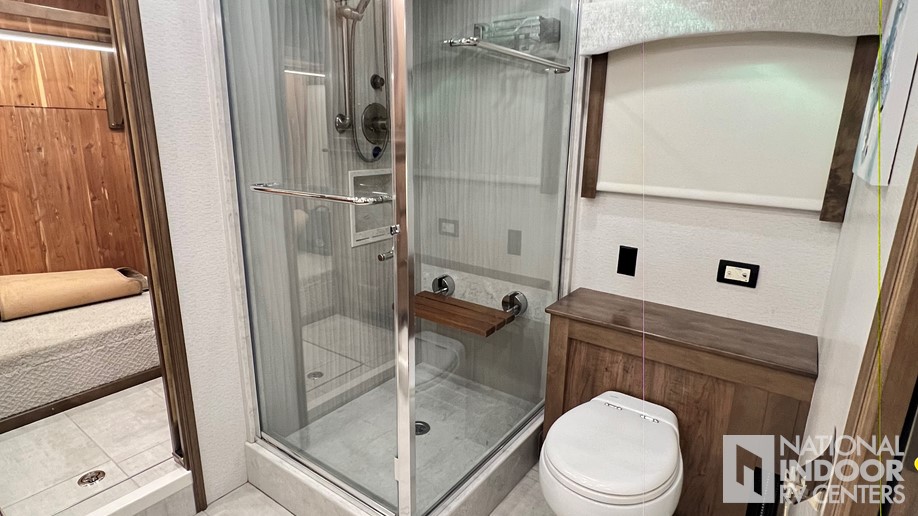

| Shower |
| Porcelain tile shower with skylight and clear glass shower door |
| Shower Seat |
| Teakwood shower seat (N/A 44F) |
| Shower Head |
| Fixed shower head and separate hand-held spray wand |
| Water Saving System |
| Aqua View SHOWERMI$ER™ water saving system |

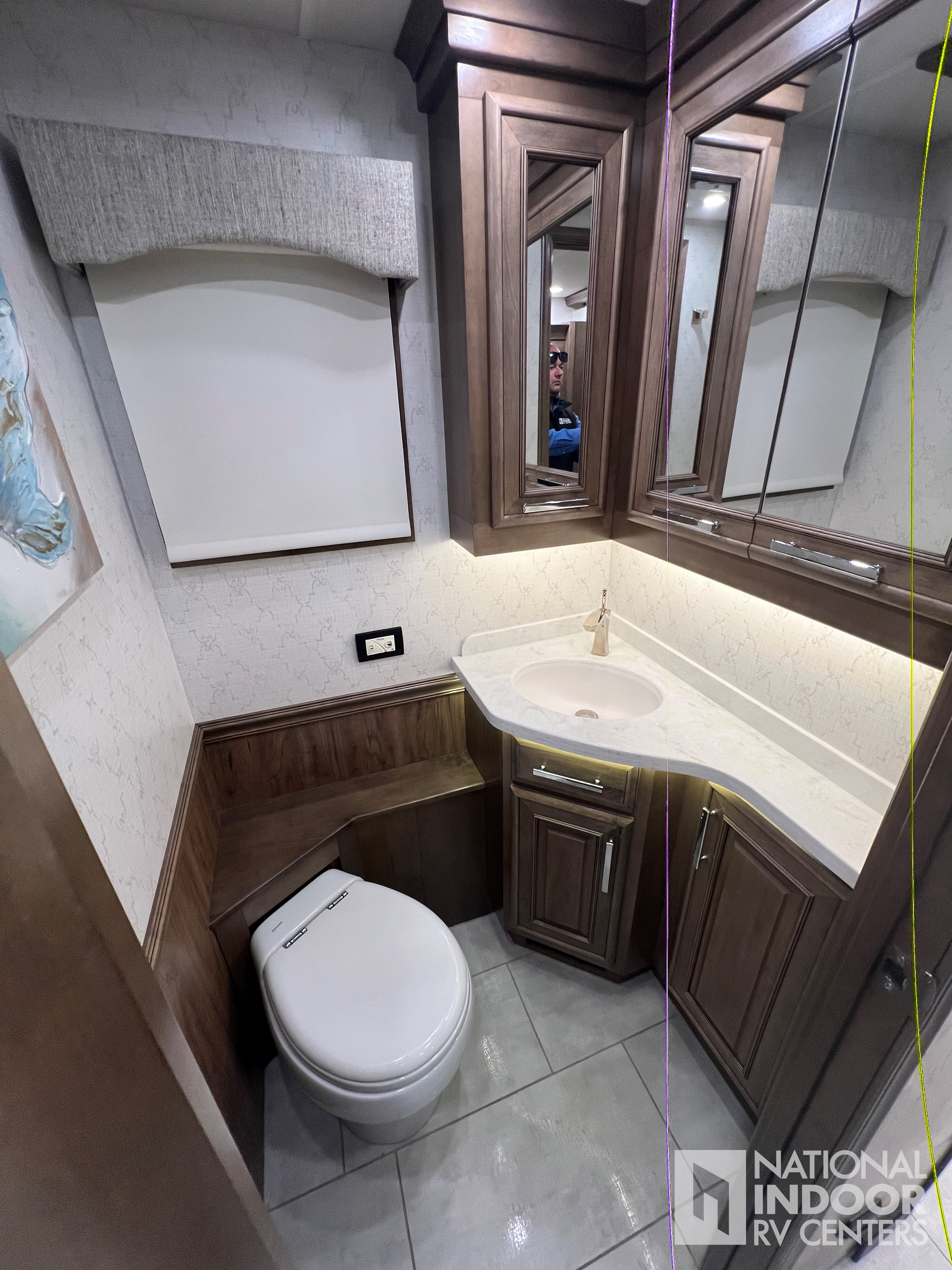

| Toilet |
| Thetford® macerator toilet in main bath (N/A 44Z) |
| Vent |
| Maxxair® Deluxe power exhaust vent fan with intake |
| Carbon Monoxide Detector |
| Carbon monoxide detector |
| Security System |
| Security system with glass shatter sensors |
| Smoke Alarm |
| Smoke alarm |
| Security Safe |
| Security safe |
| Canadian Standards |
| Canadian standards |

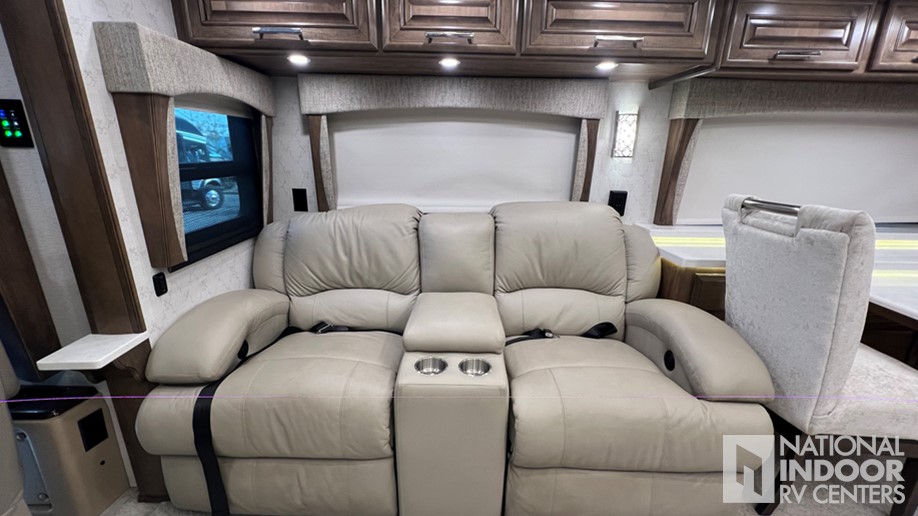

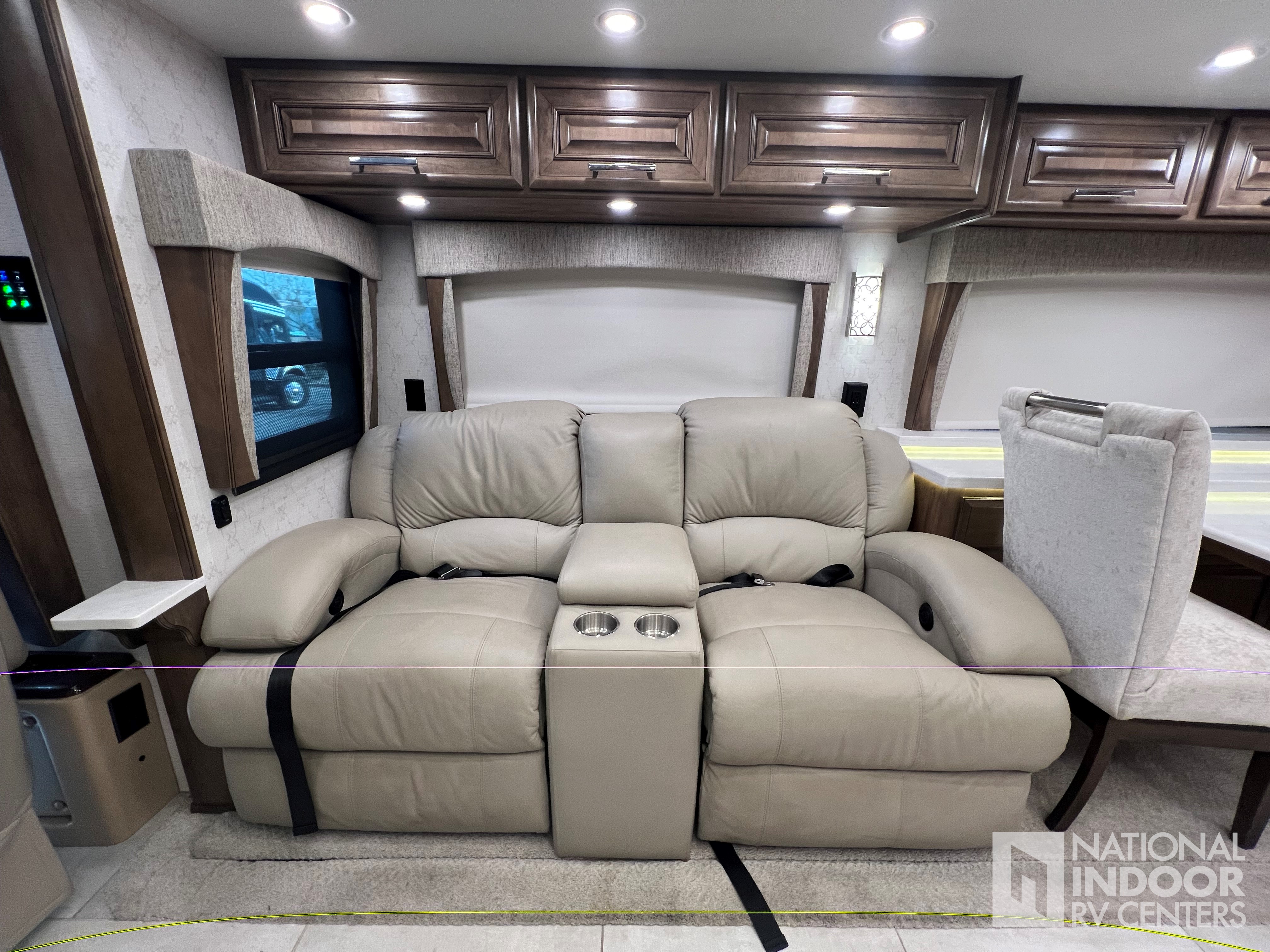

| Theater Seating |
| Theater seating with power recliners and fixed console |

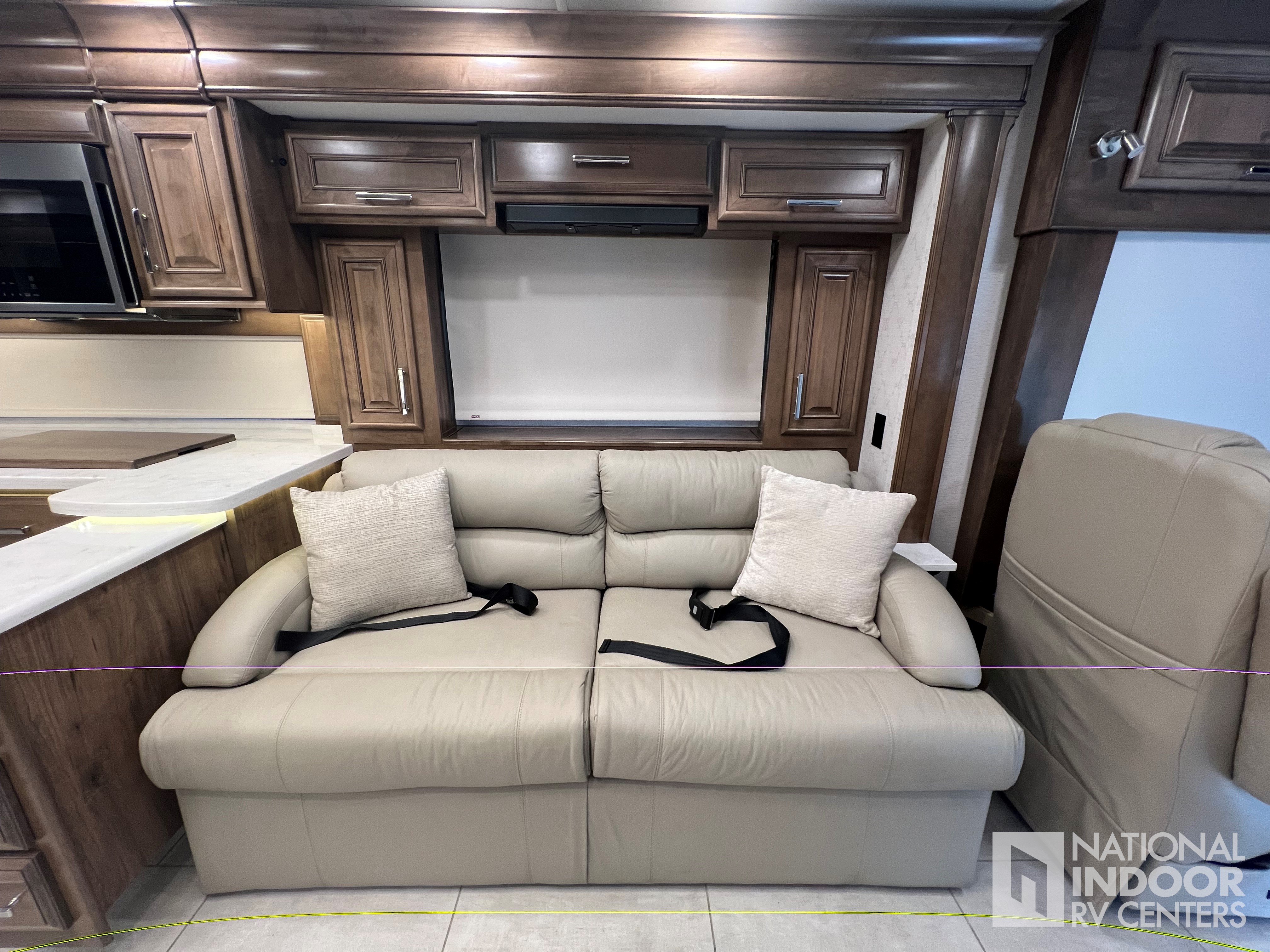

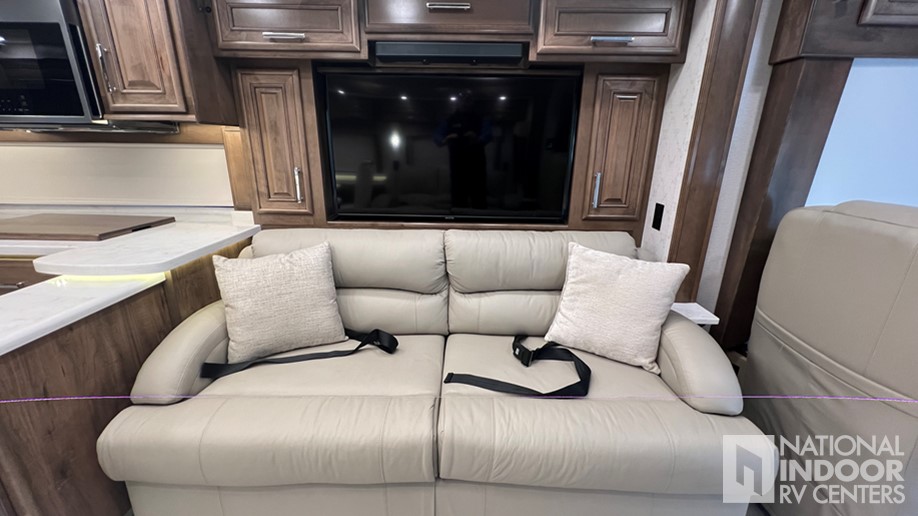

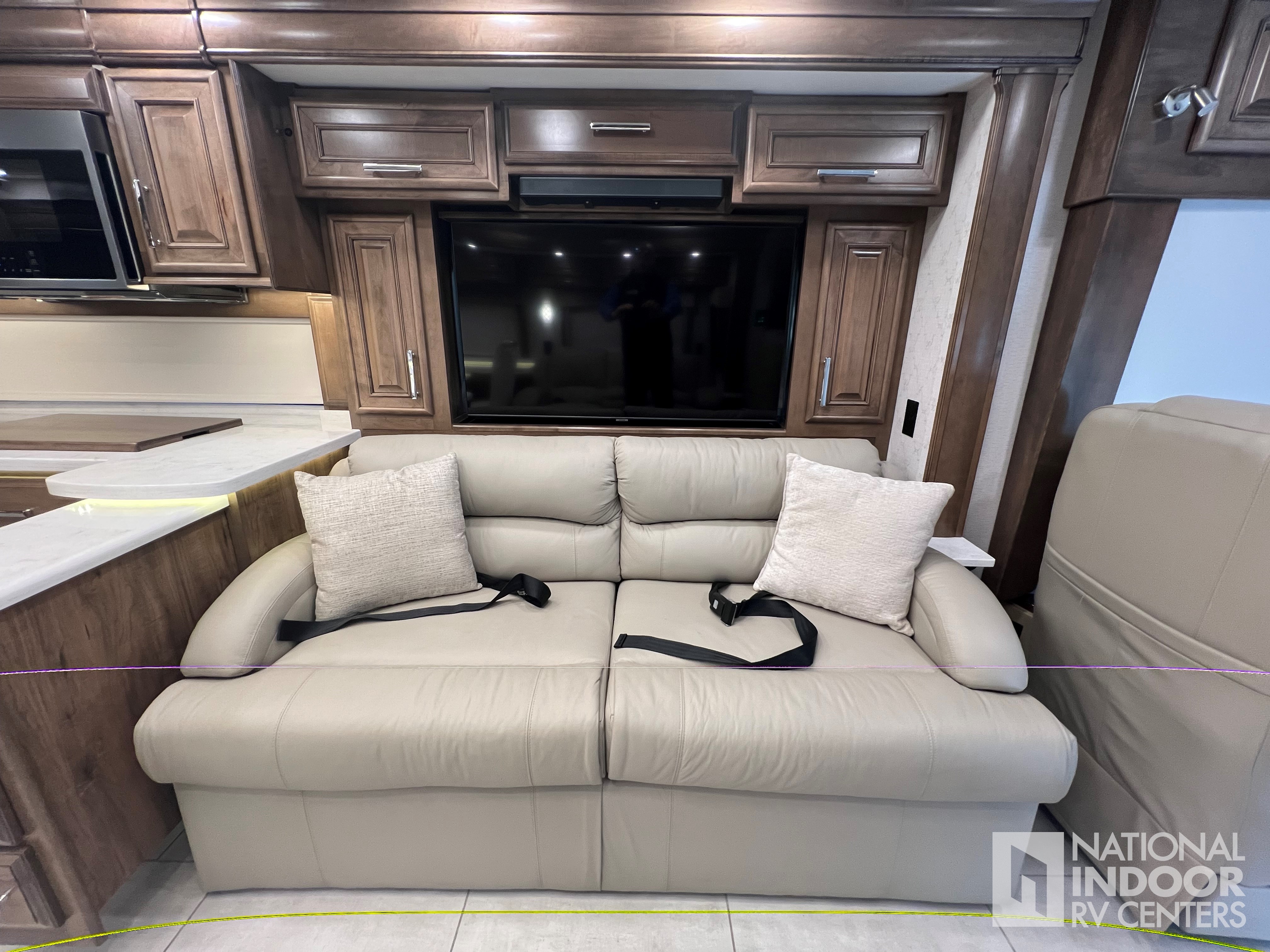

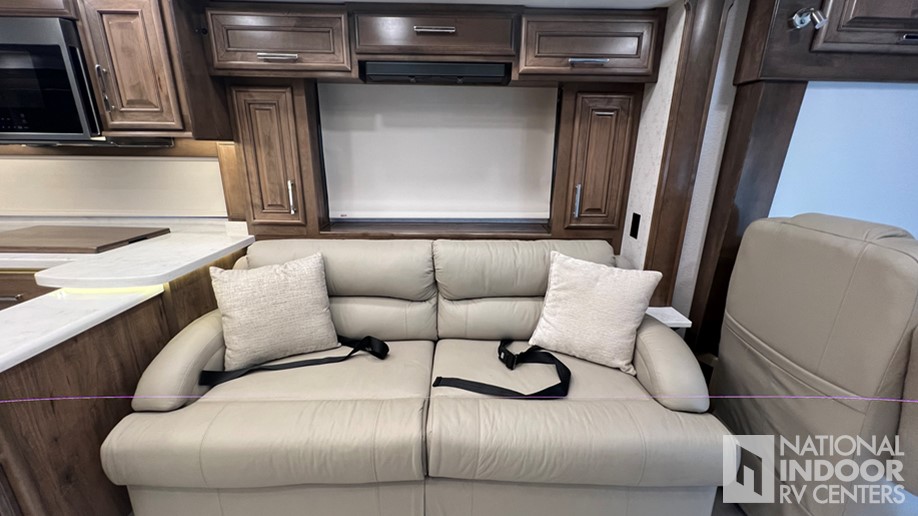

| Reclining Sofa |
| 100" power reclining sofa |

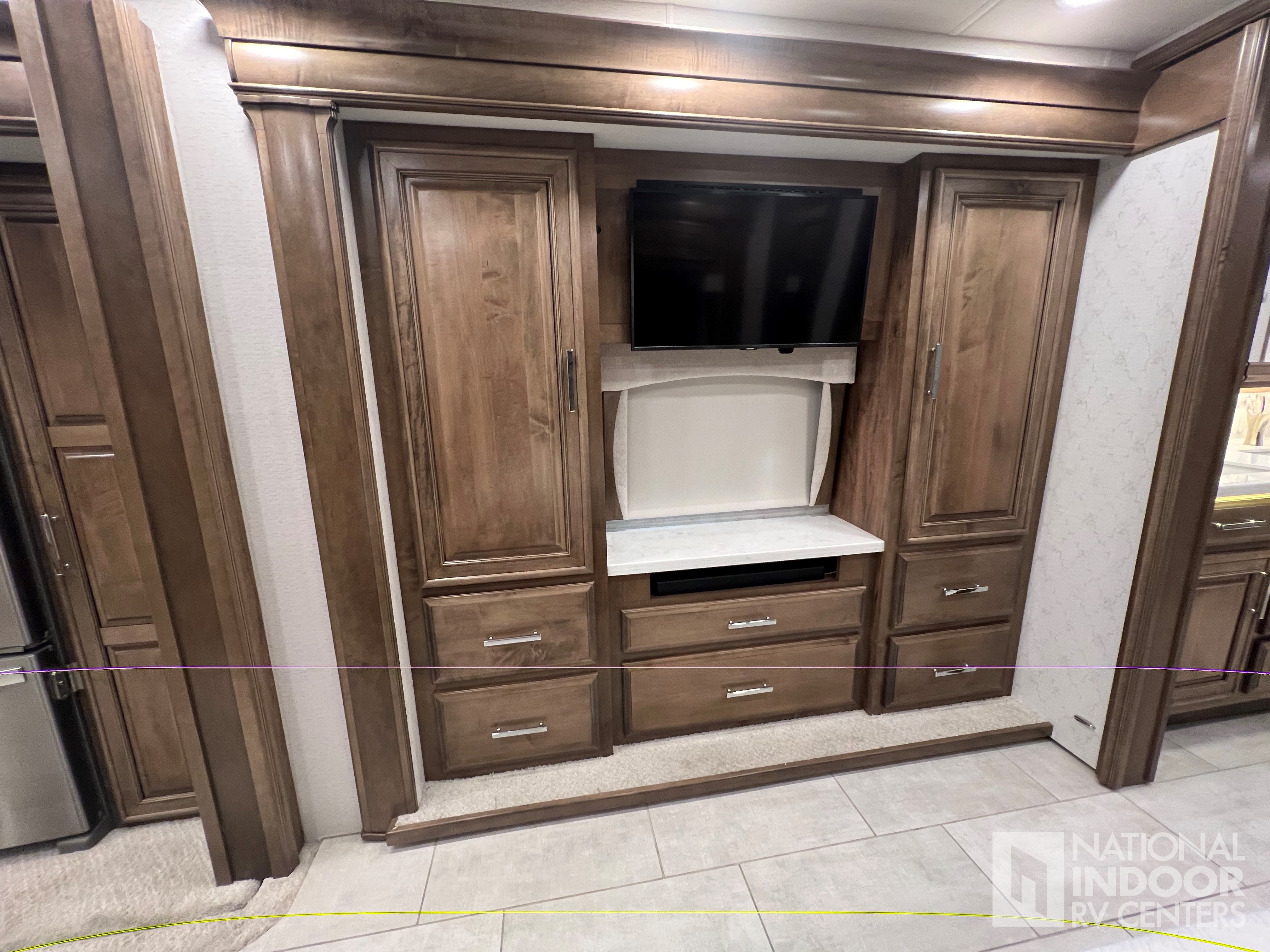

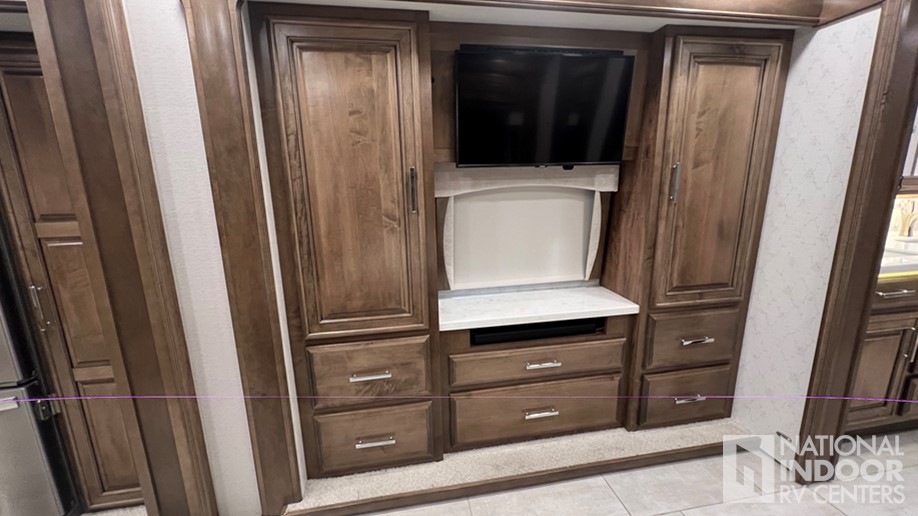

| Fireplace/TV/entertainment center and work station ILO sofa |
| Fireplace/TV/entertainment center and work station ILO sofa |
| Satellite Dish |
| Winegard In-Motion satellite dome |
| Satellite Dish - US |
| Winegard TRAV'LER Dish Network |
| Solar |
| Solar panels (dual 100-watt) |

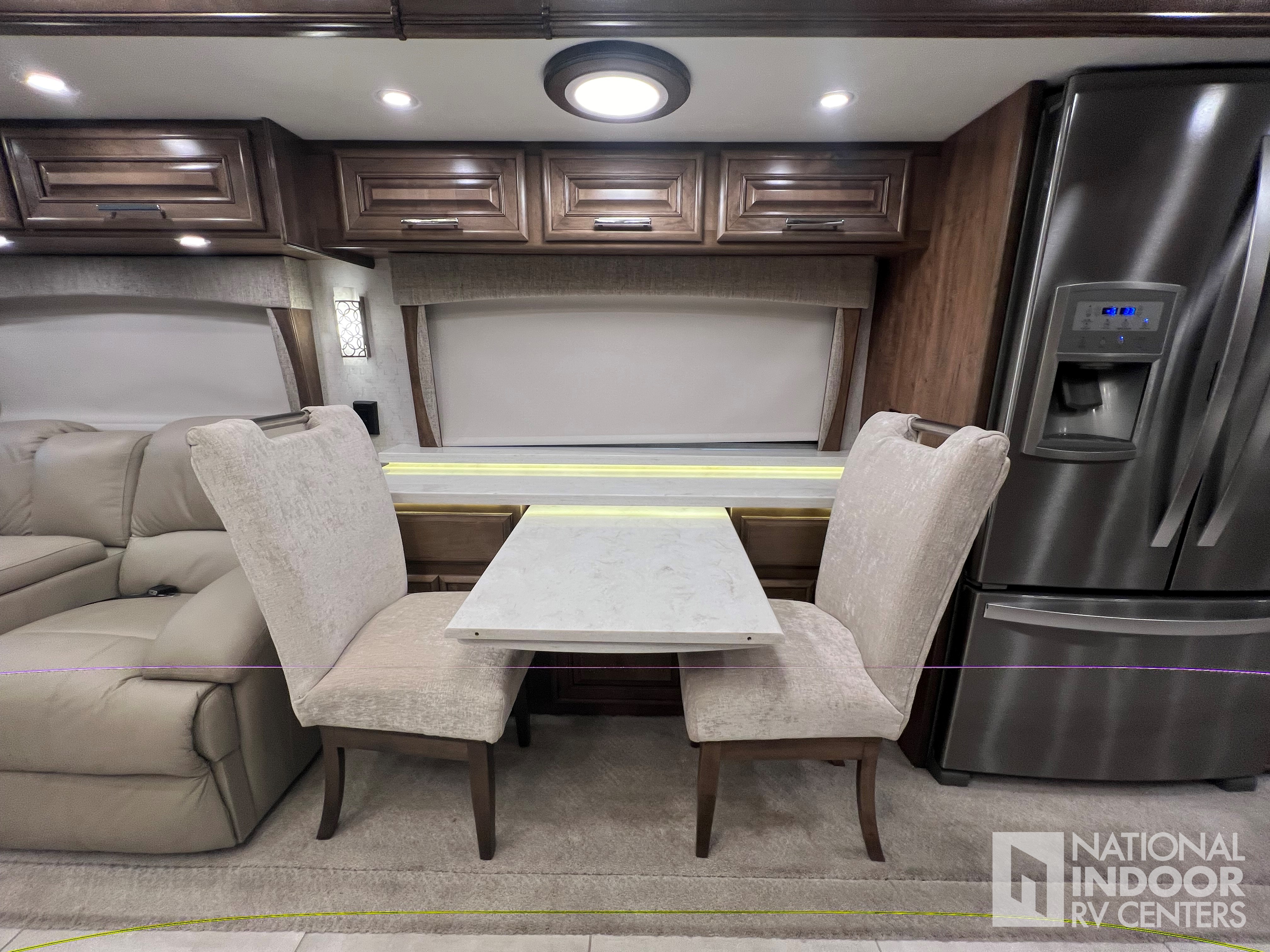

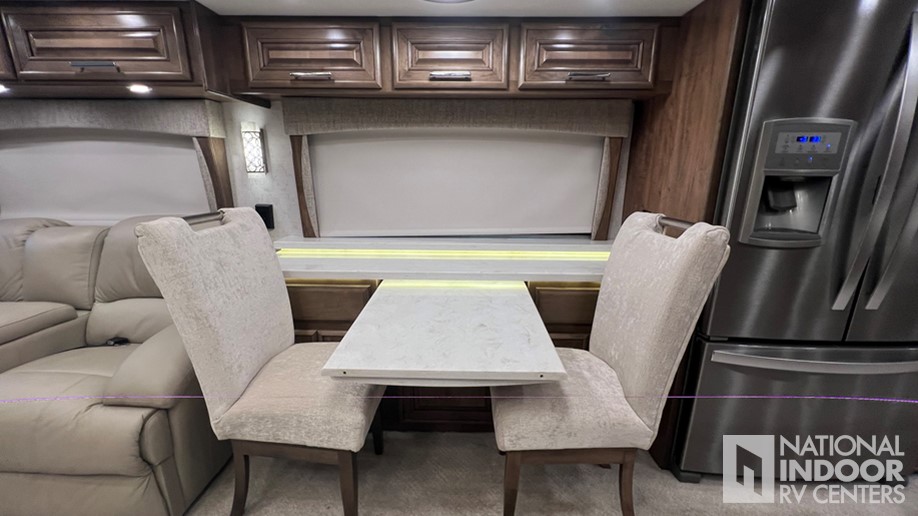

| Dinette |
| Dinette booth |
