- Stock #11648X
- LocationPhoenix
- ConditionNew
| Leveling System |
| Equalizer™ hydraulic automatic coach leveling |
| Tire Pressure Monitoring |
| Wireless tire pressure monitoring system (TPMS) with temperature monitoring |
| Chassis |
| Spartan® K1 raised-rail chassis |
| Engine |
| Cummins® B6.7 turbocharged 360 HP engine with 800 lb.-ft. torque at 1,800 RPM |
| Transmission |
| Allison® 3,000 MH 6-speed transmission |
| Radiator |
| Rear-mounted radiator |
| Alternator |
| 170 amp alternator |
| Engine Block Heater |
| 750W engine block heater |
| Engine Brake |
| Variable geometry turbo (VGT) engine brake |
| Front Suspension |
| Independent front air suspension (IFS) front axle- 14,320 lb. |
| Rear Axle |
| Rear axle - 20,000 lb. (37K) 22,000 lb (39BH/39T2) |
| Rear Axle Ratio |
| 4.88 rear axle ratio |
| Tires |
| Michelin® 275/80R 22.5 in. tires |
| Shocks |
| Bilstein® 46mm shocks |
| Air Connection |
| Remote air connection |
| Chassis Battery |
| (2) 12V chassis batteries |
| Fuel Tank |
| 100 gal. fuel tank |
| DEF Tank |
| 10 gal. DEF tank |
| Tow Air Brake System |
| Spartan® Safehaul tow vehicle air brake system |
| Hitch |
| 10,000 lb. hitch with 7-pin plug |
| Roof |
| One-piece fiberglass with 3/8 in. plywood decking, 4 in. arched aluminum trusses, insulation and reflective Flexfoil® (R-24) |
| Walls |
| Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation |
| Floor |
| Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8 in. Structurwood® and 1/4 in. plywood |
| Frame |
| X-Bridge™ bracing welded into chassis frame |
| Slideouts |
| Electric-powered slideout rooms |
| Generator |
| Onan® 8,000W diesel generator, with automatic start, on slide-out tray |
| Inverter |
| 2,000W pure sine wave inverter with 100 amp battery charger |
| Air Conditioning |
| (3) 15,000 BTU A/C units with heat pumps [(2) 15,000 BTU units with heat pumps on 37K] |
| Solar |
| (2) 200W Go Power!® solar panels |
| Batteries |
| (2) L16 AGM batteries (6V/390 amp hrs. ea.) |
| Electrical Hookup |
| 50 amp power cord |
| Transfer Switch |
| Automatic transfer switch with surge protection |
| Heating System |
| 35,000 BTU furnace (37K) / (1) 20,000 and (1) 30,000 (39BH, 39T2) |
| Water Heater |
| Tankless gas water heater |
| Propane |
| 24.5 gal. propane tank |
| Black Tank Management |
| Sani-Con® macerator holding tank dump system with manual gate valves and manual backup |
| Tank Flush |
| Black tank flush; Grey tank flush |
| Water Filtration |
| City and tank water filtration system |
| Water Hook-Up |
| Hot and cold water hook-up in front cap area with 30 ft. quick-disconnect hose |
| Heated Tanks |
| Heated basement storage |
| Wi-Fi |
| Winegard Connect 2.0 Wi-Fi/4G antenna |
| Door Awning |
| Carefree® power entrance door awning with LED lights |
| Entertainment |
| Exterior 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; Exterior JBL® radio and speakers with USB port and receptacle |
| Front/Rear Cap |
| Insulated front and rear caps (R-24) |
| Utility Center |
| Exterior utility center |
| Patio Awnings |
| Carefree® power patio awning with LED lights |
| Slideout Awnings |
| Carefree® slideout awnings |
| Window Awnings |
| Carefree® window awnings |
| Windows |
| Frameless, dual-pane, tinted, safety-glass windows |
| Keypad |
| Grab handle and keypad system for keyless entry |
| Accent Lights |
| LED accent lights under all slideout rooms |
| Mirrors |
| Heated, remote-control, side-view mirrors with integrated cameras |
| Exterior |
| Diamond Shield™ front protective film mask |
| Headlights |
| LED high and low beam headlights |
| Fog Lights |
| Halogen fog lights |
| Daytime Running Lights |
| Automatic daytime running lights |
| LED Lights |
| LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights |
| Lights |
| Porch light |
| Rear Mudflap |
| Mudflap with chrome “Entegra Coach” nameplate |
| Satellite Dish - US |
| Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option |
| Satellite Dish - CA |
| Winegard® TRAV’LER Pro satellite dish Shaw TV - standard with CSA option |
| Cargo Features |
| Slideout basement storage tray |
| Exterior Walls |
| Sikkens custom full-body paint |
| Entrance Door |
| Removable screen on entry door |
| Cameras |
| Xite™ 360° HD digital camera system |
| Dash |
| Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation |
| Infotainment System(s) |
| Xite™ XSG4 infotainment system with 9 in. touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution |
| Steering Wheel |
| Leather steering wheel with integrated controls for screen selection, instrument cluster navigation, media source selection, cruise, wipers and Bluetooth® phone functionality |
| Steering Column |
| Manual tilt and telescoping steering column |
| Windshield |
| Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers |
| Driver / Passenger Seats |
| Leather driver and passenger seats with powered 6-way adjustment and power recline |
| Power Features |
| Powered flush stepwell cover |
| Pedals |
| Powered adjustable brake and accelerator pedals |
| Visors & Privacy Shade |
| Powered front sun visors and privacy shades |
| Window Treatments |
| Manual solar day shades and blackout night shades |
| Electric Fireplace |
| LED-lit fireplace with 5,000 BTU heating element (37K only) |
| Command Center |
| Firefly multiplex system with 7 in. VegaTouch touchscreen for complete integration of coach controls (mobile app available) |
| Television - Living Room |
| 50 in. Samsung® 4K UHD Smart TV |
| Sound - Living Room |
| Samsung® sound bar with subwoofer |
| DVD Systems |
| Sony® Blu-ray™ player |
| Furniture |
| Premium leather furniture |
| Flooring |
| Hand-laid, woodgrain porcelain tiled floors |
| Lighting |
| LED interior lighting |
| Ceiling |
| Decorative ceiling feature with integrated accent lighting |
| Washer/Dryer |
| Splendide stackable washer and dryer |
| Bunks |
| Bunks with industry-exclusive 300 lb. capacity each (39BH) |
| Central Vacuuming System |
| Portable Shark® vacuum cleaner |
| Window |
| Window with push-out lever operation and screen |
| Refrigerator |
| Stainless steel residential refrigerator |
| Cooktop |
| Induction cooktop |
| Microwave |
| 1.5 cu. ft. convection microwave oven |
| Countertops |
| Solid-surface countertops with stainless steel sink |
| Water Dispenser |
| Filtered water dispenser at kitchen sink |
| Vent |
| Maxxair® Deluxe power exhaust vent fan with intake in kitchen |

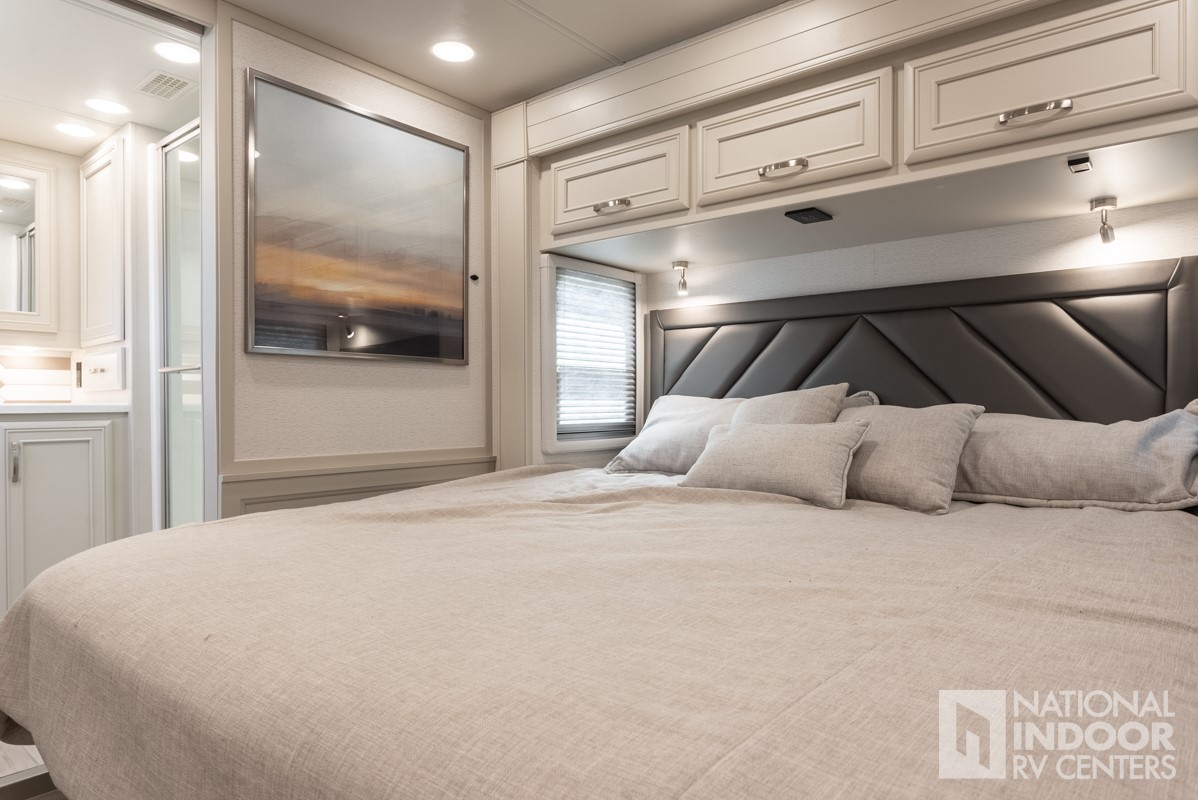

| Bed |
| King-size pillow-top mattress on tilt bed |
| Television |
| 32 in. Samsung® LED 1080P Smart TV |
| DVD Systems |
| Sony® Blu-ray™ player |
| Countertop(s) |
| Solid-surface countertops with integrated sink |
| Shower |
| One-piece fiberglass shower with skylight |
| Water Saving System |
| Aqua View SHOWERMI$ER™ water saving system |
| Toilet |
| Thetford® Aqua Magic toilet with foot flush |
| Vent |
| Maxxair® Deluxe power exhaust vent fan with intake in bathroom |
| Sink |
| Integrated sink |
| Carbon Monoxide Detector |
| Combination carbon monoxide detector and LP gas alarm |
| Smoke Alarm |
| Smoke alarm |
| Theater Seating |
| Theater seating with power recliners (39BH) |
| Hide-a-Bed Sofa |
| Hide-a-bed ILO power theater seating (37K) |
| Sofa |
| Sofa ILO power theater seating (39T2) |
| Overhead Bunk |
| Power overhead bunk in cab area with 750 lb. capacity |
| Satellite Internet |
| Starlink satellite internet system |
| Satellite Dish |
| Winegard® in-motion satellite dome |
| Satellite Dish - US |
| Winegard® TRAV’LER satellite dish Dish Network® |
| Canadian Standards |
| Canadian standards (CSA) |
